QC Fundamentals - Laying Groundwork

  • Quality Control (QC): Operational techniques ensuring test result reliability; part of QA.

  • Quality Assurance (QA): Overall measures for quality at all testing stages (pre-analytical, analytical, post-analytical).

  • Total Quality Management (TQM): Organization-wide philosophy for continuous quality improvement.

  • Aims of QC: Monitor accuracy & precision; detect errors. Ensures reliable patient results for diagnosis & treatment.

  • Errors:

    • Random (Imprecision): Unpredictable (e.g., pipetting error). Affects precision. Measured by SD/CV.
    • Systematic (Inaccuracy/Bias): Predictable, consistent (e.g., miscalibrated instrument). Affects accuracy.
    • Total Allowable Error (TEa): Maximum acceptable error for a test.
  • Formula: $TE = Bias + Z \times SD$ (Z often 1.65, 1.96, or 2).

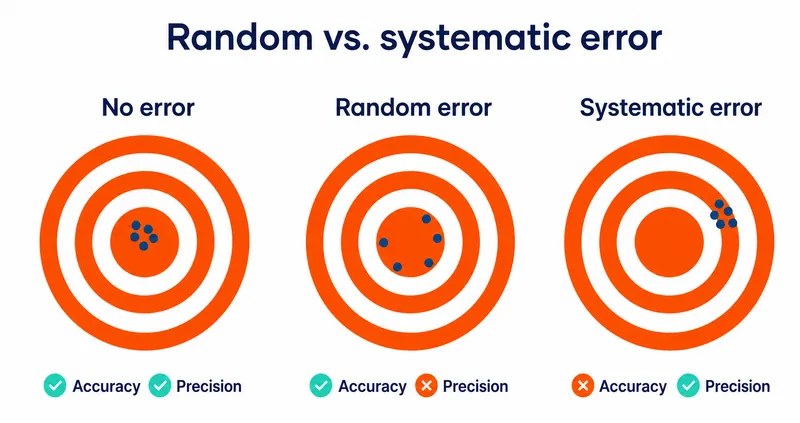

Random vs systematic error in quality control

⭐ QC is product-oriented (focuses on test results), while QA is process-oriented (focuses on the entire testing lifecycle).

QC Statistics - Numbers Don't Lie

  • Central Tendency:
    • Mean ($\bar{x}$): Average value.
    • Median: Middle value in sorted data.
    • Mode: Most frequent value.
  • Dispersion (Spread):
    • Standard Deviation (SD): Measures data spread. $SD = \sqrt{\frac{\sum (x_i - \bar{x})^2}{n-1}}$
    • Coefficient of Variation (CV%): Relative SD; key imprecision measure. $CV% = (SD/\bar{x}) \times 100$
  • Gaussian (Normal) Distribution:
    • Coverage: $\pm \textbf{1SD}$ (\textbf{68.3%}), $\pm \textbf{2SD}$ (\textbf{95.5%} - common QC limits), $\pm \textbf{3SD}$ (\textbf{99.7%}). ![Normal Distribution](normal distribution)
  • Accuracy vs. Precision:
    • Accuracy: Closeness to true value (reflects systematic error).
    • Precision: Reproducibility of measurements (reflects random error).
    • 📌 Accuracy hits the Aim (bullseye); Precision is Packed together (tight group).
  • Sigma Metrics: $(TE_a - |Bias|)/SD$. Goal: \u22656 Sigma (world-class quality; <3.4 DPMO).

⭐ The Coefficient of Variation (CV%) is a standardized measure of imprecision.

Internal QC - Charting Control

  • Control Materials:
    • Types: Lyophilized (freeze-dried), liquid; Assayed (known values), Unassayed (values by lab); Homemade, Commercial.
    • Desirable: Stable, matrix similar to patient samples, analyte levels at medical decision points (low/normal/high).
  • Levey-Jennings (LJ) Charts:
    • Plot control values vs. time. Mean line; control limits: $\ extpm 1SD, \ extpm 2SD, \ extpm 3SD$.
    • Interpretation: Trends (gradual drift), Shifts (abrupt change). Levey-Jennings chart with shift and Westgard rules
  • Westgard Multirules: (Error: R=Random, S=Systematic)
    • 1₂s: Warning (1 value > $\ extpm 2SD$).
    • 1₃s: REJECT (1 value > $\ extpm 3SD$) - R/S.
    • 2₂s: REJECT (2 consecutive values > same $\ extpm 2SD$) - S.
    • R₄s: REJECT (1 control >+2SD & another <-2SD) - R.
    • 4₁s: REJECT (4 consecutive values > same $\ extpm 1SD$) - S.
    • 10x: REJECT (10 consecutive values one side of mean) - S.
  • Actions on Rule Violation:
    • Stop patient testing. Identify & correct error. Re-run controls, then patient samples.

⭐ The 1₃s rule is a rejection rule indicating significant random or systematic error.

External QC & Broader QA - Ensuring Excellence

  • External Quality Assessment Schemes (EQAS) / Proficiency Testing (PT):
    • Purpose: Inter-lab comparison to identify systematic errors (bias) and assess accuracy.
    • Process: Labs analyze external blind samples; results submitted for peer comparison.
    • Interpretation: Performance uses metrics like Standard Deviation Index (SDI), Variance Index Score (VIS).
  • Broader Quality Assurance (QA) considers:
    • Pre-analytical variables: Sample collection, handling, storage impact QC.
    • Post-analytical variables: Result reporting, interpretation impact QC.
    • Corrective and Preventive Actions (CAPA): For continuous quality improvement.

⭐ EQAS primarily assesses the accuracy of a laboratory's performance.

High‑Yield Points - ⚡ Biggest Takeaways

  • Accuracy (true value closeness) vs. Precision (reproducibility) are key.
  • Systematic errors (SE) affect accuracy; Random errors (RE) affect precision.
  • Levey-Jennings (LJ) charts visually monitor QC data against mean ± SD.
  • Westgard rules (e.g., 1₃₅, 2₂₅, R₄₅) applied to LJ charts detect SE & RE.
  • Shifts (≥6 points one side) & Trends (≥6 points ↑/↓) indicate SE.
  • Coefficient of Variation (CV%) = (SD/Mean) x 100; measures imprecision.
  • IQC (daily) and EQA (inter-lab) ensure result reliability.
