Blotting Basics - Blotting Blueprint

  • Core Principle: Separate macromolecules (DNA, RNA, proteins) via electrophoresis, transfer to a solid membrane, then detect with specific probes.
  • General Workflow:
    • Sample Prep & Extraction
    • Electrophoretic Separation (e.g., SDS-PAGE, Agarose)
    • Transfer to Membrane (Nitrocellulose, PVDF)
    • Blocking (prevents non-specific binding)
    • Probing (specific labeled probe)
    • Detection (e.g., autoradiography, chemiluminescence)

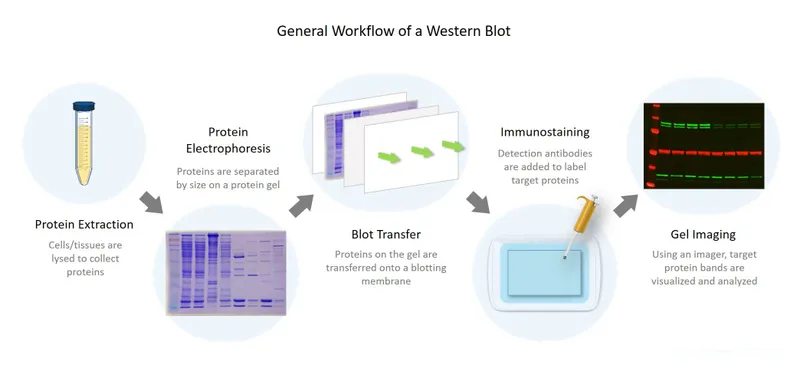

Western Blot Workflow

⭐ Key step: Transfer of separated biomolecules from gel to a solid membrane, immobilizing them for detection. This is fundamental to all blotting techniques.

Southern Blot - DNA Detective

  • Identifies specific DNA sequences (target) in a complex DNA sample.
  • Probe: Labeled single-stranded DNA/RNA complementary to target.
  • Method:
    • DNA digestion (restriction enzymes).
    • Separation by size (gel electrophoresis).
    • Denaturation to ssDNA (alkali).
    • Transfer to membrane (e.g., nitrocellulose).
    • Hybridization: Labeled probe binds target.
    • Detection (e.g., autoradiography).
  • 📌 Mnemonic: Southern = DNA (SNoW DRoP).

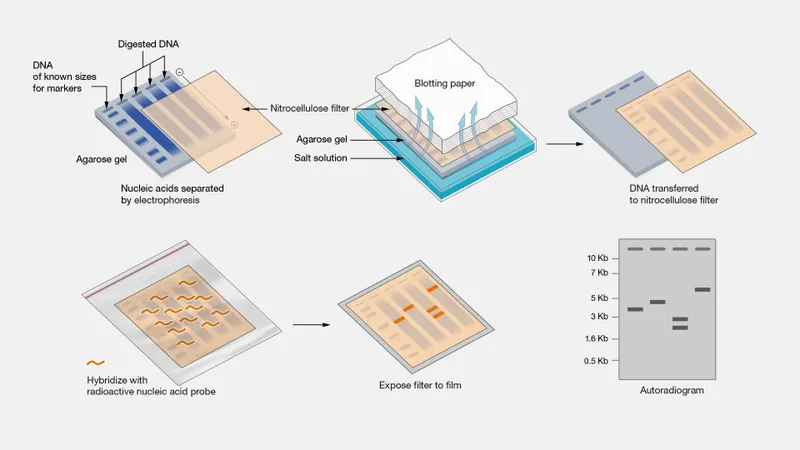

⭐ Crucial for detecting gene rearrangements, Restriction Fragment Length Polymorphisms (RFLPs) like in sickle cell anemia diagnosis, and DNA fingerprinting. Southern Blot Technique Diagram

Northern Blot - RNA Snoop

Analyzes specific RNA sequences (e.g., mRNA) to study gene expression, including transcript size and abundance.

  • Key Steps:
    • RNA extraction and purification.
    • Denaturing gel electrophoresis (e.g., formaldehyde) to separate RNA by size.
    • Transfer of RNA from gel to a membrane (e.g., nylon).
    • Hybridization with a labeled complementary probe (DNA or RNA).
    • Detection of probe-RNA complex (e.g., autoradiography). 📌 SNoW DRoP: Southern-DNA, Northern-RNA, Western-Protein.

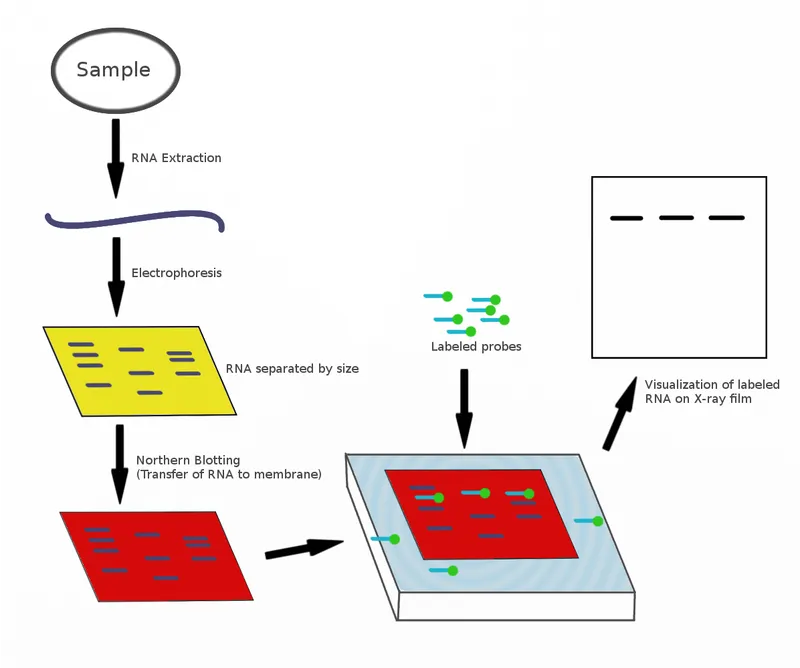

Northern blot diagram

⭐ Crucial for determining RNA transcript size, abundance, and identifying alternative splicing variants, offering insights into gene regulation mechanisms such as post-transcriptional modifications and mRNA degradation rates.

Western Blot - Protein Prowler

  • Principle: Detects specific proteins in a complex mixture. Uses antibodies as probes. 📌 SNoW DRoP (Western = Protein).

  • Workflow:

    • Separation: Proteins resolved by size using SDS-PAGE (denaturing gel electrophoresis).
    • Transfer: Proteins blotted from gel to a solid membrane (e.g., nitrocellulose, PVDF).
    • Blocking: Prevents non-specific antibody binding to membrane.
    • Detection:
      • Primary antibody binds target protein.
      • Enzyme-linked secondary antibody binds primary antibody.
      • Substrate added, enzyme produces detectable signal (colorimetric/chemiluminescent).
  • Flowchart:

  • Applications: Confirm protein presence, size, and relative abundance. Disease diagnosis.

⭐ Key confirmatory test for HIV, identifying antibodies to specific HIV proteins (e.g., p24, gp41, gp160/120). Essential for ruling out false positives from screening tests.

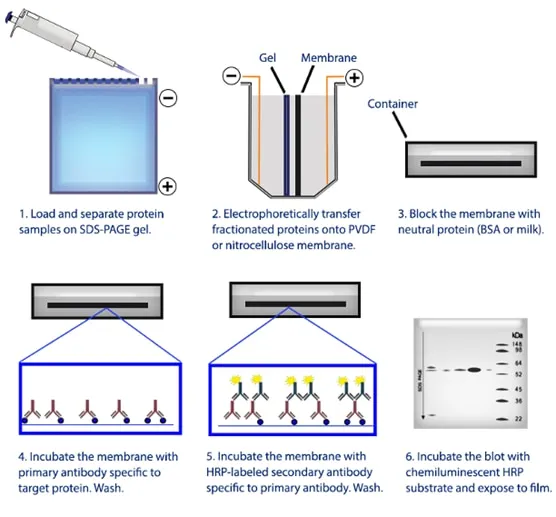

Western Blotting Steps Diagram

Blotting Showdown - SNOW Drop Chart

📌 Mnemonic SNoW DRoP: Southern detects DNA; Northern detects RNA; (O for 'Oh, nothing here!'); Western detects Protein.

TechniqueTarget MoleculeSample Prep (Key Steps)Probe UsedKey Application(s)
SouthernDNADNA digest, electrophoresisLabeled DNA/RNAGene mapping, RFLP, mutation detection, forensics
NorthernRNA (mRNA)RNA denaturation, electrophoresisLabeled DNA/RNAGene expression analysis, transcript size, splicing variants
WesternProteinProtein SDS-PAGE, transferLabeled AntibodyProtein identification, quantification, HIV confirmation

High-Yield Points - ⚡ Biggest Takeaways

  • Southern Blot: Detects specific DNA sequences (e.g., gene mutations, RFLPs). Probe: Labeled DNA.
  • Northern Blot: Identifies and quantifies RNA (gene expression analysis). Probe: Labeled DNA/RNA.
  • Western Blot: Detects specific proteins (e.g., HIV confirmation). Probe: Labeled Antibody.
  • Core steps: Gel Electrophoresis, Blotting (membrane transfer), Hybridization with probe, Visualization.
  • SNoW DRoP Mnemonic: Southern → DNA; Northern → RNA; Western → Protein.
  • Probes are crucial for specificity and are labeled for detection (e.g., radioactive, enzymatic).
