Preoxygenation Techniques - Oxygen Upfront

  • Aim: Maximize body's oxygen stores, primarily within the Functional Residual Capacity (FRC), to prolong time to desaturation during apnea.
  • Physiology: Denitrogenation - washing out nitrogen from lungs with 100% oxygen ($FiO_2 = 1.0$).
  • Endpoint: Achieve End-tidal Oxygen concentration (EtO₂) > 90%.
  • Standard Techniques:
    • 3-5 minutes of tidal volume breathing of 100% O₂ via a tight-fitting mask.
    • 4-8 vital capacity breaths (VCB) of 100% O₂ over 30-60 seconds.
  • Key for success: Adequate mask seal, patent airway, patient cooperation.

⭐ Effective preoxygenation can extend the safe apnea time from approximately 1 minute to 5-8 minutes (or more) in a healthy adult by significantly increasing oxygen stored in the FRC.

Preoxygenation Techniques - Breathe Easy Methods

  • Goal: ↑ Functional Residual Capacity (FRC) O₂ reservoir; denitrogenation. Extends time to desaturation during apnea.
  • Methods:
    • Tidal Volume Breathing (TVB):
      • 100% O₂ via tight-fitting mask.
      • Duration: 3-5 minutes.
      • Most common & effective for routine cases.
    • Vital Capacity Breaths (VCB):
      • 4-8 deep breaths of 100% O₂ over 30-60 seconds.
      • Useful in rapid sequence intubation (RSI) or when time is limited.
  • Devices: Face mask with good seal, anesthesia circuit.
  • Monitoring: End-tidal O₂ concentration (EtO₂) > 90% indicates adequate preoxygenation.

Hemoglobin Desaturation Time with Initial FAo2 = 0.87

⭐ During adequate preoxygenation, the primary gas washed out from the lungs is Nitrogen (approx. 79% of FRC initially).

Preoxygenation Techniques - Success Signals

  • Monitoring:
    • End-tidal O2 (EtO2): Gold standard. Aim > 90%.
    • Pulse Oximetry (SpO2): Indirect, delayed. Maintain 100%.
    • End-tidal N2 (EtN2): Target < 5%.
  • Endpoints:
    • EtO2 > 90% (or > 85%).
    • EtO2 plateau.
    • Time: 3-5 min tidal breathing or 4-8 vital capacity breaths (30-60s).
  • Factors Influencing Efficacy:
    • Mask seal integrity.
    • Airway patency.
    • Fresh gas flow (FGF > 5 L/min).
    • Patient FRC & O2 consumption.
    • Pulmonary shunt.

Preoxygenation with face mask and EtO2 waveform

⭐ EtO2 > 90% is the most reliable indicator of successful preoxygenation, reflecting adequate denitrogenation of the FRC.

Preoxygenation Techniques - Tricky Breathers

  • Obese Patients (BMI >30-35 kg/m²)

    • ↓FRC, ↑O2 consumption → rapid desaturation.
    • Position: Ramp/HELP (Head Elevated Laryngoscopy Position).
    • CPAP (5-10 cmH2O) beneficial.

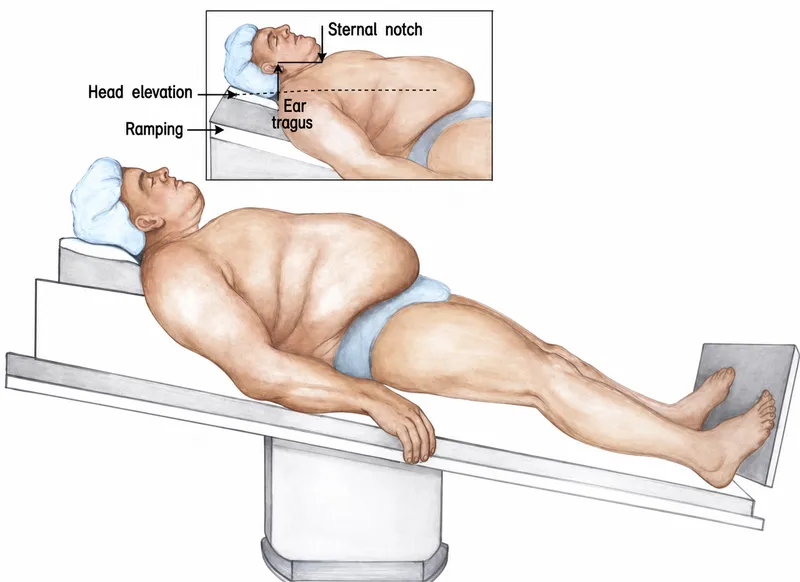

    • Target: 3-5 mins or ETO2 >90%. Ramp Position for Preoxygenation in Obese Patients
  • Pediatric Patients

    • ↑Metabolic rate, ↓FRC → rapid desaturation.
    • Ensure tight mask seal; cooperation key.
  • Pregnant Patients (At Term)

    • ↓FRC (by ~20%), ↑O2 consumption (by ~20%).
    • Left Uterine Displacement (LUD) for aortocaval relief; head-up. 📌
  • Critically Ill Patients

    • Underlying lung pathology/shunt common.
    • NIV for preoxygenation if possible.
    • Apneic oxygenation crucial; consider DSI.

⭐ Ramp position (external auditory meatus aligned with sternal notch) in obese patients improves laryngoscopy and safe apnea time.

High‑Yield Points - ⚡ Biggest Takeaways

  • Primary goal: Maximize O₂ reservoir (FRC denitrogenation) to ↑ safe apnea time.
  • Standard method: 3-5 minutes of 100% O₂ via tight-fitting mask, tidal breathing.
  • Rapid alternative: 4 vital capacity breaths of 100% O₂ over 30-60 seconds.
  • Effectiveness endpoint: End-tidal O₂ (EtO₂) >90% is the target.
  • Apneic oxygenation (e.g., nasal cannula) during laryngoscopy prolongs safe apnea time.
  • Crucial in obese, pregnant, pediatric, critically ill (↓FRC, ↑O₂ consumption).
