Fiberoptic Intubation

On this page

Indications & Advantages - Go-Ahead Guide

  • Indications (Difficult Airway):
    • Anticipated: Known difficult laryngoscopy (e.g., Mallampati III/IV)
    • C-spine injury/immobility (e.g., trauma, rheumatoid arthritis)
    • Airway obstruction: Tumors, edema, foreign body
    • Anatomical: Trismus (< 3 cm), micrognathia, macroglossia
  • Awake Intubation Needs:
    • Full stomach (aspiration risk 📌)
    • Unstable C-spine
    • To maintain spontaneous ventilation
  • Advantages:
    • Direct laryngeal view, navigates anatomy
    • Minimal hemodynamic stress
    • High success rate in difficult airways
    • Allows oxygen insufflation during procedure

⭐ Gold standard for anticipated difficult airway, especially with C-spine instability.

Awaiting image generation for "Fiberoptic intubation procedure steps diagram"

Contraindications & Complications - Scope Snags & Setbacks

  • Contraindications (FIBEROPTIC):
    • Absolute: Patient refusal, CICO (Can't Intubate, Can't Oxygenate), ⚠️ severe hypoxia/instability, lack of expertise/equipment.
    • Relative: ⚠️ Copious secretions/blood obscuring view, complete airway obstruction by mass, local anesthetic allergy (awake), significant coagulopathy (↑bleeding risk).
  • Complications:
    • During: Laryngospasm, bronchospasm, hypoxia (prolonged attempts), airway trauma (bleeding, perforation), dental damage, cardiovascular stimulation.
    • After: Sore throat, hoarseness, nerve injury (rare).

⭐ Hypoxia due to prolonged attempts or airway manipulation is a critical complication to prevent; maintain oxygenation throughout.

Equipment & Preparation - Scope Kit Setup

  • Fiberoptic Bronchoscope (FOB):
    • Appropriate size (adult: 3.5-5.0 mm OD; pediatric: 2.2-3.5 mm OD).
    • Light source & video monitor (check battery/power).
    • Working channel for suction/O₂/LA.
  • Airway Adjuncts & ETT:
    • Endotracheal tubes (ETTs): various sizes (e.g., 6.0-8.0 mm ID for adults), pre-warmed if stiff.
    • Oral airways (e.g., Ovassapian, Berman) to guide scope.
    • Water-soluble lubricant.
  • Scope Check & Setup:
    • Connect to light source/video; white balance.
    • Focus scope, check tip deflection (up/down).
    • Apply anti-fog solution to distal lens.
    • Test suction via working channel.
    • Mount lubricated ETT onto scope shaft (bevel facing upwards relative to scope markings).

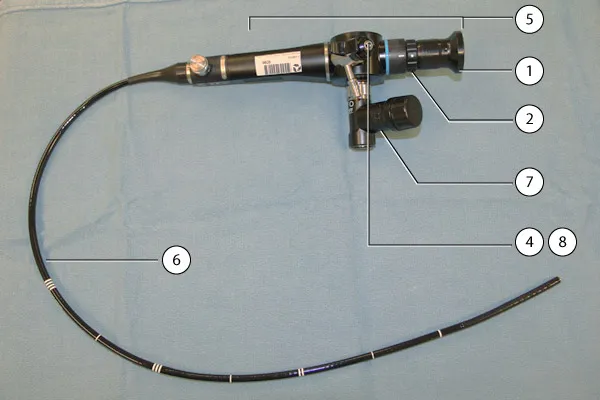

    • Secure ETT connector. Fiberoptic bronchoscope components

⭐ The working channel of most adult fiberoptic bronchoscopes is typically 2.0-2.8 mm, allowing suctioning and administration of local anesthetics or oxygen.

Technique - Path Perfect Pilot

  • Core Principle: Maintain continuous, central visualization of the airway lumen. "Keep the view midline."
  • Patient State: Awake (with thorough topical anesthesia) or Asleep (under General Anesthesia).
  • Route Selection: Oral or Nasal, based on clinical scenario and patient anatomy.
  • Key Maneuvers & Tips:
    • Optimize airway: Jaw thrust, chin lift, head extension.
    • Scope handling: Gentle advancement, withdrawal, and rotation.
    • ETT passage: If resistance felt (common at arytenoids/cricoid):
      • Withdraw scope slightly into ETT.
      • Rotate ETT (often 90° counter-clockwise).
      • Gently re-advance ETT and scope together. 📌 PPP: Path (clear view), Pilot (gentle steering), Passage (smooth ETT advancement).

⭐ Impingement of the ETT bevel on the right arytenoid cartilage or the posterior commissure is a common cause of difficulty during railroading. A 90° counter-clockwise rotation of the ETT usually helps align the bevel away from these structures, facilitating smoother passage into the trachea.

Troubleshooting & Special Cases - Scope Savvy Solutions

  • Red out/Pink haze: Scope too close/blood. Withdraw slightly, suction.
  • White out: Secretions obscure view. Suction, anti-sialogogue.
  • ETT advancement difficulty: ETT impingement (e.g., arytenoids). Rotate ETT 90° CCW, jaw thrust.
  • Fogging: Anti-fog solution, warm tip, O₂ insufflation.
  • Lost view? Withdraw to landmark, reorient.
  • Special Cases:
    • C-spine injury: Maintain neutral position.
    • Airway bleeding: Aggressive suction.
    • Difficult airway (e.g., tumor): AFOI preferred.

⭐ ETT advancement failure: often right arytenoid impingement. Rotate ETT 90° CCW_

High‑Yield Points - ⚡ Biggest Takeaways

  • Gold standard for anticipated difficult airway management.
  • Requires effective topical anesthesia and often antisialagogues (e.g., glycopyrrolate) for optimal views.
  • Indicated in cervical spine injury, limited mouth opening (trismus), and upper airway obstruction (e.g., tumors, stenosis).
  • Can be performed awake (preferred for known/anticipated difficult airways) or under general anesthesia with maintained spontaneous ventilation.
  • Sellick's maneuver (cricoid pressure) is generally contraindicated during awake fiberoptic intubation due to patient discomfort and potential airway distortion.
  • Key to success: thorough airway preparation, patient cooperation (if awake), skillful scope manipulation, and maintaining a clear visual field.
