Airway Anatomy

On this page

Nose & Pharynx - Air's First Hurdles

  • Nose:
    • Functions: Warms, humidifies, filters air.
    • Structures: Nasal septum; Turbinates (superior, middle, inferior) ↑ surface area for air conditioning.
    • Kiesselbach's plexus (Little's area): Anterior septum, common epistaxis site. Upper Airway Anatomy: Sagittal View
  • Pharynx: Muscular tube (approx. 12-14 cm); common air/food passage.
    • Nasopharynx: Posterior to nose, extends to soft palate. Contains adenoids (pharyngeal tonsils), Eustachian tube openings.
    • Oropharynx: Soft palate to superior border of epiglottis. Contains palatine & lingual tonsils.
    • Laryngopharynx (Hypopharynx): Epiglottis to inferior border of cricoid cartilage (level of C6 vertebra).

    ⭐ Waldeyer's tonsillar ring: Protective lymphoid ring composed of pharyngeal, tubal, palatine, and lingual tonsils. Clinical significance: hypertrophy → potential airway obstruction; common site for infections (e.g., tonsillitis).

Larynx Anatomy - Guardian of the Gate

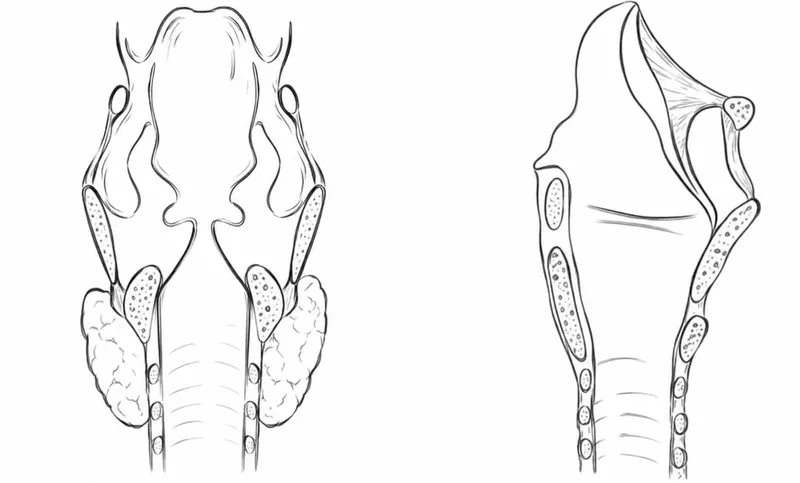

Larynx anatomy sagittal and coronal views

  • Cartilages of the Larynx:

    TypeCartilagesKey Feature
    UnpairedThyroid, Cricoid, EpiglottisThyroid: largest
    PairedArytenoid, Corniculate, CuneiformArytenoid: vocal cord attachment
  • Laryngeal Muscles & Actions:

    • Intrinsic: Fine vocal cord movements.
      • Abductor: Posterior Cricoarytenoid (PCA) - 📌 "PCA Pulls Cords Apart"
      • Adductors: Lateral Cricoarytenoid, Interarytenoids (Transverse & Oblique)
      • Tensor: Cricothyroid (CT)
      • Relaxer/Adductor: Thyroarytenoid (Vocalis muscle)
    • Extrinsic: Elevate/depress larynx during swallowing.
  • Nerve Supply:

    • Sensory:
      • Above vocal cords (Supraglottis): Internal laryngeal nerve (branch of Superior Laryngeal Nerve - SLN).
      • Below vocal cords (Infraglottis): Recurrent Laryngeal Nerve (RLN).
    • Motor:
      • Cricothyroid muscle: External laryngeal nerve (branch of SLN).
      • All other intrinsic muscles: RLN.

⭐ All intrinsic laryngeal muscles are supplied by the recurrent laryngeal nerve (RLN) except the cricothyroid (supplied by the external branch of the superior laryngeal nerve).

  • Laryngeal Nerve Supply Pathway:

Trachea & Bronchi - Pipes to Perfection

  • Trachea (Windpipe):
    • Length: 10-12 cm; Diameter: ~2.5 cm.
    • 16-20 C-shaped hyaline cartilage rings; open posteriorly (trachealis muscle).
    • Lining: Ciliated pseudostratified columnar epithelium.
    • Bifurcation: Carina (level of sternal angle, T4-T5 vertebrae).
  • Bronchial Tree:
    • Main (Primary) Bronchi:
      • Right: Wider, shorter (~2.5 cm), more vertical (angle ~25°).
      • Left: Narrower, longer (~5 cm), more horizontal (angle ~45°).
    • Lobar (Secondary) Bronchi: 3 on the right, 2 on the left.
    • Segmental (Tertiary) Bronchi: Supply bronchopulmonary segments.
    • Cartilage: Rings in trachea → Irregular plates in bronchi → Absent in bronchioles.

⭐ The right main bronchus is wider, shorter, and more vertical than the left, making it a common site for foreign body aspiration.

📌 Right main bronchus: Ready for Rubbish (foreign bodies).

Airway Anatomy on Chest X-ray

Pediatric Airway - Tiny Tubes, Big Deals

Pediatric airways differ significantly, posing unique challenges. Key differences:

FeaturePediatricAdult
TongueRelatively largerProportionate
LarynxHigher (C3-C4), anteriorLower (C4-C5)
EpiglottisLong, floppy, Ω-shapedShorter, broader, U-shaped
Narrowest PartCricoid (functional)Glottis (vocal cords)
TracheaShorter, narrower, compliantLonger, wider, rigid
OcciputLarge (causes flexion)Smaller
$O_2$ Consumption↑ (6-8 ml/kg/min)↓ (3-4 ml/kg/min)
*   Prone to obstruction; rapid desaturation.
*   Large occiput: shoulder roll for neutral ("sniffing") position.
*   Larynx & epiglottis: straight blade (Miller) often preferred for infants.
*   ETT size (uncuffed): $(Age/4) + 4$. Cuffed: $(Age/4) + 3.5$.
*   📌 Mnemonic (Narrowest): **C**hildren **R**ing is **C**ricoid.

⭐ The narrowest part of the pediatric airway is the cricoid cartilage (functionally, a complete ring), unlike the glottis in adults.

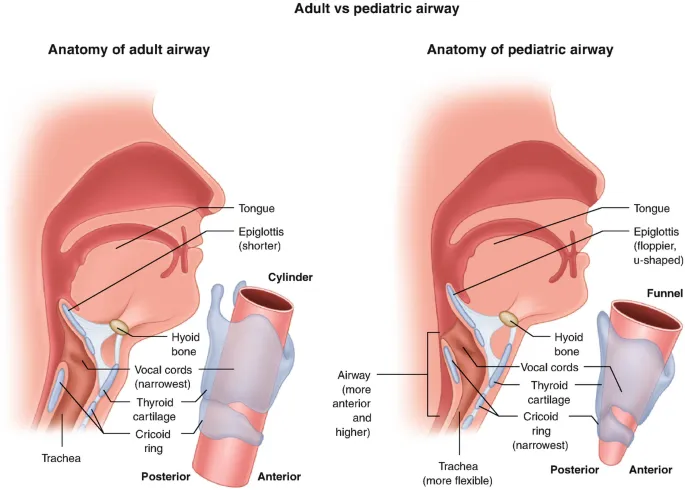

Adult vs Pediatric Airway Anatomy Comparison

High‑Yield Points - ⚡ Biggest Takeaways

  • Narrowest adult airway: Rima glottidis; pediatric: Cricoid cartilage (complete ring, subglottic).
  • Trachea: begins at C6 vertebra, bifurcates at T4-T5 (carina).
  • Right main bronchus: wider, shorter, more vertical than left; common aspiration site.
  • Sensory above vocal cords: Internal Superior Laryngeal Nerve; below cords & trachea: Recurrent Laryngeal Nerve.
  • Motor to intrinsic laryngeal muscles: Recurrent Laryngeal Nerve (except cricothyroid by External SLN).
  • Vallecula: depression anterior to epiglottis, key for Macintosh blade placement.
