Neuraxial Anatomy

On this page

Vertebral Column & Ligaments - Bone Zone & Ties

  • Vertebral Column:
    • Composed of 33 vertebrae (C7, T12, L5, S5, Co4).
    • Curves: Primary (Kyphotic - Thoracic, Sacral); Secondary (Lordotic - Cervical, Lumbar).
    • Vertebral canal: Houses spinal cord & meninges.
    • Intervertebral foramina: Spinal nerve passage.
  • Key Spinal Ligaments (encountered posterior to anterior in midline approach):
    • Supraspinous: Connects tips of spinous processes.
    • Interspinous: Between adjacent spinous processes.
    • Ligamentum Flavum: Connects laminae; yellow, elastic. Strongest.

    ⭐ Ligamentum flavum is the thickest spinal ligament, offering distinct resistance during epidural needle insertion.

    • Posterior Longitudinal Ligament (PLL): On posterior vertebral bodies.
    • Anterior Longitudinal Ligament (ALL): On anterior vertebral bodies. Sagittal view of vertebral column and major spinal ligaments

Spinal Cord & Meninges - Cord Central & Wraps

  • Spinal Cord:
    • From medulla. Segments: C8, T12, L5, S5, Co1.
    • Enlargements: Cervical (brachial plexus), Lumbar (lumbosacral plexus).
    • Conus Medullaris (termination): Adults L1-L2, Neonates L3.
    • Filum Terminale (pia): Anchors cord.
    • Cauda Equina: Lumbosacral nerve roots below conus.
  • Meninges (Outer → Inner): 📌 DAP (Dura, Arachnoid, Pia)
    • Dura Mater: Tough outer layer; dural sac ends at S2.
      • Epidural Space: Between dura & vertebrae; fat, venous plexuses.
    • Arachnoid Mater: Delicate middle layer.
      • Subarachnoid Space (SAS): Between arachnoid & pia; CSF, site for spinal anesthesia.
    • Pia Mater: Innermost layer, adheres to cord; forms denticulate ligaments & filum terminale.

, cauda equina, and meningeal layers (dura, arachnoid, pia))

⭐ In adults, the spinal cord typically terminates at the lower border of L1 or upper border of L2 vertebra (conus medullaris), while the dural sac extends to S2.

Epidural Space - The Epi Envelope

  • Potential space: External to dura mater; internal to ligamentum flavum & vertebral periosteum.
  • Boundaries:
    • Superiorly: Foramen magnum (dura fuses with periosteum).
    • Inferiorly: Sacral hiatus (sacrococcygeal membrane).
    • Anteriorly: Posterior longitudinal ligament.
    • Posteriorly: Ligamentum flavum, vertebral laminae.
    • Laterally: Pedicles, intervertebral foramina.
  • Contents:
    • Loose areolar (adipose) tissue
    • Internal vertebral venous plexus (Batson's plexus)
    • Arteries (segmental spinal branches)
    • Lymphatics
    • Spinal nerve roots (after dural exit)
  • Clinically significant for epidural anesthesia/analgesia. Pressure is typically subatmospheric (negative), but can be positive. Lumbar spine MRI with epidural space

⭐ The epidural space contains Batson's plexus, a network of valveless veins that can become engorged during pregnancy or with increased intra-abdominal pressure, increasing the risk of intravascular catheter placement during epidural procedures and facilitating hematogenous spread of infection/metastases to vertebrae/CNS.

Subarachnoid Space - CSF Sea Deep

  • Location: Between arachnoid and pia mater.
  • Contents:
    • Cerebrospinal Fluid (CSF) - the "CSF Sea"
    • Spinal nerve roots (cauda equina)
    • Spinal blood vessels
  • Extent:
    • Cranial: Continuous with intracranial subarachnoid space.
    • Caudal limit: S2 vertebral level (dural sac).
  • Clinical Significance:
    • Spinal anesthesia target (intrathecal).
    • Lumbar Puncture (LP) for CSF sampling.

⭐ The volume of cerebrospinal fluid (CSF) in the spinal subarachnoid space is approximately 25-35 mL in adults.

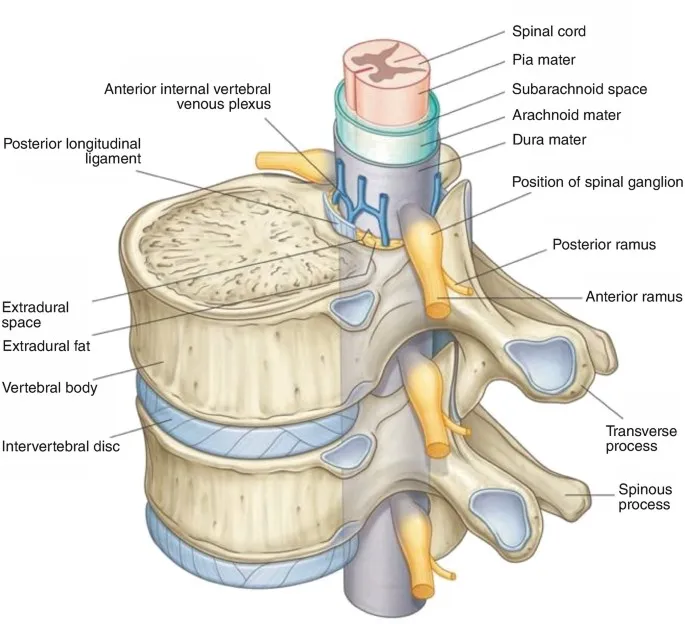

Spinal canal cross-section with meninges and nerves

Dermatomes & Vascular Supply - Nerve Maps & Pipes

  • Key Dermatomes (Block Height Assessment):
    • Nipple: T4
    • Xiphoid process: T6
    • Umbilicus: T10 (📌 "Tummy-TEN")
    • Inguinal ligament: L1
    • Little toe: S1
  • Spinal Cord Arterial Supply:
    • Anterior Spinal Artery (ASA): Supplies anterior 2/3rds.
    • Posterior Spinal Arteries (PSAs) (2): Supply posterior 1/3rd.
    • Segmental medullary arteries reinforce supply.

⭐ The Artery of Adamkiewicz (great anterior radicular artery) is the major blood supply to the anterior lower two-thirds of the spinal cord, typically arising from a left intercostal artery between T9 and L2.

  • Venous Drainage: Internal vertebral venous plexus (Batson's plexus) - valveless. Spinal Cord and Surface Anatomy for Neuraxial Anesthesia

High‑Yield Points - ⚡ Biggest Takeaways

  • Spinal cord termination: L1-L2 in adults, extends to L3 in neonates.
  • Dural sac and subarachnoid space typically terminate at the S2 vertebral level.
  • Ligamentum flavum: thickest ligament, first significant resistance felt.
  • Epidural space: a potential space containing fat, veins, and lymphatics.
  • Tuffier's line (intercristal line): marks L4 spinous process or L4-L5 interspace.
  • Cerebrospinal Fluid (CSF): volume ~150 mL; specific gravity 1.003-1.009.
  • Sacral hiatus: formed by non-fusion of S4/S5 laminae, used for caudal epidural block.
