Transesophageal Echocardiography - Echo Essentials

  • Principles: Utilizes high-frequency ultrasound waves reflecting off cardiac structures. Doppler effect ($Δf = 2 \cdot f_0 \cdot v \cdot \cos(θ) / c$) assesses blood flow. Multiplane probes manipulated by ante/retroflexion, L/R flexion, rotation, advance/withdraw.
  • Key Indications: Intraoperative monitoring (cardiac surgery, high-risk non-cardiac), unexplained hemodynamic instability, guiding cardiac procedures (e.g., valve repair, septal defect closure), critical care (ICU).
  • Contraindications:
    AbsoluteRelative
    Esophageal stricture/tumor, active UGI bleedEsophageal varices/diverticula, recent UGI surgery
    Perforated viscusRadiation esophagitis, coagulopathy
  • Complications: Most common: sore throat, dysphagia. Serious: Esophageal perforation (risk 0.01-0.09%), dental injury, major bleeding.

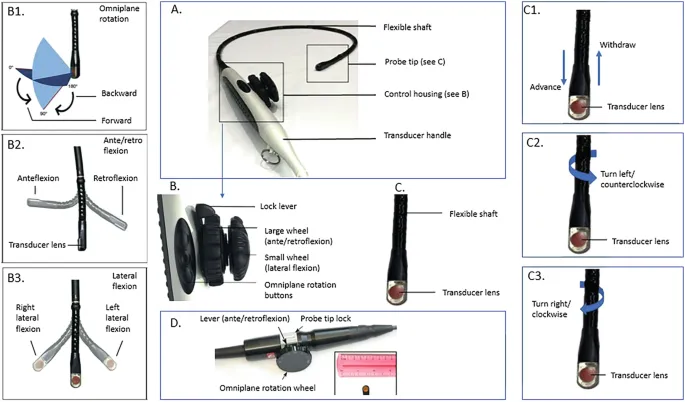

    ⭐ Esophageal perforation is the most feared, though rare, complication of TEE. TEE Probe Manipulation Techniques

Transesophageal Echocardiography - Window Shopping Heart

TEE offers a crucial intraoperative "window" to cardiac structures and function. Standardized acquisition involves up to 28 views (ASE/SCA guidelines).

Key TEE View Groups:

View GroupKey Views (Typical Angle)Main Structures Visualized
Midesophageal (ME)4-Chamber (), 2-Chamber (90°), Long-Axis (120°)Chambers, valves (MV, TV, AV), LV/RV function, septa
Transgastric (TG)Mid Short-Axis (), 2-Chamber (90°)LV segments (wall motion), papillary muscles, MV apparatus
Upper Esophageal (UE)Aortic Arch (Long/Short Axis)Ascending aorta, aortic arch & branches, main pulmonary artery

⭐ The midesophageal four-chamber (ME 4C) view is a cornerstone for assessing global cardiac function, chamber sizes, and atrioventricular valve function.

Transesophageal Echocardiography - Heart's Vital Signs

Key TEE metrics:

  • LV Systolic: EF >55%; FAC >35%.
  • RV Systolic: TAPSE >17mm; S' (tricuspid annular velocity) >9.5 cm/s.
  • Diastolic: E/A ratio; E/e' (septal <15, lateral <10 for normal LVFP); Deceleration Time (DT).
  • Stenosis:
    • Gradients: $ΔP = 4v^2$ (Bernoulli).
    • Aortic Valve Area (AVA): $AVA = (CSA_{LVOT} \times VTI_{LVOT}) / VTI_{Valve}$. Severe AS: AVA <1.0 cm².
    • Mitral Valve Area (MVA): $MVA = 220 / PHT$. Severe MS: MVA <1.0 cm².
  • Regurgitation:
    • Color Doppler (jet characteristics).
    • Vena Contracta (VC): Severe MR VC >0.7 cm.
    • PISA: Severe MR EROA ≥0.4 cm², Regurgitant Volume (RegVol) ≥60 mL.
  • Preload: Left Ventricular End-Diastolic Area (LVEDA)/Right Ventricular End-Diastolic Area (RVEDA); IVC diameter & collapsibility.

Table: Mitral Regurgitation (MR) Severity Grading

SeverityVC (cm)EROA (cm²)RegVol (mL)
Mild<0.3<0.20<30
Moderate0.3-0.690.20-0.3930-59
Severe0.70.4060

⭐ The continuity equation is fundamental for quantifying aortic stenosis severity using TEE, especially when Doppler alignment for direct velocity measurement is challenging.

Transesophageal Echocardiography - Echo in Action

  • Intraoperative Monitoring:
    • Ischemia: New Regional Wall Motion Abnormalities (RWMA).
    • Valvular surgery: Assess repair/replacement (e.g., residual MR, Paravalvular Leak (PVL)).
    • Detects air embolism, cardiac masses.
  • Critical Care (ICU):
    • Unexplained hypotension/shock: Evaluates LV/RV function, volume status.
    • Suspected PE: RV strain, McConnell's sign.
    • Endocarditis: Vegetations, abscess.
    • Pericardial effusion/tamponade.
    • Guides interventions: pericardiocentesis, vasopressor titration.

⭐ TEE is highly sensitive for detecting new regional wall motion abnormalities, a key indicator of intraoperative myocardial ischemia, often before ECG changes occur.

High‑Yield Points - ⚡ Biggest Takeaways

  • TEE is vital for intraoperative cardiac assessment during surgery and for managing hemodynamic instability.
  • Evaluates ventricular function (RWMA), valvular diseases, intracardiac air, and aortic pathology.
  • Esophageal strictures, tumors, or active bleeding are key contraindications.
  • Offers superior views of posterior structures like the mitral valve and descending aorta compared to TTE.
  • Critical for guiding CPB cannulation, diagnosing tamponade, and assessing valve repairs.
  • Rare but serious complications include esophageal perforation and dental injury.
