Cardiopulmonary Bypass Principles

On this page

CPB: Introduction & Goals - Heart's Holiday Helper

  • Cardiopulmonary Bypass (CPB): "Heart-Lung Machine." An extracorporeal circuit temporarily replacing heart & lung functions. Diverts venous blood to an oxygenator & pump, returning it oxygenated to the arterial system.
  • Primary Goals:
    • Provide a still, bloodless surgical field.
    • Maintain systemic perfusion & oxygenation.
    • Allow myocardial protection (cardioplegia).
    • Preserve end-organ function.
  • Key Uses: Cardiac surgeries (CABG, valve repair), heart/lung transplant.

⭐ CPB allows surgeons to operate on a non-beating heart while maintaining vital organ perfusion.

oka

CPB: Circuit Components - The Life Support Loop

  • Venous Drainage: Blood via cannulae (SVC/IVC/RA) to venous reservoir (collects, defoams).
  • Main Pump (Artificial Heart):
    • Roller: Occlusive, fixed output.
    • Centrifugal: Non-occlusive, afterload-dependent.
  • Oxygenator (Artificial Lung): Membrane type (microporous fibers) for gas exchange (O2↑, CO2↓).
  • Heat Exchanger: Integrated; controls patient temperature (cooling/rewarming).
  • Arterial Filter & Bubble Trap: Safety; removes particulates (≥ 20-40 µm) & air.
  • Arterial Return: Oxygenated blood to patient (e.g., aortic cannula).
  • Accessory: Cardiotomy suction (salvage), Vent (cardiac decompression).

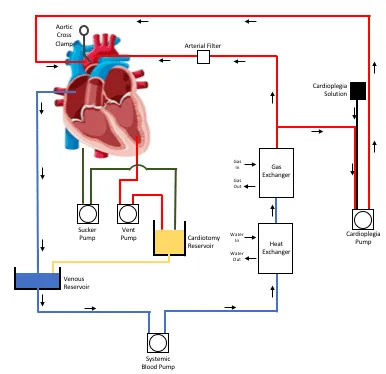

Cardiopulmonary bypass circuit diagram

⭐ > Most modern oxygenators are membrane oxygenators, offering superior biocompatibility and less blood trauma compared to older bubble oxygenators.

CPB: Physiological Management - Balancing Act

  • Anticoagulation: Heparin 300-400 IU/kg. Target ACT > 480s.
  • Hemodynamics:
    • MAP: 50-70 mmHg.
    • Pump Flow (CI): 2.2-2.5 L/min/m². Monitor SvO2 > 70%.
  • Gas Exchange:
    • PaO2: 150-250 mmHg. PaCO2: 35-45 mmHg.
    • Adjust sweep gas (CO2) & FiO2 (O2).
  • Temperature: Moderate hypothermia (28-32°C) ↓O2 demand. Careful rewarming.
  • Acid-Base: Alpha-stat (pH uncorrected for temp) vs pH-stat.

    ⭐ Alpha-stat strategy: better cerebral autoregulation in adults.

  • Hematocrit: Target Hct 20-25%.
  • Electrolytes: Monitor K+, Ca2+, Mg2+. oka

CPB: Complications & Weaning - Homestretch Hurdles

  • Complications:

    • SIRS: Due to blood-circuit interaction.
    • Bleeding: Coagulopathy (factor dilution, platelet dysfunction), heparin rebound.
    • Neurological: Embolic/hypoperfusion stroke, cognitive dysfunction ("pump head").
    • Renal: AKI from hypoperfusion/hemolysis.
    • Pulmonary: "Pump lung" (capillary leak).
    • Myocardial dysfunction: Stunning, ischemia.
  • Weaning Prerequisites:

    • Core temperature >36°C (normothermia).
    • Adequate hemodynamics (e.g., MAP >65 mmHg, acceptable CVP).
    • Effective oxygenation (SaO2 >92%) & ventilation (normocapnia).
    • Corrected electrolytes (K+, Ca++), glucose & acid-base balance.
    • Satisfactory cardiac function (rhythm, contractility via TEE).
    • Anticoagulation reversal: Target ACT <130-150s after protamine.

⭐ Protamine administration can cause hypotension, pulmonary hypertension, or anaphylactoid reactions. Careful, slow administration is crucial.

High‑Yield Points - ⚡ Biggest Takeaways

  • Cardiopulmonary bypass (CPB) diverts blood from the heart and lungs, enabling open-heart surgery by providing gas exchange and systemic circulation.
  • Key components include venous drainage cannulae, a reservoir, an oxygenator, a heat exchanger, an arterial pump, and an arterial line filter.
  • Systemic heparinization (target ACT > 480 seconds) is crucial before CPB initiation and is reversed with protamine after bypass.
  • Induced hypothermia (e.g., 28-32°C) reduces tissue oxygen consumption and provides organ protection.
  • Cardioplegia, a high-potassium solution, is administered to induce electromechanical cardiac arrest, creating a still, bloodless surgical field.
  • Major adverse effects include systemic inflammatory response (SIRS), coagulopathy, hemodilution, neurological injury, and renal dysfunction.
  • The CPB circuit prime (crystalloid/colloid) significantly impacts hematocrit and colloid oncotic pressure post-initiation.
