Shoulder Girdle & Axilla - Bony Bumps & Armpit Secrets

  • Shoulder Girdle Landmarks (Palpable):
    • Clavicle: S-shaped; sternal & acromial ends.
    • Scapula: Acromion (shoulder tip), coracoid process, spine.
    • Humerus (Proximal): Greater & lesser tubercles, intertubercular groove.
  • Axilla (Armpit): Pyramidal neurovascular gateway.
    • Apex: Clavicle, 1st rib, scapula.
    • Anterior wall: Pectoralis major/minor.
    • Posterior wall: Subscapularis, teres major, latissimus dorsi.
    • Medial wall: Serratus anterior, ribs.
    • Lateral wall: Humerus (intertubercular groove).
    • Contents: Axillary vessels, brachial plexus, lymph nodes.

Surface anatomy of shoulder and axilla

⭐ Axillary nerve injury (e.g., surgical neck fracture of humerus) causes deltoid paralysis & sensory loss over regimental badge area.

Arm & Elbow - Muscle Maps & Joint Junctions

  • Arm Compartments:
    • Anterior (Flexors): Biceps brachii, Brachialis, Coracobrachialis (Musculocutaneous N.)
    • Posterior (Extensors): Triceps brachii (Radial N.)
      • Radial groove: Radial N., Profunda brachii A.
  • Elbow Joint (Hinge):
    • Articulations: Humeroulnar, Humeroradial, Proximal radioulnar.
    • Landmarks: Medial & Lateral epicondyles, Olecranon.

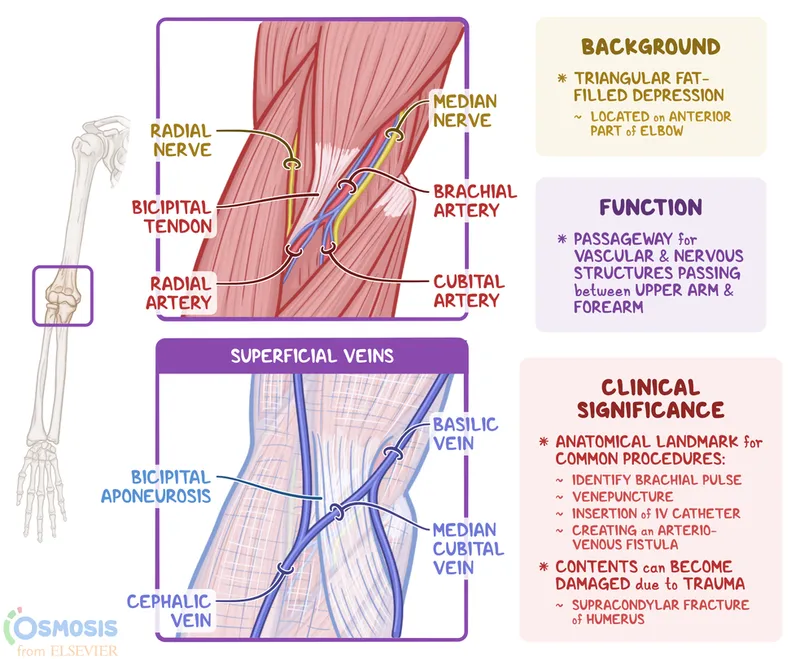

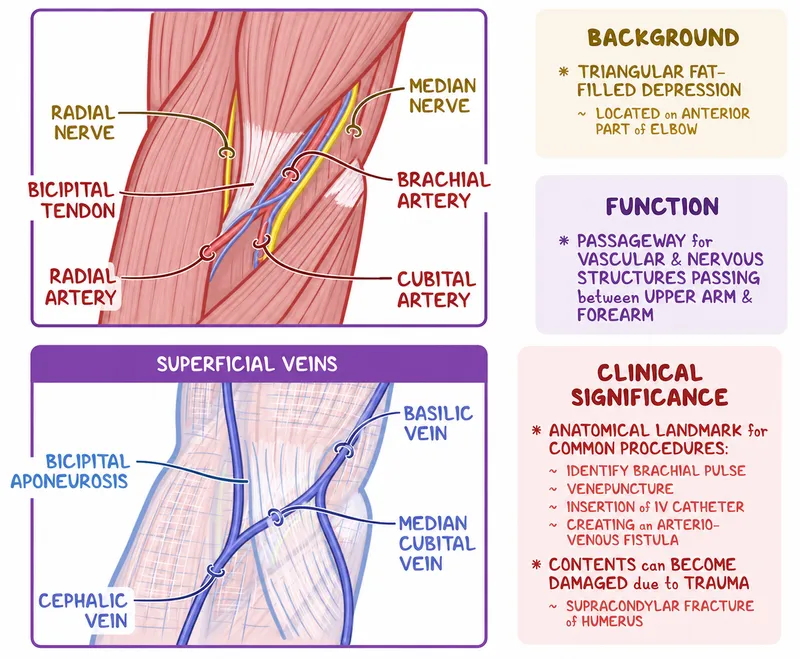

    • Carrying angle: ~5-15°. Cubital Fossa Anatomy and Clinical Significance
  • Cubital Fossa (Anterior elbow):
    • Boundaries: Epicondyles (sup.), Pronator teres (med.), Brachioradialis (lat.).
    • Contents (Medial to Lateral - 📌 MBBR): Median N., Brachial A., Biceps tendon, Radial N. (deep).

⭐ Supracondylar fracture of humerus commonly injures the Median nerve and Brachial artery.

Forearm, Wrist & Hand - Pulse Points & Palmistry

  • Pulse Points (Forearm/Wrist):
    • Radial Artery: Lateral to Flexor Carpi Radialis (FCR) tendon. Common for pulse, Arterial Blood Gas (ABG) sampling.
      • Allen's Test: Assesses collateral circulation via ulnar artery before radial artery procedures.
    • Ulnar Artery: Lateral to Flexor Carpi Ulnaris (FCU) tendon, proximal to pisiform bone.
  • Key Palmar Features (Surface Anatomy):
    • Palmar Creases: Proximal & distal transverse creases, longitudinal (thenar) crease.
      • 📌 Simian Crease: Single transverse palmar crease (associated with conditions like Down Syndrome).
    • Thenar & Hypothenar Eminences: Muscle groups at base of thumb and little finger.
  • Important Spaces/Structures:
    • Anatomical Snuffbox:
      • Borders: Extensor Pollicis Longus (EPL) (medially/ulnarly), Extensor Pollicis Brevis (EPB) & Abductor Pollicis Longus (APL) (laterally/radially).
      • Contents: Radial artery, scaphoid bone (floor).
    • Guyon's Canal (Ulnar Canal): Passage for ulnar nerve & artery into the hand.

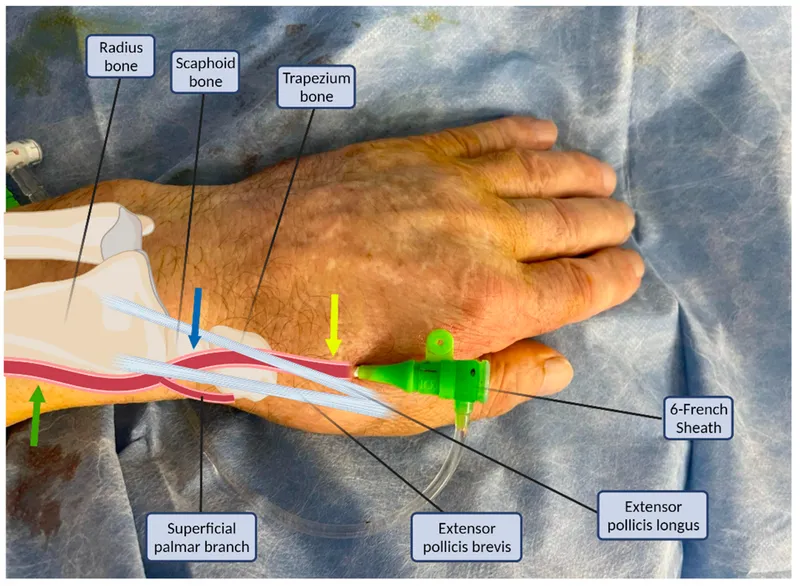

Wrist anatomy with radial artery access

⭐ Tenderness in the anatomical snuffbox after a fall on an outstretched hand (FOOSH) is highly suggestive of a scaphoid fracture, which may not be visible on initial X-rays and carries a risk of avascular necrosis if missed.

Key Neurovascular Structures - Clinical Hotspots

  • Axilla:
    • Axillary Artery: Palpable; compression point.
    • Brachial Plexus: Vulnerable (Erb's point C5-C6).
  • Arm/Cubital Fossa:
    • Brachial Artery: BP site; pulse.
    • Median Nerve: Medial to brachial artery; supracondylar fracture risk.
    • Radial Nerve (Arm): Mid-shaft humerus fracture → wrist drop.
  • Elbow/Wrist:
    • Ulnar Nerve: Post. to medial epicondyle; Guyon's canal (wrist).
  • Wrist (Arteries):
    • Radial Artery: Pulse (lat. to FCR); snuffbox.
    • Ulnar Artery: Allen's test (palmar arch).
  • Superficial Veins:
    • Cephalic (lat.), Basilic (med.), Median Cubital (venipuncture).

⭐ The anatomical snuffbox, bounded by EPL, EPB & APL tendons, contains the radial artery & superficial radial nerve. Scaphoid fracture tenderness is key here.

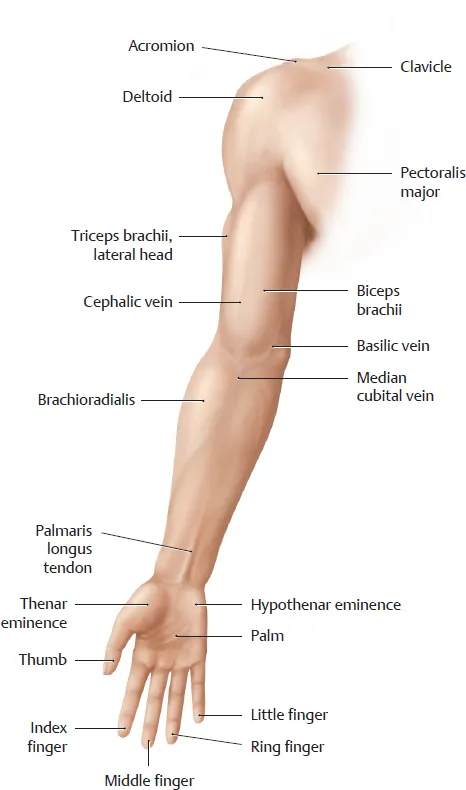

Surface Anatomy of the Upper Limb

High‑Yield Points - ⚡ Biggest Takeaways

  • Axillary artery pulsation: felt in axilla, inferior to deltopectoral groove.
  • Brachial artery pulsation: medial to biceps tendon in cubital fossa.
  • Cephalic vein: prominent in deltopectoral groove, pierces clavipectoral fascia.
  • Anatomical snuffbox: borders are EPL, APL, EPB tendons; contains radial artery, scaphoid bone.
  • Ulnar nerve: palpable posterior to medial epicondyle ("funny bone").
  • Median cubital vein: common site for venipuncture in cubital fossa.
  • Radial pulse: felt lateral to flexor carpi radialis tendon at wrist_
