Nerves of Upper Limb

On this page

Brachial Plexus - Nerve Network Central

📌 RTDCB: Roots (C5-T1) → Trunks (Upper, Middle, Lower) → Divisions (Ant/Post) → Cords (Lat, Post, Med) → Branches.

  • Roots Nerves: Dorsal Scapular (C5), Long Thoracic (C5-C7).
  • Trunk Nerve: Suprascapular (Upper Trunk C5-C6).
  • Cords: Lateral, Posterior, Medial. (📌 LML: Love My Life).
    • Lateral: Lat. Pectoral. Terminal: Musculocutaneous, Lat. root Median.
    • Posterior: Upper/Lower Subscapular, Thoracodorsal. Terminal: Axillary, Radial.
    • Medial: Med. Pectoral, Med. Cut. N. of Arm/Forearm. Terminal: Ulnar, Med. root Median.
  • Injuries:
    • Erb's Palsy (C5-C6): "Waiter's tip" hand.
    • Klumpke's Palsy (C8-T1): Claw hand.

⭐ Injury to Long Thoracic nerve (C5, C6, C7) causes "winging of scapula".

Brachial Plexus Diagram

Axillary & Musculocutaneous Nerves - Shoulder & Arm Allies

  • Axillary N. (C5, C6): From posterior cord. Through quadrangular space (w/ post. circumflex humeral artery).
    • Motor: Deltoid, Teres minor.
    • Sensory: Skin over deltoid ("Regimental badge" area).
    • Injury: Surgical neck of humerus fracture, shoulder dislocation → impaired abduction (15-90°).
  • Musculocutaneous N. (C5, C6, C7): From lateral cord. Pierces coracobrachialis.
    • Motor: BBC muscles (Biceps brachii, Brachialis, Coracobrachialis). 📌
    • Sensory: Lateral forearm (via lateral cutaneous nerve of forearm).

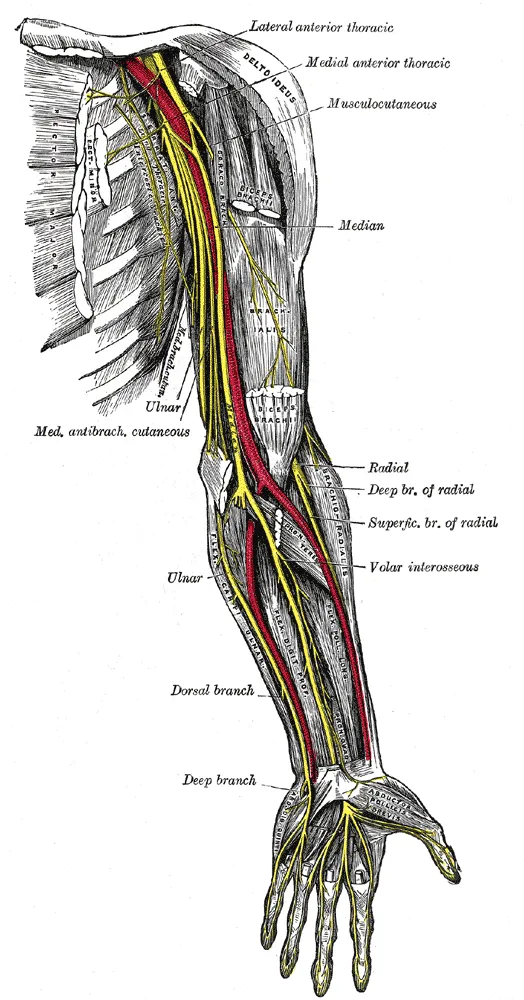

⭐ Axillary nerve injury is commonly tested with fractures of the surgical neck of the humerus. Axillary and Musculocutaneous Nerves

Radial Nerve - The Extension Expert

  • Roots: C5, C6, C7, C8, T1 (Posterior cord).
  • Course: Passes via spiral groove of humerus with profunda brachii artery.
  • Motor: Triceps, Anconeus, Brachioradialis, Supinator, Extensors of wrist & fingers. (📌 Mnemonic: BEST - Brachioradialis, Extensors, Supinator, Triceps).
  • Sensory: Posterior arm, forearm; dorsal lateral 3.5 digits (not nail beds).
  • Clinical:
    • Humerus shaft fracture (spiral groove) → Wrist drop.
    • Crutch palsy / Saturday night palsy → Wrist drop.

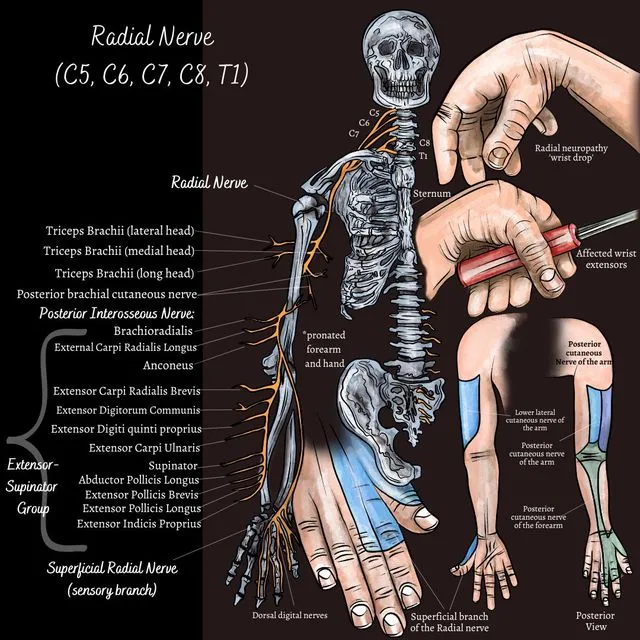

⭐ Injury at the spiral groove (e.g., mid-shaft humerus fracture) classically causes wrist drop. Radial Nerve Anatomy and Injuryoka

Median Nerve - Hand's Main Mover

  • Roots: C5-T1 (Lat, Med cords).
  • Course: Axilla → Arm → Cubital fossa → Forearm → Carpal tunnel.
  • Motor:
    • Forearm: Pronators, most flexors (excl. FCU, med ½ FDP).
    • Hand: Thenar (LOAF), lat 2 lumbricals. 📌 LOAF: Lumbricals 1&2, Opponens, Abductor P.B., Flexor P.B.
  • Sensory: Palmar lat 3.5 digits & dorsal tips.
  • Lesions:
    • Elbow: Pointing Index/Hand of Benediction (fist attempt).
    • Wrist (CTS): Ape hand, weak thumb opposition, night paresthesia.

    ⭐ Hand of Benediction (median nerve injury at elbow/proximal forearm) is seen when patient attempts to make a fist, while Ulnar Claw (ulnar nerve injury) is present at rest. Median nerve anatomy and innervation

Ulnar Nerve - Inner Hand Hero

  • Roots: C8, T1 (Medial cord).
  • Key Course: Posterior to medial epicondyle ("funny bone"); through Guyon's canal.
  • Motor:
    • Forearm: FCU, FDP (medial half).
    • Hand: Most intrinsics (hypothenar, interossei, medial 2 lumbricals, adductor pollicis). 📌 Ulnar For Fine Functions.
  • Sensory: Medial 1.5 digits (palmar & dorsal).
  • Lesion Signs:
    • Ulnar Claw Hand (4th, 5th digits).
    • Froment's sign (adductor pollicis weak).

    ⭐ Ulnar Paradox: Proximal lesion → less claw deformity than distal, due to FDP paralysis. Ulnar nerve anatomy and injury effects on hand

High‑Yield Points - ⚡ Biggest Takeaways

  • Brachial Plexus (C5-T1): Erb's palsy (C5-C6) → Waiter's tip. Klumpke's (C8-T1) → Total claw hand.
  • Axillary Nerve: Injury → Deltoid paralysis, regimental badge anesthesia.
  • Radial Nerve: Wrist drop classic; vulnerable at spiral groove/humerus fracture.
  • Median Nerve: Ape thumb, carpal tunnel syndrome, Sign of Benediction (proximal).
  • Ulnar Nerve: Claw hand (4th-5th), Froment's sign; injured at medial epicondyle.
  • Long Thoracic Nerve: Winging of scapula (Serratus Anterior paralysis).

Practice Questions: Nerves of Upper Limb

Test your understanding with these related questions

Which of the following is true about nerve injuries?

1 of 5

Flashcards: Nerves of Upper Limb

1/10

The marked structure is the _____ nerve.

TAP TO REVEAL ANSWER

The marked structure is the _____ nerve.

musculocutaneous
