Surface Landmarks of the Thorax

On this page

Thoracic Cage Sketch & Lines - Framework Foundations

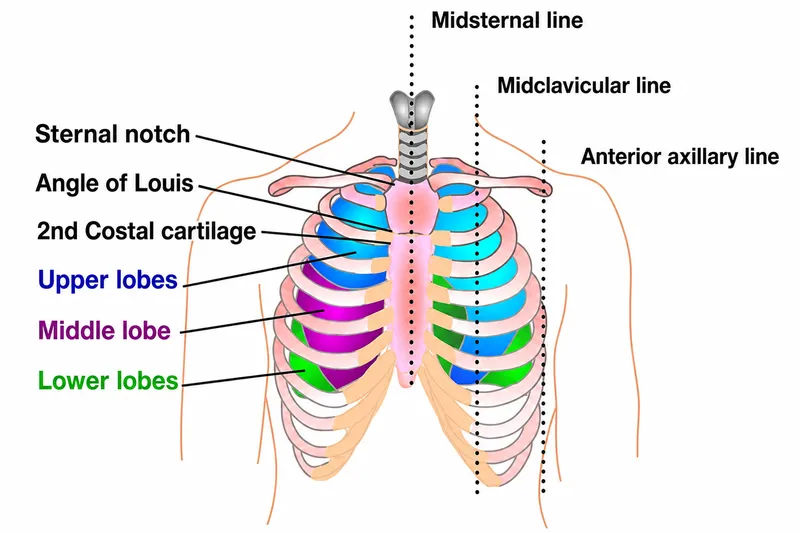

Thoracic Cage Surface Landmarks and Lung Lobes

  • Skeletal Framework:
    • Sternum: Manubrium (suprasternal notch, clavicular notches), Body, Xiphoid process.
    • Ribs: 12 pairs.
      • True ribs (1-7): Attach directly to sternum.
      • False ribs (8-10): Attach indirectly.
      • Floating ribs (11-12): No anterior attachment.
    • Thoracic Vertebrae: 12 (T1-T12).
  • Key Reference Lines:
    • Anterior: Midsternal, Midclavicular (MCL) - passes through midpoint of clavicle.
    • Lateral: Anterior Axillary (AAL), Midaxillary (MAL), Posterior Axillary (PAL).
    • Posterior: Scapular, Midvertebral.

⭐ The Sternal Angle (Angle of Louis) is a crucial landmark at the T4/T5 vertebral level, corresponding to the articulation of the 2nd rib. It marks the bifurcation of the trachea and the beginning/end of the aortic arch.

Anterior Thoracic Landmarks - Front-Row Seats

  • Suprasternal Notch (Jugular Notch):
    • Palpable U-shaped depression, superior manubrium.
    • Level: T2-T3 intervertebral disc.
  • Sternal Angle (Angle of Louis):
    • Manubriosternal joint; transverse ridge.
    • Articulates with 2nd rib / costal cartilage.
    • Level: T4-T5 intervertebral disc.
    • Key events: Tracheal bifurcation, aortic arch (start/end), azygos vein drains into SVC. ⭐> The Sternal Angle (Angle of Louis) is the most reliable landmark for identifying the 2nd rib and subsequently counting other ribs and intercostal spaces.
  • Xiphisternal Joint:
    • Inferior tip of sternum.
    • Level: T9 vertebra.
    • Marks: Inferior heart border, superior liver surface, central tendon of diaphragm.
  • Costal Margin:
    • Inferior edge of thoracic cage.
    • Formed by cartilages of ribs 7-10.
  • Nipple:
    • Males: Usually 4th intercostal space (ICS), midclavicular line (MCL).
    • Females: Position variable.
  • Midclavicular Line (MCL):
    • Vertical line from clavicle's midpoint.
    • Apex beat (PMI): Typically 5th ICS, just medial to left MCL.

Anterior Thoracic Wall Surface Landmarks

Posterior & Lateral Landmarks - Backstage & Sidelines

  • Posterior:
    • Vertebral Spines:
      • C7 (Vertebra Prominens): Most prominent.
      • T3: Level with scapular spine.
      • T7: Level with inferior angle of scapula (arms at sides).
      • L4: Supracristal plane (Tuffier's line) at iliac crests.
    • Scapula:
      • Superior Angle: T2 level.
      • Spine: T3 spinous process.
      • Inferior Angle: T7 spinous process (varies T6-T9). Medial border.
  • Lateral:
    • Axillary Folds: Anterior (Pectoralis major), Posterior (Latissimus dorsi).
    • Axillary Lines: AAL, MAL, PAL for reference.
    • Ribs: Countable; 12th rib may be short.
    • Serratus Anterior: "Boxer's muscle".
    • Triangle of Auscultation: 📌 Mnemonic: LaTTeS (Latissimus, Trapezius, Scapula).

      ⭐ Borders: Latissimus dorsi, Trapezius, medial border of Scapula. Prime site for lung sounds (posterior lobes).

Posterior Thorax Surface Landmarks

Visceral Projections & Clinical Hotspots - Organ Mapping

  • Lungs & Pleura:
    • Lung Apex: 2.5 cm above medial ⅓ clavicle.
    • Oblique Fissure: T3 spine → 6th CC.
    • Horizontal Fissure (R): 4th CC → oblique fissure (MAL, 5th rib).
    • Lung Inferior: Ribs 6 (MCL), 8 (MAL), 10 (Scapular).
    • Pleura Inferior: Ribs 8 (MCL), 10 (MAL), 12 (Paravertebral).
    • 📌 L2RAP: Lung 2 Ribs Above Pleura (inferiorly).
  • Heart:
    • Apex Beat: L 5th ICS, 9 cm from midsternum (MCL).
    • Borders: Sup (2L-3R CC), R (3-6R CC), L (2L CC-apex).
  • Tracheal Bifurcation: Sternal angle (T4/T5).
  • Clinical Hotspots:
    • Auscultation: Aortic R 2nd ICS, Pulm L 2nd ICS, Tricuspid L 4/5th ICS, Mitral L 5th ICS MCL.
    • Chest Drain: Triangle of Safety (4/5th ICS, ant. to MAL).
    • Pericardiocentesis: L 5/6th ICS parasternal/infrasternal.

⭐ The apex beat is normally located in the left 5th intercostal space, medial to the mid-clavicular line (approx. 9 cm from midsternum). Displacement indicates cardiomegaly or other conditions.

High‑Yield Points - ⚡ Biggest Takeaways

  • Sternal Angle (Louis): Key landmark at T4/T5 IV disc; 2nd rib articulation; tracheal bifurcation; aortic arch.
  • Suprasternal Notch: Palpable at T2/T3 vertebral level.
  • Xiphisternal Joint: T9 vertebra; marks inferior heart border, superior liver limit.
  • Apex Beat (PMI): 5th left ICS, medial to mid-clavicular line (MCL).
  • Nipple (Male): 4th intercostal space in MCL.
  • Inferior Angle of Scapula: Level of 7th rib or T7 spinous process (arm adducted).
