Surface Anatomy of the Neck

Surface Anatomy of the Neck

Surface Anatomy of the Neck

On this page

Key Landmarks & Midline Structures - Neck's Notable Knobs

  • Hyoid Bone: Mobile, U-shaped bone superior to larynx. Palpable above thyroid cartilage. Level: C3 vertebra.
  • Thyroid Cartilage: Largest laryngeal cartilage ("Adam's apple"). Superior notch palpable. Level: C4-C5 vertebrae.
  • Cricoid Cartilage: Complete cartilaginous ring inferior to thyroid cartilage. Level: C6 vertebra. Site for emergency cricothyrotomy.
  • Tracheal Rings: Palpable in midline inferior to cricoid cartilage.
  • Suprasternal Notch: (Jugular notch) Depression on superior border of manubrium sterni.
  • Sternocleidomastoid (SCM) Muscle: Key muscular landmark; its borders define anterior and posterior triangles.

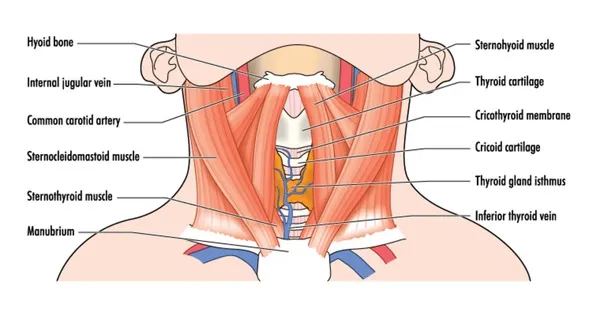

Anterior neck surface anatomy landmarks

⭐ The cricoid cartilage, at the level of C6 vertebra, is a crucial landmark: it indicates the junction of the pharynx with the esophagus, and the larynx with the trachea. It's the narrowest part of a child's airway before puberty (subglottis).

Anterior Triangle & Subdivisions - Front Row Features

  • Overall Boundaries: Midline (anteriorly), SCM (posteriorly), Mandible (superiorly).

  • Four Key Subdivisions: (Defined by Digastric & Omohyoid muscles)

    • 1. Submental Triangle (Unpaired):

      • Borders: Ant. bellies of Digastric, Hyoid.
      • Key Contents: Submental lymph nodes.
    • 2. Submandibular Triangle (Paired):

      • Borders: Mandible, Ant. & Post. bellies of Digastric.
      • Key Contents: Submandibular gland, Facial artery, Hypoglossal n. (CN XII).
    • 3. Carotid Triangle (Paired):

      • Borders: Post. belly of Digastric, Sup. belly Omohyoid, SCM.
      • Key Contents: Carotid arteries (CCA, ECA, ICA), IJV, Vagus n. (CN X).

      ⭐ Contains Carotid Sheath (CCA/ICA, IJV, CN X) & site of carotid bifurcation.

    • 4. Muscular Triangle (Paired):

      • Borders: Sup. belly Omohyoid, SCM, Midline.
      • Key Contents: Infrahyoid muscles, Thyroid & Parathyroid glands.

Posterior Triangle & Subdivisions - Backstage Pass

  • Boundaries:
    • Anterior: Sternocleidomastoid (posterior border)
    • Posterior: Trapezius (anterior border)
    • Inferior: Clavicle (middle third)
    • Apex: Superior nuchal line (SCM & Trapezius meet)
    • Roof: Investing layer of deep cervical fascia, Platysma
    • Floor: Prevertebral fascia; Muscles: Splenius capitis, Levator scapulae, Scalenus medius & posterior.
  • Division: Inferior belly of Omohyoid divides into:
    • Occipital Triangle (superior, larger)
    • Supraclavicular/Subclavian Triangle (inferior, smaller)

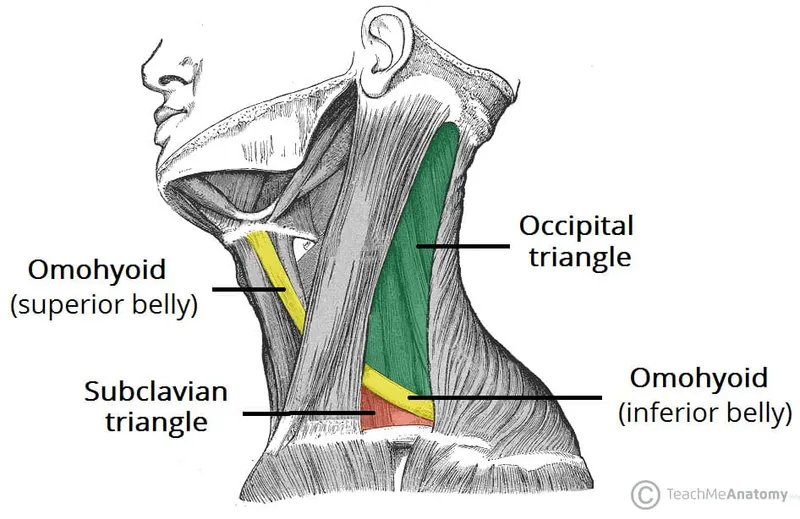

Posterior triangle of neck subdivisions

  • Key Contents:
    • Occipital Triangle:
      • Spinal Accessory Nerve (CN XI)
      • Sensory branches of Cervical Plexus (C2-C4)
      • Occipital artery (at apex)
    • Supraclavicular Triangle:
      • Brachial Plexus (Trunks)
      • Subclavian Artery (3rd part) & Vein
      • Suprascapular artery & nerve
      • External Jugular Vein (termination)

⭐ The Spinal Accessory Nerve (CN XI) is superficial in the posterior triangle, making it vulnerable to iatrogenic injury during procedures like lymph node biopsy.

Major Vessels, Nerves & Lymphatics - Neck's Network News

  • Vessels:
    • Common Carotid A.: Bifurcates C4 (thyroid cartilage). Pulse: ant. to SCM, cricoid level.
    • Internal Jugular V. (IJV): Deep to SCM, lateral to carotid A.
    • External Jugular V. (EJV): Superficial, crosses SCM. Visible with ↑ intrathoracic pressure.
  • Nerves:
    • Accessory N. (XI): Crosses post. triangle; SCM & Trapezius. Vulnerable.
    • Cervical Plexus: Sensory branches (Erb's point) post. to SCM.
    • Brachial Plexus: Trunks between ant. & mid. scalenes.
  • Lymphatics:
    • Deep Cervical Nodes: Chain along IJV.

    ⭐ Virchow's node (L. supraclavicular) suggests gastric Ca. Surface Anatomy of the Neck Triangles and Muscles)

High‑Yield Points - ⚡ Biggest Takeaways

  • Hyoid bone is palpable at the C3 vertebral level.
  • Thyroid cartilage (Adam's apple) corresponds to C4-C5 vertebrae.
  • Cricoid cartilage is a key landmark at C6 vertebra; trachea & esophagus begin.
  • Carotid pulse is best felt anterior to SCM at thyroid cartilage level.
  • External Jugular Vein (EJV) crosses SCM superficially; indicates JVP.
  • Suprasternal notch is found at the superior margin of the manubrium.
  • Apex of lung & subclavian artery are palpable in the supraclavicular fossa.

Practice Questions: Surface Anatomy of the Neck

Test your understanding with these related questions

Which muscle divides the neck into anterior and posterior triangles?

1 of 5

Flashcards: Surface Anatomy of the Neck

1/10

Boundaries of the carotid triangle:_____ border is formed by the posterior belly of digastric and stylohyoid muscle.

TAP TO REVEAL ANSWER

Boundaries of the carotid triangle:_____ border is formed by the posterior belly of digastric and stylohyoid muscle.

Superior
