Techniques in Microscopic Anatomy - Peeking at Cells

  • Core Concepts:
    • Magnification: Image enlargement.
    • Resolution: Distinguishing close points; limit $d = \frac{0.61\lambda}{NA}$.
  • Microscope Types:
    • Light Microscopy (LM): Bright-field, Phase contrast, Fluorescence, Confocal.
    • Electron Microscopy (EM):
      • TEM (Transmission): Internal ultrastructure (📌 TEM = Through EM).
      • SEM (Scanning): Surface details, 3D (📌 SEM = Surface EM).
  • Specimen Preparation: Fixation (e.g., 10% formalin), Dehydration, Clearing, Embedding (paraffin), Sectioning (microtome), Staining. Light vs Electron Microscope Diagram

⭐ Hematoxylin (basic dye) stains acidic structures (e.g., nucleus, RER) blue/purple (basophilic); Eosin (acidic dye) stains basic structures (e.g., cytoplasm, mitochondria, collagen) pink/red (acidophilic).

Techniques in Microscopic Anatomy - Slice & Dice Prep

This outlines the standard paraffin wax technique for preparing tissue samples for light microscopy.

  • Fixation: Prevents autolysis/putrefaction. 10% formalin cross-links proteins, preserves tissue structure.
  • Dehydration: Removes tissue water via graded alcohols (e.g., 70%90%100% ethanol).
  • Clearing: Xylene replaces alcohol, makes tissue translucent, miscible with paraffin wax.
  • Infiltration: Molten paraffin wax (56-60°C) permeates all tissue spaces.
  • Embedding: Tissue oriented in paraffin block, provides firm support for sectioning.
  • Sectioning: Microtome precisely cuts thin slices (3-10 µm) for microscopy.
    • Frozen sections: Rapid diagnosis (intraoperative via cryostat); less morphological detail.
  • Staining & Mounting: H&E stain (common) adds contrast. Coverslip protects specimen.

Microtome sectioning paraffin block

⭐ Formalin (formaldehyde solution) is the most common fixative; it preserves tissue architecture by cross-linking proteins, primarily lysine residues.

Techniques in Microscopic Anatomy - Staining Hues & Clues

  • Principle: Dyes selectively bind to specific tissue components based on their chemical nature.
    • Acidic dyes (e.g., Eosin): Anionic; stain basic (acidophilic/eosinophilic) structures like cytoplasm, collagen, muscle. Hue: Pink/Red.
    • Basic dyes (e.g., Hematoxylin): Cationic; stain acidic (basophilic) structures like nucleus (DNA/RNA), ribosomes, RER. Hue: Blue/Purple.
  • Common Stains & Key Uses:
    • Hematoxylin & Eosin (H&E): Routine; nuclei blue/purple, cytoplasm pink.
    • Periodic Acid-Schiff (PAS): Glycogen, mucus, basement membranes, fungi. Hue: Magenta.

      ⭐ PAS-positive, diastase-resistant globules in hepatocytes are a hallmark of Alpha-1 antitrypsin deficiency.

    • Masson's Trichrome: Differentiates collagen (blue/green) from muscle/keratin (red); nuclei (black).
    • Silver Stains (Reticulin, GMS): Reticular fibers, fungi, basement membranes. Hue: Black.
    • Oil Red O / Sudan Black B: Lipids (requires fresh/frozen tissue). Hue: Red / Black.
  • Metachromasia: Stain changes color upon binding (e.g., Toluidine blue stains mast cell granules purple, not blue).
  • Immunohistochemistry (IHC): Highly specific; uses antibody-antigen reactions to localize proteins.

Techniques in Microscopic Anatomy - Advanced EM & Probes

  • Advanced Electron Microscopy (EM):
    • Transmission EM (TEM): For internal ultrastructure (e.g., organelles). Resolution: ~0.05-0.1 nm.
      • Cryo-EM: High-resolution of biomolecules in native state.
      • Freeze-Fracture/Etching: Visualizes membrane interiors.
    • Scanning EM (SEM): For 3D surface morphology. Resolution: ~3-10 nm.
  • Molecular Probes & Advanced Light Microscopy:
    • Immunohistochemistry (IHC): Localizes specific proteins using enzyme/fluorescent-labeled antibodies.
    • In Situ Hybridization (ISH): Detects specific DNA/RNA sequences using labeled nucleic acid probes.
      • Fluorescence ISH (FISH) is common for genetic analysis.
    • Confocal Microscopy: Provides high-resolution, optically sectioned images from fluorescently labeled specimens; allows 3D reconstruction.

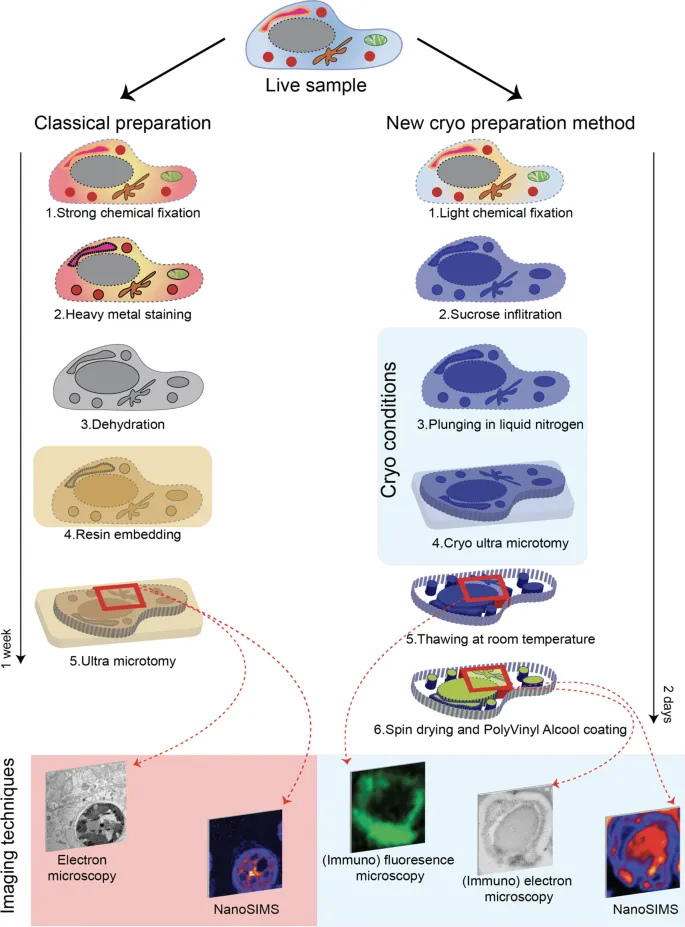

    • Autoradiography: Traces metabolic pathways using radioactive isotopes. Classical vs. Cryo Preparation for Microscopy

⭐ FISH is crucial for detecting chromosomal abnormalities like translocations (e.g., Philadelphia chromosome t(9;22) in CML), deletions, and aneuploidies.

High‑Yield Points - ⚡ Biggest Takeaways

  • Formalin (10%) is the most common fixative; glutaraldehyde for Electron Microscopy (EM).
  • H&E stain: Hematoxylin stains nuclei blue (basophilic); Eosin stains cytoplasm pink (acidophilic).
  • PAS stain detects glycogen, mucopolysaccharides, basement membranes (stains magenta).
  • Electron Microscopy (EM) provides ultra-high magnification: TEM for internal structures, SEM for surface details.
  • Immunohistochemistry (IHC) uses antigen-antibody binding to localize specific cellular components.
  • Frozen sections enable rapid intraoperative diagnosis; morphology is less detailed.
