Neurons - Brain's Building Blocks

  • Function: Basic structural & functional units; excitability & signal conduction.
  • Structure:
    • Soma (Perikaryon): Metabolic center; nucleus, Nissl bodies.
      • Nissl bodies: RER & ribosomes; protein synthesis (neurotransmitters).
    • Dendrites: Branched receptive processes; conduct graded potentials to soma.
    • Axon: Single projection from axon hillock (trigger zone); conducts action potentials away. Axoplasm, axolemma.
    • Axon Terminals: Branched endings; neurotransmitter release.
  • Cytoskeleton: Maintains shape, aids transport.
    • Neurofilaments: Structural support.
    • Microtubules: Axonal transport (organelles, vesicles).
    • Microfilaments (Actin): Motility, growth cone.
  • Axonal Transport: Bidirectional.
    • Anterograde: Soma → terminal (Kinesin).
    • Retrograde: Terminal → soma (Dynein).

⭐ Nissl bodies (RER) are found in the soma and dendrites, but are characteristically absent from the axon hillock and axon.

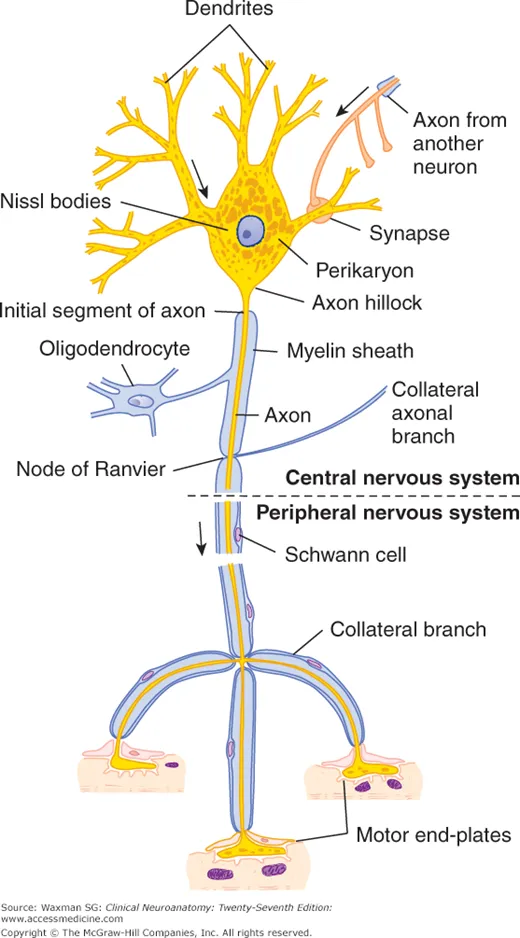

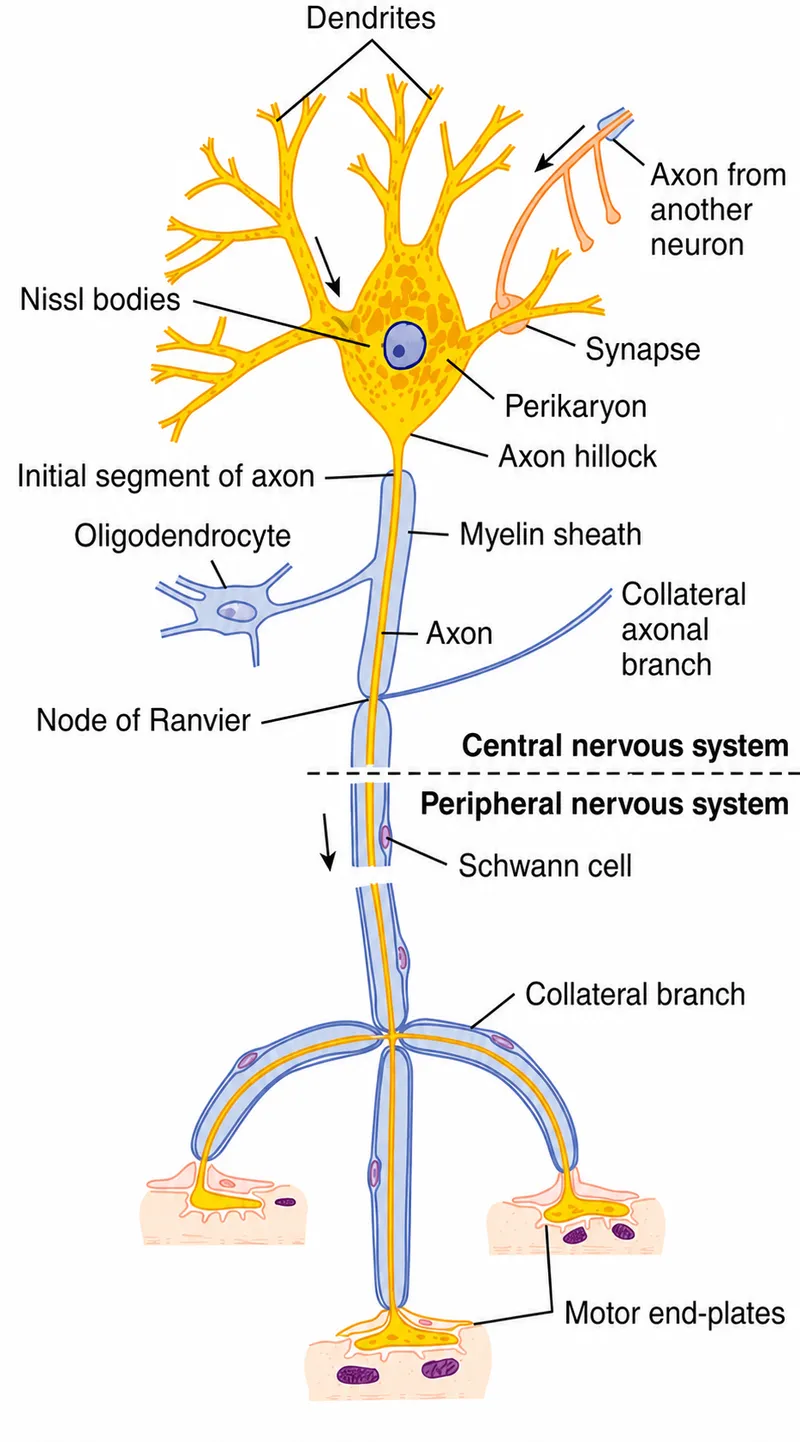

Neuron diagram with labeled parts and impulse direction

Neuroglia - Neuron's Nurturers

  • Non-excitable cells; metabolic & structural support to neurons; outnumber neurons 5-10x.
  • Types: CNS glia & PNS glia.

Microscopic view of astrocytes, oligodendrocytes (fried-egg), microglia (small, elongated), ependymal cells (cuboidal, ciliated))

⭐ Astrocytes, identified by GFAP (Glial Fibrillary Acidic Protein) intermediate filaments, are the most numerous glial cells in the CNS and form the blood-brain barrier.

Glial Cell TypeLocationKey FunctionsClinical / Mnemonic 📌
CNS Glia
AstrocytesCNSBBB, GFAP+, support, K+ homeostasis, repair (gliosis), NT reuptakeTumors: Astrocytoma, GBM
OligodendrocytesCNSMyelinates multiple CNS axons (1~50); "fried egg" lookDamaged in MS; 📌 COPS (CNS)
MicrogliaCNSPhagocytosis (CNS immune defense); mesodermal; HIV → giant cells
Ependymal CellsCNSLine ventricles, central canal; CSF production (choroid plexus); ciliated
PNS Glia
Schwann CellsPNSMyelinates single PNS axon segment (11); aids regenerationSchwannoma; Guillain-Barré; 📌 COPS (PNS)
Satellite CellsPNSSupport PNS ganglia neuron bodies; regulate microenvironment

Myelin & Nerve Fibers - Insulated Expressways

  • Myelin Sheath:
    • Composition: Predominantly lipid (e.g., cerebrosides, cholesterol) & protein; acts as an electrical insulator.
    • Formation:
      • PNS: Schwann cells (one cell myelinates a single axon segment).
      • CNS: Oligodendrocytes (one cell myelinates segments of multiple axons).
    • Function: Facilitates saltatory conduction, significantly ↑ speed of nerve impulse transmission.
  • Key Structures of Myelinated Fibers:
    • Nodes of Ranvier: Periodic gaps in the myelin sheath between adjacent Schwann cells or oligodendrocyte processes. High concentration of Na+ channels for action potential regeneration.
    • Internodal Segment: The myelinated portion of an axon between two Nodes of Ranvier.
    • Schmidt-Lanterman Clefts: Small pockets of Schwann cell cytoplasm within the myelin layers in PNS fibers; involved in myelin maintenance.

Myelinated nerve fiber: Schwann cell, myelin sheath, axon

⭐ Oligodendrocytes myelinate multiple axons in the CNS, whereas Schwann cells myelinate only a single segment of one axon in the PNS and are crucial for regeneration.

Synapses & Ganglia - Critical Connections

  • Synapse: Junction for signal transmission (neuron-neuron or neuron-effector).
    • Chemical: Unidirectional. Neurotransmitters (ACh, NE) from presynaptic vesicles to cleft. Synaptic delay.
    • Electrical: Bidirectional. Direct ion flow via gap junctions. Faster, minimal delay.
  • Ganglia: PNS clusters of neuronal cell bodies (soma).
    • Supported by satellite glial cells.
    • Connective tissue capsule.

    ⭐ Sensory ganglia (e.g., Dorsal Root Ganglia) contain pseudounipolar neurons and do NOT have synapses, whereas autonomic ganglia contain multipolar neurons and do have synapses.

  • Key Ganglia Differences:
    FeatureSensory Ganglia (DRG)Autonomic Ganglia (Sympathetic)
    Neuron TypePseudounipolarMultipolar
    SynapsesNo (cell bodies only)Yes (pre- to post-ganglionic)
    Satellite CellsNumerous, complete layerFewer, incomplete layer

High‑Yield Points - ⚡ Biggest Takeaways

  • Nissl bodies (RER) are in neuron soma and dendrites, absent in axon hillock/axon.
  • Oligodendrocytes (CNS) myelinate multiple axons; Schwann cells (PNS) myelinate single axon segments.
  • Nodes of Ranvier are unmyelinated gaps crucial for saltatory conduction.
  • Astrocytes (GFAP+) are the most numerous glia, forming the blood-brain barrier.
  • Microglia are mesoderm-derived CNS macrophages with phagocytic function.
  • Ependymal cells line ventricles and central canal, contributing to CSF production.
  • Peripheral nerve layers: Endoneurium (single fiber), Perineurium (fascicle, blood-nerve barrier), Epineurium (entire nerve).
