Joints of Lower Limb

On this page

Hip Joint - Groovy Ball & Socket

  • Type: Synovial ball & socket.
  • Articular Surfaces: Femoral head; Acetabulum (deepened by acetabular labrum).
  • Capsule: Strong, fibrous; attaches acetabular rim to intertrochanteric line/femoral neck.
  • Key Ligaments:
    • Iliofemoral (Y-shaped): Strongest; prevents hyperextension.
    • Pubofemoral: Limits abduction, extension.
    • Ischiofemoral: Limits internal rotation, extension.
    • Ligamentum teres: Artery to femoral head (children).
  • Movements: Flex/Ext, Abd/Add, Med/Lat rotation, Circumduction.
  • Blood Supply: Med/Lat circumflex femoral aa. (retinacular); Obturator a. (via lig. teres).
  • Nerve Supply: Femoral, Obturator, Sciatic, Sup. Gluteal nn. (📌 FOSS).
  • Stability: Deep socket, labrum, strong capsule & ligaments.

⭐ Iliofemoral ligament is the strongest ligament in the body.

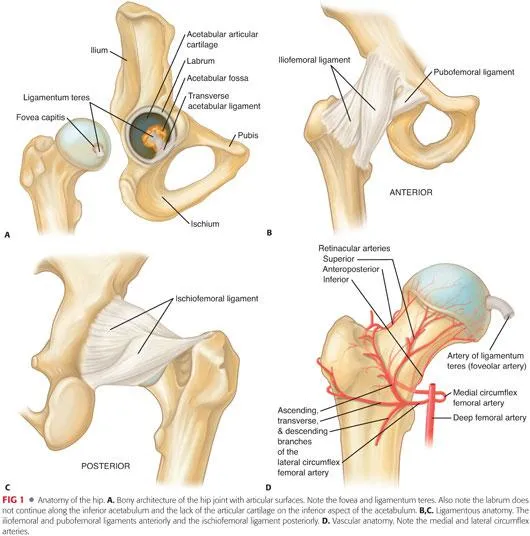

Hip joint anatomy: bony, ligamentous, vascular

Knee Joint - Complex Hinge Master

  • Type: Modified hinge (bicondylar synovial).
  • Articular Surfaces: Femoral condyles, tibial condyles, patella.
  • Menisci: Fibrocartilaginous; shock absorption.
    • Medial: 'C'-shaped, less mobile, attaches MCL.
    • Lateral: 'O'-shaped, more mobile.
  • Key Ligaments:
    • ACL: Prevents anterior tibial displacement.
    • PCL: Prevents posterior tibial displacement.
    • MCL (Tibial Collateral): Resists valgus stress.
    • LCL (Fibular Collateral): Resists varus stress.
    • Patellar Ligament: Quadriceps tendon continuation.
    • Oblique Popliteal Ligament: Semimembranosus expansion.
    • Arcuate Popliteal Ligament: Reinforces postero-lat capsule.
  • Bursae (Key): Suprapatellar, Prepatellar, Infrapatellar.
  • Movements: Flexion/Extension; Medial/Lateral rotation (knee flexed).
  • Locking/Unlocking: "Screw-home": medial rotation of femur on tibia (full extension). Popliteus unlocks.
  • Blood Supply: Geniculate anastomoses.

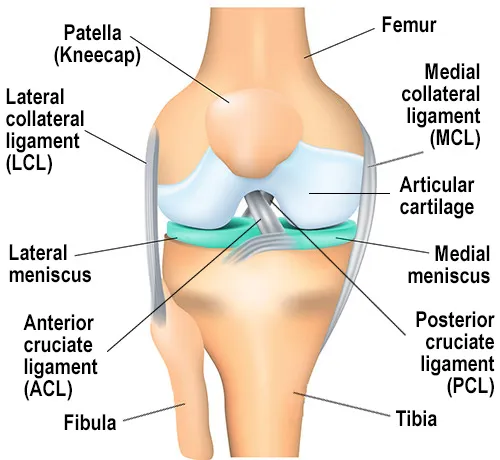

  • Nerve Supply: Femoral, Tibial, Common Peroneal, Obturator nn. (Hilton's). Annotated knee joint showing ligaments and menisci

⭐ The "unhappy triad" (O'Donoghue's triad) involves injury to the Anterior Cruciate Ligament (ACL), Medial Collateral Ligament (MCL), and Medial Meniscus. 📌 ATM: ACL, Tibial (Medial) collateral, Medial meniscus.

Ankle & Foot - Ground Control Hub

  • Ankle (Talocrural) Joint: Synovial hinge type.
    • Articular Surfaces: Distal tibia (incl. medial malleolus), lateral malleolus (fibula), trochlea of talus.
    • Ligaments:
      • Medial (Deltoid): Very strong. Parts: Tibionavicular, Tibiocalcaneal, Anterior Tibiotalar, Posterior Tibiotalar.
      • Lateral: 📌 ATFL (Anterior Talofibular Ligament), CFL (Calcaneofibular Ligament), PTFL (Posterior Talofibular Ligament).
    • Movements: Dorsiflexion, Plantarflexion.
  • Subtalar (Talocalcaneal) Joint:
    • Articular Surfaces: Inferior surface of talus, superior surface of calcaneus.
    • Movements: Inversion, Eversion (primary for these actions).
  • Transverse Tarsal (Chopart's) Joint: Combined Talonavicular & Calcaneocuboid joints.
    • Role: Adapts forefoot to hindfoot position; crucial for foot flexibility on uneven surfaces.
  • Arches of Foot: Supported by bones, ligaments (e.g., spring ligament, plantar aponeurosis), and tendons; these joints are integral to their function.

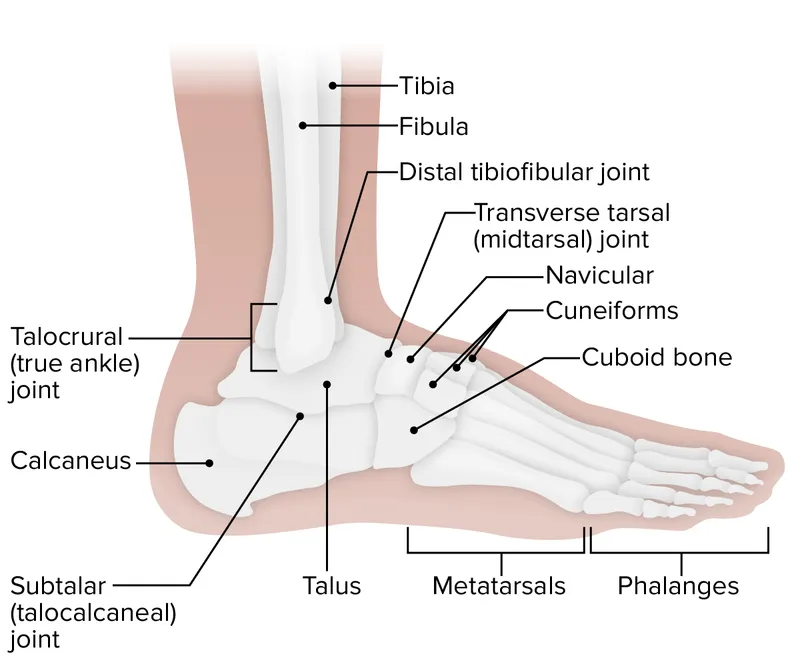

⭐ The anterior talofibular ligament (ATFL) is the most commonly injured ligament in ankle sprains. Ankle and foot joints and bones - lateral viewoka

Leg & Foot Connectors - Stability Weavers

  • Tibiofibular Joints: Crucial for lower leg and ankle stability.
    • Superior Tibiofibular: Plane synovial; small gliding movements.
    • Middle Tibiofibular: Interosseous membrane (fibrous syndesmosis); strong connection.
    • Inferior Tibiofibular: Fibrous syndesmosis; vital for ankle mortise stability.

      ⭐ The inferior tibiofibular joint is a syndesmosis, crucial for ankle mortise stability and weight-bearing.

  • Tarsometatarsal (TMT/Lisfranc's) Joints: Plane synovial; contribute to foot arch stability.
  • Metatarsophalangeal (MTP) Joints: Condyloid synovial; allow flexion, extension, abduction, adduction of toes.
  • Interphalangeal (IP) Joints: Hinge synovial; permit flexion and extension of phalanges.

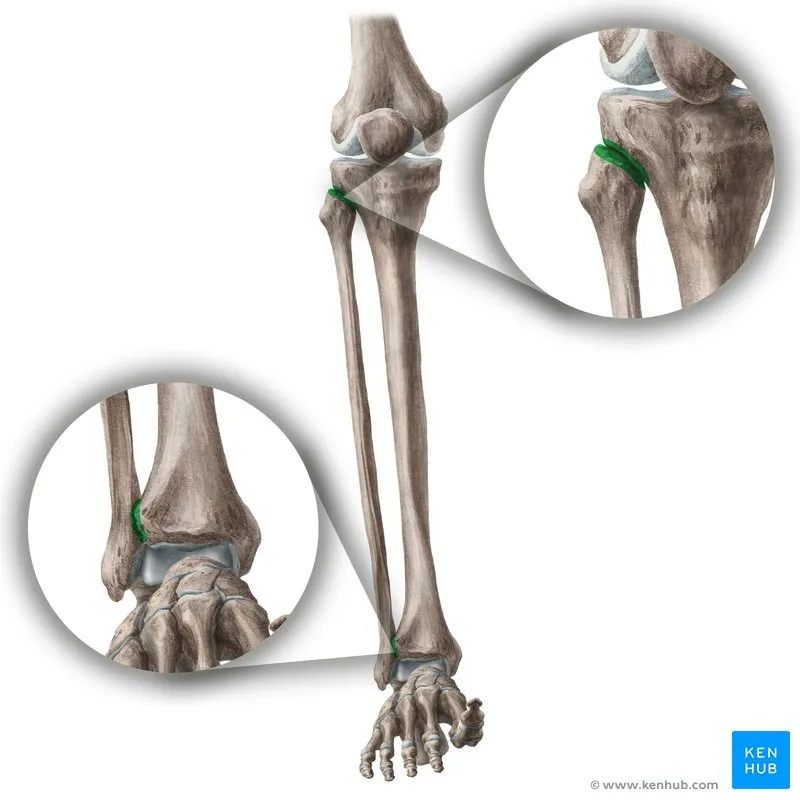

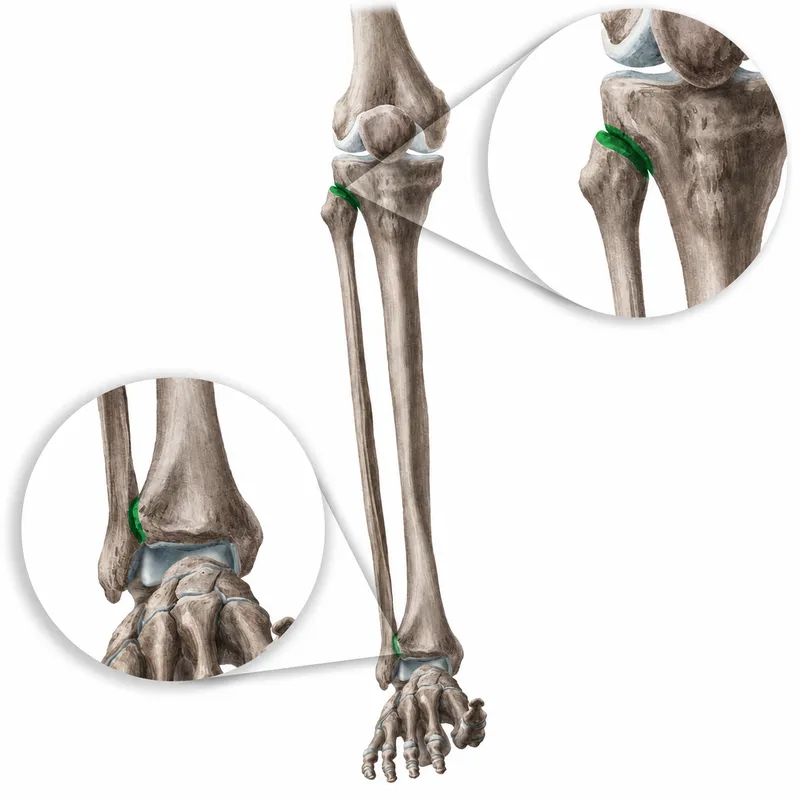

Tibiofibular and ankle joints, inferior tibiofibular, tarsometatarsal (Lisfranc's), metatarsophalangeal, and interphalangeal joints)

High‑Yield Points - ⚡ Biggest Takeaways

  • Hip joint: Ball-and-socket synovial type; iliofemoral ligament is the body's strongest.
  • Knee joint: Modified hinge synovial; ACL & PCL are key stabilizers; medial meniscus is C-shaped.
  • Locking of knee: Screw-home mechanism by medial femoral rotation; popliteus unlocks.
  • Ankle joint: Hinge synovial; ATFL (anterior talofibular ligament) most commonly sprained.
  • Subtalar joint: Essential for foot inversion and eversion movements.
  • Hilton's Law: Governs sensory innervation of joints.

Practice Questions: Joints of Lower Limb

Test your understanding with these related questions

Which ligament is most commonly damaged in knee injuries?

1 of 5

Flashcards: Joints of Lower Limb

1/10

_____ bursa is the superior extension of knee joint cavity

TAP TO REVEAL ANSWER

_____ bursa is the superior extension of knee joint cavity

Suprapatellar
