Arterial Supply and Venous Drainage

Arterial Supply and Venous Drainage

Arterial Supply and Venous Drainage

On this page

Femoral & Profunda Arteries - Thigh's Vascular Core

  • Femoral Artery (FA):
    • Origin: Continuation of external iliac artery, distal to inguinal ligament.
    • Course: Femoral triangle → Adductor canal.
    • Termination: Becomes popliteal artery at adductor hiatus.
    • Key Branches: Profunda femoris, superficial epigastric, superficial circumflex iliac, superficial & deep external pudendal, descending genicular.
    • 📌 NAVEL (Femoral Triangle Contents L→M): Nerve, Artery, Vein, Empty space, Lymphatics.
  • Profunda Femoris Artery (PFA) / Deep Artery of Thigh:
    • Origin: Largest FA branch, ~3.5-5 cm below inguinal ligament (posterolateral).
    • Supplies: Posterior & medial thigh compartments.
    • Key Branches:
      • Medial Circumflex Femoral Artery (MCFA): Main supply to femoral head & neck.
      • Lateral Circumflex Femoral Artery (LCFA): Supplies anterior & lateral thigh.

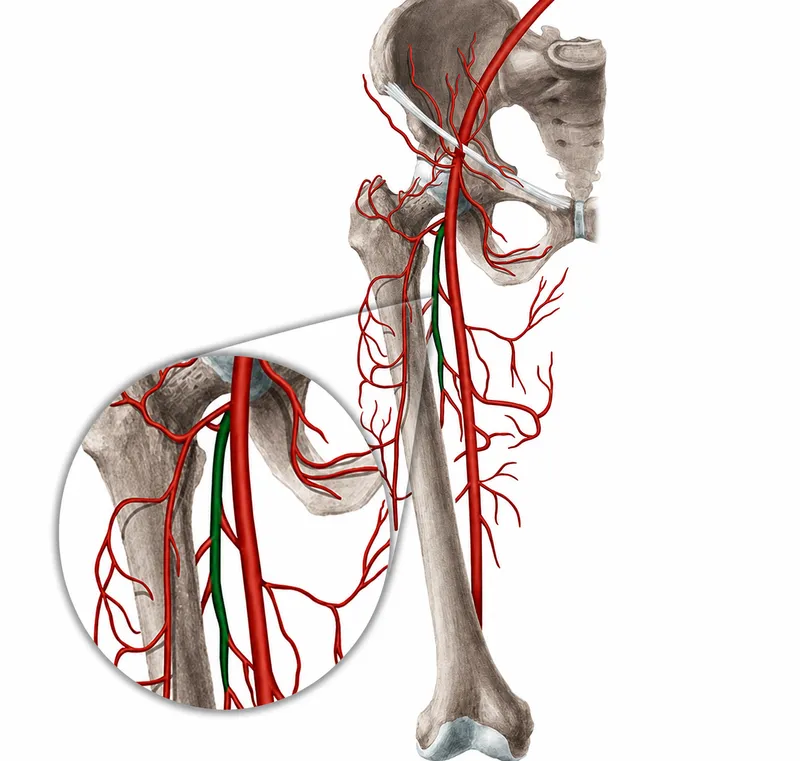

      • Perforating Arteries (3-4): Supply posterior thigh (hamstrings, adductors). Femoral artery and profunda femoris branches

⭐ The femoral artery is a common site for arterial access in procedures like angiography and angioplasty.

Distal Arterial Tree - Leg & Foot Supply Lines

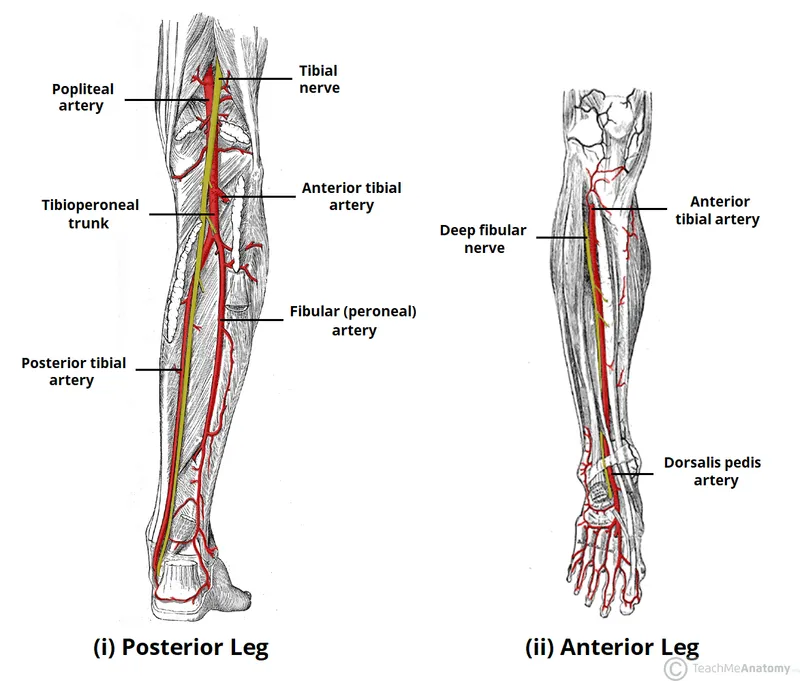

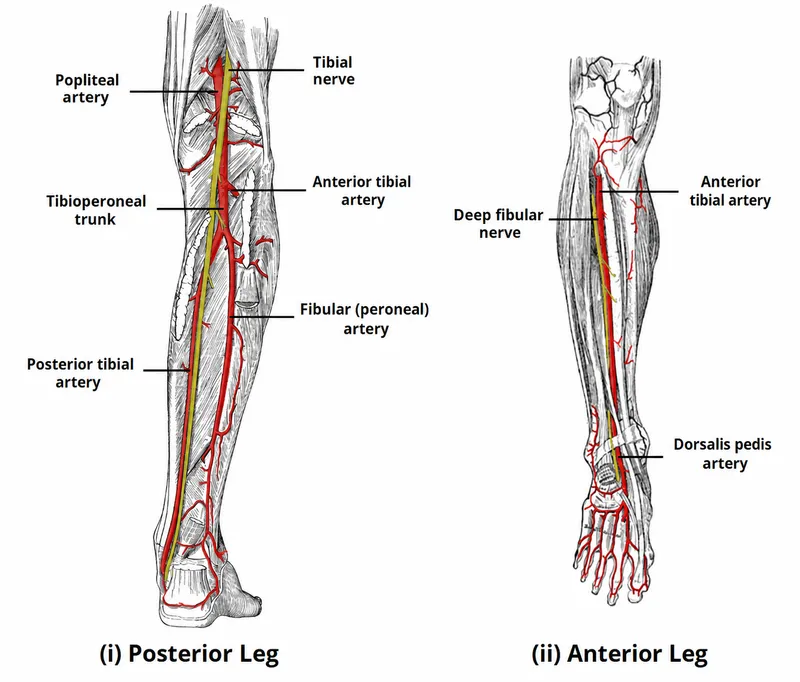

Arterial Supply of Posterior and Anterior Leg

  • Popliteal artery divides: Anterior Tibial & Tibioperoneal Trunk.
  • Anterior Tibial Artery (ATA):
    • Descends anterior compartment.
    • Becomes Dorsalis Pedis Artery at ankle.
  • Dorsalis Pedis Artery:
    • Main supply to foot dorsum.
    • Branches: Arcuate, Deep Plantar Artery (completes plantar arch).

    ⭐ The dorsalis pedis artery pulse, palpated lateral to the extensor hallucis longus tendon, is a key indicator of peripheral arterial perfusion.

  • Tibioperoneal Trunk divides: Posterior Tibial & Peroneal Arteries.
  • Posterior Tibial Artery (PTA):
    • Descends posterior compartment.
    • Pulse: Behind medial malleolus.
    • Branches: Medial & Lateral Plantar Arteries (form deep plantar arch).
  • Peroneal (Fibular) Artery:
    • Deep in posterior compartment, supplies lateral compartment.

Lower Limb Venous System - The Great Return Journey

  • Superficial System: Drains skin & subcutaneous tissue.
    • Great Saphenous Vein (GSV): Longest vein. Arises from medial dorsal venous arch. Ascends medially. Drains into femoral vein (saphenous opening).
      • Receives numerous tributaries (e.g., superficial epigastric, superficial circumflex iliac).
    • Small Saphenous Vein (SSV): Arises from lateral dorsal venous arch. Ascends posteriorly in leg. Drains into popliteal vein.
  • Deep System: Paired veins accompanying arteries (venae comitantes).
    • Anterior tibial, posterior tibial, peroneal veins → Popliteal vein → Femoral vein.
  • Perforating Veins (Perforators): Connect superficial to deep veins.
    • Valves ensure unidirectional flow (superficial → deep).
    • Clinical: Incompetence → varicose veins.

⭐ The Great Saphenous Vein is frequently harvested for coronary artery bypass grafting (CABG) due to its length and accessibility. Lower Limb Venous System

Vascular Clinical Pearls - Pulses, Problems & Pathways

  • Palpable Pulses:
    • Femoral: Mid-inguinal point.
    • Popliteal: Deep in popliteal fossa, knee flexed.
    • Dorsalis pedis: Lateral to EHL tendon.
    • Posterior tibial: Posteroinferior to medial malleolus.
  • Clinical Conditions:
    • Peripheral Arterial Disease (PAD): Intermittent claudication, rest pain; Ankle-Brachial Index (ABI) < 0.9.
    • Deep Vein Thrombosis (DVT): Leg swelling, pain, warmth. 📌 Wells score.

      ⭐ Virchow's triad (stasis, hypercoagulability, endothelial injury) outlines key risk factors for Deep Vein Thrombosis (DVT).

    • Varicose Veins: Dilated, tortuous superficial veins.
    • Compartment Syndrome: ↑ intracompartmental pressure; 6 Ps (Pain, Pallor, Paresthesia, Pulselessness, Paralysis, Poikilothermia).
  • Key Anastomoses:
    • Cruciate (hip): Important for femoral artery occlusion.
    • Genicular (knee): Collateral around knee; vital in popliteal blockage.

High‑Yield Points - ⚡ Biggest Takeaways

  • Femoral artery, from external iliac, is the main arterial supply to the lower limb.
  • Profunda femoris artery is its largest branch, supplying thigh compartments.
  • Popliteal artery divides into anterior and posterior tibial arteries below the knee.
  • Great Saphenous Vein (GSV), the longest vein, empties into the femoral vein.
  • Small Saphenous Vein (SSV) typically drains into the popliteal vein.
  • Dorsalis pedis artery pulse is a key clinical checkpoint in the foot.
  • Perforators link superficial veins (GSV, SSV) to deep veins_

Practice Questions: Arterial Supply and Venous Drainage

Test your understanding with these related questions

Posterior cardinal veins develop into:

1 of 5

Flashcards: Arterial Supply and Venous Drainage

1/10

Below knee perforators- _____ perforator veins

TAP TO REVEAL ANSWER

Below knee perforators- _____ perforator veins

Boyd
