Pterygopalatine Fossa

Pterygopalatine Fossa

Pterygopalatine Fossa

On this page

PPF: Overview - Fossa Fundamentals

  • Location: Small, pyramidal space; posterior to maxilla, inferior to orbital apex, medial to infratemporal fossa.
  • Shape: Inverted pyramid; apex inferior, base superior (at sphenoid body).
  • Significance: Major neurovascular crossroads of midface; communicates with multiple regions.

⭐ The PPF acts as a

PPF: Boundaries - Boxing the Wedge

  • Anterior Wall: Formed by the posterior surface of the body of the maxilla.
  • Posterior Wall: Root and anterior surface of pterygoid process of sphenoid; anterior surface of greater wing of sphenoid.
  • Medial Wall: Lateral surface of the perpendicular plate of the palatine bone.
  • Roof (Superior): Undersurface of the body of the sphenoid and orbital process of palatine bone.
  • Floor (Inferior): Pyramidal process of palatine bone, at junction of maxilla and pterygoid process.
  • Lateral Opening: Pterygomaxillary fissure, leading to the infratemporal fossa.

⭐ The sphenopalatine foramen, located on the medial wall, connects the PPF to the nasal cavity.

PPF: Communications - Skull's Crossroads

The Pterygopalatine Fossa (PPF) acts as a major neurovascular junction, connecting various craniofacial regions:

  • Anteriorly: Orbit (via Inferior Orbital Fissure)
  • Posteriorly:
    • Middle Cranial Fossa (via Foramen Rotundum - V2)
    • Pharynx (via Palatovaginal/Pharyngeal Canal)
    • Foramen Lacerum (via Pterygoid Canal/Vidian Canal)
  • Medially: Nasal Cavity (via Sphenopalatine Foramen - SPA & Nasopalatine nerve)
  • Laterally: Infratemporal Fossa (via Pterygomaxillary Fissure)
  • Inferiorly: Oral Cavity/Palate (via Greater & Lesser Palatine Canals/Foramina)

⭐ The Sphenopalatine foramen transmits the Sphenopalatine artery (terminal branch of maxillary artery) and nasopalatine nerve, crucial for posterior epistaxis management (📌 Sphenopalatine Passes Artery Nerve).

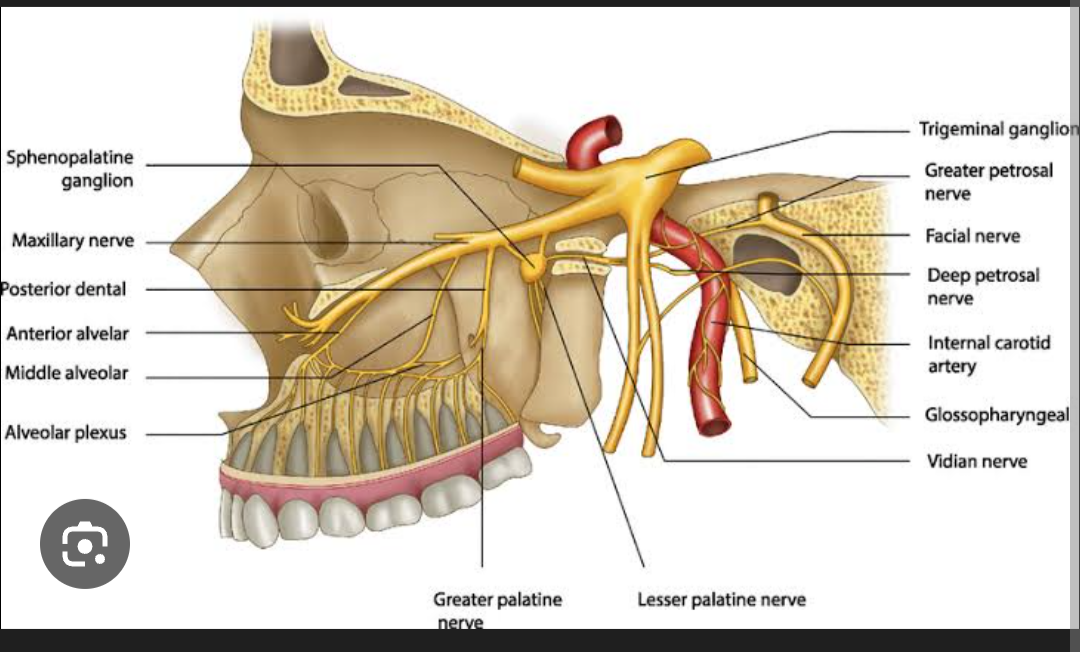

PPF: Contents - Neurovascular Nest

📌 Mnemonic: "Nice Grapes Are Very Luscious" (Nerve V2, Ganglion, Artery, Veins, Lymphatics)

  • Maxillary Nerve (CN V2): Enters via foramen rotundum; sensory.
    • Branches: Zygomatic, PSA, Infraorbital, Greater & Lesser Palatine, Nasopalatine, Pharyngeal.
  • Pterygopalatine Ganglion: "Hayfever ganglion"; suspended from V2.
    • Parasympathetic relay: lacrimal, nasal, palatal glands. (Fibers from Greater Petrosal N.)
  • Maxillary Artery (3rd part) & branches:
    • Infraorbital, Sphenopalatine, Descending Palatine, Artery of Pterygoid Canal, Pharyngeal, PSA.
  • Veins: Accompany arteries; drain to pterygoid venous plexus.
  • Lymphatics: Follow veins.

⭐ The Pterygopalatine Ganglion is the largest peripheral parasympathetic ganglion, crucial for lacrimal and nasal secretion.

PPF: Clinicals - Danger Hotspot

  • Infections & Tumors: Central hub for spread due to numerous foramina & fissures.
    • To Middle Cranial Fossa: Via foramen rotundum, pterygoid canal.
    • To Orbit: Via inferior orbital fissure (proptosis, ophthalmoplegia).
    • To Nasal Cavity/Nasopharynx: Via sphenopalatine foramen (epistaxis, obstruction).
    • To Palate/Gingiva: Via palatine canals (palatal swelling, pain).
    • To Infratemporal Fossa: Via pterygomaxillary fissure.
  • Anesthesia: Maxillary nerve block (V2) target.
  • Juvenile Nasopharyngeal Angiofibroma (JNA): Locally invasive tumor, often extends into PPF.

⭐ Perineural spread of malignancy (e.g., adenoid cystic carcinoma) along V2 through foramen rotundum into Meckel's cave is a notorious complication involving the PPF, leading to intractable facial pain or numbness (numb cheek syndrome).

High‑Yield Points - ⚡ Biggest Takeaways

  • Location & Role: A pyramidal space posterior to the maxilla; a key neurovascular distribution center.
  • Primary Contents: Maxillary nerve (V2), pterygopalatine ganglion, and terminal branches of maxillary artery.
  • Key Foramina: Foramen rotundum (V2 to MCF), sphenopalatine foramen (to nasal cavity), pterygoid canal (Vidian nerve).
  • Pterygopalatine Ganglion: Largest peripheral parasympathetic ganglion; relays secretomotor fibers to lacrimal, nasal, and palatal glands.
  • Clinical Significance: Crucial for V2 nerve blocks, local anesthesia, and understanding spread of tumors/infections.

Practice Questions: Pterygopalatine Fossa

Test your understanding with these related questions

Lacrimal gland is supplied through parasympathetic system. It is supplied by which ganglion?

1 of 5

Flashcards: Pterygopalatine Fossa

1/10

The foramen _____ lies superolateral to the pterygoid canal, in the greater wing of the sphenoid.

TAP TO REVEAL ANSWER

The foramen _____ lies superolateral to the pterygoid canal, in the greater wing of the sphenoid.

rotundum
