PNS: Overview & Functions - Sinus Superstars

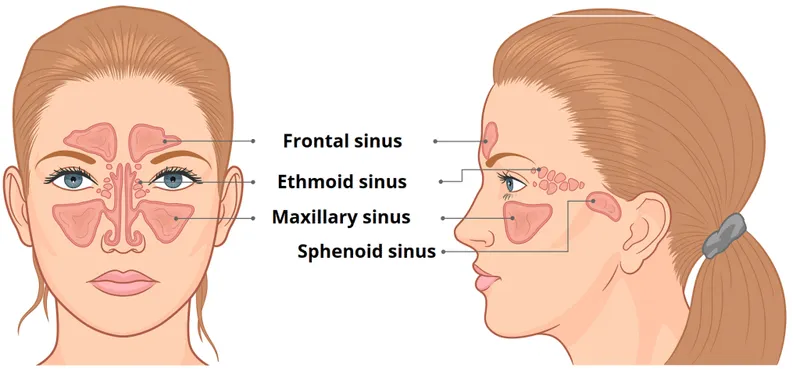

- Paranasal sinuses (PNS): Air-filled extensions of the respiratory part of the nasal cavity into cranial bones (frontal, ethmoid, sphenoid, maxilla). Lined by ciliated pseudostratified columnar epithelium.
- Four pairs: 📌 FESM - Frontal, Ethmoidal, Sphenoidal, Maxillary.
- Key Functions:
- Lighten skull.
- Voice resonance.
- Mucus production (immune defense).
- Warming & humidifying inhaled air.
⭐ All paranasal sinuses develop as outgrowths from the nasal cavity and drain back into it, typically via ostia.
PNS: Frontal & Maxillary - Forehead & Cheek Champs
| Feature | Frontal Sinus | Maxillary Sinus |
|---|---|---|
| Location | Forehead (frontal bone) | Cheek (body of maxilla) |
| Development | Appears: ~4-7 yrs; Completes: Puberty | Present at birth (rudimentary); Completes: Puberty |
| Drainage | Via frontonasal duct → Middle meatus (ethmoidal infundibulum / hiatus semilunaris) | Ostium → Middle meatus (hiatus semilunaris); 📌 Drainage superiorly, against gravity |
| Innervation | Supraorbital n. (CN V1) | Superior alveolar nn., Infraorbital n. (CN V2) |
| Blood Supply | Supraorbital a., Ant. ethmoidal a. | Branches of maxillary a. (Infraorbital, Superior alveolar, Greater palatine) |
| Key Relations | Ant. cranial fossa, Orbit | Orbit, Maxillary teeth roots, Nasal cavity, Pterygopalatine fossa |
| Clinical | Trauma (e.g., CSF rhinorrhea), Intracranial spread (e.g., meningitis); Mucocele common | Largest; Most common sinusitis; Dental infections spread; Oroantral fistula |
PNS: Ethmoidal & Sphenoidal - Midface & Deep Dives
Ethmoidal & Sphenoidal Sinuses: Comparative Overview
| Feature | Ethmoidal Cells (Ant, Mid, Post) | Sphenoidal Sinus |
|---|---|---|
| Location | Ethmoid labyrinth, between nose & orbit | Body of sphenoid bone |
| Drainage | Ant/Mid: Middle meatus. Post: Superior meatus. | Sphenoethmoidal recess |
| Innervation | Ant/Post Ethmoidal Nerves (V1) | Post Ethmoidal N. (V1), V2 branches |
| Blood Supply | Ant/Post Ethmoidal Arteries | Post Ethmoidal A., Sphenopalatine A. |
| Key Relations | Orbit (lamina papyracea), Ant. Cranial Fossa. Onodi cells (Post.) near optic nerve. | Pituitary, Optic N., Cavernous Sinus, ICA, Pons |
| Clinical | Ethmoiditis (orbital spread). | Sphenoid sinusitis (neurological complications risk). |

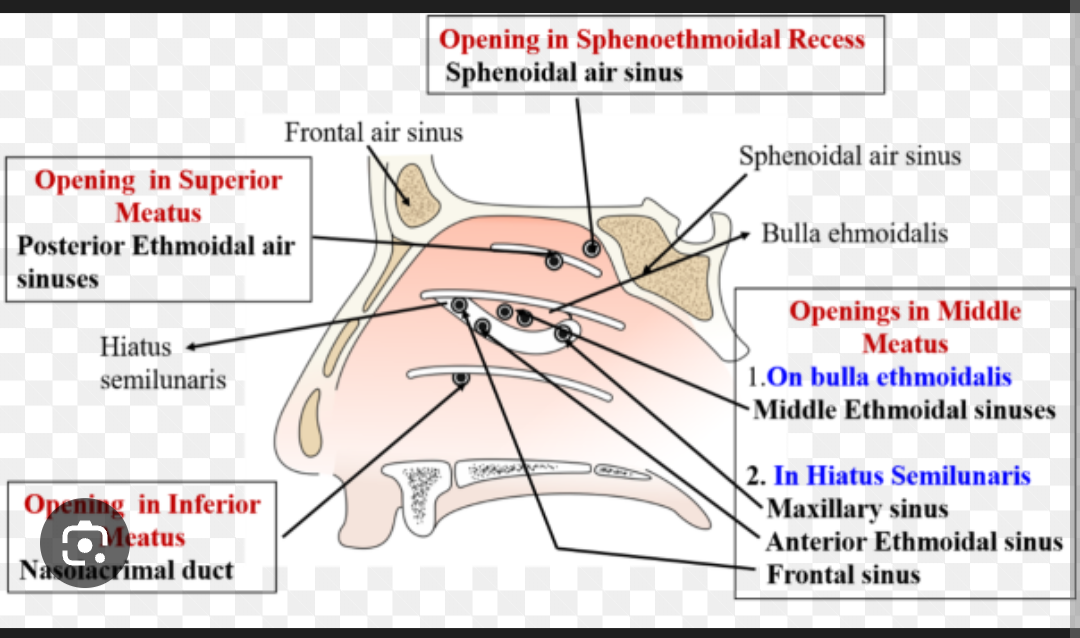

Drainage Flow:
⭐ The sphenoidal sinus provides surgical access to the pituitary gland via transsphenoidal hypophysectomy.
📌 Ethmoid/Sphenoid Drainage:
- Sphenoethmoidal Recess: Sphenoid, Posterior Ethmoid.
- Superior Meatus: Posterior Ethmoid.
- Middle Meatus: Anterior Ethmoid, Middle Ethmoid.
PNS: Clinical Significance - Sinus Sickness Stories
Sinusitis Types & Organisms:
| Type | Duration | Common Organisms |
|---|---|---|
| Acute | <4 weeks | S. pneumoniae, H. influenzae, M. catarrhalis |
| Chronic | >12 weeks | S. aureus, Pseudomonas, anaerobes, fungi (Aspergillus) |
- Facial pain/pressure, headache
- Purulent nasal discharge/post-nasal drip
- Nasal obstruction, congestion
- Anosmia/hyposmia, fever
Investigations:
- X-ray Waters view: Air-fluid levels, mucosal thickening (limited utility).
- CT scan: Gold standard; defines anatomy, disease extent, bony erosion.
Management Principles:
- Analgesics, decongestants, nasal saline irrigation.
- Antibiotics for bacterial (e.g., amoxicillin-clavulanate).
- Steroids (nasal/oral) for inflammation.
- Functional Endoscopic Sinus Surgery (FESS) for refractory chronic sinusitis or complications.
Complications:
- Orbital: Preseptal cellulitis, orbital cellulitis, subperiosteal abscess, orbital abscess, cavernous sinus thrombosis.
- Intracranial: Meningitis, epidural abscess, subdural empyema, brain abscess.
⭐ Pott's puffy tumor: A subperiosteal abscess of the frontal bone with underlying osteomyelitis, typically a complication of frontal sinusitis.
Mucocele: Chronic, expansile, mucus-filled lesion due to blocked sinus ostium. Tumors: Squamous cell carcinoma (most common malignant), inverted papilloma.
Flowchart: Pathway of Orbital Complications from Sinusitis
High‑Yield Points - ⚡ Biggest Takeaways
- Maxillary sinus is the largest, first to develop, and most commonly infected (sinusitis).
- Sphenoid sinus opens into the sphenoethmoidal recess; related to pituitary gland, optic nerve.
- Frontal sinus drains into the middle meatus via the frontonasal duct (infundibulum).
- Ethmoidal sinuses (anterior, middle, posterior) drain into middle and superior meatuses.
- Ostia of sinuses are typically located superiorly, predisposing to stasis.
- Woodruff's plexus is located in the posterior nasal cavity, a common site for posterior epistaxis, near sphenopalatine foramen.
- Kiesselbach's plexus (Little's area) is the most common site for anterior epistaxis.
