Dural Sinuses - Brain's Blue Blood Roads

  • Definition: Endothelium-lined venous channels located between the periosteal (endosteal) and meningeal layers of the dura mater.
  • Key Feature: Valveless, allowing blood flow in multiple directions based on pressure gradients.
  • Primary Functions:
    • Major pathway for venous drainage from the brain, meninges, and calvaria.
    • Crucial for Cerebrospinal Fluid (CSF) absorption into the bloodstream, primarily via arachnoid granulations.

⭐ Arachnoid granulations, responsible for CSF absorption, are most prominent along the Superior Sagittal Sinus, acting like one-way valves.

MRI views of dural venous sinuses

Sinus Roster - Paired & Unpaired Stars

📌 SISO: Superior sagittal, Inferior sagittal, Straight, Occipital (key midline unpaired sinuses).

Unpaired Sinuses (Midline)Paired Sinuses (Bilateral)
* Superior Sagittal (Sup. falx cerebri)* Transverse (Post. tentorium cerebelli)
* Inferior Sagittal (Inf. falx cerebri)* Sigmoid (Transverse to IJV)
* Straight (Falx/tentorium junction)* Cavernous (Sides of sella turcica)
* Occipital (Falx cerebelli)* Sup. Petrosal (Cavernous to transverse)
* Ant. & Post. Intercavernous (Link cavernous)* Inf. Petrosal (Cavernous to IJV)
* Sphenoparietal (Lesser sphenoid wing)

⭐ The confluence of sinuses (Torcular Herophili) is typically formed by the union of the Superior Sagittal Sinus, Straight Sinus, Occipital Sinus, and drains into the Transverse Sinuses.

Cavernous Sinus - Neurovascular Hub

Paired parasellar dural venous sinuses beside sella turcica (pituitary fossa) & sphenoid bone.

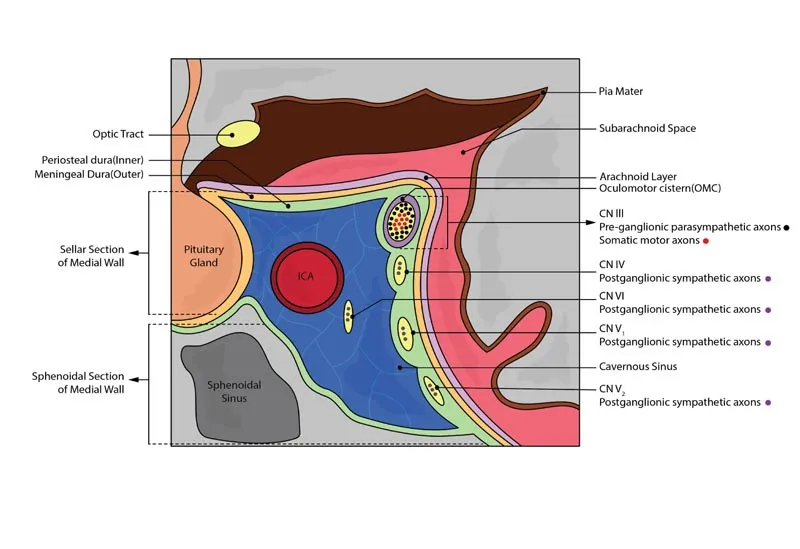

Coronal view of Cavernous Sinus and contents

  • Location: Parasellar, lateral to sphenoid body & pituitary fossa.

  • Contents: 📌 Mnemonic "OTOM CAT":

    In Lateral WallThrough Sinus
    Oculomotor N. (CN III)Internal Carotid Artery (ICA) + symp. plexus
    Trochlear N. (CN IV)Abducens N. (CN VI)
    Ophthalmic N. (CN V1)
    Maxillary N. (CN V2)
    (Last T often omitted or refers to related structures)
  • Tributaries: Sup. & Inf. ophthalmic veins, sphenoparietal sinus, sup. middle cerebral v.

  • Drainage: To Sup. & Inf. petrosal sinuses → transverse sinus & IJV.

  • Clinical Significance:

    • Cavernous Sinus Thrombosis (CST):
      • Source: "Danger triangle" of face (via ophthalmic vv.), sphenoid/ethmoid sinusitis.
      • Signs: Ophthalmoplegia, proptosis, chemosis.
    • Ophthalmoplegia: CN III, IV, VI palsy.
    • Tolosa-Hunt Syndrome: Idiopathic granulomatous inflammation → painful ophthalmoplegia.

⭐ The Abducens Nerve (CN VI) is most vulnerable in CST/ICA aneurysm (inferomedial, not in dural wall).

Sinus Drainage - Flow & Faults

Main Drainage Pathway:

Dural venous sinuses and drainage pathways

  • Key Tributaries:
    • Superior cerebral veins (to SSS).
    • Inferior & superficial middle cerebral veins.
    • Diploic veins (from skull bones).
    • Emissary veins (connect extracranial veins to sinuses; valveless).

⭐ Emissary veins, connecting dural venous sinuses with extracranial veins, are valveless and can be a route for the spread of infection from the scalp/face into the cranial cavity.

  • Clinical Correlations (Faults):
    • Dural Sinus Thrombosis (DST):
      • Common sites: Transverse, Sigmoid sinuses.
      • Risk factors: Oral Contraceptive Pills (OCPs), pregnancy, trauma, dehydration, sepsis.
      • Signs: Headache, papilledema, focal neurological deficits.
    • Dural Arteriovenous Fistulas (DAVF):
      • Abnormal artery-to-sinus connections.
      • Symptoms: Pulsatile tinnitus, headache, neurological deficits.

High‑Yield Points - ⚡ Biggest Takeaways

  • Dural sinuses: Endothelium-lined, valveless channels between dural layers, draining cranial blood.
  • Superior Sagittal Sinus (SSS): Key site for CSF absorption through arachnoid granulations.
  • Cavernous Sinus: Contains CN III, IV, V1, V2, VI, ICA; infections from danger area of face can reach it.
  • Ultimate Drainage: Most sinuses converge to drain into the Internal Jugular Vein (IJV).
  • Key Pathway: Transverse sinus continues as sigmoid sinus, then forms the IJV.
  • Confluence of Sinuses: Important meeting point for SSS, straight, occipital, and transverse sinuses.
