Functional Anatomy of Urinary System

Functional Anatomy of Urinary System

Functional Anatomy of Urinary System

On this page

Kidneys - Bean-Shaped Filters

  • Paired, bean-shaped, retroperitoneal organs (T12-L3). Right kidney slightly lower.
  • Dimensions: 11x6x3 cm. Weight: ~150g (M), ~135g (F).
  • Coverings (deep to superficial): Fibrous capsule, Perirenal fat, Renal fascia (Gerota's), Pararenal fat.
  • Hilum (medial indentation):

    ⭐ Structures anterior to posterior: Renal Vein → Renal Artery → Renal Pelvis (Mnemonic: VAP).

  • Internal Gross Structure:
    • Cortex: Outer, granular. Contains glomeruli, PCT, DCT. Renal columns (of Bertin).
    • Medulla: Inner, striated. Composed of 8-18 renal pyramids; apex = renal papilla.

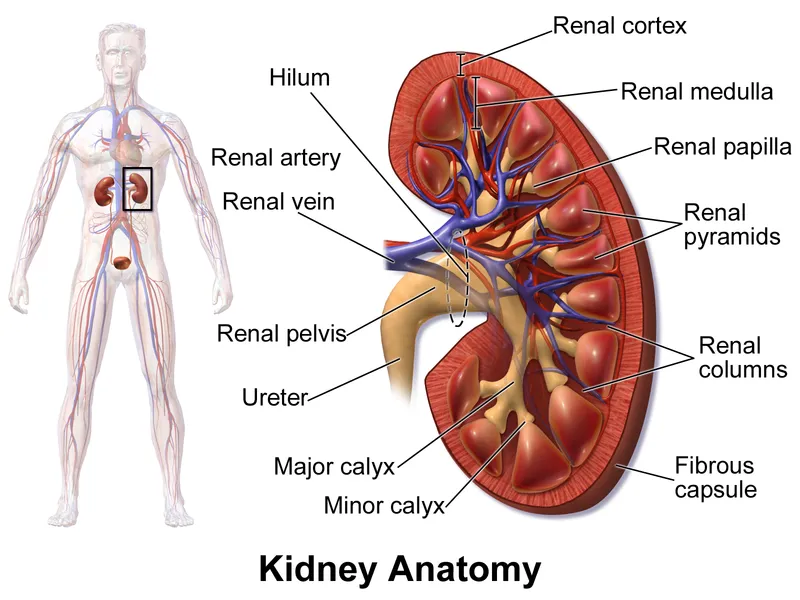

    • Drainage: Papilla → Minor calyces (7-13) → Major calyces (2-3) → Renal pelvis → Ureter. Kidney Anatomy: Coronal Section

Nephron & JGA - Tiny Titans of Filtration

  • Nephron: Kidney's functional unit (~1 million/kidney).
    • Parts: 📌 Glory Boy, Please Let Down Collecting! (Glomerulus, Bowman's capsule, PCT, Loop of Henle [thin/thick limbs], DCT, Collecting Duct).

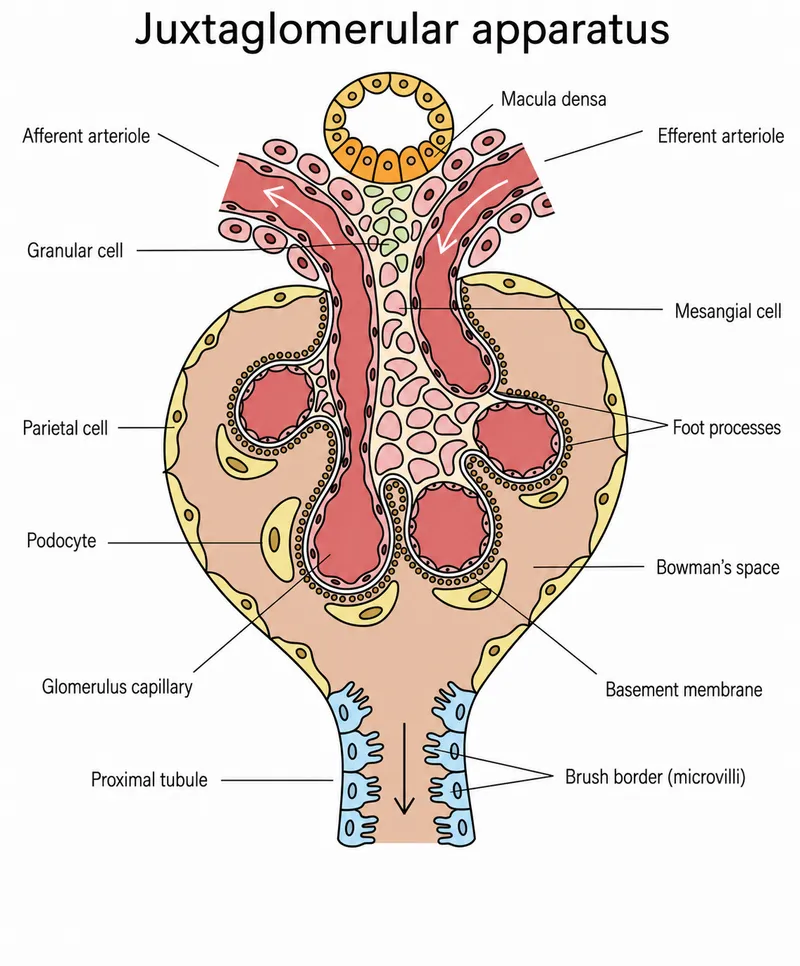

    • Types: Cortical (85%), Juxtamedullary (15%, long loops, urine concentration). Juxtaglomerular apparatus and associated structures
  • Juxtaglomerular Apparatus (JGA): Regulates GFR & BP.
    • Components: Macula Densa (DCT, senses NaCl), JG Cells (afferent arteriole, secrete renin), Extraglomerular Mesangial cells.

⭐ JGA: JG cells secrete renin (↑BP via RAAS). Macula densa senses filtrate NaCl for tubuloglomerular feedback (TGF).

Ureters & Bladder - Conduits & Container

  • Ureters: Muscular tubes (25-30 cm) conveying urine from kidneys to bladder.
    • Constrictions (📌 PUJ, Pelvic Brim, VUJ):
      • Pelviureteric Junction
      • Crossing Pelvic Brim/Iliac vessels
      • Vesicoureteric Junction (narrowest)
  • Urinary Bladder: Hollow muscular organ; stores urine. Capacity ~500ml.
    • Detrusor muscle: Smooth muscle; contraction aids micturition.
    • Trigone: Triangular area; ureteric orifices & internal urethral meatus.
    • Internal urethral sphincter: Smooth muscle; involuntary control.

⭐ Ureter Histology: Transitional epithelium; muscularis (inner longitudinal, outer circular smooth muscle); additional outer longitudinal in lower third.

Anatomy of the Urinary Bladder and Urethra

Urethra & Vasculature - Exit Route & Lifeline

  • Male Urethra (approx. 20cm):
    • Prostatic: 3-4cm, widest, most dilatable. Receives ejaculatory ducts.
    • Membranous: 1-2cm, passes urogenital diaphragm. External sphincter.
    • Spongy (Penile): ~15cm, in corpus spongiosum. Narrowest at external meatus.
  • Female Urethra: ~4cm, anterior to vagina. Prone to UTIs due to short length.
  • Renal Arterial Supply:
  • Renal Venous Drainage: Follows arterial path in reverse (Interlobular v. → Arcuate v. → Interlobar v. → Renal v.). Renal veins lack valves.

⭐ Membranous urethra is the shortest, narrowest, and least dilatable part of the male urethra, making it most vulnerable to injury from pelvic fractures.

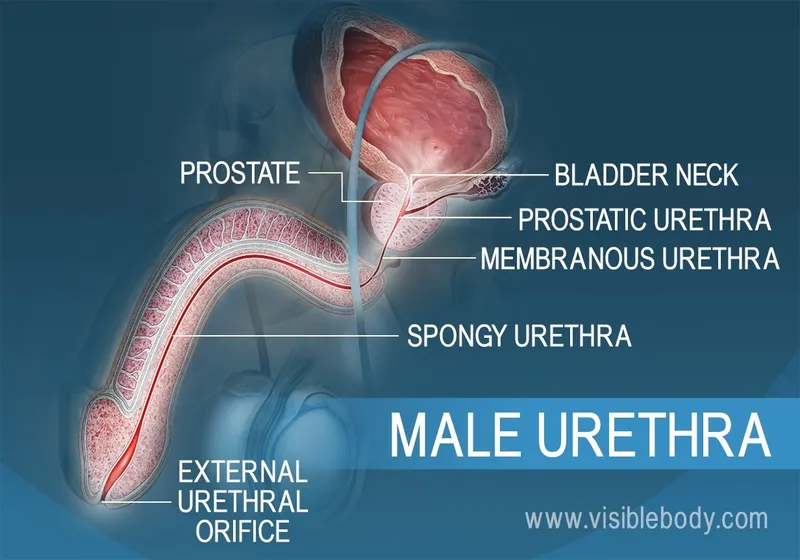

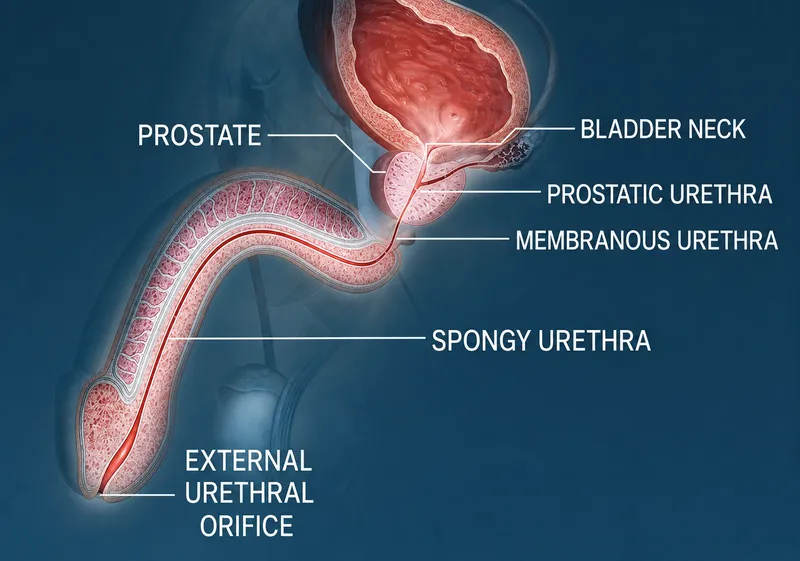

Male Urethra Anatomy and female urethra; Schematic of renal arterial supply and venous drainage)

Micturition & Innervation - The Emptying Act

  • Bladder capacity: First urge 150-250ml; Fullness 350-450ml.
  • Innervation & Reflex:
    • Storage (Sympathetic T11-L2): Detrusor relax, Internal Urethral Sphincter (IUS) contracts.
    • Voiding (Parasympathetic S2-S4): Detrusor contracts, IUS relaxes. 📌 P for Pee.
    • Somatic (Pudendal n. S2-S4): External Urethral Sphincter (EUS) voluntary control.

⭐ Pontine Micturition Center (Barrington's nucleus) in pons: key micturition reflex coordinator.

High‑Yield Points - ⚡ Biggest Takeaways

  • Kidneys: Retroperitoneal, T12-L3; right kidney slightly lower.
  • Nephron: Functional unit; juxtamedullary type key for urine concentration.
  • JGA: Macula densa, JG cells regulate renin secretion and GFR.
  • Glomerular filtration barrier: Endothelium, GBM, podocyte slits prevent proteinuria.
  • Ureteric constrictions: PUJ, pelvic brim, VUJ - common sites for calculi.
  • Bladder: Detrusor muscle (wall); trigone (smooth, stretch-sensitive).
  • Micturition: Parasympathetic (emptying), sympathetic (storage), somatic (sphincter control).

Practice Questions: Functional Anatomy of Urinary System

Test your understanding with these related questions

Two particles have the same diameter and molecular weight. Which factor would LEAST likely affect their passage through the glomerular filtration barrier?

1 of 5

Flashcards: Functional Anatomy of Urinary System

1/9

Primary, secondary, and tertiary actions produced by Superior oblique are _____, Depression, and _____ respectively.

TAP TO REVEAL ANSWER

Primary, secondary, and tertiary actions produced by Superior oblique are _____, Depression, and _____ respectively.

Intorsion; Abduction
