Development of Cardiovascular System

Development of Cardiovascular System

Development of Cardiovascular System

On this page

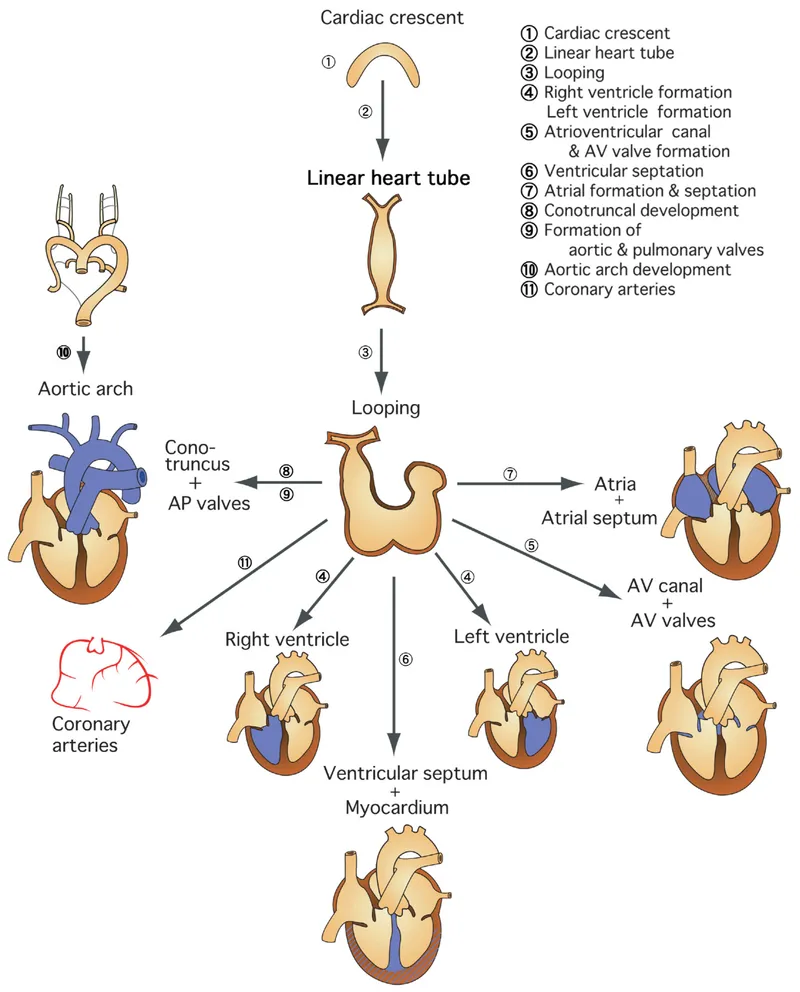

Heart's First Beat - Tube Twists & Turns

  • Primitive Heart Tube: Forms Day 21 from fused endocardial tubes (splanchnic mesoderm).
    • Layers: Endocardium, cardiac jelly, myocardium. Epicardium from proepicardial organ.
  • Segments & Derivatives (Cranial → Caudal):
    • Truncus Arteriosus → Aorta, Pulmonary Trunk.
    • Bulbus Cordis → Smooth RV (Conus arteriosus), Smooth LV (Aortic vestibule).
    • Primitive Ventricle → Trabeculated LV & RV.
    • Primitive Atrium → Trabeculated LA & RA.
    • Sinus Venosus → Smooth RA (Sinus venarum), Coronary sinus, Oblique vein of LA.
    • 📌 Mnemonic: To Be Perfectly At Sync. (TA, BC, PV, PA, SV)

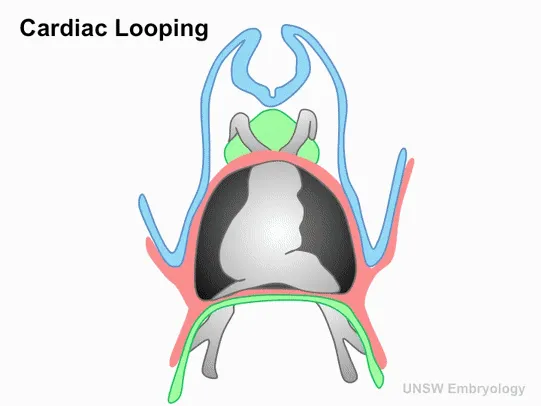

  • Cardiac Looping (Dextral): Day 23-28.
    • Bulboventricular loop forms; crucial for chamber alignment & R-L asymmetry.
    • BC: Ventral, caudal, right. PV: Dorsocranial, left.
    • Defect: Dextrocardia (heart points right).

⭐ The first heart beat occurs around day 22, often before maternal pregnancy awareness.

Dividing the Chambers - Walls Go Up!

  • Atrial Septation (Weeks 4-5):
    • Septum primum (↓ from atrial roof); ostium primum closes (fuses with endocardial cushions). Ostium secundum by apoptosis in SP.
    • Septum secundum (↓, muscular, right of SP); forms foramen ovale (in SS), for R→L fetal shunt.
    • Postnatally: ↑LA pressure closes foramen ovale (SP against SS) → fossa ovalis.
  • Ventricular Septation (Weeks 4-7):
    • Muscular IV septum (↑ from apex); interventricular foramen persists temporarily.
    • Membranous IV septum closes IV foramen; from endocardial cushion, conotruncal ridges, & muscular septum.
  • Outflow Tract (OFT) Septation (Weeks 5-8):
    • Aorticopulmonary (spiral) septum (neural crest cells vital) divides truncus arteriosus & conus cordis.
    • Forms Aorta & Pulmonary Trunk. Conus cordis forms smooth outflow tracts (infundibulum, aortic vestibule).

Loading diagram…

⭐ VSD is most common congenital heart defect, often in membranous IV septum.

Plumbing the System - Pipes & Pathways

  • Aortic Arches (Arteries): 6 pairs from aortic sac.
    • 3rd: Common Carotid, prox. Internal Carotid. 📌 C for Carotid.
    • 4th: Left → Aortic Arch; Right → prox. Right Subclavian A. 📌 A for Aortic arch/subclavian Artery.
    • 6th ("Pulmonary"): Prox. → Pulmonary Arteries; Distal Left → Ductus Arteriosus. 📌 P for Pulmonary/PDA.
  • Major Veins:
    • Vitelline: Form portal system, hepatic sinusoids, part of IVC.
    • Umbilical: Left persists (→ Lig. teres hepatis); Ductus Venosus (→ Lig. venosum) bypasses liver.
    • Cardinal: Anterior → SVC; Posterior/Sub/Supracardinal system → IVC, Azygos.

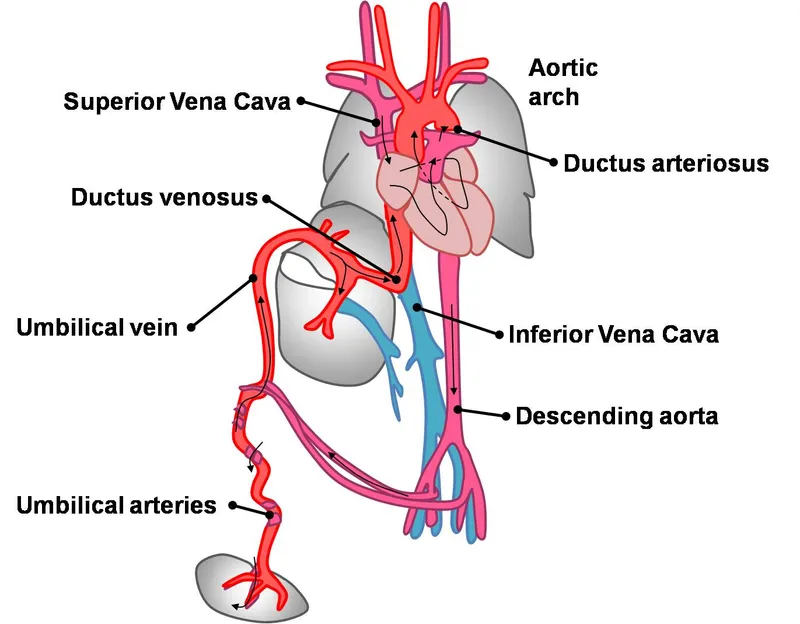

  • Fetal Circulation Shunts:
    1. Ductus Venosus: Umbilical V. → IVC (bypasses liver).
    2. Foramen Ovale: RA → LA (bypasses lungs).
    3. Ductus Arteriosus: Pulmonary A. → Aorta (bypasses lungs).
  • Postnatal Remnants:
    • Umbilical V. → Lig. teres hepatis
    • Ductus Venosus → Lig. venosum
    • Foramen Ovale → Fossa ovalis
    • Ductus Arteriosus → Lig. arteriosum
    • Umbilical Arteries → Medial umbilical ligaments

⭐ Ductus arteriosus is kept patent by PGE2 (Prostaglandin E2) and low O2 tension. Indomethacin promotes closure.

Loading diagram…

When Blueprints Go Wrong - Cardiac Oopsies

  • Acyanotic (L→R Shunts):
    • VSD: Most common CHD.
    • ASD: Ostium secundum common.
    • PDA: Continuous "machinery" murmur.
  • Cyanotic (R→L Shunts): (📌 5 T's: Tetralogy, Transposition, Truncus, TAPVR, Tricuspid atresia)
    • Tetralogy of Fallot (TOF): (📌 PROVe: Pulmonary stenosis, RVH, Overriding aorta, VSD). Boot-shaped heart.

      ⭐ TOF is the most common cyanotic CHD beyond infancy.

    • TGA: Requires shunt for survival. "Egg on a string" X-ray.
  • Obstructive Lesions:
    • Coarctation of Aorta: ↑ upper limb BP, ↓ lower limb BP. Rib notching.

High‑Yield Points - ⚡ Biggest Takeaways

  • Heart development begins week 3; heart tube from splanchnic mesoderm.
  • Aortic arches (3, 4, 6) form major arteries (carotids, aortic arch, pulmonary artery).
  • Essential fetal shunts: ductus venosus, foramen ovale, ductus arteriosus.
  • Bulbus cordis forms ventricular outflow tracts; primitive ventricle forms trabeculated parts.
  • Neural crest cells are vital for aortico-pulmonary septation; endocardial cushions for AV septation.
  • Sinus venosus forms smooth RA (sinus venarum) and coronary sinus.

Unlock the full lesson and continue reading

Signup to continue reading this lesson and unlimited access questions, flashcards, AI notes, and more

Scan to download app

Scan to download
UNLOCK FREE ACCESS

Practice Questions: Development of Cardiovascular System

  1. 1. Identify the condition in the X-ray given below:

    • A. Tetralogy of Fallot
    • B. Ebstein's anomaly
    • C. Transposition of the Great Arteries
    • D. Total anomalous pulmonary venous connection
    Show answer

    Answer: A. Tetralogy of Fallot

    Tetralogy of Fallot - A boot-shaped heart (coeur en sabot) is characteristic of Tetralogy of Fallot, resulting from right ventricular hypertrophy and pulmonary artery hypoplasia. - Reduced pulmonary vascular markings (oligemia) indicate decreased pulmonary blood flow, supporting Tetralogy of Fallot in this radiograph. Ebstein's anomaly - Although Ebstein's anomaly may cause reduced pulmonary vascularity, it typically produces massive cardiomegaly from right atrial enlargement and tricuspid regurgitation. - The characteristic boot-shaped cardiac silhouette is not typical of Ebstein's anomaly, making it less likely than Tetralogy of Fallot. Transposition of the Great Arteries - Transposition of the Great Arteries (TGA) typically produces an egg-on-a-string appearance, reflecting a narrow mediastinum with cardiomegaly, rather than a boot-shaped heart. - Pulmonary vascularity in TGA is often increased or normal, unlike the decreased pulmonary markings described in this image. Total anomalous pulmonary venous connection Total anomalous pulmonary venous connection produces a snowman or figure-of-eight silhouette specifically in the unobstructed supracardiac form, usually after sufficient venous enlargement in older children. Unobstructed TAPVC generally increases pulmonary vascularity; obstructed TAPVC may instead cause pulmonary edema with a normal-sized heart. Neither pattern matches the boot-shaped silhouette and pulmonary oligemia shown here.

  2. 2. Which statement about the limbus fossa ovalis is NOT correct?

    • A. Also called Annulus ovalis
    • B. Located in the right atrium
    • C. Forms the fossa ovalis rim
    • D. Derived from septum primum
    Show answer

    Answer: D. Derived from septum primum

    Derived from septum primum - The limbus fossa ovalis is derived from the septum secundum, which forms the raised rim around the fossa ovalis. - The septum primum primarily contributes to the floor or valve region of the fossa ovalis; therefore, this statement is false. Also called Annulus ovalis - Annulus ovalis is an accepted synonym for the limbus fossa ovalis, describing the same prominent rim around the fossa ovalis. - This terminology therefore correctly identifies the muscular rim of the fossa ovalis and is not the false statement. Located in the right atrium - The limbus fossa ovalis is located on the septal wall of the right atrium, making this statement anatomically correct. - Its position provides an important right atrial landmark for identifying the interatrial septum and fossa ovalis. Forms the fossa ovalis rim - The limbus fossa ovalis forms the thickened rim surrounding the fossa ovalis on the interatrial septum. - This rim represents part of the anatomical arrangement left after closure of the fetal foramen ovale, so the statement is true.

  3. 3. All of the following congenital cardiac defects are classically duct-dependent lesions EXCEPT:

    • A. Interrupted aortic arch
    • B. Hypoplastic left heart syndrome
    • C. Transposition with intact septum
    • D. Persistent truncus arteriosus
    Show answer

    Answer: D. Persistent truncus arteriosus

    Persistent truncus arteriosus - Persistent truncus arteriosus has a single arterial trunk supplying the systemic, pulmonary, and coronary circulations, with mixing occurring through an associated ventricular septal defect. - Because the common trunk directly supplies both circulations, the ductus arteriosus is not required for survival; therefore, this is the exception. Transposition with intact septum - Transposition with intact septum creates parallel systemic and pulmonary circulations, so adequate oxygenation requires mixing between the two circuits. - A patent ductus arteriosus provides critical mixing of oxygenated and deoxygenated blood, making this a ductus-dependent lesion until definitive correction. Interrupted aortic arch - Interrupted aortic arch prevents continuity between the ascending and descending aorta, obstructing blood flow to the lower body and abdominal organs. - The patent ductus arteriosus supplies descending aortic flow distal to the interruption, so its closure causes severe systemic hypoperfusion. Hypoplastic left heart syndrome - Hypoplastic left heart syndrome includes severe underdevelopment of the left ventricle, mitral valve, aortic valve, and ascending aorta, limiting native systemic output. - The patent ductus arteriosus is essential because right ventricular output reaches the systemic circulation through the pulmonary artery and ductus; closure is lethal.

  4. 4. Which of the following is NOT characteristic of acute rheumatic fever?

    • A. Frequent joint deformities
    • B. Involvement of large joints
    • C. Elevated ASO titer
    • D. Dramatic response to aspirin
    Show answer

    Answer: A. Frequent joint deformities

    Frequent joint deformities are not characteristic because acute rheumatic fever arthritis generally resolves without permanent joint damage. Involvement of large joints is typical, often with a migratory pattern. Elevated ASO titer supports antecedent group A streptococcal infection, although it is not itself a joint manifestation. Dramatic response to aspirin is characteristic of the arthritis associated with acute rheumatic fever.

  5. 5. Which syndrome is most commonly associated with an atrioventricular canal defect?

    • A. Klinefelter syndrome
    • B. Marfan syndrome
    • C. Turner syndrome
    • D. Down syndrome
    Show answer

    Answer: D. Down syndrome

    Down syndrome - Down syndrome (trisomy 21) is the most common syndrome associated with atrioventricular canal defects, also called endocardial cushion defects. - Congenital heart disease occurs in approximately 40–50% of individuals with Down syndrome, and atrioventricular septal defect is a characteristic cardiac association. Marfan syndrome - Marfan syndrome is a connective-tissue disorder primarily associated with aortic root dilation, aneurysm, and mitral valve prolapse. - It does not characteristically cause atrioventricular canal defects, which are endocardial cushion abnormalities associated with other syndromes. Turner syndrome - Turner syndrome is characteristically associated with coarctation of the aorta and bicuspid aortic valve. - Although Turner syndrome has important congenital cardiovascular abnormalities, atrioventricular canal defects are not a typical association. Klinefelter syndrome - Klinefelter syndrome (47,XXY) is not characteristically associated with atrioventricular canal defects. - Its reported cardiac associations include mitral valve prolapse and aortic root dilation, making it a less suitable choice.

  6. 6. What is the embryological origin of the ligamentum arteriosum?

    • A. Remnant of the left umbilical vein
    • B. Remnant of the ductus arteriosus
    • C. Remnant of the ductus venosus
    • D. Remnant of the umbilical artery
    Show answer

    Answer: B. Remnant of the ductus arteriosus

    Remnant of the ductus arteriosus - The ductus arteriosus connects the pulmonary artery to the aorta during fetal life, allowing blood to bypass the nonfunctional lungs. - After birth, increased oxygen tension and decreased prostaglandins cause its closure and obliteration, forming the ligamentum arteriosum. Remnant of the left umbilical vein - The umbilical vein becomes the ligamentum teres hepatis after birth. - It therefore cannot form the ligamentum arteriosum, which develops from the postnatal remnant of a fetal arterial shunt. Remnant of the ductus venosus - The ductus venosus is a fetal shunt between the umbilical vein and inferior vena cava, bypassing much of the liver. - After birth, it becomes the ligamentum venosum, not the ligamentum arteriosum, which derives from the ductus arteriosus. Remnant of the umbilical artery - The obliterated distal part of the umbilical artery forms the medial umbilical ligament after birth. - It therefore does not contribute to formation of the ligamentum arteriosum.

  7. 7. Which preservative is added to vitreous humour collected at autopsy for ethanol estimation?

    • A. Sulphuric acid
    • B. Xylol solution
    • C. Phenol solution
    • D. Sodium fluoride
    Show answer

    Answer: D. Sodium fluoride

    Sodium fluoride - Sodium fluoride is the preferred preservative for vitreous humor collected at autopsy, particularly when analysing alcohol and glucose levels. - As an enzyme inhibitor, fluoride limits post-mortem glucose metabolism and microbial alcohol fermentation, preserving the sample's integrity. Xylol solution - Xylol (xylene) is a histological clearing solvent used to remove alcohol from tissues before paraffin embedding, not to preserve vitreous humor. - Its solvent action can disrupt cellular components and alter proteins, making vitreous unsuitable for reliable chemical analysis. Sulphuric acid - Sulphuric acid is a strong acid that causes protein denaturation and changes the chemical composition of vitreous humor. - It is unsuitable for preserving fragile analytes such as glucose or maintaining samples for routine vitreous chemical analysis. Phenol solution - Phenol is primarily an antiseptic and disinfectant used in some tissue-preservation contexts, rather than a preservative for vitreous metabolites. - It may interfere with analytical methods used to measure substances such as glucose and alcohol in vitreous humor.

  8. 8. During early cardiac development, localized expansions of cardiac jelly in the atrioventricular canal provide the extracellular matrix for which structures?

    • A. Ventricular myocardium
    • B. Fibrous pericardium
    • C. Dorsal mesocardium
    • D. Endocardial cushions
    Show answer

    Answer: D. Endocardial cushions

    Endocardial cushions is correct because local expansion and cellularization of cardiac jelly provide the matrix for cushion formation, with mesenchymal cells contributed through endocardial endothelial-to-mesenchymal transition. These cushions contribute to atrioventricular valves and septation. Ventricular myocardium is incorrect because it develops from cardiogenic splanchnic mesoderm rather than cardiac jelly. Fibrous pericardium is incorrect because its components develop from coelomic mesodermal tissues and pleuropericardial membranes. Dorsal mesocardium is incorrect because it is the transient mesentery suspending the heart tube; breakdown of its central dorsal portion during the fourth week establishes the transverse pericardial sinus.

  9. 9. Which one of the following is a criterion of Kawasaki disease?

    • A. Periorbital edema
    • B. Polymorphous rash
    • C. Purulent conjunctivitis
    • D. Exudative pharyngitis
    Show answer

    Answer: B. Polymorphous rash

    Polymorphous rash is a principal diagnostic feature of Kawasaki disease. Exudative pharyngitis is not included among the oral changes. Purulent conjunctivitis is not a principal diagnostic feature because Kawasaki disease characteristically causes bilateral non-purulent conjunctival injection. Periorbital edema is not included among the acute extremity changes, which involve the hands and feet.

  10. 10. From which secondary brain vesicle is the cerebellum derived?

    • A. Mesencephalon
    • B. Prosencephalon
    • C. Metencephalon
    • D. Rhombencephalon
    Show answer

    Answer: C. Metencephalon

    Metencephalon - The cerebellum develops from the metencephalon, a secondary brain vesicle that arises from the rhombencephalon during embryonic development. - This structure is responsible for coordinating muscle movements and balancing, which are key functions of the cerebellum. Prosencephalon - The prosencephalon forms the forebrain, which includes structures such as the telencephalon and diencephalon, not the cerebellum. - Its derivatives primarily relate to higher cognitive functions and sensory processing rather than motor control. Mesencephalon - The mesencephalon develops into the midbrain, which is involved in visual and auditory processing, but does not contribute to the formation of the cerebellum. - It also plays a role in motor control via connections with other brain regions, yet lacks the direct association with the cerebellar structure. Rhombencephalon - The rhombencephalon is a primary brain vesicle that gives rise to both the metencephalon and myelencephalon, but is not the final structure of the cerebellum itself. - While it lays the groundwork for the hindbrain, the cerebellum specifically originates from the metencephalon within this region.

Flashcards: Development of Cardiovascular System

  1. 1. Congenital heart defects arise during embryogenesis, usually in weeks _____ through _____

    Show answer

    3 · 8

  2. 2. There is _____ umbilical vein(s) and _____ umbilical artery (arteries)

    Show answer

    one · two

  3. 3. The embryonic _____ gives rise to the _____ and _____

    Show answer

    truncus arteriosus · ascending aorta · pulmonary trunk

  4. 4. The anatomical closure of the ductus arteriosus occurs at days.

    Show answer

    10-21

  5. 5. The embryonic _____ gives rise to the _____ parts of the _____ ventricle ONLY

    Show answer

    primitive ventricle · trabeculated · left

  6. 6. The embryonic _____ gives rise to the _____

    Show answer

    left horn of sinus venosus · coronary sinus

  7. 7. In the first step of ventricular partitioning, the _____ interventricular septum develops and forms the _____

    Show answer

    muscular · interventricular foramen

  8. 8. The cells shown in the image are_____ present adjacent to the neural tube (NT)

    Show answer

    neural crest cells (NCC)

  9. 9. Membranous part of the interventricular septum is derived from _____.

    Show answer

    endocardial cushions

  10. 10. VACTERL syndrome is due to _____ defects

    Show answer

    mesodermal
