Surgical Anatomy

On this page

Surgical Anatomy: General Principles - Scalpel Signposts

  • Surgical Planes & Layers:
    • Skin (Epidermis, Dermis)
    • Superficial Fascia (e.g., Camper's, Scarpa's)
    • Deep Fascia (invests muscles, forms compartments)
    • Muscle layers
    • Periosteum/Peritoneum (lines bone/abdomen)
    • Dissect in natural avascular planes.
  • Surgical Incisions:
    • Goal: Optimal exposure, minimal damage.
    • Respect nerves & vessels.

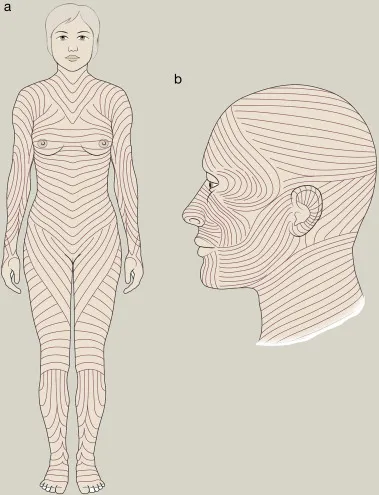

    • Types: Midline, Paramedian, Transverse (Pfannenstiel), Oblique (Kocher's, McBurney's). Langer's lines of the human body
  • Tissue Handling & Haemostasis:
    • Gentle technique aids healing.
    • Meticulous haemostasis prevents haematoma.
  • Wound Closure & Healing:
    • Primary Intention: Edges apposed, clean wound.
    • Secondary Intention: Open wound, granulation.

⭐ Incisions along Langer's lines (skin cleavage lines) are key for best cosmetic results (finer scars).

Surgical Anatomy: Thorax & Abdomen - Core Cavity Cuts

Diaphragmatic apertures and surrounding anatomy

  • Thorax: Surgical Access & Landmarks
    • Incisions: Median sternotomy (midline), thoracotomy (posterolateral/anterolateral).
    • Pleural Spaces: Visceral & parietal pleura; costodiaphragmatic recess.
    • Mediastinum: Key structures for surgical approach: heart, great vessels (aorta, SVC/IVC, pulmonary vessels), esophagus, trachea, phrenic/vagus nerves.
    • Diaphragmatic Apertures: Caval (T8), Esophageal (T10), Aortic (T12). (📌 I Eat Apples - IVC T8, Esophagus T10, Aorta T12)
  • Abdomen: Incisions & Hernia Sites
    • Common Incisions: Midline, paramedian, Kocher's (subcostal), McBurney's (appendectomy), Pfannenstiel (pelvic).
    • Anterior Abdominal Wall Layers: Skin → Subcutaneous tissue (Camper's, Scarpa's) → External oblique → Internal oblique → Transversus abdominis → Transversalis fascia → Extraperitoneal fat → Peritoneum.
    • Inguinal Region:
      • Inguinal Canal: Spermatic cord (male) / Round ligament (female).
      • Hesselbach's Triangle (Direct Hernia): Boundaries: Rectus abdominis (medial), inferior epigastric vessels (superolateral), inguinal ligament (inferior).
    • Femoral Triangle: NAVEL (Nerve, Artery, Vein, Empty space, Lymphatics) from lateral to medial.

Calot's Triangle (Hepatobiliary Triangle): Critical for Cholecystectomy

  • Boundaries: Common hepatic duct (medial), cystic duct (inferior), inferior edge of liver (superior).
  • Contents: Cystic artery (usually), cystic lymph node (of Lund), autonomic nerve fibers. Right hepatic artery can be at risk.

Surgical Anatomy: Head, Neck & Pelvis - Precision Zones

  • Head & Neck Critical Zones:
    • Carotid Triangle: Boundaries (SCM, post. digastric, sup. omohyoid). Contents: Carotid sheath (CCA bifurcation, IJV, CN X).
    • Submandibular Triangle: Contents: Submandibular gland, facial A/V, CN XII, lingual N.
    • Thyroid Gland: Recurrent Laryngeal Nerve (RLN) in tracheoesophageal groove, vulnerable at Ligament of Berry. External branch SLN at superior pole.

      ⭐ The RLN is most commonly injured during thyroidectomy, especially near Berry's ligament or inferior thyroid artery branches.

    • Parotid Gland: Facial nerve (CN VII) branches (📌 "To Zanzibar By Motor Car").
    • Pterygopalatine Fossa: Maxillary artery, V2. Parotid gland and surrounding structures
  • Pelvic Precision Zones:
    • Ureteric Course: "Water under the bridge" - Ureter inferior to uterine artery (female) / vas deferens (male). Vulnerable in hysterectomy, colectomy.
    • Key Spaces:
      • Space of Retzius (Retropubic): Between pubic symphysis & bladder.
      • Presacral Space: Between rectum & sacrum; risk of presacral venous plexus injury.
    • Neurovascular:
      • Internal iliac artery branches.
      • Obturator nerve: Risk in pelvic lymphadenectomy.
      • Pudendal nerve (Alcock's canal).
    • Female: Cardinal ligament (uterine artery). Uterosacral ligaments.
    • Male: Denonvilliers' fascia. Neurovascular bundles posterolateral to prostate.

High‑Yield Points - ⚡ Biggest Takeaways

  • Triangle of Calot (cystohepatic): critical in cholecystectomy; contains cystic artery.
  • McBurney's point: indicates base of appendix; crucial for appendicectomy.
  • Hesselbach's triangle: anatomical landmark for direct inguinal hernias.
  • Anterior abdominal wall layers: essential knowledge for incisions and hernia repair.
  • Recurrent laryngeal nerve: high risk of injury during thyroidectomy.
  • Axillary nerve: vulnerable in proximal humerus fractures and deltoid approaches.
  • Spermatic cord contents: remembered by "Rule of 3s" (e.g., 3 arteries, 3 nerves).

Practice Questions: Surgical Anatomy

Test your understanding with these related questions

Not a landmark of facial nerve identification in parotid surgery:

1 of 5

Flashcards: Surgical Anatomy

1/10

The _____ is the landmark for the pudendal nerve block.

TAP TO REVEAL ANSWER

The _____ is the landmark for the pudendal nerve block.

ischial spine
