Trauma Fundamentals - Injury Ins & Outs

Injury Mechanisms:

TypeMechanismExamplesKey Effects
BluntForce transfer without skin breach; compression, deceleration, shear.MVA, falls, blows.Contusions, fractures, internal organ rupture/laceration.
PenetratingObject pierces skin; direct tissue disruption along tract.Stabs, GSWs.Punctures, organ damage, cavitation (high-velocity).
BlastPrimary (overpressure), secondary (projectiles), tertiary (impact), quaternary (burns/toxins).Explosions.Multi-system: lung/GI/ear (primary), penetrating, fractures.

Injury Progression:

  • Primary Injury: Immediate structural damage at impact (e.g., cell lysis, vessel tearing).
  • Secondary Injury: Evolves post-impact; driven by hypoxia, inflammation, edema, ↑ICP.

ATLS Priorities & Anatomical Relevance:

  • Airway with C-spine protection: Assess patency (tongue, foreign body, laryngeal edema); C-spine control.
  • Breathing & Ventilation: Chest wall integrity, pleura, lungs (e.g., tension pneumothorax, massive hemothorax).
  • Circulation with Hemorrhage Control: Identify shock; control bleeding (major vessels, spleen, liver).
  • Disability (Neurological Status): GCS (3-15), pupillary response; brain, spinal cord.
  • Exposure & Environmental Control: Complete body survey; prevent hypothermia.

⭐ The 'lethal triad' in trauma: acidosis, hypothermia, and coagulopathy.

Thoraco-Abdominal Trauma - Core Catastrophes

Thoracic Catastrophes:

  • Tension Pneumothorax: Air trap → mediastinal shift, ↓venous return. Tracheal deviation (late). Needle decompression (2nd ICS MCL / 5th ICS MAL). Tension vs Spontaneous Pneumothorax
  • Open Pneumothorax: "Sucking chest wound". Occlusive dressing (3-sided).
  • Massive Hemothorax: >1500 mL blood or >200 mL/hr drainage. Chest tube + urgent thoracotomy.
  • Flail Chest: ≥3 ribs fractured in ≥2 places. Paradoxical motion. Pain control, PEEP.
  • Cardiac Tamponade: Beck's Triad (Hypotension, ↑JVP, Muffled heart sounds). Pulsus paradoxus.
  • Aortic Transection: Aortic isthmus (ligamentum arteriosum). Widened mediastinum.

    ⭐ Most common site of traumatic aortic rupture is the aortic isthmus.

Abdominal Catastrophes:

  • Solid Organ Injury:
    • Liver (most common overall), Spleen (blunt trauma, Kehr's sign), Kidneys (hematuria).
  • Hollow Viscus Perforation: Peritonitis, free air on imaging.
  • Retroperitoneal Hematoma:
    • Zone I (Central): Aorta/IVC, Pancreas. Surgical exploration.
    • Zone II (Flank): Kidneys, Colon. Selective exploration.
    • Zone III (Pelvic): Iliac vessels. Angioembolization/surgery. Zones of Retroperitoneal Hematoma
  • Diaphragmatic Rupture: Left > Right. Bowel sounds in chest. Diaphragm with common tear locations

Pelvic Trauma:

  • Fractures: Risk massive hemorrhage (internal iliac a.), bladder/urethral injury. Pelvic binder.

FAST Scan (Focused Assessment with Sonography for Trauma): FAST scan windows and probe placement

ViewTargetPositive Finding Implies
PericardialPericardial spaceTamponade
HepatorenalMorison's pouchIntra-abdominal bleed
SplenorenalSplenorenal recessIntra-abdominal bleed
PelvicPouch of DouglasIntra-abdominal bleed

Head, Neck & Extremity Trauma - Peripheral Perils

  • Head Trauma

    • Skull Fractures:

      • Linear (most common), Depressed (bone fragment inward, brain injury risk), Basilar (skull base; 📌 Battle's sign, Raccoon eyes, CSF otorrhea/rhinorrhea).
    • Intracranial Hemorrhages (ICH):

      ⭐ Epidural hematoma is typically caused by rupture of the middle meningeal artery.

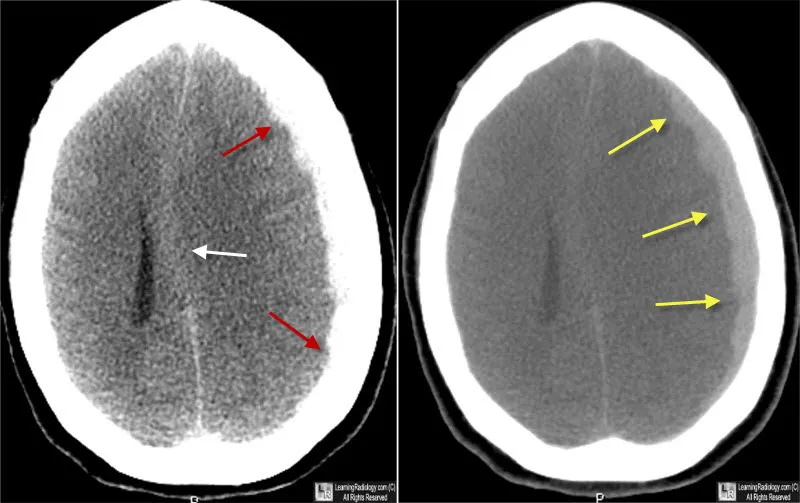

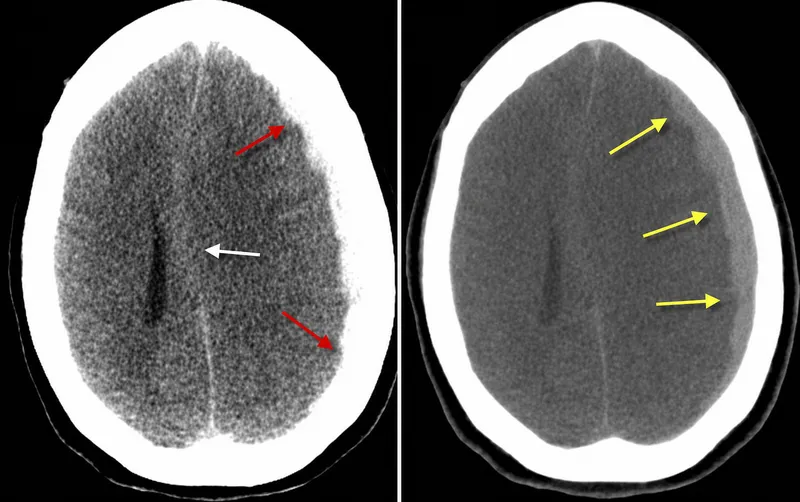

      CT scan showing acute and chronic subdural hematoma CT scan showing subarachnoid hemorrhage

      FeatureEpidural Hematoma (EDH)Subdural Hematoma (SDH)Subarachnoid Hemorrhage (SAH)Intracerebral Hemorrhage (ICH)
      VesselMiddle meningeal a. (MMA)Bridging veinsArterial (e.g., aneurysm)Intraparenchymal vessels
      CTBiconvex (lens), no suture crossCrescent, crosses suturesBlood in sulci/cisternsHyperdense in parenchyma
      KeyLucid intervalGradual onset, ↓LOC"Worst headache of life"Focal neurological deficits
  • Neck Trauma

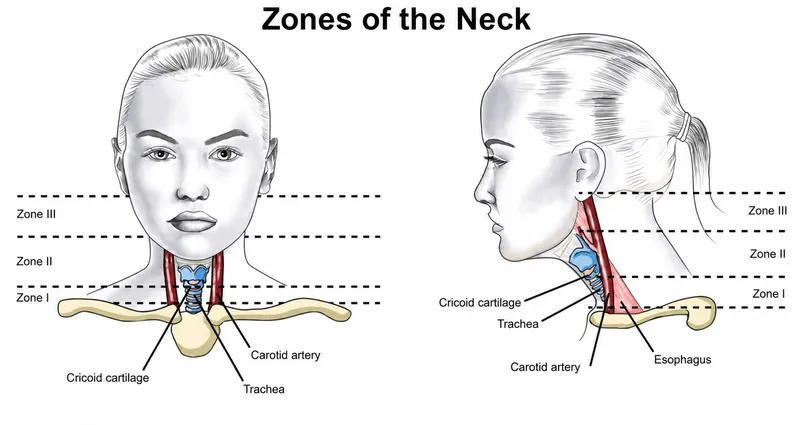

    • Zones: I (clavicles-cricoid; major vessels, lung apices), II (cricoid-mandible angle; carotids, larynx), III (mandible angle-skull base; distal carotids, CNs). Zones of the Neck with Key Structures
    • C-Spine Injuries:
      • Jefferson #: C1 (atlas) burst, axial load.
      • Hangman's #: C2 (axis) pedicle #, hyperextension.
  • Extremity Trauma

    • Common Neurovascular Injuries:
      • Shoulder dislocation (ant.): Axillary n.
      • Humeral shaft #: Radial n.
      • Supracondylar humerus #: Median n., brachial a.
      • Knee dislocation: Popliteal a. (high risk).
    • Compartment Syndrome:
      • ↑ Pressure in fascial compartment (leg, forearm).
      • Signs: 6 P's (Pain on passive stretch, Paresthesia, Pallor, Pulselessness, Paralysis).

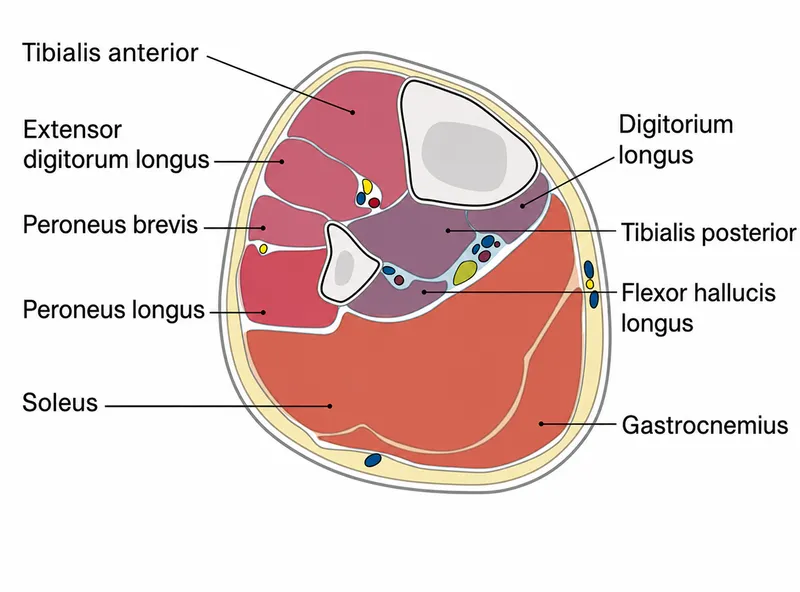

      • Pressure > 30 mmHg often requires fasciotomy. Leg cross-section showing anatomical compartments

High‑Yield Points - ⚡ Biggest Takeaways

  • Lucid interval is pathognomonic for epidural hematoma (middle meningeal artery).
  • Tension pneumothorax causes mediastinal shift; cardiac tamponade presents with Beck's triad (hypotension, JVD, muffled heart sounds).
  • Kehr's sign (referred left shoulder pain) strongly indicates splenic rupture.
  • Pelvic fractures are notorious for massive, life-threatening retroperitoneal hemorrhage.
  • Supracondylar humerus fracture risks Volkmann's ischemic contracture from brachial artery injury.
  • Compartment syndrome (remember the 6 Ps) is a limb-threatening surgical emergency.
