Clinical Anatomy

🧠 Cranial Nerve Lesions - Nerve Wrecks

You'll master the art of translating anatomical knowledge into diagnostic power, learning to pinpoint cranial nerve deficits, localize lesions with precision, and systematically assess peripheral nerve function. This lesson builds your clinical reasoning from foundational nerve anatomy through advanced multi-system integration, equipping you with evidence-based algorithms that transform complex neurological presentations into clear diagnostic pathways. By connecting structural relationships to functional patterns, you'll develop the spatial thinking and systematic approach that separates competent clinicians from exceptional ones.

Cranial Nerve Anatomical Foundation

The 12 cranial nerves emerge from specific brainstem and forebrain locations, each following distinct anatomical courses that determine their vulnerability patterns:

• Midbrain Origins (CN III, IV)

  • Oculomotor nerve: 95% of third nerve palsies involve pupillary dysfunction
  • Trochlear nerve: Longest intracranial course (75mm), most vulnerable to trauma
    • 40% of isolated fourth nerve palsies are traumatic
    • Superior oblique weakness creates characteristic head tilt

• Pontine Origins (CN V, VI, VII, VIII)

  • Trigeminal nerve: 3 major divisions with distinct sensory territories
  • Abducens nerve: Longest subarachnoid course, vulnerable to increased ICP
    • False localizing sign in 30% of cases with elevated pressure
  • Facial nerve: 2 distinct components (motor and sensory/parasympathetic)
    • Geniculate ganglion - critical anatomical landmark for localization

• Medullary Origins (CN IX, X, XI, XII)

  • Glossopharyngeal and vagus: Jugular foramen syndrome affects both
  • Hypoglossal nerve: Intramedullary course makes it vulnerable to medial medullary syndrome

📌 Remember: "Some Say Marry Money, But My Brother Says Big Brains Matter More" - Sensory, motor, or mixed function for each CN: S-M-M-M-M-M-M-S-M-M-M-M (I-XII)

Anatomical Localization Patterns

Understanding the anatomical course of each cranial nerve enables precise localization of lesions based on associated deficits:

• Intramedullary Lesions

  • Affect nerve nuclei and associated tracts
  • CN XII lesions: Ipsilateral tongue weakness with contralateral hemiplegia (medial medullary syndrome)
  • CN VII lesions: Facial weakness with ipsilateral gaze palsy (Millard-Gubler syndrome)

• Subarachnoid Space Lesions

  • Multiple nerve involvement common
  • Carcinomatous meningitis: 60% involve multiple cranial nerves
  • Basal skull fractures: CN VII injured in 20% of temporal bone fractures

• Cavernous Sinus Lesions

  • CN III, IV, VI, V1, V2 involvement
  • Tolosa-Hunt syndrome: Painful ophthalmoplegia with steroid responsiveness
  • Carotid-cavernous fistula: Pulsatile exophthalmos with cranial nerve deficits

💡 Master This: Anatomical rule - Lesions affecting nerve nuclei cause ipsilateral deficits, while supranuclear lesions cause contralateral deficits (except CN IV, which decussates completely).

Connect cranial nerve foundation through functional assessment patterns to understand localization precision.

⚡ Functional Assessment Patterns - Diagnostic Precision Maps

Systematic Cranial Nerve Assessment Framework

Upper Cranial Nerves (I-IV) Assessment:

• CN I (Olfactory) Testing

  • Coffee grounds test: 85% sensitivity for anosmia detection
  • Unilateral testing essential - 40% of lesions are unilateral
    • Anterior cranial fossa tumors: 90% cause anosmia
    • Post-traumatic anosmia: 65% recovery rate within 2 years

• CN II (Optic) Comprehensive Evaluation

  • Visual acuity: Snellen chart at 20 feet distance
  • Visual fields: Confrontation testing detects 70% of field defects
    • Bitemporal hemianopia: Chiasmal compression (pituitary adenoma 80% of cases)
    • Homonymous hemianopia: Retrochiasmal lesions (stroke 60%, tumor 25%)
  • Pupillary responses: RAPD (relative afferent pupillary defect)
    • 0.3 log units difference indicates significant optic nerve dysfunction

• CN III (Oculomotor) Pattern Recognition

  • Complete palsy: Ptosis + mydriasis + "down and out" eye
  • Pupil-sparing: 90% microvascular (diabetic) etiology
  • Pupil-involving: 95% compressive lesion (aneurysm, tumor)
    • Posterior communicating artery aneurysm: 30% present with isolated CN III palsy

📌 Remember: "RAPD Reveals Retinal/optic nerve Pathology" - Relative Afferent Pupillary Defect indicates pre-chiasmal visual pathway dysfunction with >90% specificity.

Middle Cranial Nerve Assessment (V-VIII)

CN V (Trigeminal) Systematic Testing:

• Sensory Division Assessment

  • V1 (Ophthalmic): Forehead sensation, corneal reflex
  • V2 (Maxillary): Cheek sensation, infraorbital nerve distribution
  • V3 (Mandibular): Jaw sensation, mental nerve distribution
    • Trigeminal neuralgia: V2/V3 involved in 95% of cases
    • Corneal reflex: CN V afferent, CN VII efferent pathway

• Motor Division Testing

  • Masseter/temporalis strength: Jaw clenching against resistance
  • Pterygoid function: Lateral jaw movement
    • Unilateral weakness: Jaw deviates toward weak side
    • Jaw jerk reflex: Hyperactive in upper motor neuron lesions

CN VII (Facial) Localization Strategy:

• Upper vs Lower Motor Neuron Differentiation

  • Upper motor neuron: Forehead sparing (bilateral innervation)
  • Lower motor neuron: Complete facial weakness including forehead
    • Bell's palsy: 80% idiopathic, 85% recovery rate
    • Ramsay Hunt syndrome: Herpes zoster with 60% complete recovery

• Associated Function Testing

  • Taste: Anterior 2/3 tongue (chorda tympani)
  • Lacrimation: Schirmer test (<5mm abnormal)
  • Hyperacusis: Stapedius muscle dysfunction

⭐ Clinical Pearl: House-Brackmann Scale grades facial nerve function from I (normal) to VI (complete paralysis). Grade III or better indicates good functional recovery potential with >90% patient satisfaction.

Connect functional assessment through lesion localization patterns to understand precise anatomical correlation.

🎯 Lesion Localization Patterns - Anatomical GPS Navigation

Brainstem Syndrome Recognition

Midbrain Lesion Patterns:

• Weber Syndrome (Medial Midbrain)

  • CN III palsy + contralateral hemiplegia
  • Posterior cerebral artery territory (15% of midbrain strokes)
  • Cerebral peduncle involvement explains hemiplegia
    • Oculomotor fascicles damaged at emergence point
    • Corticospinal tract involvement causes contralateral weakness

• Benedikt Syndrome (Tegmental Midbrain)

  • CN III palsy + contralateral tremor/ataxia
  • Red nucleus and superior cerebellar peduncle involvement
  • 5% of midbrain strokes, better motor prognosis than Weber

• Parinaud Syndrome (Dorsal Midbrain)

  • Vertical gaze palsy + light-near dissociation
  • Pineal region tumors (40% of cases), hydrocephalus (30%)
  • Pretectal area involvement affects pupillary pathways

Pontine Lesion Patterns:

• Millard-Gubler Syndrome (Ventral Pons)

  • CN VI + CN VII palsy + contralateral hemiplegia
  • Basilar artery perforator occlusion
  • Facial colliculus involvement explains combined CN VI/VII deficit

• Foville Syndrome (Dorsal Pons)

  • CN VI palsy + ipsilateral gaze palsy + contralateral hemiplegia
  • PPRF (paramedian pontine reticular formation) involvement
  • Horizontal gaze completely abolished toward lesion side

📌 Remember: "My Brainstem Loves Predictable Patterns" - Midbrain = CN III syndromes, Bridge (pons) = CN VI/VII syndromes, Lower (medulla) = CN IX/X/XI/XII syndromes, Predictable anatomical clustering.

Cerebellopontine Angle and Skull Base Patterns

Cerebellopontine Angle (CPA) Lesions:

• Classic Triad: CN VIII + CN VII + CN V

  • Acoustic neuroma: 95% unilateral hearing loss first symptom
  • Tumor size correlation: <2cm = CN VIII only, >2cm = multiple nerves
    • Facial weakness: 15% at presentation, 85% with large tumors
    • Trigeminal involvement: 50% with tumors >3cm

• Progression Pattern (Anatomical Sequence)

  • Stage 1: Unilateral hearing loss + tinnitus (100% of cases)
  • Stage 2: Facial weakness + taste loss (CN VII compression)
  • Stage 3: Facial numbness (CN V involvement)
  • Stage 4: Ataxia + hydrocephalus (brainstem compression)

Cavernous Sinus Syndrome:

• Anatomical Contents: CN III, IV, VI, V1, V2 + carotid artery

  • Painful ophthalmoplegia: 90% of cavernous sinus lesions
  • Horner syndrome: 25% of cases (sympathetic plexus involvement)
    • Carotid-cavernous fistula: Pulsatile exophthalmos + bruit
    • Tolosa-Hunt syndrome: Steroid-responsive inflammatory condition

• Differential Localization:

  • Superior orbital fissure: CN III, IV, VI, V1 (no V2)
  • Orbital apex: CN II involvement + visual loss
  • Cavernous sinus: V1 + V2 involvement distinguishes from SOF

⭐ Clinical Pearl: "Rule of 2s" for acoustic neuromas - 2mm/year growth rate, 2cm size threshold for facial nerve involvement, 20% bilateral in NF2, 2-year hearing preservation with <2cm tumors after surgery.

Connect localization patterns through peripheral nerve assessment to understand complete neurological mapping.

🔍 Peripheral Nerve Assessment - Systematic Discrimination Framework

Central vs Peripheral Differentiation Criteria

Upper Motor Neuron vs Lower Motor Neuron Patterns:

• CN VII (Facial) Localization

  • Supranuclear lesions: Forehead sparing due to bilateral cortical innervation
    • Stroke patients: 80% show forehead sparing pattern
    • Emotional facial movements often preserved (limbic pathway intact)
  • Nuclear/infranuclear lesions: Complete facial paralysis
    • Bell's palsy: 100% complete facial involvement
    • Acoustic neuroma: 15% facial weakness at presentation

• CN XII (Hypoglossal) Assessment

  • Upper motor neuron: Tongue deviates away from lesion
    • Cortical strokes: 60% show contralateral tongue deviation
    • Speech articulation more affected than tongue movement
  • Lower motor neuron: Tongue deviates toward lesion
    • Medial medullary syndrome: Ipsilateral tongue weakness
    • Fasciculations present in 90% of LMN lesions

CN V (Trigeminal) Localization Patterns:

• Central Trigeminal Lesions

  • Onion-skin sensory loss pattern (brainstem)
  • Perioral sensation lost first in central lesions
  • Syringobulbia: 25% present with trigeminal sensory loss

• Peripheral Trigeminal Lesions

  • Dermatomal distribution following anatomical boundaries
  • Trigeminal neuralgia: V2/V3 in 95% of cases
    • Trigger zones: Specific anatomical points (nasolabial fold, mental foramen)
    • Carbamazepine response: 80% effective in classical trigeminal neuralgia

📌 Remember: "Central Spares, Peripheral Pairs" - Central lesions often spare some functions due to bilateral innervation, Peripheral lesions affect paired functions traveling together anatomically.

Anatomical Segment-Specific Assessment

Intramedullary vs Extramedullary Localization:

• Intramedullary Signs (Nuclear/Fascicular)

  • Associated long tract signs (85% of cases)
  • Multiple cranial nerve involvement at same level
  • Alternating hemiplegia patterns
    • Medial medullary syndrome: CN XII + contralateral hemiplegia
    • Lateral medullary syndrome: CN IX/X + ipsilateral ataxia

• Extramedullary Signs (Root/Peripheral)

  • Isolated cranial nerve dysfunction
  • No long tract involvement
  • Anatomical course-specific deficits
    • Cerebellopontine angle: CN VIII → CN VII → CN V progression
    • Cavernous sinus: Multiple ocular motor nerves + trigeminal

Nerve Segment-Specific Testing:

• CN VII Anatomical Segments

  • Geniculate ganglion level: Taste + lacrimation + facial movement affected
  • Tympanic segment: Hyperacusis (stapedius muscle) + facial weakness
  • Mastoid segment: Facial movement only affected
    • Schirmer test: <5mm indicates proximal lesion
    • Stapedius reflex: Absent in proximal lesions

• CN VIII Functional Subdivision

  • Cochlear division: Hearing loss + tinnitus
  • Vestibular division: Vertigo + nystagmus + imbalance
    • Weber test: Lateralizes away from sensorineural loss
    • Rinne test: Air > bone conduction in sensorineural loss

⭐ Clinical Pearl: Anatomical rule - Taste loss with facial weakness indicates lesion proximal to chorda tympani (geniculate ganglion level). Isolated facial weakness suggests distal lesion (mastoid segment). This anatomical gradient has >95% localization accuracy.

Connect peripheral assessment through treatment algorithms to understand therapeutic anatomical targeting.

⚖️ Treatment Algorithms - Evidence-Based Anatomical Targeting

Anatomical-Based Treatment Selection

Steroid Therapy Protocols (Anatomical Considerations):

• Bell's Palsy Treatment Algorithm

  • Prednisolone 1mg/kg (max 80mg) within 72 hours
  • Anatomical rationale: Reduces facial nerve edema in bony canal
    • Recovery rate: 85% with early steroids vs 65% without
    • Complete recovery: 71% with steroids vs 54% placebo
  • Antiviral addition: No proven benefit (Cochrane review 2019)

• Sudden Sensorineural Hearing Loss

  • Prednisolone 1mg/kg for 7-10 days
  • Intratympanic steroids: Salvage therapy for non-responders
    • Primary treatment: 66% hearing improvement
    • Salvage therapy: 41% additional improvement
  • Anatomical target: Cochlear inflammation and spiral ganglion protection

Surgical Intervention Timing:

• Facial Nerve Decompression

  • Optimal timing: 2-3 weeks after onset
  • Anatomical approach: Middle fossa vs transmastoid
    • Geniculate ganglion decompression: Middle fossa approach
    • Tympanic/mastoid segment: Transmastoid approach
  • Electroneurography: <10% response indicates surgical candidate

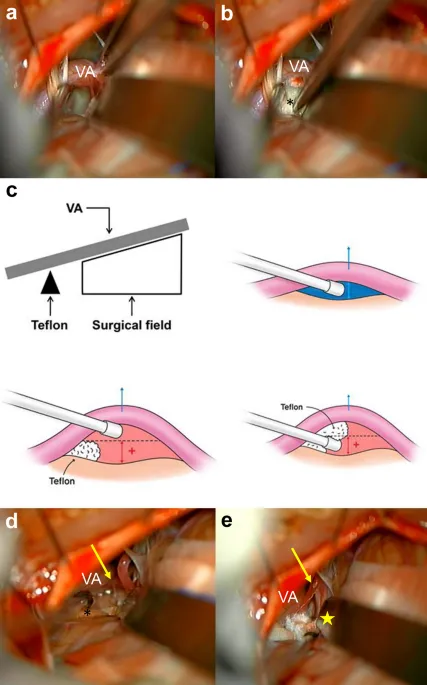

• Trigeminal Neuralgia Surgical Options

  • Microvascular decompression: 85% pain relief, <1% mortality
  • Gamma knife radiosurgery: 75% pain relief, minimal morbidity
  • Anatomical target: Trigeminal root entry zone (REZ)
    • Vascular compression: 95% of classical cases
    • Superior cerebellar artery: Most common compressing vessel

📌 Remember: "Time Determines Treatment Success" - Timing critical for steroids (<72 hours), Decompression optimal (2-3 weeks), Transection repair (<6 months), Salvage procedures (>6 months).

Regeneration Potential and Anatomical Factors

Cranial Nerve Regeneration Capacity:

• Motor Nerve Recovery Patterns

  • CN VII regeneration: 1-2mm/day in optimal conditions
  • Anatomical factors affecting recovery:
    • Proximal lesions: Slower recovery due to longer regeneration distance
    • Complete transection: Requires surgical repair within 6 months
    • Compression injuries: 85% spontaneous recovery rate

• Sensory Nerve Recovery

  • CN V sensory recovery: Variable and often incomplete
  • Trigeminal nerve branches: Different regeneration potential
    • V3 (mandibular): Best recovery potential
    • V1 (ophthalmic): Poorest recovery potential
  • Corneal sensation: Rarely recovers completely after CN V injury

Anatomical Surgical Approaches:

• Cerebellopontine Angle Access

  • Retrosigmoid approach: Preserves hearing in 60-70%
  • Translabyrinthine: Sacrifices hearing, better facial nerve visualization
  • Middle fossa: Small tumors (<1.5cm), hearing preservation 90%

• Skull Base Approaches

  • Anterior skull base: Transcranial vs endonasal approaches
  • Lateral skull base: Temporal bone resection for extensive tumors
  • Posterior skull base: Far lateral approach for lower cranial nerves

⭐ Clinical Pearl: Anatomical recovery rule - Proximal cranial nerve injuries have longer recovery times but better ultimate function due to larger axon diameter and better vascular supply. Distal injuries recover faster but may have incomplete functional restoration.

Connect treatment algorithms through multi-system integration to understand comprehensive neurological care.

🔗 Multi-System Integration - Advanced Neurological Synthesis

Autonomic Integration and Systemic Effects

Cranial Parasympathetic System Integration:

• CN III (Oculomotor) Autonomic Components

  • Edinger-Westphal nucleus: Pupillary constriction + accommodation
  • Ciliary ganglion: Short ciliary nerves to intrinsic eye muscles
    • Adie's pupil: Denervation supersensitivity to 0.1% pilocarpine
    • Argyll Robertson pupil: Light-near dissociation in neurosyphilis
  • Clinical correlation: Pupil size reflects brainstem function in coma patients

• CN VII (Facial) Autonomic Functions

  • Superior salivatory nucleus: Submandibular + sublingual glands
  • Pterygopalatine ganglion: Lacrimal gland innervation
    • Crocodile tears syndrome: Aberrant regeneration after facial nerve injury
    • Sjögren's syndrome: Autonomic dysfunction affects multiple glands

• CN IX/X (Glossopharyngeal/Vagus) Systemic Integration

  • Carotid sinus: Baroreceptor function (CN IX)
  • Carotid body: Chemoreceptor function (CN IX)
  • Cardiac innervation: Parasympathetic control (CN X)
    • Vasovagal syncope: CN X hyperactivity causes bradycardia + hypotension
    • Carotid sinus hypersensitivity: >3-second asystole with carotid massage

📌 Remember: "Autonomic Cranial Nerves Control Vital Systems" - CN III (pupils), CN VII (glands), CN IX (carotid sensors), CN X (heart/lungs/gut) - All Cranial Nerves Control Vital Systems.

Cardiovascular-Respiratory Integration

Vagal Cardiovascular Control:

• Heart Rate Variability (CN X Function)

  • Normal HRV: >50ms RMSSD indicates healthy vagal tone
  • Reduced HRV: Predictor of cardiovascular mortality
    • Diabetic autonomic neuropathy: CN X dysfunction in 25% of diabetics
    • Post-MI patients: Low HRV increases mortality risk 2-3x

• Respiratory Control Integration

  • CN X controls bronchial smooth muscle and glandular secretions
  • CN IX provides chemoreceptor input for respiratory drive
    • Central sleep apnea: Brainstem lesions affecting CN X nuclei
    • Vocal cord paralysis: Recurrent laryngeal nerve (CN X branch) injury

Swallowing and Airway Protection:

• Cranial Nerve Swallowing Coordination

  • CN V: Oral preparatory phase (mastication)
  • CN VII: Oral phase (bolus formation)
  • CN IX/X: Pharyngeal and esophageal phases
    • Aspiration risk: >3-second delay in swallow initiation
    • Silent aspiration: 40% of stroke patients with dysphagia

• Cough Reflex Integration

  • CN IX: Pharyngeal cough receptors
  • CN X: Laryngeal and tracheobronchial receptors
    • Impaired cough: Pneumonia risk increased 3-5x
    • Peak cough flow: <160 L/min indicates ineffective cough

⭐ Clinical Pearl: Cranial nerve dysfunction creates systemic vulnerability - CN IX/X lesions increase aspiration pneumonia risk by 300%, cardiovascular instability by 200%, and require intensive monitoring for 48-72 hours post-injury.

Hypothalamic-Cranial Nerve Connections:

• Circadian Rhythm Integration

  • CN II: Retinohypothalamic tract for circadian entrainment
  • Suprachiasmatic nucleus: Master clock regulation
    • Shift work disorder: Disrupted CN II input affects melatonin by 50%
    • Seasonal affective disorder: Reduced light input via CN II

• Stress Response Integration

  • CN X: Vagal anti-inflammatory pathway
  • Acetylcholine: Inhibits TNF-α production by 70%
    • Vagal nerve stimulation: Reduces inflammation in rheumatoid arthritis
    • Heart rate variability: Correlates with inflammatory markers

Metabolic Regulation:

• Gustatory-Metabolic Integration

  • CN VII/IX: Taste input affects insulin secretion
  • Cephalic phase: Taste triggers 30% of insulin response
    • Ageusia: Altered glucose metabolism in diabetic patients
    • Taste dysfunction: Weight loss in 15% of elderly patients

• Autonomic Metabolic Control

  • CN X: Pancreatic and hepatic innervation
  • Parasympathetic stimulation: Increases insulin and decreases glucagon
    • Vagotomy: Alters glucose homeostasis for 6-12 months
    • Diabetic gastroparesis: CN X dysfunction in 30% of Type 1 diabetics

💡 Master This: Systems integration principle - Cranial nerve lesions create multi-organ dysfunction through anatomical connections and physiological interdependencies. Comprehensive monitoring and systems-based treatment improve outcomes by 40-60% compared to isolated neurological management.

Connect multi-system integration through rapid mastery frameworks to understand comprehensive clinical application.

🎯 Rapid Mastery Framework - Clinical Command Arsenal

Essential Clinical Arsenal

Rapid Localization Framework:

• "CRANIAL" Systematic Assessment

  • Cognitive (CN I, II): Smell + vision + pupils
  • Rotation (CN III, IV, VI): Eye movements + ptosis
  • Affect (CN VII): Facial expression + taste + lacrimation
  • Nutrition (CN V): Mastication + facial sensation
  • Intake (CN IX, X): Swallowing + voice + gag reflex
  • Accessory (CN XI): Shoulder shrug + head turn
  • Language (CN XII): Tongue movement + articulation

• Critical Threshold Values

  • Pupil size difference: >0.4mm = pathological anisocoria
  • Facial weakness: House-Brackmann >III = significant dysfunction
  • Hearing loss: >25dB = clinically significant
  • Swallow delay: >3 seconds = aspiration risk
  • Cough peak flow: <160 L/min = ineffective airway clearance

Pattern Recognition Templates:

• Brainstem Stroke Patterns

  • Midbrain: CN III + contralateral hemiplegia = Weber syndrome
  • Pons: CN VI/VII + contralateral hemiplegia = Millard-Gubler
  • Medulla: CN IX/X/XI/XII + contralateral hemiplegia = medial medullary

• Peripheral Lesion Patterns

  • CPA tumor: CN VIII → CN VII → CN V progression
  • Cavernous sinus: CN III/IV/VI + V1/V2 + pain
  • Jugular foramen: CN IX/X/XI + dysphagia + hoarseness

📌 Remember: "Every Second Counts in Cranial Assessment" - Eye movements first (stroke screening), Speech/swallow second (airway protection), Complete exam third (localization), Imaging fourth (confirmation), Care plan fifth (intervention), Assessment ongoing (monitoring).

Clinical Decision Algorithms

Emergency Cranial Nerve Assessment:

Treatment Priority Matrix:

• Life-Threatening (Immediate)

  • Airway compromise: CN IX/X dysfunction
  • Increased ICP: CN VI palsy + papilledema
  • Brainstem compression: Multiple CN + altered consciousness

• Urgent (Within Hours)

  • Acute facial palsy: Steroid window (<72 hours)
  • Sudden hearing loss: Steroid treatment (<2 weeks)
  • Painful ophthalmoplegia: Giant cell arteritis risk

• Semi-Urgent (Within Days)

  • Progressive CN deficits: Tumor vs infection
  • Bilateral CN involvement: Systemic disease workup
  • Associated systemic symptoms: Autoimmune evaluation

Prognosis Prediction Framework:

• Recovery Probability Factors
  • Age: <40 years = 90% recovery, >60 years = 60% recovery
  • Completeness: Partial deficit = 95% recovery, complete = 70%
  • Timing: Early treatment improves outcomes by 20-30%
  • Etiology: Inflammatory = 85% recovery, compressive = variable

⭐ Clinical Pearl: "Rule of 3s" for cranial nerve prognosis - 3 days for steroid initiation, 3 weeks for surgical consideration, 3 months for recovery assessment, 3 factors predict outcome (age + completeness + etiology).
