Neuroimaging Correlations

On this page

Neuroimaging Toolkit - Scan Spectrum

ModalityBright (Hyperdense/Hyperintense)Dark (Hypodense/Hypointense)Key Uses
CTBone, acute blood, contrastAir, fat, CSF, ischemiaTrauma, acute stroke/bleed, fractures
T1 MRIFat, subacute blood, GdWater (CSF), edema, boneAnatomy, post-contrast lesions
T2 MRIWater (CSF), edema, pathologyFat (variable), bone cortex, air, flow voidsPathology (edema, inflammation)
FLAIRPathology (like T2), MS plaquesCSF (nulled), boneMS plaques, subtle edema near CSF
DWIAcute ischemia, cellular tumorsOld infarcts, CSFEarly stroke detection (minutes)

Vascular Events - Clots & Bleeds

  • Ischemic Stroke (Clots):
    • NCCT: Early signs (hyperdense MCA, loss grey-white differentiation, insular ribbon sign). Later: hypodensity.
    • MRI: DWI (hyperintense), ADC (hypointense), MRA (occlusion).
    • Thrombolysis: tPA within 4.5 hrs.
  • Hemorrhagic Stroke (Bleeds):
    • ICH: NCCT shows hyperdense lesion. Common: Hypertensive (basal ganglia, pons), Amyloid (lobar).
    • SAH: 📌 "Worst headache of life". NCCT: blood in cisterns/sulci. CTA for aneurysm.
    • SDH: Crescent-shaped, crosses sutures. Acute (hyperdense), chronic (hypodense).
    • EDH: Lens-shaped (biconvex), doesn't cross sutures. MMA tear. Lucid interval.

⭐ DWI is the most sensitive sequence for acute ischemic stroke, showing restriction within minutes.

CT & MRI of hemorrhagic stroke

Trauma & Tumors - Impact & Invaders

  • Traumatic Brain Injury (TBI):

    FeatureEpidural Hematoma (EDH)Subdural Hematoma (SDH)
    VesselMiddle Meningeal Artery (MMA)Bridging Veins
    CT ShapeBiconvex (lenticular) 📌 LemonCrescentic 📌 Banana
    SuturesDoes NOT crossCAN cross
    ClinicalLucid intervalGradual (elderly, alcoholics)

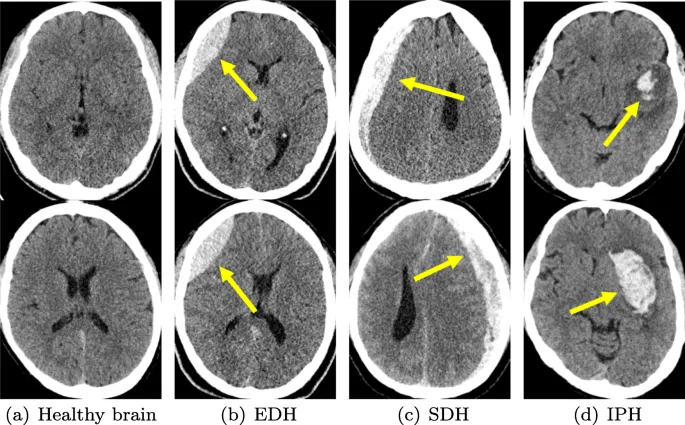

    CT scan comparison of EDH, SDH, and IPH

    • Diffuse Axonal Injury (DAI):
      • Shearing forces. CT: Punctate hemorrhages (corpus callosum, brainstem). MRI (more sensitive): SWI shows microhemorrhages.
  • Brain Tumors:

    • Adults (Supratentorial):
      • Glioblastoma (GBM): Most common primary adult. Aggressive. Necrosis, hemorrhage. Butterfly glioma (crosses corpus callosum).
      • Meningioma: 2nd most common primary adult. Dural based, homogenous enhancement, dural tail. Often benign.
    • Children (Infratentorial - Posterior Fossa):
      • Medulloblastoma: Most common malignant (child). Cerebellar vermis (midline), hydrocephalus. Homer Wright rosettes.
      • Pilocytic Astrocytoma: Most common benign (child). Posterior fossa. Cystic + mural nodule (enhances). Rosenthal fibers.
    • Metastases: Most common intracranial tumor overall. Multiple lesions, grey-white junction, vasogenic edema.

⭐ Epidural hematoma (EDH) is typically arterial and does not cross suture lines, while subdural hematoma (SDH) is usually venous and can cross suture lines.

Infections & Demyelination - Germs & Glitches

  • Brain Abscess: MRI: Central DWI restriction, ring enhancement. MRS: ↑Lactate, amino acids.
  • HSV Encephalitis: MRI: Temporal lobe T2/FLAIR hyperintensity, hemorrhage. DWI restriction.
  • TBM: MRI: Basal exudates (enhancement), hydrocephalus, tuberculomas.
  • Neurocysticercosis (NCC): MRI: Stages (Vesicular + scolex, Colloidal, Granular, Calcified). 📌 VesCo GraCa. Neurocysticercosis on CT and MRI
  • Multiple Sclerosis (MS): MRI: Periventricular, corpus callosum T2/FLAIR lesions. Active: Gd enhancement.

    ⭐ Dawson's fingers, ovoid lesions perpendicular to the lateral ventricles, are characteristic of Multiple Sclerosis on MRI.

  • ADEM: MRI: Large, fluffy, asymmetric white matter lesions; monophasic.
  • PML (JC Virus): MRI: Asymmetric subcortical white matter lesions, no enhancement.

High‑Yield Points - ⚡ Biggest Takeaways

  • CT excels for acute hemorrhage, bone detail, and initial trauma assessment.
  • MRI offers superior soft tissue contrast for tumors, infarcts (DWI), and demyelinating diseases.
  • T1-MRI: Fat bright, CSF dark; shows anatomy. Subacute hemorrhage also bright.
  • T2-MRI: Water/edema bright, highlights pathology. FLAIR suppresses CSF, aiding periventricular lesion detection.
  • DWI is crucial for acute stroke detection, showing restricted diffusion rapidly.
  • Contrast reveals Blood-Brain Barrier (BBB) breakdown in tumors, infections, active inflammation.
