Brainstem Overview - The Control Tower

The brainstem, a critical stalk-like structure, links the cerebrum and cerebellum to the spinal cord. It's the control center for many life-sustaining autonomic functions. Brainstem: Midbrain, Pons, Medulla Oblongata

  • Major Divisions:
    • Midbrain (Mesencephalon)
    • Pons
    • Medulla Oblongata
  • Core Functions:
    • Relay station for sensory, motor, and autonomic pathways.
    • Controls vital functions: respiration, heart rate, blood pressure.
    • Houses cranial nerve nuclei (CN III-XII).
    • Regulates sleep-wake cycles, consciousness.

⭐ The brainstem is the origin for 10 out of the 12 pairs of cranial nerves (CN III-XII).

Midbrain - Mesencephalic Mission Control

*Connects hindbrain to forebrain; shortest part. Contains cerebral aqueduct (CSF: 3rd→4th ventricle).

  • Key Structures (Anterior to Posterior):
    • Crus Cerebri (Cerebral Peduncles): Descending motor tracts (corticospinal).
    • Tegmentum:
      • CN III, IV nuclei.
      • Red Nucleus (motor coordination).
      • Substantia Nigra (dopamine, motor control; Parkinson's).
      • Reticular formation (part).
    • Tectum (Corpora Quadrigemina):
      • Superior Colliculi (SC): Visual reflexes.
      • Inferior Colliculi (IC): Auditory pathway. Midbrain cross-section with colliculi, nuclei, and peduncles

⭐ The superior colliculi are involved in visual reflexes, while the inferior colliculi are part of the auditory pathway (📌 Remember: Eyes above ears; S for See, I for In-ear/sound).

Pons - The Pontine Connector

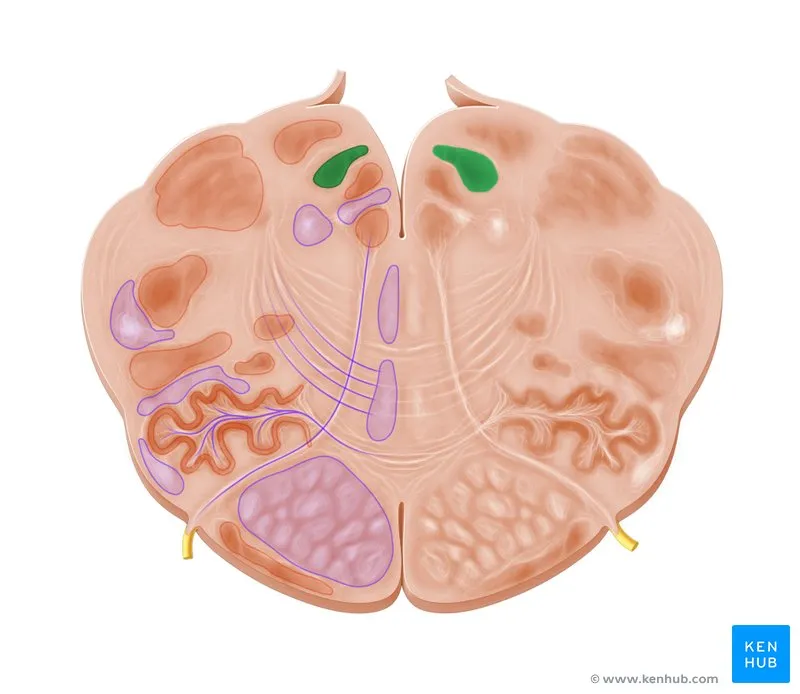

Transverse section of pons with nuclei and tracts

  • Location: Superior to medulla, anterior to cerebellum, inferior to midbrain.
  • Key Structures:
    • Basilar Pons (Ventral): Contains corticospinal & corticobulbar tracts, pontine nuclei, transverse pontine fibers (forming middle cerebellar peduncle).
    • Pontine Tegmentum (Dorsal): Houses cranial nerve nuclei, ascending sensory tracts, descending motor tracts, and reticular formation.
  • Major Functions: Relays signals (cerebrum to cerebellum), involved in sleep, respiration, swallowing, bladder control, hearing, equilibrium, taste, eye movement, facial expressions, and facial sensation.

⭐ The pons houses cranial nerve nuclei V, VI, VII, and VIII. (📌 Mnemonic: Pons = 5, 6, 7, 8).

Medulla Oblongata - Medullary Command Center

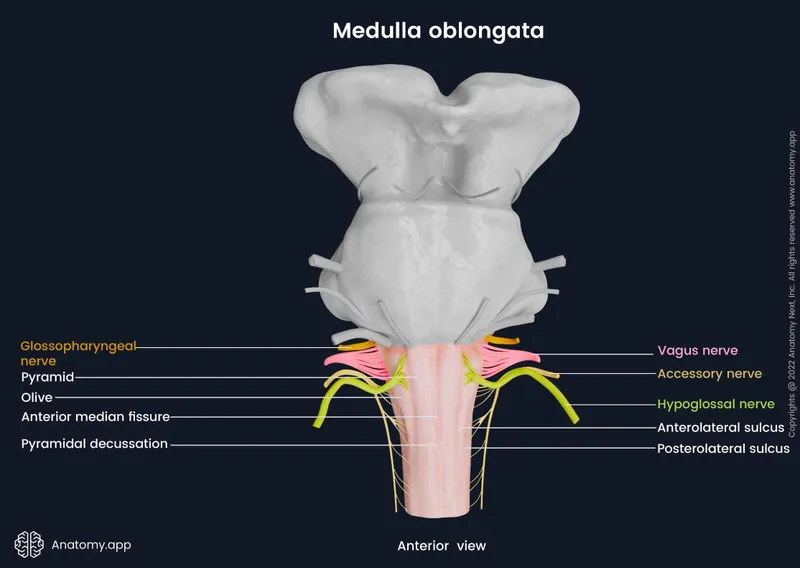

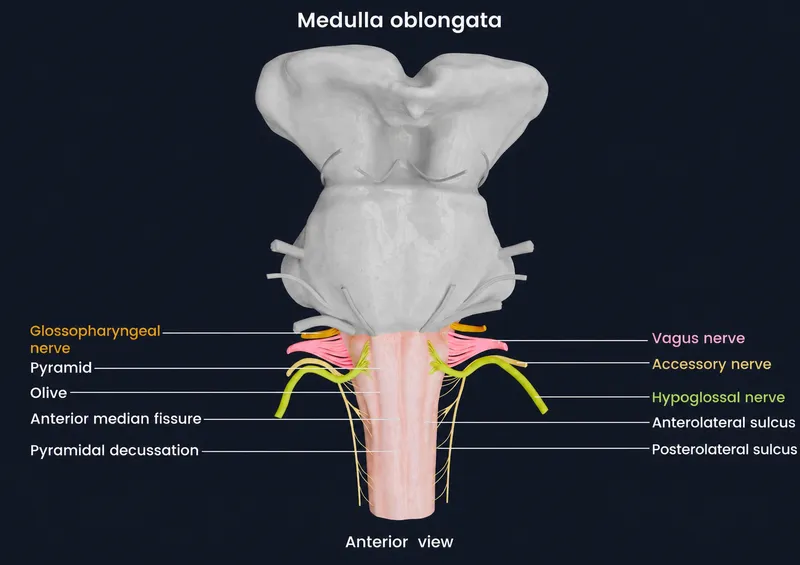

Anterior view of Medulla Oblongata with cranial nerves

  • Location: Most caudal brainstem part, continuous with spinal cord.
  • External Features:
    • Anterior: Pyramids (corticospinal tracts), Olives (inferior olivary nucleus).
    • Posterior: Gracile & Cuneate tubercles (dorsal column nuclei).
  • Vital Centers:
    • Cardiac center (regulates heart rate).
    • Vasomotor center (regulates blood pressure).
    • Respiratory center (rhythmicity area).
  • Other Reflexes: Vomiting, coughing, sneezing, swallowing.
  • Cranial Nerve Nuclei: IX (Glossopharyngeal), X (Vagus), XI (Accessory), XII (Hypoglossal).

⭐ The decussation of the pyramids (corticospinal tracts) occurs in the caudal medulla, explaining contralateral motor control.

  • Blood Supply: Vertebral artery, anterior & posterior spinal arteries, PICA.
  • Clinical: Wallenberg syndrome (PICA occlusion).

Brainstem Clinical Syndromes - Stemming the Damage

Brainstem and Cerebellum Sagittal View

  • Midbrain Syndromes:
    • Weber's Syndrome: Ipsilateral CN III palsy, contralateral hemiplegia.
    • Benedikt's Syndrome: Ipsilateral CN III palsy, contralateral ataxia, tremor.
  • Pontine Syndromes:
    • Millard-Gubler Syndrome: Ipsilateral CN VI & VII palsy, contralateral hemiplegia.
  • Medullary Syndromes:
    • Lateral (Wallenberg): Dysphagia, hoarseness (CN IX, X), ipsilateral Horner's, ataxia; contralateral pain/temp loss.
    • Medial (Dejerine): Ipsilateral CN XII palsy; contralateral hemiplegia, ↓ proprioception/vibration.

⭐ Wallenberg syndrome (Lateral Medullary Syndrome) is most commonly caused by occlusion of the Posterior Inferior Cerebellar Artery (PICA).

High‑Yield Points - ⚡ Biggest Takeaways

  • Brainstem = Midbrain, Pons, Medulla; essential for vital functions & CN pathways.
  • Rule of 4 aids localization: medial structures (motor nuclei, MLF, medial lemniscus, motor pathway) vs lateral structures.
  • Midbrain: CN III, IV nuclei; superior/inferior colliculi (visual/auditory reflexes).
  • Pons: CN V, VI, VII, VIII nuclei; connects to cerebellum via peduncles.
  • Medulla: CN IX, X, XI, XII nuclei; vital cardiac, respiratory, vasomotor centers.
  • Lesions often cause crossed deficits: ipsilateral CN palsy, contralateral motor/sensory loss.

Practice Questions: Brainstem

Test your understanding with these related questions

Which part of the brain, when lesioned, primarily affects horizontal movements of the eye?

1 of 5

Flashcards: Brainstem

1/10

The auditory input from the superior olivary nucleus travels via the _____ to the inferior colliculus (midbrain)

TAP TO REVEAL ANSWER

The auditory input from the superior olivary nucleus travels via the _____ to the inferior colliculus (midbrain)

lateral lemniscus
