Surface Anatomy of the Back

Surface Anatomy of the Back

Surface Anatomy of the Back

On this page

Vertebral Column Landmarks - Spinal Signposts

  • C2 (Axis): First palpable spinous process below external occipital protuberance.
  • C7 (Vertebra Prominens): Most prominent spinous process in the lower neck, easily palpable.
  • T1: Spinous process superior to C7, often equally prominent.
  • T3: Spine of scapula (medial end) is typically at this level.
  • T7: Inferior angle of scapula usually aligns with T7 spinous process (arms at side).
  • L1-L2: Conus medullaris (spinal cord termination) in adults.
  • L4: Highest points of iliac crests (supracristal plane or Tuffier's line) pass through L4 spinous process or L4-L5 interspace. Crucial for lumbar puncture.
  • S2: Posterior superior iliac spines (PSIS) - indicated by skin dimples, level with S2 spinous process.

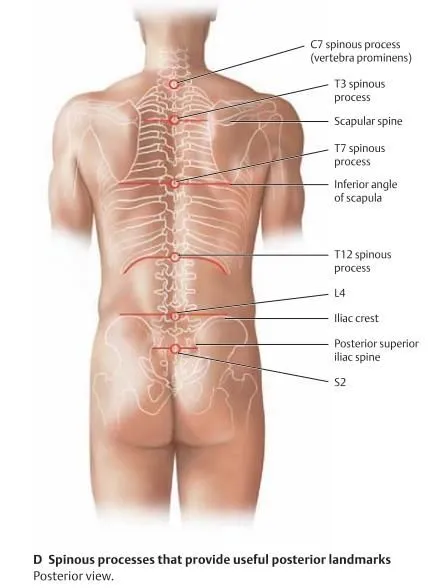

Posterior landmarks of the back

⭐ The supracristal plane (Tuffier's line), passing through the highest points of the iliac crests, is a key landmark for locating the L4-L5 intervertebral space, commonly used for lumbar puncture procedures to avoid spinal cord injury in adults (cord ends at L1-L2).

Scapular & Pelvic Landmarks - Shoulder & Hip Anchors

  • Scapula (Shoulder Blade):
    • Spine: Palpable, T3 level.
    • Acromion: Shoulder's highest point.
    • Coracoid Process: Anterior, deep to Pectoralis Major.
    • Inferior Angle: T7 level (T8/T9 if arm abducted).
    • Superior Angle: T2 level.
    • Medial Border: Vertical.
  • Pelvis (Hip Bone):
    • Iliac Crest: Highest point at L4 (Supracristal plane).
    • ASIS (Anterior Superior Iliac Spine): Anterior prominence.
    • PSIS (Posterior Superior Iliac Spine): Dimple over S2 level.
    • Ischial Tuberosity: Weight-bearing in sitting.

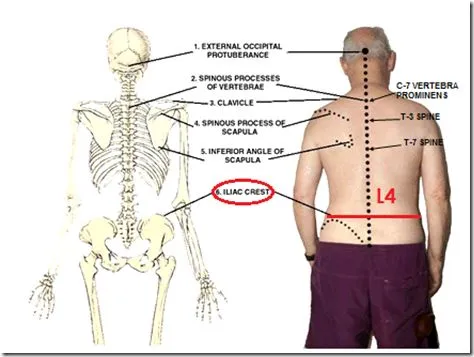

    • Greater Trochanter (Femur): Lateral hip prominence. Surface anatomy of the back with bony landmarks

⭐ The Supracristal plane (highest points of iliac crests) intersects the L4 vertebral body or L4-L5 intervertebral disc, a key landmark for lumbar puncture.

Superficial Back Muscles - Surface Powerhouses

  • Trapezius:
    • Inn: Accessory N. (CN XI), C3-C4 (proprioception).
    • Actions: Elevates, retracts, depresses, rotates scapula.
    • Clinical: CN XI damage → shoulder droop, difficulty shrugging.
  • Latissimus Dorsi: ("Lats", Swimmer's muscle)
    • Inn: Thoracodorsal N. (C6-C8).
    • Actions: Extends, adducts, medially rotates humerus.
    • Forms posterior axillary fold; used in flap surgeries.
  • Levator Scapulae:
    • Inn: Dorsal Scapular N. (C5), C3-C4.
    • Action: Elevates scapula (e.g., shrugging shoulders).
  • Rhomboids (Major & Minor):
    • Inn: Dorsal Scapular N. (C5).
    • Actions: Retract scapula (pulls shoulders back), downwardly rotate scapula.

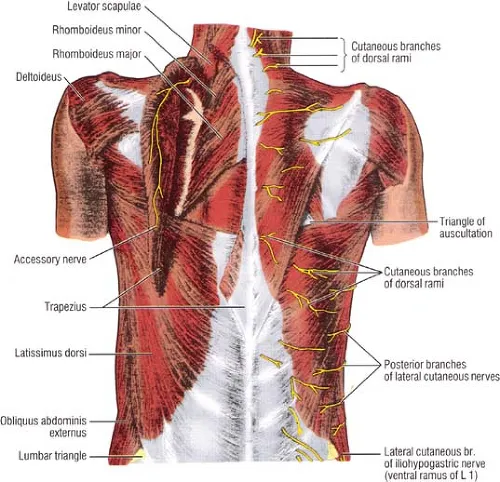

Back muscles: superficial, intermediate, and deep

Triangle of Auscultation: Borders: Latissimus dorsi (inferior), medial border of scapula (lateral), trapezius (superomedial). Floor: Rhomboid major. Significance: Reduced muscle cover allows for clearer lung auscultation posteriorly between 6th and 7th ribs typically a good spot for lower lobes of lungs sounds.

Clinical Triangles & Lines - Diagnostic Windows

  • Triangle of Auscultation
    • Borders: Trapezius (sup-med), Latissimus dorsi (inf), Medial Scapula (lat). 📌 Mnemonic: "TraLaS".
    • Use: Enhanced lung auscultation. Surface anatomy of the back
  • Lumbar Triangle (Petit's)
    • Borders: Latissimus dorsi (post), Iliac crest (inf), External oblique (ant). 📌 Mnemonic: "LIE".
    • Risk: Inferior lumbar hernia.
  • Grynfeltt-Lesshaft Triangle (Superior Lumbar)
    • Borders: 12th rib (sup), Quadratus lumborum (med), Internal oblique (lat).
    • Risk: Superior lumbar hernia.
  • Key Reference Lines
    • Midvertebral line.
    • Scapular lines.

⭐ Triangle of Auscultation: clearer posterior lung sounds (esp. lower lobes) due to thinner musculature.

High‑Yield Points - ⚡ Biggest Takeaways

  • C7 (Vertebra prominens): Most prominent spinous process, easily palpated for reference.
  • Spine of scapula: Generally level with T3 spinous process, a useful guide.
  • Inferior angle of scapula: Typically aligns with T7 spinous process or T8 body.
  • Supracristal plane (iliac crest): Crosses L4/L4-L5 interspace; key landmark for lumbar puncture.
  • PSIS (skin dimples): Marks S2 vertebral level, often visible.
  • Triangle of auscultation (trapezius, latissimus, medial scapula): Ideal for auscultating posterior lung sounds.
