Variations in Visceral Anatomy

On this page

Intro to Visceral Variations - Expect the Unexpected

  • Definition: Deviations from typical gross anatomy of internal organs (viscera).
  • Spectrum: Ranges from common, asymptomatic findings to severe, life-threatening conditions.
    • Variation: Common, usually asymptomatic (e.g., accessory spleen, variations in hepatic artery origin).
    • Anomaly: Uncommon, may or may not be clinically significant (e.g., horseshoe kidney, Meckel's diverticulum).
    • Malformation: Morphological defect from intrinsically abnormal development (e.g., agenesis of an organ, septal defects).
  • Etiology: Genetic (mutations), environmental (teratogens like thalidomide, alcohol), multifactorial.
  • Embryological Basis: Primarily errors during organogenesis (weeks 3-8 of gestation).
  • Clinical Impact: Can be incidental findings, predispose to pathology (e.g., volvulus with malrotation), or complicate surgical procedures.

⭐ VACTERL association (Vertebral, Anal, Cardiac, Tracheo-Esophageal, Renal, Limb defects) is a classic example of multiple anomalies occurring together, often tested for its components.

Thoracic Visceral Variations - Heart & Lung Surprises

  • Heart & Great Vessels:
    • Aortic Arch:
      • Bovine arch (common innominate & LCC origin): most common.
      • Aberrant right subclavian artery (dysphagia lusoria).
    • Coronary Arteries (CAAs):
      • LCX from RCA: most frequent CAA.
      • ALCAPA (Anomalous Left Coronary Artery from Pulmonary Artery): critical.
    • Venous: Persistent Left SVC (PLSVC) to coronary sinus.
  • Lungs:
    • Lobes/Fissures: Azygos lobe (RUL); accessory/absent fissures.
    • Airways: Tracheal bronchus (to RUL).
    • Vasculature: Pulmonary sequestration (systemic arterial supply).

⭐ The most common type of aortic arch branching anomaly is a common origin of the innominate artery and left common carotid artery (bovine arch), though variations in coronary artery origins (e.g., LCX from RCA) are clinically critical.

GI & Spleen Variations - Alimentary Anomalies

  • Esophageal Atresia/TEF: Polyhydramnios; choking. Proximal atresia, distal fistula commonest.
  • Pyloric Stenosis: Non-bilious projectile vomiting (2-8 wks); palpable "olive".
  • Duodenal Atresia: "Double bubble" (X-ray); bilious vomiting; Trisomy 21 assoc.
  • Jejunal/Ileal Atresia: Uterine vascular accident; "apple-peel" or multiple.
  • Malrotation/Volvulus: Ladd's bands; bilious emesis; midgut ischemia risk.

⭐ Meckel's diverticulum, a remnant of the vitelline duct, is the most common GI congenital anomaly and can contain ectopic gastric or pancreatic tissue, leading to bleeding or inflammation (📌 Rule of 2s: 2% population, 2 feet from IC valve, 2 inches long, 2% symptomatic, 2 types of ectopic tissue, common in first 2 years of life).

  • Hirschsprung's Disease: Aganglionosis (failed NCC migration); delayed meconium (>48h).
  • Anorectal Malformations: Imperforate anus; VACTERL association.

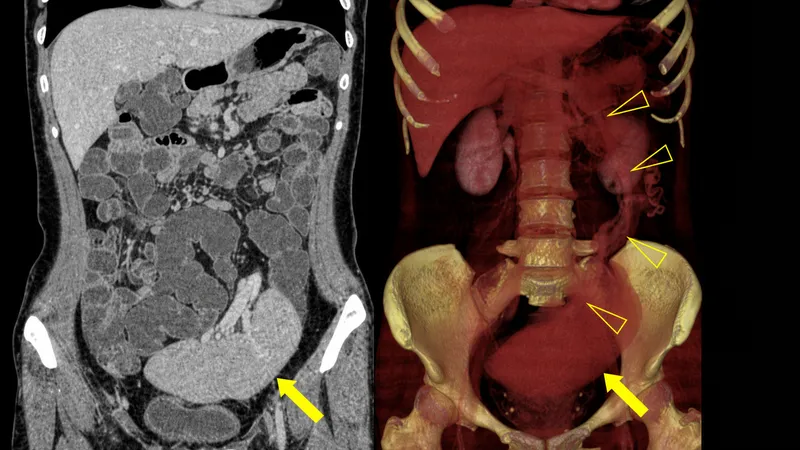

  • Spleen Anomalies: Accessory (splenunculus); wandering (torsion); polysplenia/asplenia. Wandering Spleen CT and 3D Reconstruction

Urogenital System Variations - Kidney & Gonad Quirks

  • Kidney Anomalies:
    • Number & Position:
      • Unilateral renal agenesis (often asymptomatic; contralateral hypertrophy).
      • Pelvic kidney (most common ectopia; ↑ risk of obstruction, infection).
      • Supernumerary kidney (rare).
    • Fusion & Form:
      • Horseshoe kidney (most common fusion): Isthmus typically anterior to aorta/IVC.

      ⭐ Horseshoe kidney's ascent is classically arrested by the inferior mesenteric artery (IMA), and it's associated with an increased risk of UPJ obstruction, stones, and certain cancers like renal cell carcinoma (clear cell type) and transitional cell carcinoma.

      • Others: Cake/lump kidney, Sigmoid/S-shaped kidney.
    • Rotation: Malrotated kidney (hilum not directed medially).
    • Vascular: Multiple renal arteries (common, ~30% of individuals). Renal Anomalies: Horseshoe, Crossed Fused, Ectopic
  • Gonadal Anomalies:
    • Testicular:
      • Cryptorchidism (undescended testes): ↑ risk of infertility, germ cell tumors (seminoma most common).
      • Polyorchidism (supernumerary testis; rare).
    • Ovarian:
      • Accessory ovary (rare).
      • Ovarian ectopia (ovary in an abnormal location).

High‑Yield Points - ⚡ Biggest Takeaways

  • Situs inversus totalis: Complete mirror-image transposition of all viscera.
  • Meckel's diverticulum: Most common GI congenital anomaly; remember the rule of 2s.
  • Accessory spleens (splenunculi): Common, typically near splenic hilum or pancreatic tail.
  • Renal vascular variations: Multiple renal arteries/veins are frequently encountered.
  • Horseshoe kidney: Most common renal fusion anomaly; often asymptomatic.
  • Pancreas divisum: Most common pancreatic anomaly from failed ductal fusion.
  • Hepatic artery variations (e.g., replaced RHA from SMA) are clinically significant_._

Practice Questions: Variations in Visceral Anatomy

Test your understanding with these related questions

Anorectal anomalies are commonly associated with which of the following congenital anomalies?

1 of 5

Flashcards: Variations in Visceral Anatomy

1/10

Tortuosity of the _____ artery is an anomaly present in front of the origin of the cystic duct known as caterpillar turn or Moynihans hump.

TAP TO REVEAL ANSWER

Tortuosity of the _____ artery is an anomaly present in front of the origin of the cystic duct known as caterpillar turn or Moynihans hump.

hepatic
