Anterior Abdominal Wall

Anterior Abdominal Wall

Anterior Abdominal Wall

On this page

Layers of AAW - Unpeeling the Onion

📌 Mnemonic: 'Skinny Cats Scratch Many Trees, Eat Plants'

  • Skin
  • Superficial Fascia:
    • Camper's: Fatty superficial.
    • Scarpa's: Membranous deep.
      • Continuations: Colles' (perineum), Dartos (scrotum/labia).
  • Investing Fascia (deep): Covers muscles.
  • Muscles: 3 layers (EO, IO, TA).
  • Transversalis Fascia: Endoabdominal; forms deep inguinal ring.
  • Extraperitoneal Fat

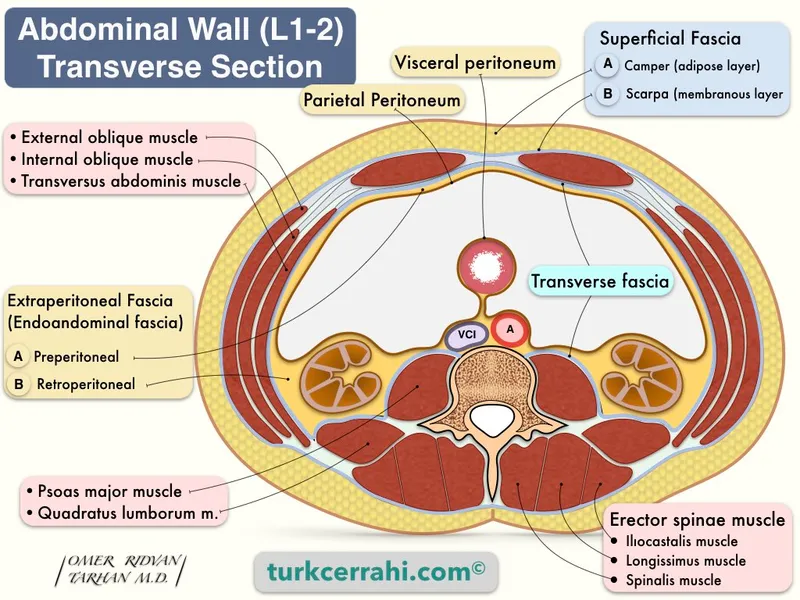

  • Parietal Peritoneum Abdominal Wall Transverse Section

⭐ Scarpa's fascia holds sutures well. Its continuity with Colles' fascia allows perineal fluid/infection (e.g., urethral rupture) to spread to the lower AAW, scrotum, and penis.

AAW Muscles - Core Strength Squad

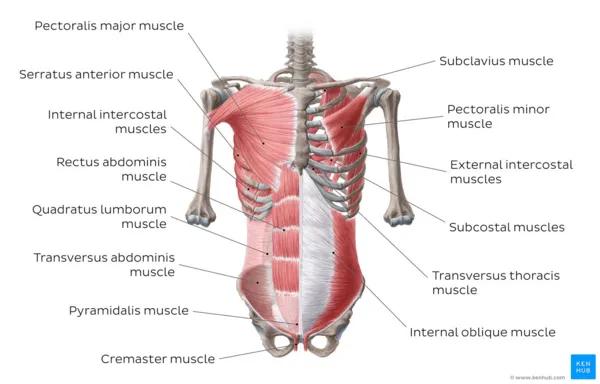

Anterior Abdominal Wall Muscles

Five key muscles form the AAW, crucial for core stability, movement (flexion, rotation), and increasing intra-abdominal pressure.

MuscleFiber DirectionNerve Supply (Main)Key Actions
Ext. Oblique (EO)↘ "Hands in pockets"T7-T12, L1Compress abdomen; Flex trunk, contralateral rotation of trunk
Int. Oblique (IO)↗ (Perpendicular to EO)T7-T12, L1Compress abdomen; Flex trunk, ipsilateral rotation of trunk
Transversus Abd. (TA)→ (Transverse)T7-T12, L1Major compressor (corset effect); Stabilizes lumbar spine
Rectus Abd. (RA)↓ (Vertical)T7-T12Primary flexor of trunk; Compresses abdomen
Pyramidalis(Inferosuperior)T12Tenses linea alba

Rectus Sheath & Midline - Central Support System

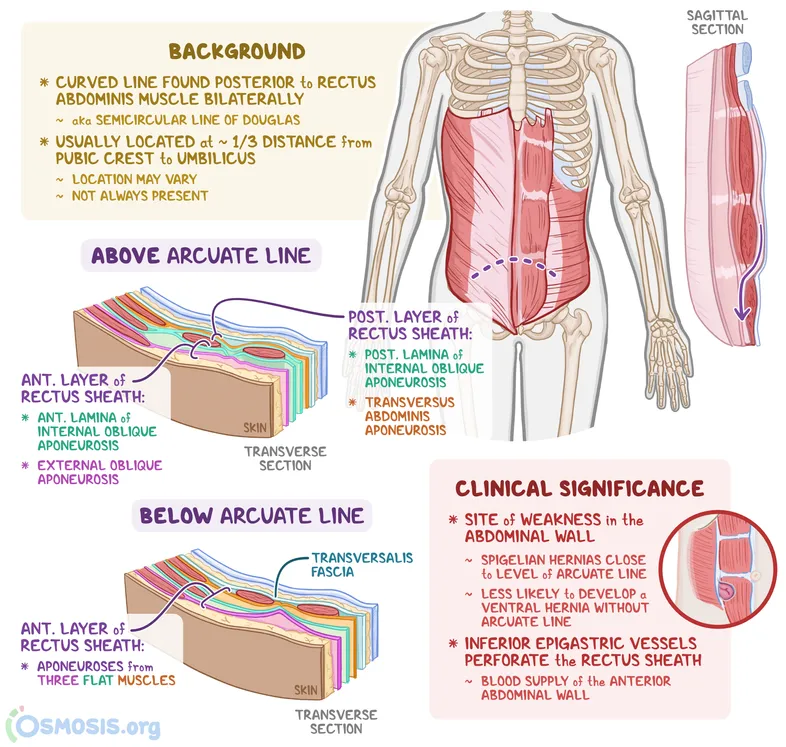

Rectus Sheath Layers and Arcuate Line Anatomy

  • Rectus Sheath Formation: Varies.
    • Above costal margin: Ant. (External Oblique aponeurosis), Post. (ribs - sheath deficient).
    • Other levels (see flowchart):
  • Arcuate Line (of Douglas): Crescentic line; inferior limit of posterior rectus sheath. Inferior epigastric vessels enter sheath.
  • Contents:
    • Muscles: Rectus abdominis, pyramidalis (if present).
    • Vessels: Superior & inferior epigastric.
    • Nerves: T7-T11 thoracoabdominal, T12 (subcostal) terminals.
  • Midline Structures:
    • Linea Alba: Midline aponeurotic raphe.
    • Linea Semilunaris: Lateral rectus border.
    • Umbilicus: Key embryological landmark.

⭐ Below arcuate line, posterior rectus sheath is deficient (only transversalis fascia); inferior epigastric vessels vulnerable here, and it's a site for Spigelian hernias near linea semilunaris.

Inguinal Region - Hernia Highway Patrol

  • Ligaments: Inguinal (Poupart's): EO fold, ASIS to pubic tubercle. Lacunar (Gimbernat's): Inguinal lig. medial expansion. Pectineal (Cooper's): Lacunar extension, pectineal line.
  • Inguinal Canal: ~4cm, oblique. 📌 MALT boundaries:
    • Roof: Muscles (IO, TA).
    • Anterior: Aponeuroses (EO, IO).
    • Floor: Ligaments (Inguinal, Lacunar).
    • Posterior: Transversalis fascia, Conjoint tendon.
  • Rings: Deep: Transversalis fascia, lateral to inf. epigastric vessels. Superficial: EO aponeurosis.
  • Contents: Spermatic cord (♂) / Round lig. (♀); Ilioinguinal nerve.
  • Hesselbach's Δ: Direct hernia. Boundaries: Inf. epigastric art., Rectus abdominis, Inguinal lig.
  • Hernias: 📌 MDs don't LIe (to inf. epigastric art.): Indirect (Lat., deep ring); Direct (Med., Hesselbach's Δ).

⭐ Indirect inguinal hernias: most common, often congenital (patent processus vaginalis).

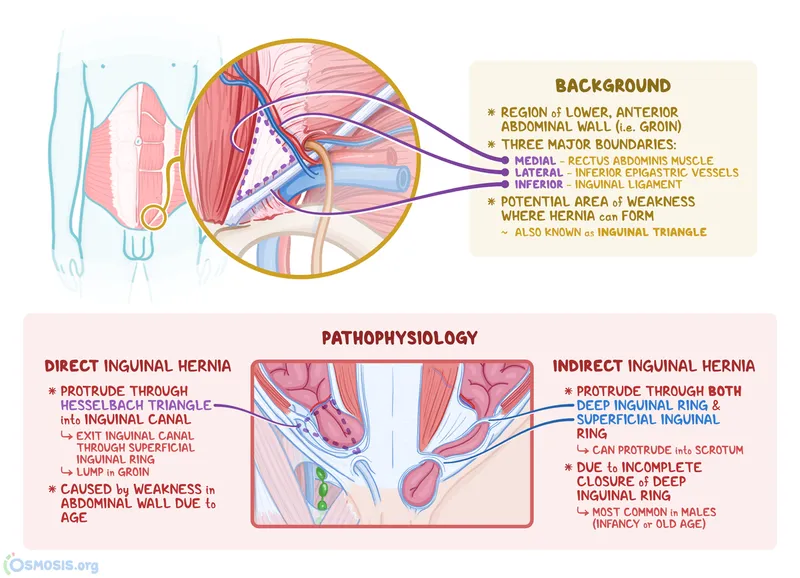

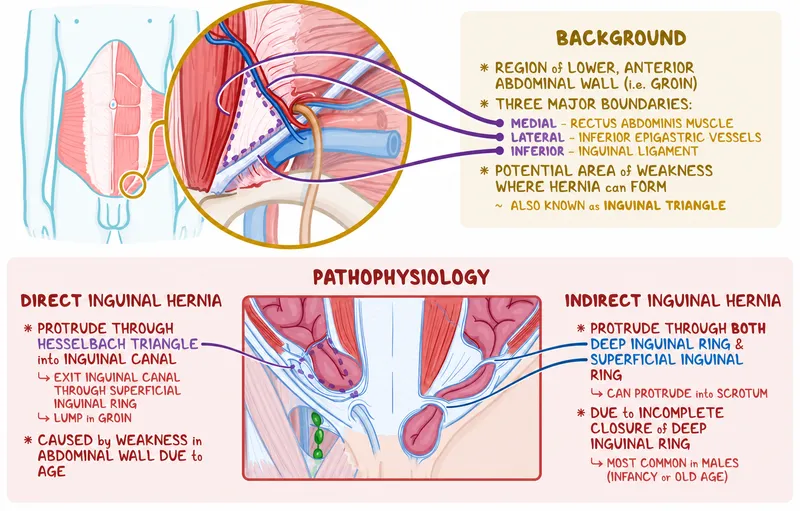

Inguinal Canal, Rings, Hesselbach's Triangle & Hernias

AAW Neurovasculature & Clinicals - Supply Lines & Weak Points

  • Arteries: Sup. epigastric (int. thoracic), Inf. epigastric (ext. iliac). Anastomosis: sup/inf epigastric.
  • Veins: Accompany arteries. Portal-systemic: Caput Medusae. Lymph: Axillary/Inguinal nodes.
  • Nerves: Thoracoabdominal (T7-T11), Subcostal (T12), Iliohypogastric & Ilioinguinal (L1). Dermatomes: T10 umbilicus, L1 inguinal.

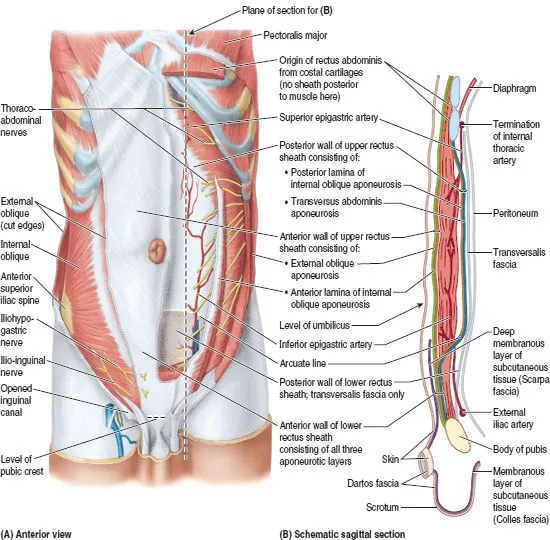

  • Clinicals: Incisions (Midline, McBurney's), Hernias (umbilical, Spigelian). Anterior abdominal wall anatomy

⭐ Inferior epigastric artery: key landmark differentiating direct (medial) & indirect (lateral) inguinal hernias, found in Hesselbach's triangle medial border for direct hernias.

High‑Yield Points - ⚡ Biggest Takeaways

  • Layers: Skin, Camper's, Scarpa's, 3 flat muscles (EO, IO, TA), Fascia Transversalis, Extraperitoneal fat, Peritoneum.
  • Rectus Sheath: Composition changes at Arcuate line; encloses Rectus abdominis & epigastric vessels.
  • Nerve Supply: T7-L1 nerves; T10 dermatome at umbilicus.
  • Arterial Supply: Key vessels are Superior & Inferior epigastric arteries.
  • Inguinal Canal: Transmits spermatic cord/round ligament & ilioinguinal nerve; deep ring in Fascia Transversalis.
  • Hesselbach's Triangle: Medial to inferior epigastric vessels; site of direct inguinal hernia.

Practice Questions: Anterior Abdominal Wall

Test your understanding with these related questions

A 7-year-old female who is somewhat obese is brought to the emergency department because of a soft lump above the buttocks. Upon physical examination you note the lump is located just superior to the iliac crest unilaterally on the left side. The protrusion is deep to the skin and pliable to the touch. Which of the following is the most probable diagnosis?

1 of 5

Flashcards: Anterior Abdominal Wall

1/10

The _____ nerve enters the inguinal canal by piercing its posterior wall

TAP TO REVEAL ANSWER

The _____ nerve enters the inguinal canal by piercing its posterior wall

ilioinguinal
