Chest Radiology Indian Medical PG Flashcards - Medical Study Cards
Master Chest Radiology with OnCourse flashcards. These spaced repetition flashcards are designed for medical students preparing for NEET PG, USMLE Step 1, USMLE Step 2, MBBS exams, and other medical licensing examinations.
Chest Radiology Flashcard Deck - 96 Cards

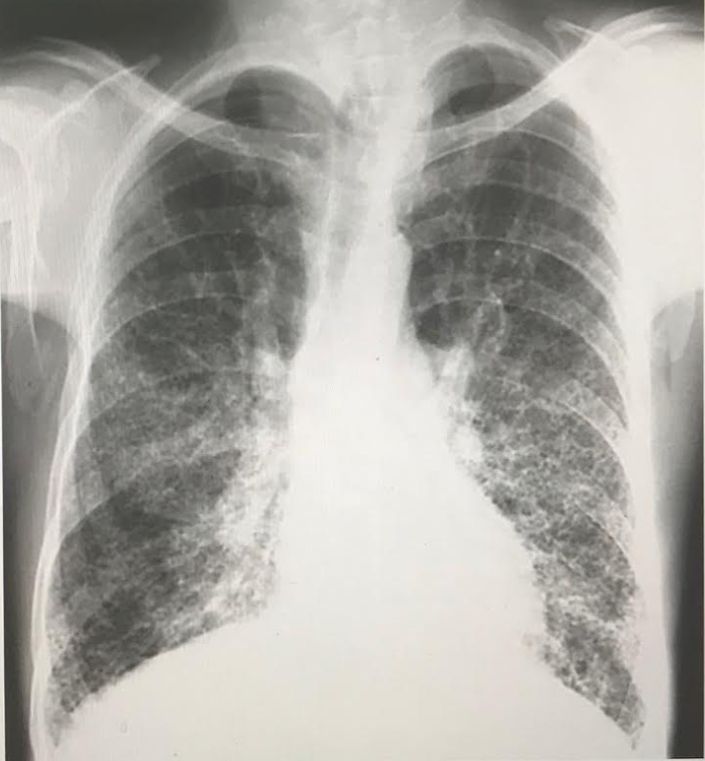

Flashcard 1: The following CXR is highly suggestive of what restrictive pulmonary pathology in a ~ 50 year old man? _____
Answer: Idiopathic Pulmonary Fibrosis

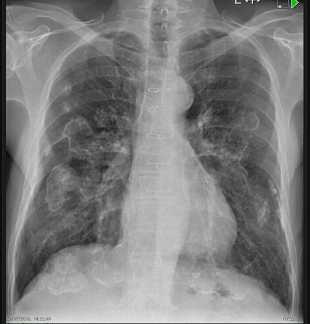

Flashcard 2: X-ray shows holly leaf appearence in _____.
Answer: asbestosis

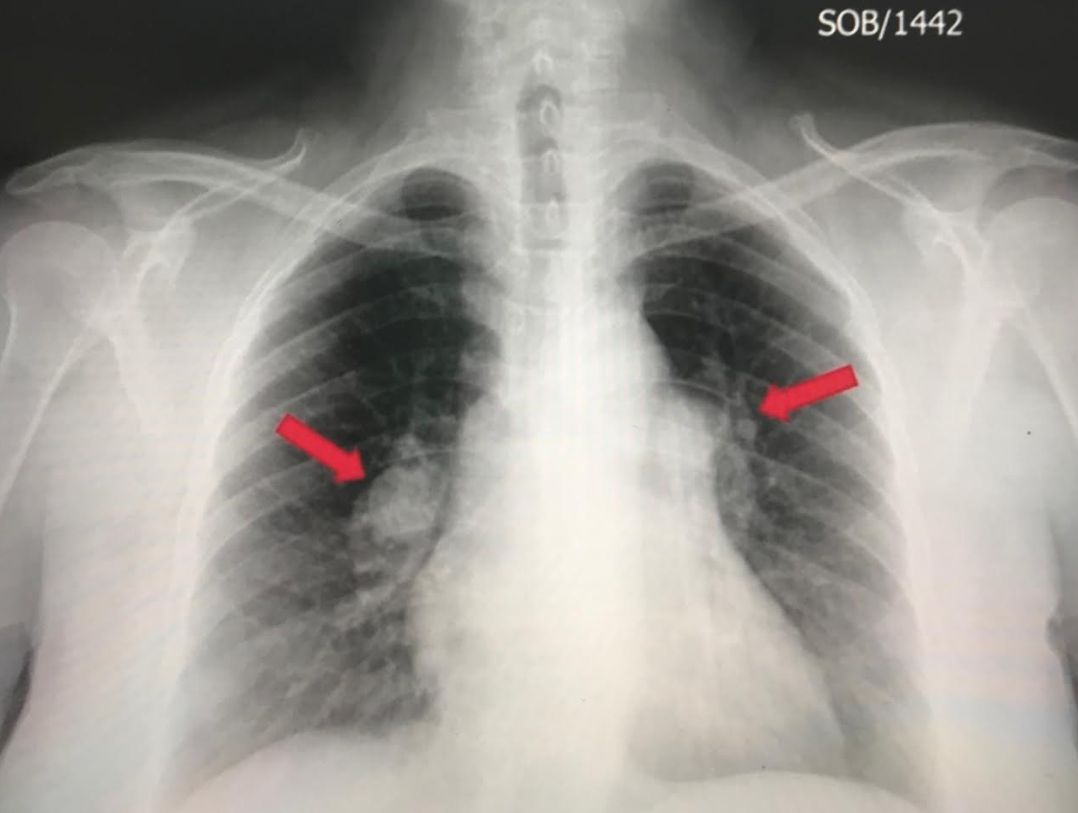

Flashcard 3: The following CXR is highly suggestive of what pulmonary pathology? _____
Answer: Primary Pulmonary HTN

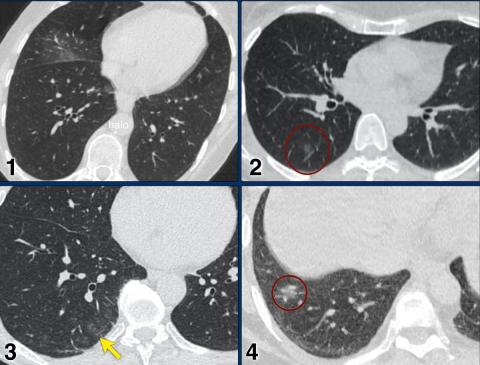

Flashcard 4: CO-RADS _____ (Equivocal - Features compatible with COVID-19, but also other diseases)
Answer: 3
Flashcard 5: CO-RADS _____ (High - Suspicious for COVID-19)
Answer: 4

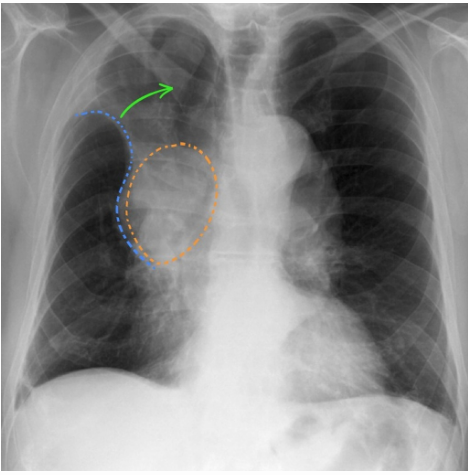

Flashcard 6: _____ sign is a radiographical appearance seen in the right upper lobe collapse in bronchogenic carcinoma.
Answer: Golden S
Flashcard 7: The following sign is also known as _____ sign
Answer: Trolley track

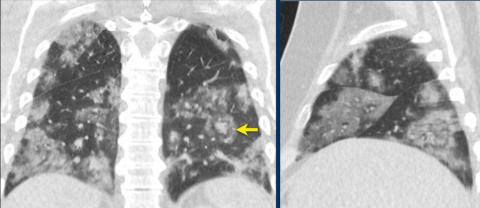

Flashcard 8: CO-RADS _____ (RTPCR confirmed)
Answer: 6

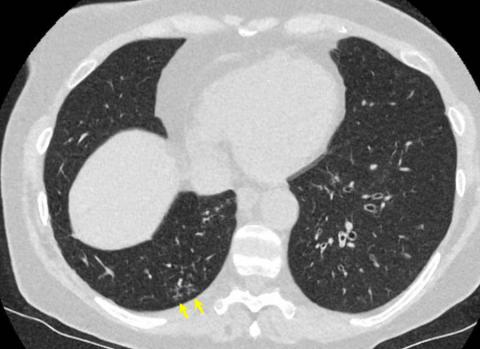

Flashcard 9: CO-RADS _____ (Low - Typical for other infections but not COVID-19)
Answer: 2

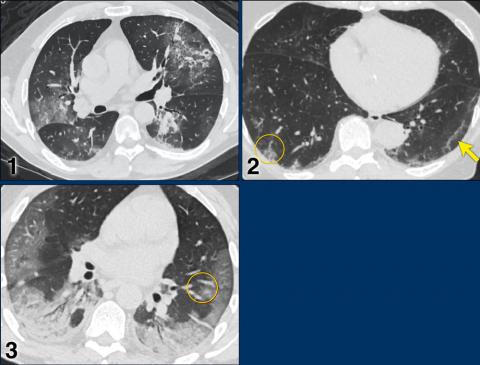

Flashcard 10: CO-RADS _____ (very high level of suspicion for pulmonary involvement by COVID-19 based on typical CT findings)
Answer: 5
Flashcard 11: CO-RADS _____ (Very low risk - Normal/Non-infectious)
Answer: 1
Flashcard 12: A _____ infiltrate is characteristic of Blastomycosis on CXR, along with lesions or cavities in the lungs
Answer: patchy alveolar
Flashcard 13: A minimum of _____ of effusion is required to be detected on lateral view
Answer: 75ml
Flashcard 14: _____ sign, is the most sensitive and specific sign on CT for diagnosing empyema
Answer: Split pleura
Flashcard 15: Silicosis may present with '_____'' calcification of the hilar lymph nodes
Answer: eggshell
Flashcard 16: The _____ sign is seen in some cases of left upper lobe collapse.
Answer: Luftsichel
Flashcard 17: _____ sign is seen on both PA chest radiographs and on CT scans in right upper lobe collapse
Answer: Golden S
Flashcard 18: _____ sign or Rising sun sign on CT scan, seen as an essentially dry cyst with crumpled membranes lying at its bottom is diagnostic of lung Hydatid cyst.
Answer: Serpent
Flashcard 19: When a patient with Aspergillomas takes an upright chest X-ray,the fungal balls will be in the _____ lobes, as they are gravity dependent
Answer: inferior
Flashcard 20: One benign cause of a 'coin-lesion' on CXR is _____, which is benign tumor of lung tissue and cartilage
Answer: bronchial hamartoma
Flashcard 21: _____ sign on supine view chest X-Ray is diagnostic of Pneumothorax
Answer: Deep sulcus
Flashcard 22: _____ of the lung presents similarly to pneumonia on CXR (hazy infiltrates, consolidation)
Answer: Adenocarcinoma in situ
Flashcard 23: The _____ sign is seen in bronchiectasis on CT scan due to peripheral tapering of bronchus.
Answer: tram track
Flashcard 24: Emphysema is characterized by increased _____ diameter with a flattened diaphragm on CXR
Answer: AP
Flashcard 25: _____ triad, also known as the 1-2-3 sign or Pawnbrokers sign, is a lymph node enlargement pattern which has been described in sarcoidosis:1. Right paratracheal nodes2. Right hilar nodes3. Left hilar nodes
Answer: Garland
Flashcard 26: _____ lines are seen when the interlobular septa in the pulmonary interstitium become prominent
Answer: Kerley
Flashcard 27: _____ sign, initially described as the sarcoid galaxy, represents a coalescent granuloma seen in a minority of patients with pulmonary sarcoidosis.
Answer: Galaxy
Flashcard 28: _____ sign on HRCT is typically seen in angioinvasive aspergillosis and represents hemorrhage
Answer: Halo
Flashcard 29: The _____ sign (also known as the angel wing sign) is a sign of pneumomediastinum seen on neonatal chest radiographs
Answer: spinnaker
Flashcard 30: Depending on the stage of sarcoidosis, _____ with or without lung parenchymatous changes may be present
Answer: hilar lymphadenopathy
Flashcard 31: The _____ sign is seen in cases of round atelectasis on CT scans of the chest.
Answer: comet-tail
Flashcard 32: The _____ sign is seen in bronchiectasis on CT scan due to dilation of bronchus.
Answer: signet ring
Flashcard 33: _____ appearance on CT scan is characteristic of Alveolar proteinosis
Answer: Crazy pavement
Flashcard 34: _____ is characterized by a boot-shaped heart on CXR
Answer: Tetralogy of Fallot
Flashcard 35: Lung abscesses may present with _____ on CXR, which suggests cavitation
Answer: air-fluid levels
Flashcard 36: _____ pattern is seen with acute silicosis on HRCT
Answer: Crazy pavement
Flashcard 37: Diagnosis of active primary tuberculosis is made by chest x-ray (CXR) demonstrating a _____ complex and pleural effusion
Answer: Gohn
Flashcard 38: On chest x-ray of a person with acute decompensated heart failure, you will most likely see:- prominent cephalization of _____- perihilar alveolar edema- blunting of the costophrenic angles (blue arrows)
Answer: pulmonary vessels (red arrows)
Flashcard 39: The _____ appearance is seen in bronchiectasis on CT scan due to alternate dilation and constriction of bronchi
Answer: string of beads
Flashcard 40: Pulmonary capillary leak of the virus _____ is radiographically similar to ARDS (acute respiratory distress syndrome)
Answer: Hantavirus (sin nombre)
Flashcard 41: _____ sign refers to the presence of gas surrounding a mass within a pulmonary cavity, usually seen in aspergilloma
Answer: Monod
Flashcard 42: Epiglottitis with a '_____' sign on imaging is classic for Haemophilus influenzae infection
Answer: thumb-print
Flashcard 43: _____ on HRCT is a sign of alveolitis signifying active and reversible stage of the disease.
Answer: Ground glass haze
Flashcard 44: _____ sign describes the CT appearance of multiple areas of centrilocular nodules with a linear branching pattern in bronchiolitis
Answer: Tree-in-bud
Flashcard 45: Best X-ray view to diagnose pneumothorax is _____ in full expiration.
Answer: PA view
Flashcard 46: _____ sign is defined by a hyper lucent area with decreased vascularity due to oligemia of the involved part of the lung, seen in pulmonary embolism
Answer: Westermark
Flashcard 47: Pulmonary _____ is seen on x-ray in VSD due to large volume of shunted blood passing through the lungs
Answer: plethora
Flashcard 48: Popcorn calcification is seen in pulmonary _____
Answer: hamartoma.
Flashcard 49: V-sign of Naclerio is seen in _____ as a V shaped air collection at the confluence of brachiocephalic veins
Answer: pneumomediastinum
Flashcard 50: CO-RADS _____ (RTPCR confirmed)
Answer: 6
Flashcard 51: Investigation of choice in Bronchiectasis- _____
Answer: Volumetric HRCT
Flashcard 52: Kerley _____ lines, do not reach the pleura nor course radially from the hilum, instead show a spiderweb appearance
Answer: C
Flashcard 53: _____ is seen as V-sign at the confluence of brachiocephalic veins in Boerhaave's syndrome
Answer: Naclerio's V sign
Flashcard 54: Kerley _____ lines, cross the normal vascular markings and extend radially from the hilum to the upper lobes
Answer: A
Flashcard 55: What is the earliest sign of left atrial enlargement on CXR?_____
Answer: Left atrial appendage (LAA) enlargement seen as a fullness beneath the pulmonary artery shadow
Flashcard 56: _____ sign is seen as enlarged pulmonary artery, in pulmonary embolism
Answer: Fleishner
Flashcard 57: _____ sign is seen on partial anomalous pulmonary venous return (PAPVR) on radiology
Answer: Scimitar
Flashcard 58: _____ sign denotes mediastinal border can be obscured only by a pathology which is in direct anatomical contact
Answer: Silhouette
Flashcard 59: Best X-ray view for pleural effusion is?_____
Answer: Lateral decubitus view
Flashcard 60: The most common cause of bulging fissure on a Chest radiograph is _____.
Answer: Klebsiella pneumonia
Flashcard 61: _____ sign: infarct shows rapid clearing in contrast to pneumonic consolidation; seen in pulmonary embolism
Answer: Melting
Flashcard 62: CO-RADS _____ (very high level of suspicion for pulmonary involvement by COVID-19 based on typical CT findings)
Answer: 5
Flashcard 63: Middle lobe pathologies of the lung are better seen on _____ view.
Answer: lordotic
Flashcard 64: Which lobe pathology causes obliteration of right cardiac border?_____
Answer: Right middle lobe
Flashcard 65: CO-RADS _____ (Low - Typical for other infections but not COVID-19)
Answer: 2
Flashcard 66: Kerley _____ lines, are exactly the same as Kerley B lines, except that they are seen on lateral chest radiographs in the retrosternal air gap
Answer: D
Flashcard 67: _____ sign is seen due to air between pectoralis major fibres in Boerhaave's syndrome
Answer: Ginkgo leaf
Flashcard 68: Batwing appearance on X-ray is seen in _____
Answer: Pulmonary edema
Flashcard 69: Investigation of choice for evaluating solitary pulmonary nodule (SPN) is _____*features favouring malignancy?
Answer: CT>PET
Flashcard 70: Acute chest syndrome is defined as a new _____ on CXR along with fever, respiratory distress, hypoxia, cough, or chest pain in a pt. with sickle cell disease
Answer: radiodensity
Flashcard 71: Most connective tissue disorders will present with _____ rib notching
Answer: superior
Flashcard 72: _____ refers to the phenomenon of air-filled bronchi (dark) being made visible by the opacification of surrounding alveoli (grey/white)
Answer: Air bronchogram
Flashcard 73: The pruning of pulmonary arteries is seen in _____
Answer: PAH
Flashcard 74: CO-RADS _____ (High - Suspicious for COVID-19)
Answer: 4
Flashcard 75: _____ is the best modality for the demonstration of Kerley A lines.
Answer: HRCT
Flashcard 76: _____ sign, describes dilation of right descending pulmonary artery due to occlusion by the embolus in pulmonary embolism
Answer: Knuckle or sausage
Flashcard 77: Kerley _____ lines, are perpendicular to the pleural surface and extend out to it
Answer: B
Flashcard 78: _____ is seen as peripheral wedge of airspace opacity and implies lung infarction, in pulmonary embolism
Answer: Hampton hump (Sign)
Flashcard 79: What is a characteristic radiologic sign of bronchocele on CXR?_____
Answer: Gloved finger appearance of Simon
Flashcard 80: Is air bronchogram seen in bronchogenic carcinoma?_____
Answer: No
Flashcard 81: Which CT feature has been reported most often in COVID-19 pneumonia?_____
Answer: Multifocal ground glass opacities
Flashcard 82: CO-RADS _____ (Not interpretable - Technically insufficient to assign a score)
Answer: 0
Flashcard 83: In Macleod syndrome, CT scan will show the affected lung with _____ size and decreased vascularity, hyperexpansion, and hyperlucency (false emphysema)
Answer: small
Flashcard 84: What is the most common cause of egg shell calcifications of lymph node on chest X-ray?_____
Answer: Silicosis
Flashcard 85: Bilateral pleural calcifications are seen in _____
Answer: Asbestosis
Flashcard 86: CO-RADS _____ (Very low risk - Normal/Non-infectious)
Answer: 1
Flashcard 87: CO-RADS _____ (Equivocal - Features compatible with COVID-19, but also other diseases)
Answer: 3
Flashcard 88: Air around the right pulmonary artery may be seen in pneumomediastinum, also called as _____ sign
Answer: ring around artery
Flashcard 89: Which lung carcinoma mimics consolidation of chest X-Ray?_____
Answer: Adenocarcinoma in-situ
Flashcard 90: Best X-ray view for right lung is?_____
Answer: Left anterior oblique
Flashcard 91: _____ is investigation of choice for superior sulcus tumor/ pancoast tumor
Answer: MRI > CT
Flashcard 92: _____ is the best investigation for pulmonary embolism.
Answer: Pulmonary CT angiography /MDCT
Flashcard 93: _____ is the investigation of choice for ILD and Bronchiectasis.
Answer: High-resolution CT
Flashcard 94: _____ is the investigation of choice for evaluation and diagnosis of bronchogenic carcinoma.
Answer: CT
Flashcard 95: _____ sign is a radiographical appearance seen in the right upper lobe collapse in _____ carcinoma.
Answer: Golden S; bronchogenic
Flashcard 96: The X-ray shows _____ sign which is suggestive of _____ anomalous pulmonary venous return.
Answer: Scimitar; partial
