Tooth Structures & Types - Core Chomponents

  • Core Structures (Layers):
    • Enamel: Hardest human tissue; ~96% inorganic (hydroxyapatite); acellular; outer crown layer.
    • Dentin: Bulk of tooth under enamel/cementum; tubular (dentinal tubules cause sensitivity); yellowish.
    • Pulp: Central vital soft tissue; contains nerves, blood vessels; formative (secondary dentin), sensory.
    • Cementum: Bone-like; covers anatomical root; anchors tooth via Periodontal Ligament (PDL).
  • Tooth Types & Primary Function:
    • Incisors (I): Cutting; chisel-shaped; 8 total.
    • Canines (C): Tearing; pointed (cuspid); 4 total; often longest roots.
    • Premolars (P): Grinding/tearing; typically bicuspid; 8 total (permanent dentition).

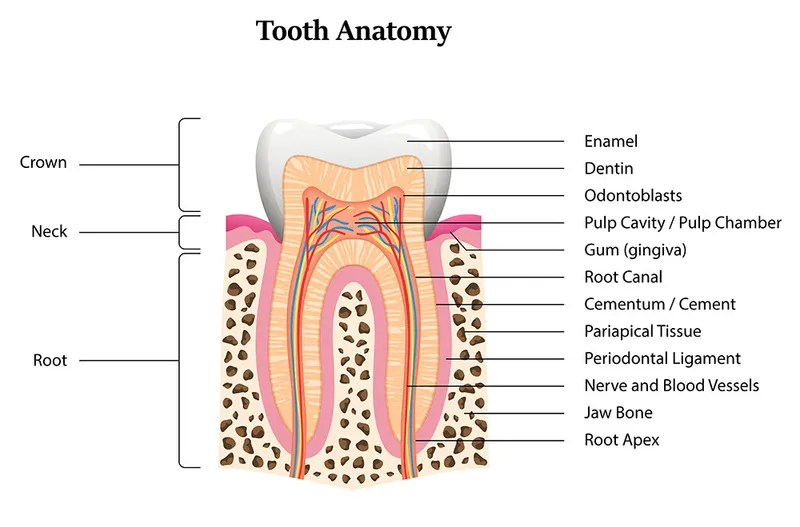

    • Molars (M): Grinding; multiple cusps; 8-12 total (permanent dentition). Tooth Anatomy Diagram

⭐ Enamel is the hardest substance in the human body, primarily composed of hydroxyapatite (approx. 96% inorganic).

Dental Notation Systems - Numbering Nibblers

Standardized systems for identifying teeth, crucial for records and communication in forensic odontology under BSA evidence documentation requirements.

  • Palmer Notation (Zsigmondy/Palmer System):

    • Divides mouth into 4 quadrants (UR, UL, LR, LL).
    • Permanent teeth: 1-8 (central incisor to 3rd molar).
    • Deciduous teeth: A-E (central incisor to 2nd molar).
    • Notation uses quadrant symbols (e.g., ┘└ ┐┌) with the number/letter.
  • FDI World Dental Federation Notation (Two-Digit System):

    • Each tooth assigned a two-digit number.
    • First digit: Quadrant (1-4 for permanent, 5-8 for deciduous, clockwise from UR).
    • Second digit: Tooth within quadrant (1-8 for permanent, 1-5 for deciduous, midline outwards).
    • Example: Upper right central incisor = 11.
  • Universal Numbering System (ADA System):

    • Permanent teeth: 1-32, starting maxillary right 3rd molar (1) to maxillary left 3rd molar (16), then mandibular left 3rd molar (17) to mandibular right 3rd molar (32).
    • Deciduous teeth: A-T (or 1d-20d), following a similar path (A for maxillary right 2nd molar).

⭐ While the FDI system is widely used internationally, newer systems like 'qpdb' are being explored to address its limitations, particularly in digital dentistry and reducing confusion between primary and permanent dentition.

📌 Mnemonic: Palmer's Perfect Picture (grid), FDI's Fancy Figures (two digits), Universal's Unique US (1-32).

Tooth Development & Eruption - Tiny Teeth Timetable

  • Odontogenesis Stages: Initiation (Bud: 6-8 wks IU) → Proliferation (Cap) → Differentiation (Bell: Histo- & Morpho-) → Apposition (Matrix) → Mineralization → Eruption.
  • Deciduous Teeth (20):
    • First Eruption: Mandibular Central Incisor (6-10 months).
    • All Erupt: By 2.5-3 years. Roots complete: 3-4 years.
    • 📌 Eruption Order (approx.): Central Incisors (Md > Mx) → Lateral Incisors (Md > Mx) → 1st Molars (Md > Mx) → Canines (Md > Mx) → 2nd Molars (Md > Mx).
  • Permanent Teeth (32):
    • First Eruption: Mandibular 1st Molar (6-7 years).
    • General Sequence: 1st Molars → Incisors → Premolars → Canines → 2nd Molars → 3rd Molars.
    • Root Completion: 2-3 years post-eruption. Apices (excl. 3rd Molar) closed by 14-15 years.
    • Third Molars: Erupt 17-21 years (variable).
    • 📌 Tooth Numbering: Follow FDI World Dental Federation notation or Universal Numbering System for forensic identification accuracy.
    • Premolar Variations: Succedaneous teeth replacing deciduous molars; mandibular premolars may have two roots (forensically significant).

⭐ The first permanent tooth to erupt is usually the mandibular first molar (the "six-year molar") around age 6.

Developmental Dental Anomalies - Quirky Cusps

Variations in cusp morphology are key forensic identifiers.

  • Cusp of Carabelli:

    • Accessory cusp, palatal aspect of mesiopalatal cusp, maxillary molars (esp. 1st).
    • Common in European descent; hereditary.
  • Talon Cusp: 📌 (Eagle's Talon)

    • Accessory cusp on lingual/palatal of anterior teeth (incisors/canines).
    • Projects ≥ half distance CEJ to incisal edge; may contain pulp.
  • Dens Evaginatus (Leong's Premolar):

    • Accessory occlusal tubercle on posterior teeth (esp. premolars).
    • Common in Asians; risk of pulp exposure.
  • Shovel-shaped Incisors:

    • Prominent lingual marginal ridges on incisors.
    • Frequent in Asian, Native American populations.

⭐ Talon cusps can interfere with occlusion and may require prophylactic sealing or gradual reduction to prevent pulp exposure and maintain vitality of the tooth an important consideration in forensic age estimation if pulp status is assessed histologically

High‑Yield Points - ⚡ Biggest Takeaways

  • Primary dentition: 20 teeth, eruption starts ~6 months.
  • Permanent dentition: 32 teeth; first permanent molar erupts ~6 years.
  • Tooth eruption sequence and root development completion (third molars up to 25 years) are key for age estimation.
  • Adult age estimation incorporates Gustafson's and Lamendin's foundational methods with advanced imaging techniques (CT, MRI), 3D reconstruction, pulp chamber obliteration analysis, and emerging AI/machine learning for enhanced accuracy.
  • The neonatal line in enamel and dentin signifies live birth.
  • Knowledge of dental notation systems (FDI, Palmer, Universal) is essential for records.
