Internal fixation methods

On this page

🛠️ Core Principles - The Carpenter's Rules

  • The four foundational AO (Arbeitsgemeinschaft für Osteosynthesefragen) principles guide all internal fixation procedures, ensuring a biological environment for healing. 📌 Mnemonic: Anatomic Reduction, Stable Fixation, Blood Supply, Mobilization.

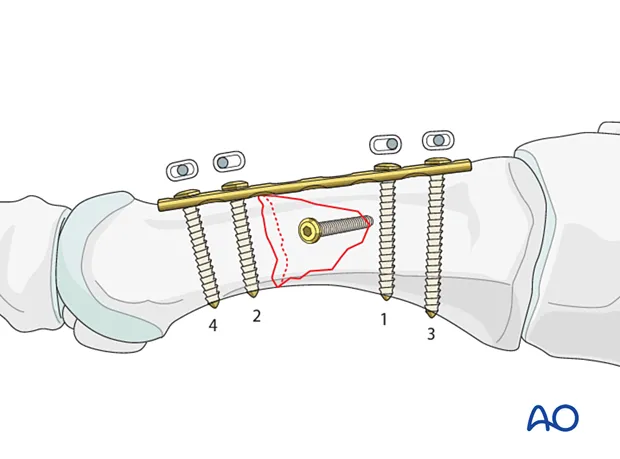

Internal fixation of bone fracture with plate and screws

⭐ The choice of stability dictates healing type. Absolute stability (e.g., compression plating) leads to primary bone healing (direct osteonal remodeling, no callus). Relative stability (e.g., IM nailing) allows micromotion, promoting secondary bone healing (endochondral ossification via callus).

🛠️ Management - The Ortho Toolkit

Internal fixation aims to achieve anatomical reduction and stable fixation to allow for early mobilization. The choice of implant depends on fracture pattern, location, and bone quality.

Decision Framework for Fixation

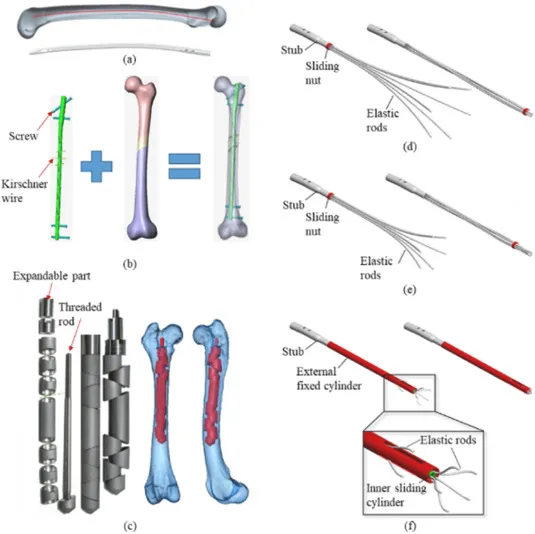

Internal Fixation Methods: Screws, Wires, and Rods

DeviceBiomechanical PrincipleCommon Indications
ScrewsInterfragmentary CompressionFix small fragments, attach plates
PlatesButtress, Neutralization, BridgingPeriarticular, comminuted fractures
IM NailsInternal Splinting (Load-Sharing)Long bone shaft fractures (femur, tibia)
K-wiresProvisional or definitive fixationHand/foot, pediatric fractures
Tension BandConverts distraction to compressionOlecranon, patella fractures

💡 Locking Plates: Screws lock into the plate, creating a fixed-angle construct. This is crucial for improved stability in osteoporotic bone or comminuted fractures.

🔩 Complications - When Screws Go Loose

  • Aseptic Loosening: Most common cause of late failure.
    • Micromotion at bone-implant interface → fibrous tissue ingrowth.
    • Wear debris (polyethylene, metal) → macrophage activation → osteolysis.
  • Implant Fatigue/Fracture: Occurs when cyclical loading exceeds the implant's endurance limit.
    • Often secondary to nonunion; the implant bears the entire load instead of the healed bone.
  • Infection: Biofilm formation on hardware protects bacteria (e.g., S. aureus).
    • ⚠️ Often requires implant removal for eradication.
    • Presents with pain, erythema, drainage, elevated ESR/CRP.

⭐ A "radiolucent line" >2 mm wide at the bone-cement or bone-implant interface on X-ray is a key sign of loosening.

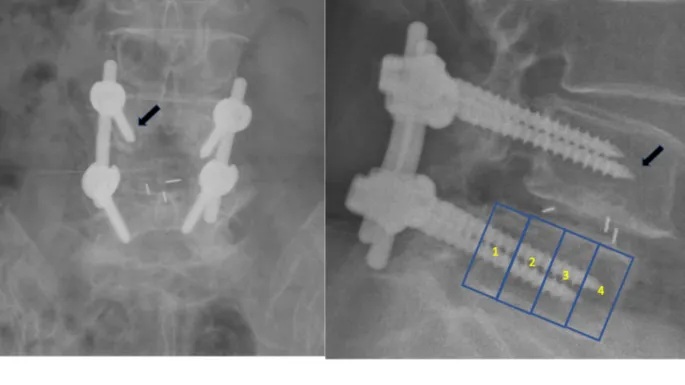

X-ray: Radiolucent lines around orthopedic screw

⚡ High‑Yield Points - Biggest Takeaways

  • Internal fixation aims for anatomic reduction and stability, promoting primary (direct) bone healing with minimal callus.
  • Screws provide interfragmentary compression, often using a lag technique (overdrilling the near cortex).
  • Plates offer absolute stability (e.g., compression, buttress) for articular and metaphyseal fractures.
  • Intramedullary (IM) nails are load-sharing devices, ideal for diaphyseal fractures of the femur and tibia, allowing early weight-bearing.
  • Tension band wiring converts tensile forces to compression, classic for patella and olecranon fractures.

Practice Questions: Internal fixation methods

Test your understanding with these related questions

A 6-week-old boy is brought for routine examination at his pediatrician’s office. The patient was born at 39 weeks to a 26-year-old G1P1 mother by normal vaginal delivery. External cephalic version was performed successfully at 37 weeks for breech presentation. Pregnancy was complicated by gestational diabetes that was well-controlled with insulin. The patient’s maternal grandmother has early onset osteoporosis. On physical examination, the left hip dislocates posteriorly with adduction and depression of a flexed femur. An ultrasound is obtained that reveals left acetabular dysplasia and a dislocated left femur. Which of the following is the next best step in management?

1 of 5

Flashcards: Internal fixation methods

1/5

What type of graft is from self? _____

TAP TO REVEAL ANSWER

What type of graft is from self? _____

Autograft
