🔩 Core principles - The Ortho Erector Set

  • Concept: Stabilizes fractures externally using pins/wires in bone, connected by rods and clamps. A temporary "scaffold."
  • Indications:
    • Damage Control Orthopedics (DCO) for polytrauma.
    • Severe open fractures (e.g., Gustilo-Anderson type III).
    • Unstable pelvic fractures.
    • Infected nonunions or arthrodesis.
  • Stiffness Principles:
    • ↑ Pin diameter & number → ↑ Stability.
    • ↑ Pin spread (distance between pins) → ↑ Stability.
    • ↓ Bone-to-rod distance → ↑ Stability.
    • Stiffness is proportional to the rod/pin diameter to the 4th power: $S \propto d^4$.

High-Yield: The most common complication is pin site infection. Meticulous pin care is crucial.

🔩 Structure-function - Nuts, Bolts & Stability

  • Core Components:
    • Pins/Wires: Transfix bone segments for anchorage.
    • Clamps: Securely connect pins to the external rods.
    • Rods (Carbon Fiber/Steel): Form the external scaffold, providing structural integrity.

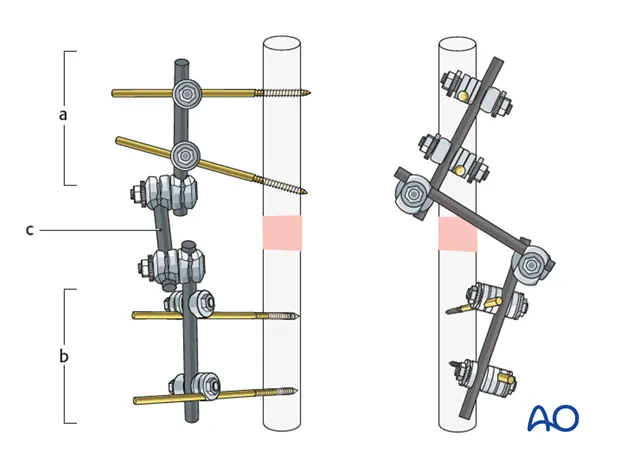

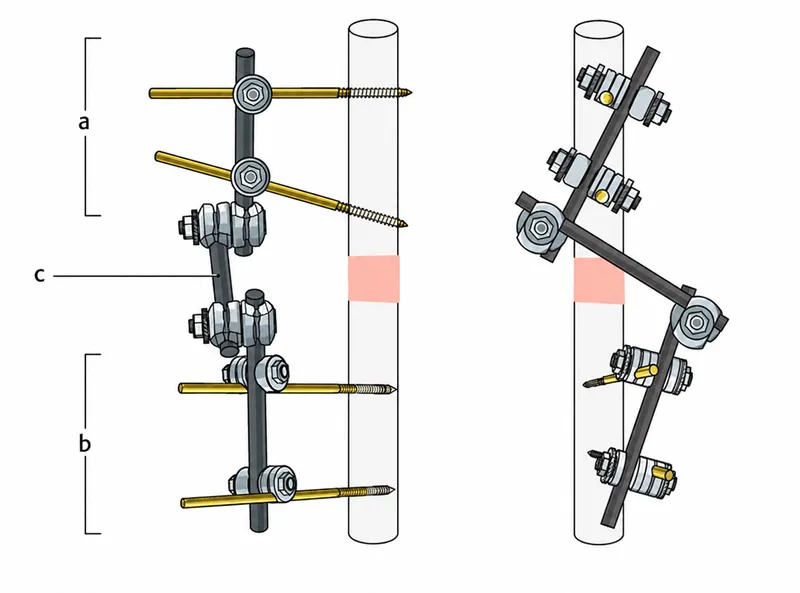

External fixator pin spread and bone-to-rod distance

  • Key Factors for ↑ Stability:

    • Pins: Use thicker pins (↑ diameter), increase the number of pins per segment, and maximize spread between pins.
    • Rods: Use thicker rods, add more rods (stacking), or create a multiplanar frame.
    • Frame Geometry: Decrease the distance from the bone to the connecting rod.
  • 💡 Stiffness Principle: Bending stiffness is proportional to the radius to the fourth power ($r^4$) and inversely proportional to the length cubed ($L^3$).

⭐ The most critical factor for construct stability is minimizing the bone-to-rod distance. Halving this distance increases stiffness by a factor of 8 (since stiffness is inversely proportional to length cubed).

🦴 Clinical Correlations: When to "Cage" a Bone

External fixation is a temporary or definitive stabilization strategy used when internal fixation is contraindicated.

📌 Mnemonic: CAGES

  • Contaminated/Comminuted: High-grade open fractures (e.g., Gustilo-Anderson IIIA/B/C).
  • Arthrodesis: Joint fusion, especially with active infection.
  • Growth/Correction: Limb lengthening (e.g., Ilizarov) or deformity correction.
  • Emergency (Polytrauma): Key for Damage Control Orthopedics (DCO) & unstable pelvic fractures.
  • Severe Soft Tissue Injury: Burns, degloving, or significant swelling where surgery would risk wound breakdown.

Damage Control Orthopedics (DCO): In a polytrauma patient ("sick patient"), the priority is life over limb. Rapidly apply an external fixator to stabilize fractures, control hemorrhage, and minimize physiologic insult. Definitive internal fixation occurs later when the patient is stable.

External fixator application for open tibia fracture

⚠️ Complications - Pin Site Predicaments

  • Pin tract infection: The most common complication associated with external fixation devices.
  • Causative Organism: Staphylococcus aureus is the predominant pathogen.
  • Prevention: Meticulous daily pin care using chlorhexidine is the cornerstone of prevention.
  • Clinical Spectrum: Ranges from superficial cellulitis to deep infection, potentially leading to ring sequestrum and chronic osteomyelitis.
  • Key Signs: Progressive erythema, purulent drainage, increasing pain, and any evidence of pin loosening.

⭐ Pin loosening is a critical sign suggesting deep infection (osteomyelitis). This signifies failure of the bone-pin interface and mandates aggressive management, often including pin removal.

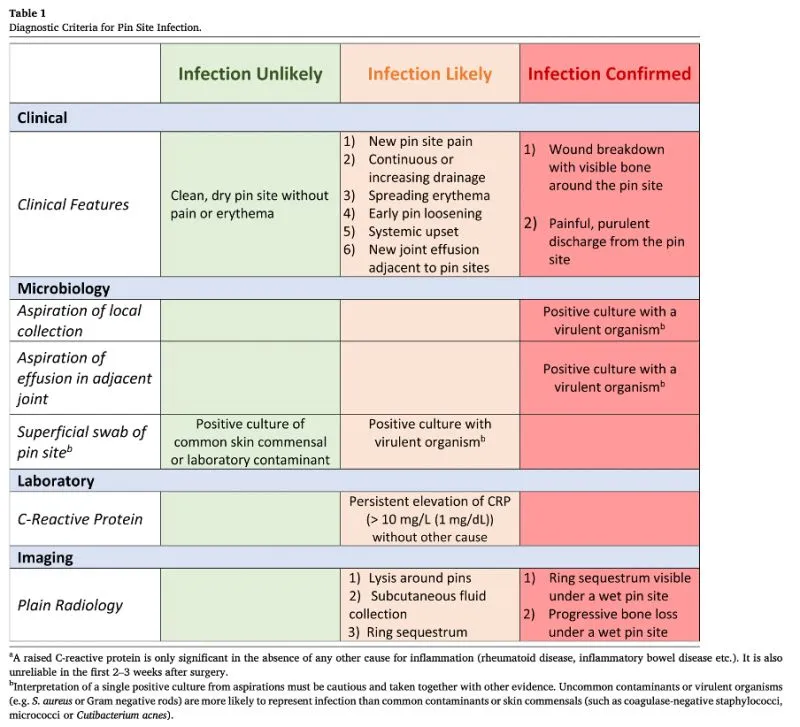

Diagnostic Criteria for Pin Site Infection

⚡ Biggest Takeaways

  • Primary indication: Severe open fractures (e.g., Gustilo IIIB/IIIC), polytrauma (damage control), and unstable pelvic fractures.
  • Provides relative stability, allowing micromotion to promote secondary bone healing via callus formation.
  • Key advantage: Minimizes soft tissue stripping, crucial for managing contaminated wounds and preserving blood supply.
  • Most common complication is pin-tract infection; requires meticulous pin site care.
  • Other risks include neurovascular injury during pin placement and potential for nonunion/malunion.
  • Often used as a temporary bridge to definitive internal fixation.
