🛠️ Key Structures - Tools of the Trade

  • Trocar & Cannula: A trocar is a sharp-tipped obturator inserted through a hollow tube (cannula/port). The trocar is removed, leaving the cannula for instrument access.
  • Primary Port Placement (for insufflation):
    • Veress Needle (Closed): "Blind" insertion, typically at the umbilicus or Palmer's point (left subcostal margin).
    • Hasson Technique (Open): Small infraumbilical incision, direct visualization of fascia, and suture placement before port insertion. ⚠️ Preferred in patients with prior abdominal surgery to reduce bowel injury risk.

⭐ To avoid the inferior epigastric artery, place lateral ports lateral to the rectus sheath. The vessel is located roughly one-third of the distance from the pubic tubercle to the ASIS.

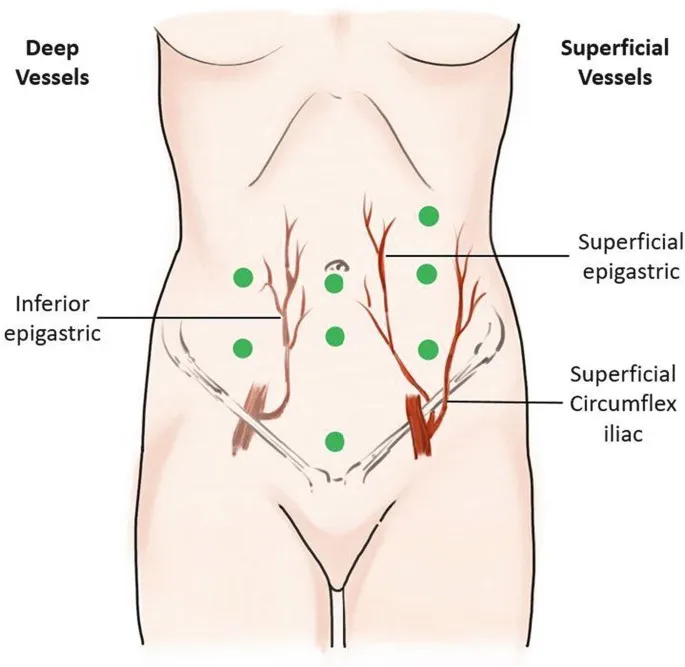

Laparoscopic port sites and abdominal wall vasculature

📍 Anatomy - Abdominal Entry Points

Primary entry establishes pneumoperitoneum. Secondary ports are for instrumentation. Site selection is critical to avoid vascular and visceral injury.

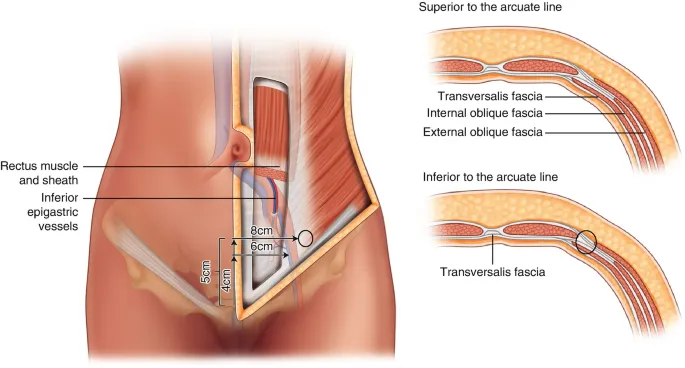

Laparoscopic port sites and inferior epigastric artery

Entry SiteLocation & AnatomyAdvantages & Disadvantages
UmbilicusThinnest part of abdominal wall; natural scar. Entry via Veress needle (blind) or Hasson (open).Pro: Most common, cosmetic.
Con: High risk of adhesions from prior surgery; risk to aorta/IVC in thin patients.
Palmer's Point3 cm below left costal margin, mid-clavicular line. Enters over the stomach.Pro: Avoids midline adhesions; safer in obesity or previous laparotomy.
Con: Risk of injury to spleen or stomach.
  • Secondary Port Placement:
    • ⚠️ Primary Goal: Avoid the inferior epigastric artery.
    • This vessel arises from the external iliac artery and courses superiorly on the deep surface of the rectus abdominis muscle.
    • 💡 Technique: Place secondary trocars under direct intra-abdominal visualization. Transillumination can identify superficial vessels but is unreliable for the deep epigastrics.

⭐ Injury to the inferior epigastric artery is a common, preventable complication. It typically occurs with lateral port placement and can cause a large, rapidly expanding rectus sheath hematoma.

📍 Clinical Correlations - Ports & Perils

  • Primary Entry Risks (Umbilicus):

    • Most common site for initial access.
    • ⚠️ High risk of major vessel injury (aorta, IVC) in thin patients or with improper technique.
    • Risk of bowel injury, especially with prior midline surgery (adhesions).
  • Safe Alternative Entry: Palmer's Point

    • Located in the left upper quadrant, 2-3 cm below the costal margin in the mid-clavicular line.
    • 💡 Preferred in patients with suspected periumbilical adhesions or obesity.

Laparoscopic port sites and abdominal wall vessels

High-Yield: Injury to the inferior epigastric artery is a classic complication of lateral port placement. It arises from the external iliac artery and can cause significant retroperitoneal hematoma. Always transilluminate the abdominal wall before insertion.

  • Common Complications:
    • Nerve Injury: Ilioinguinal/iliohypogastric nerves are at risk with low lateral ports, causing groin pain/numbness.
    • Port-Site Hernia: Increased risk with ports >10 mm if fascia is not closed.

⚡ Biggest Takeaways

  • Umbilicus is the primary port site; initial entry via Veress needle (blind) or Hasson technique (open).
  • Palmer's point (LUQ) is a safer alternative entry site in patients with prior midline surgery or obesity.
  • Avoid the inferior epigastric artery during lateral port placement; it's the most commonly injured vessel.
  • Primary trocar insertion carries the highest risk of catastrophic aortic, IVC, or bowel injury.
  • Maintain CO2 pneumoperitoneum at 12-15 mmHg; higher pressures risk hemodynamic compromise.
  • Insert all secondary ports under direct visualization to prevent iatrogenic injury.

Practice Questions: Trocar placement and port sites

Test your understanding with these related questions

During a surgical procedure to repair an abdominal aortic aneurysm, the surgeon must be careful to avoid injury to which of the following arterial structures that originates near the level of the renal vessels?

1 of 5

Flashcards: Trocar placement and port sites

1/7

What surgical procedure involves the en bloc removal of the head/neck of the pancreas, proximal duodenum, and gallbladder?_____

TAP TO REVEAL ANSWER

What surgical procedure involves the en bloc removal of the head/neck of the pancreas, proximal duodenum, and gallbladder?_____

Whipple procedure
