Laparoscopic instrumentation

On this page

💨 Core principles - Gas, Light, & Action!

  • Gas (Pneumoperitoneum):

    • Insufflation: Carbon Dioxide ($CO_2$) is standard.
        • Why $CO_2$? Non-flammable, high blood solubility (↓ embolism risk), rapidly excreted via lungs.
    • Pressure: Maintained at 12-15 mmHg.
    • Access: Veress needle (blind) or Hasson technique (open cut-down).
    • ⚠️ Complications: Hypercarbia, respiratory acidosis, subcutaneous emphysema, gas embolism.
  • Light (Vision System):

    • Components: Light source (Xenon/LED) → Laparoscope (camera) → Monitor.
    • Scopes: for direct view; 30° angled scope to visualize around structures.
  • Action (Instruments):

    • Trocars: Ports for instrument entry (e.g., 5mm, 12mm).
    • Core Tools: Graspers, dissectors (e.g., Maryland), scissors, energy devices.

High-Yield: A sudden drop in end-tidal $CO_2$, hypotension, and a "mill-wheel" murmur suggest a venous gas embolism. Immediately stop insufflation and place the patient in the left lateral decubitus (Durant's) position.

🛠️ The Laparoscopic Toolbox

Fundamental instruments for minimally invasive surgery, enabling access, visualization, and manipulation within a closed abdomen.

  • Access & Insufflation

    • Veress Needle: Blind, spring-loaded needle for initial CO₂ insufflation.
    • Hasson Trocar: Open cut-down technique for the first port; safer with prior abdominal surgery.
    • Trocars: Ports for instrument passage, typically 5-12 mm diameter.
    • Insufflator: Delivers CO₂ to create pneumoperitoneum, maintaining pressure at 12-15 $mmHg$.
  • Visualization & Manipulation

    • Laparoscope: Telescope with a camera and light source (0° or 30° view).
    • Graspers: Atraumatic (e.g., Babcock) for delicate tissue; traumatic for tissue to be resected.
    • Dissectors: e.g., Maryland dissector for fine tissue separation.
    • Energy Devices: Monopolar (requires grounding pad) vs. Bipolar (safer, current confined between tips).

⭐ The most feared complication of Veress needle or primary trocar insertion is major vascular injury (aorta, IVC, iliac vessels).

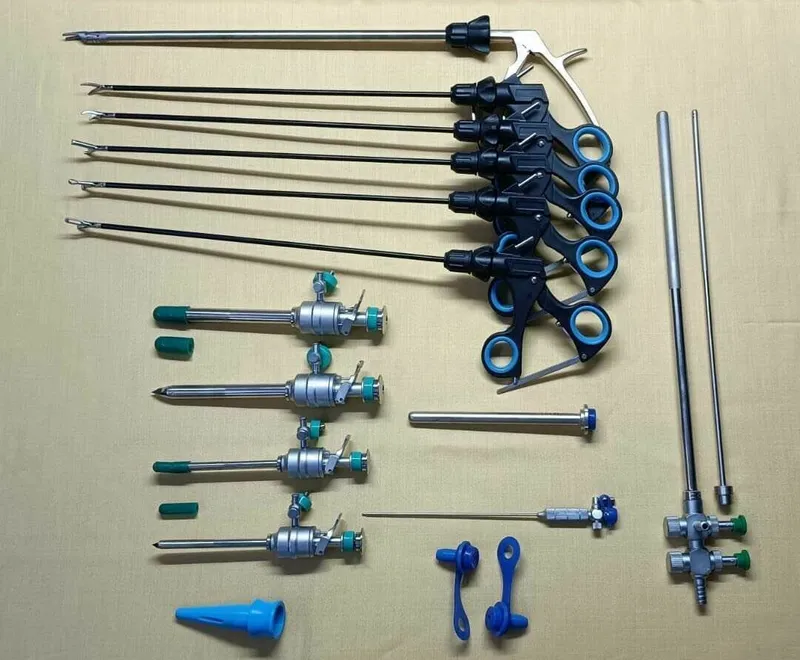

Laparoscopic surgical instruments

⚠️ Complications - When Tools Turn Treacherous

  • Access Injuries (Veress/Trocar):

    • Risk of major vascular (aorta, IVC, iliacs) or visceral (bowel, bladder) injury.
    • ⚠️ Highest risk during initial blind entry, especially with prior abdominal surgery (adhesions).
    • Suspect with sudden hypotension or free blood on aspiration.
  • Electrosurgical Burns:

    • Direct Coupling: Active electrode touches another metal instrument.
    • Insulation Failure: Current leaks from a break in the instrument's sheath.
    • Capacitive Coupling: Stray current induced in a non-contacted conductor.

Delayed Presentation: Bowel thermal injuries are often missed intra-op. Suspect in patients presenting with fever, abdominal pain, and leukocytosis 2-7 days post-laparoscopy.

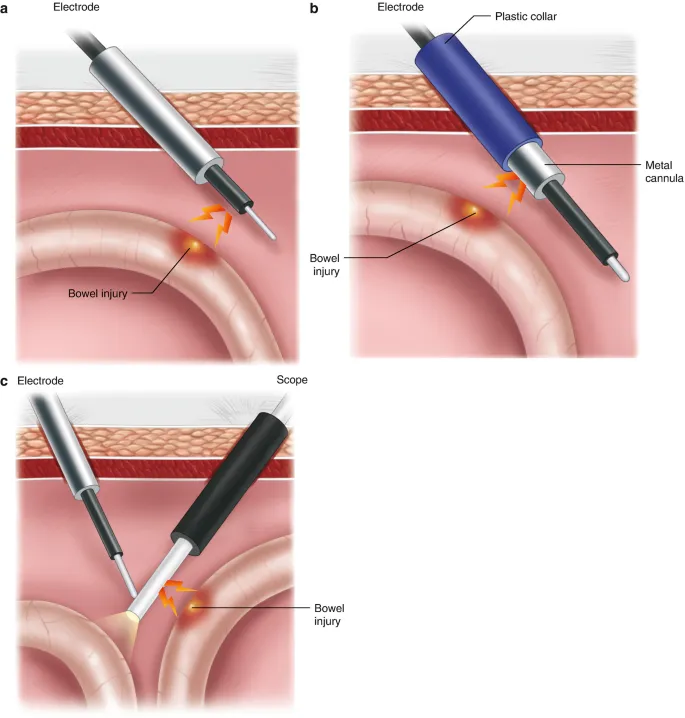

Laparoscopic electrosurgical injury mechanisms

🛠️ Management - The Damage Control Crew

  • Hemostasis: The primary goal in managing intra-op complications.
    • Vessel Ligation: Titanium clips (Hemoclips) or absorbable clips (Lapro-clips).
    • Energy Devices: Control bleeding from small vessels to larger pedicles.
      • Ultrasonic (Harmonic Scalpel): Cuts & coagulates with minimal thermal spread.
      • Advanced Bipolar (LigaSure): Fuses vessel walls.
    • Suturing: Intracorporeal suturing for complex repairs or large vessel control.
  • Containment: Endo-bags for specimen retrieval prevent contamination or tumor seeding.

⭐ The most feared complication is unrecognized thermal bowel injury, often from monopolar cautery's wide energy spread.

⚡ Biggest Takeaways

  • Pneumoperitoneum uses CO2 at 12-15 mmHg; its high solubility prevents fatal gas embolism.
  • The Hasson (open) technique is safer than the blind Veress needle, especially with abdominal adhesions.
  • Bipolar cautery is safer than monopolar (no grounding pad, less stray current).
  • ↑IAP causes ↓ venous return, ↓ cardiac output, and ↑ SVR.
  • Hypercarbia from CO2 absorption can lead to respiratory acidosis.
  • Most feared complications are major vascular/bowel injury during access and gas embolism.
