⚙️ The Heart's Helpers

Mechanical Circulatory Support (MCS) devices are used for cardiogenic shock or advanced heart failure. They unload the ventricle and improve end-organ perfusion.

  • Intra-Aortic Balloon Pump (IABP): Counter-pulsation device. Inflates during diastole to ↑ coronary perfusion; deflates during systole to ↓ afterload.
  • Percutaneous VADs (e.g., Impella): Catheter-based axial flow pump placed across the aortic valve. Directly unloads the LV by pumping blood to the aorta.
  • Ventricular Assist Device (VAD): Surgically implanted pump. Used as a bridge-to-transplant or as destination therapy.
  • VA-ECMO: Provides full cardiopulmonary support, bypassing the heart and lungs.

⭐ Continuous-flow LVADs can cause acquired von Willebrand syndrome due to shear stress on vWF multimers, leading to a high risk of GI bleeding from arteriovenous malformations (AVMs).

💔 Pathophysiology - When the Pump Fails

Cardiogenic shock is profound cardiac pump failure, causing end-organ hypoperfusion despite adequate intravascular volume. The fundamental equation is $CO = HR \times SV$.

  • Primary Insult: ↓ Myocardial contractility → ↓ Stroke Volume (SV) & Cardiac Output (CO).
  • Maladaptive Compensation:
    • Baroreceptor reflex → ↑ Sympathetic tone & ↑ SVR (afterload).
    • RAAS activation → ↑ volume (preload).
  • Vicious Cycle: ↑ Afterload & ↑ Preload further strain the failing ventricle, increasing myocardial O₂ demand and worsening ischemia.

⭐ In cardiogenic shock, the heart operates on the flat/descending part of the Frank-Starling curve; increasing preload (fluids) worsens pulmonary congestion without improving CO.

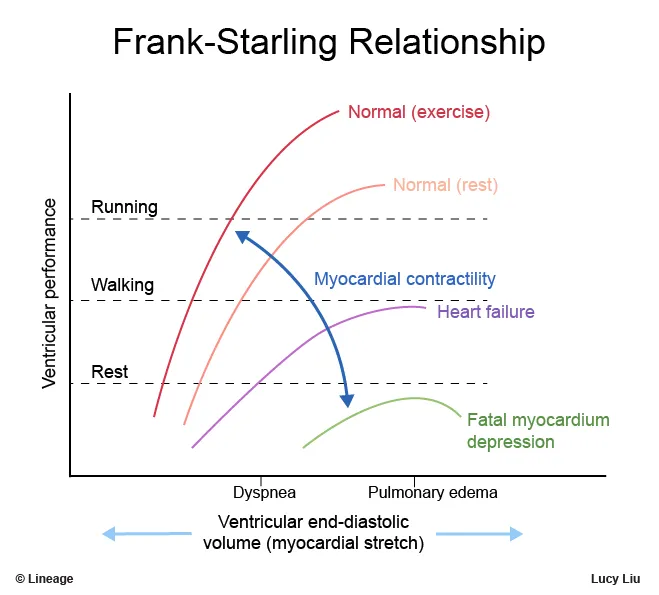

Frank-Starling curves: normal vs. failing heart

⚙️ Management: Choosing the Right Device

Selection is multifactorial, guided by:

  • Goal of Therapy: Bridge to Recovery (BTR), Transplant (BTT), Candidacy (BTC), or Destination Therapy (DT).
  • Required Duration: Short-term (<30 days) vs. Long-term (months-years).
  • Hemodynamic Severity: INTERMACS profile (1=crashing, 7=stable).
  • Patient Factors: RV function, ambulation potential, end-organ function, anticoagulation tolerance.

⭐ INTERMACS profiles are key. Profile 1 ("Crash and Burn") requires immediate, temporary support (e.g., ECMO). Stable, inotrope-dependent patients (Profile 4, "Resting Symptoms") are prime candidates for durable LVADs as Bridge to Transplant (BTT) or Destination Therapy (DT).

⚠️ Complications - When Good Tech Goes Bad

📌 Mnemonic: BITH-R (Bleeding, Infection, Thrombosis, Hemolysis, Right Heart Failure).

  • Bleeding: Most common.
    • GI Bleeding: Due to acquired von Willebrand Syndrome (AVWS) from shear stress on vWF multimers & angiodysplasia from non-pulsatile flow.
  • Thrombosis:
    • Pump Thrombosis: Suspect with ↑ power consumption, hemolysis.
    • Stroke/TIA: Embolic events.
  • Infection:
    • Driveline infection is most frequent; can lead to sepsis.
  • Hemolysis: Mechanical RBC destruction.
    • Labs: ↑ LDH, ↑ plasma-free Hb, ↓ haptoglobin.
  • Right Heart Failure: Common after LVAD placement; RV fails to handle increased preload.

⭐ Continuous-flow LVADs cause loss of pulsatility, leading to arteriovenous malformations (AVMs) in the GI tract, a major cause of recurrent bleeding.

⚡ Biggest Takeaways

  • IABP: Inflates in diastole to ↑ coronary perfusion; deflates in systole to ↓ afterload. Contraindicated in aortic regurgitation.
  • LVADs: A bridge-to-transplant or destination therapy. High risk of thrombosis, stroke, and GI bleeding (acquired vWD).
  • ECMO: V-A for cardiopulmonary support (cardiogenic shock); V-V for isolated respiratory failure (ARDS).
  • Impella: Percutaneous pump directly unloads the LV across the aortic valve, reducing myocardial oxygen demand.
  • Universal risks: thrombosis, bleeding (anticoagulation-related), infection, and hemolysis.

Practice Questions: Mechanical circulatory support devices

Test your understanding with these related questions

An investigator is conducting a study to identify potential risk factors for post-transplant hypertension. The investigator selects post-transplant patients with hypertension and gathers detailed information regarding their age, gender, preoperative blood pressure readings, and current medications. The results of the study reveal that some of the patients had been treated with cyclosporine. This study is best described as which of the following?

1 of 5

Flashcards: Mechanical circulatory support devices

1/6

EF < _____% and MI within _____ months are absolute contraindications to non-cardiac surgery

TAP TO REVEAL ANSWER

EF < _____% and MI within _____ months are absolute contraindications to non-cardiac surgery

35
