Diving Physics - Gas Laws & The Deep

  • Pressure increases by 1 atmosphere absolute (ATA) for every 10m (33ft) of descent.
  • Boyle's Law ($P_1V_1 = P_2V_2$): As pressure ↑, gas volume in body cavities (e.g., lungs, middle ear) ↓. Governs barotrauma risk, especially on ascent.
  • Henry's Law ($P = k_H \cdot C$): ↑ ambient pressure dissolves more nitrogen into tissues. Rapid ascent can cause bubble formation, leading to decompression sickness.
  • Dalton's Law: Total gas pressure is the sum of its partial pressures. Explains risks of gas toxicity (e.g., O₂, N₂) at depth.

⭐ Nitrogen narcosis ("rapture of the deep"), an anesthetic effect, can occur at depths of 30-40m due to the high partial pressure of nitrogen.

Barotrauma - Squeezes & Strains

Barotrauma is tissue damage from a pressure differential between a gas-filled body space and its surroundings, following Boyle's Law ($P_1V_1 = P_2V_2$).

FeatureDescent ("Squeeze")Ascent ("Reverse Block")
Mechanism↑ Ambient pressure → ↓ gas volume. Failure to equalize creates a vacuum.↓ Ambient pressure → ↑ gas volume. Trapped gas expands, causing strain.
Common SitesMiddle ear, sinuses, mask.Lungs (pulmonary barotrauma), sinuses, middle ear, GI tract, dental.
PathologyMucosal edema, hemorrhage, tympanic membrane rupture.Alveolar rupture → pneumothorax, pneumomediastinum, subcutaneous emphysema, Arterial Gas Embolism (AGE).

Anatomy of the human ear with labeled parts

Pathogenesis of Arterial Gas Embolism (AGE)

Decompression Illness - Bubbles & Bends

Rapid ascent from a dive causes dissolved nitrogen ($N_2$) to come out of solution, forming bubbles in tissues and blood (Henry's Law), leading to Decompression Sickness (DCS). At depth, high partial pressure of nitrogen ($P_{N_2}$) can also cause Nitrogen Narcosis, an anesthetic effect known as 'Martini's Law' (equivalent to one martini per 10m of depth).

📌 Mnemonic (Risk Factors): DEEP - Dehydration, Exertion, Patent Foramen Ovale (PFO), Deep/long dives.

TypeSystems AffectedClinical Signs
Type I DCSMusculoskeletal, Skin, Lymphatic"The Bends": Deep, aching joint pain (shoulders, elbows). Skin mottling (cutis marmorata), pitting edema.
Type II DCSNeurologic, Cardiopulmonary"The Staggers": CNS symptoms (vertigo, ataxia, paralysis). "The Chokes": Substernal chest pain, cough, respiratory distress.

Management:

  • Immediate: 100% $O_2$ via non-rebreather mask.
  • Definitive: Recompression with hyperbaric oxygen (HBOT) therapy.

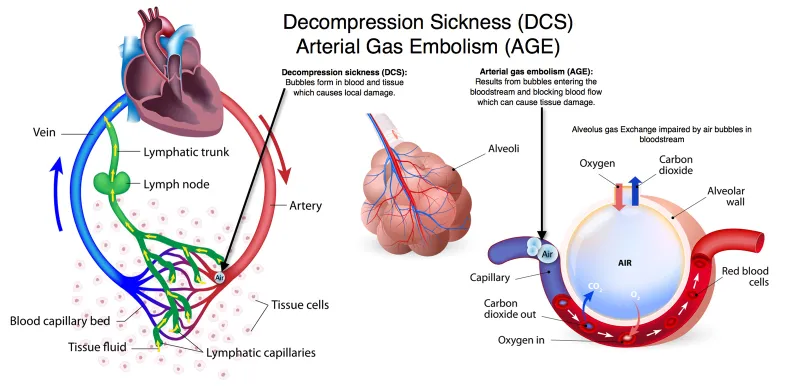

Decompression Sickness and Arterial Gas Embolism

High‑Yield Points - ⚡ Biggest Takeaways

  • Boyle's law governs barotrauma; as pressure ↑, gas volume ↓, affecting ears, sinuses, and lungs.
  • Henry's law dictates that ↑ ambient pressure forces more nitrogen to dissolve into tissues.
  • Rapid ascent causes decompression sickness (“the bends”) as dissolved N₂ forms bubbles in blood and tissues.
  • Nitrogen narcosis at depth (>100 ft) impairs judgment due to high N₂ partial pressure.
  • Oxygen toxicity from high FiO₂ at pressure can cause seizures and lung damage.
  • Treat decompression sickness with recompression and 100% O₂.

Practice Questions: Diving physiology

Test your understanding with these related questions

During a clinical study examining the diffusion of gas between the alveolar compartment and the pulmonary capillary blood, men between the ages of 20 and 50 years are evaluated while they hold a sitting position. After inhaling a water-soluble gas that rapidly combines with hemoglobin, the concentration of the gas in the participant's exhaled air is measured and the diffusion capacity is calculated. Assuming that the concentration of the inhaled gas remains the same, which of the following is most likely to increase the flow of the gas across the alveolar membrane?

1 of 5

Flashcards: Diving physiology

1/10

The lung diffusing capacity, DL, is _____ proportional to the diffusion coefficient of the gas

TAP TO REVEAL ANSWER

The lung diffusing capacity, DL, is _____ proportional to the diffusion coefficient of the gas

directly
