Compliance Basics - The Stretch Factor

  • Compliance ($C$) is the intrinsic ability of the lungs and chest wall to stretch and expand.
  • It measures the change in volume ($\.Delta V$) per unit change in pressure ($\.Delta P$).
  • Formula: $C = \Delta V / \Delta P$
    • High compliance: ↑ volume change for a small pressure change (e.g., a thin, new balloon).
    • Low compliance: ↓ volume change for a large pressure change (e.g., a thick, old balloon).
  • Inversely related to elastance (the tendency to recoil).

⭐ In emphysema, destruction of elastin leads to pathologically high compliance. In fibrosis, stiff, scarred tissue leads to low compliance.

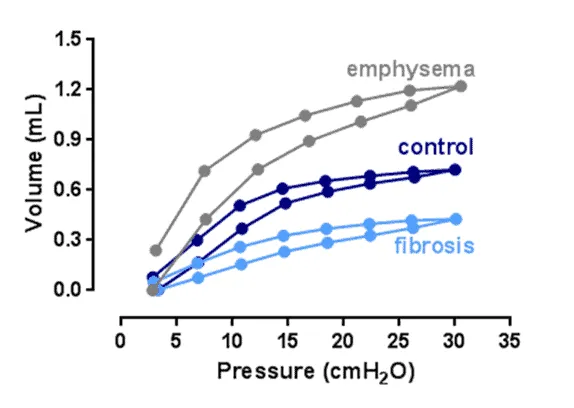

Pressure-volume curves for emphysema, control, and fibrosis

Pressure-Volume Loop - Lungs on Display

  • Plots change in lung volume (x-axis) against transpulmonary pressure (y-axis) during a breathing cycle.
  • Inspiration and expiration form a loop due to hysteresis, representing the work of breathing.
  • The slope of the curve represents dynamic compliance ($C = \Delta V / \Delta P$). A steeper slope means higher compliance.

Shifts in Disease:

  • Obstructive (Emphysema, Asthma): Loop shifts LEFT/UP.
    • ↑ Compliance (lungs are floppy).
    • ↑ Total Lung Capacity (TLC).
  • Restrictive (Fibrosis, ARDS, NRDS): Loop shifts RIGHT/DOWN.
    • ↓ Compliance (lungs are stiff).
    • ↓ Total Lung Capacity (TLC).
  • Saline-filled lung: Shifts LEFT/UP dramatically; abolishes air-water interface and surface tension, thus ↑ compliance.

Surfactant deficiency (e.g., Neonatal Respiratory Distress Syndrome) causes a rightward shift, ↓ compliance, and a flattened loop. This increases the work of breathing as higher pressures are needed to inflate the stiff lungs.

Altered Compliance - Stiff vs. Floppy Lungs

  • Compliance is the change in lung volume for a given change in transpulmonary pressure ($C = \Delta V / \Delta P$). It reflects the lung's stretchability.

  • Stiff Lungs (Decreased Compliance)

    • Lungs are harder to inflate, requiring ↑ work of breathing.
    • Causes: Pulmonary fibrosis, pneumonia, ARDS, pulmonary edema.
    • P-V Curve: Shifts down and to the right. More pressure is needed to achieve the same volume.
    • PV loops: resistance vs. compliance changes
  • Floppy Lungs (Increased Compliance)

    • Lungs are easier to inflate but have poor elastic recoil, leading to air trapping.
    • Causes: Emphysema (destruction of elastin), aging.
    • P-V Curve: Shifts up and to the left. Less pressure is needed to achieve the same volume.

⭐ In emphysema, loss of alveolar septa and elastic tissue leads to high compliance but a severely decreased surface area for gas exchange and a low FEV1/FVC ratio due to loss of radial traction on airways.

High‑Yield Points - ⚡ Biggest Takeaways

  • The slope of the pressure-volume curve is compliance (ΔV/ΔP); a steeper slope means higher compliance.
  • Increased compliance (e.g., emphysema, aging) shifts the curve up and left; lungs are easy to fill but have poor recoil.
  • Decreased compliance (e.g., fibrosis, ARDS, edema) shifts the curve down and right; lungs are stiff and hard to inflate.
  • Surfactant increases compliance by reducing alveolar surface tension, preventing end-expiratory collapse.
  • Hysteresis reflects the difference between inflation and deflation curves, primarily due to surfactant.
