HIV Structure - The Viral Blueprint

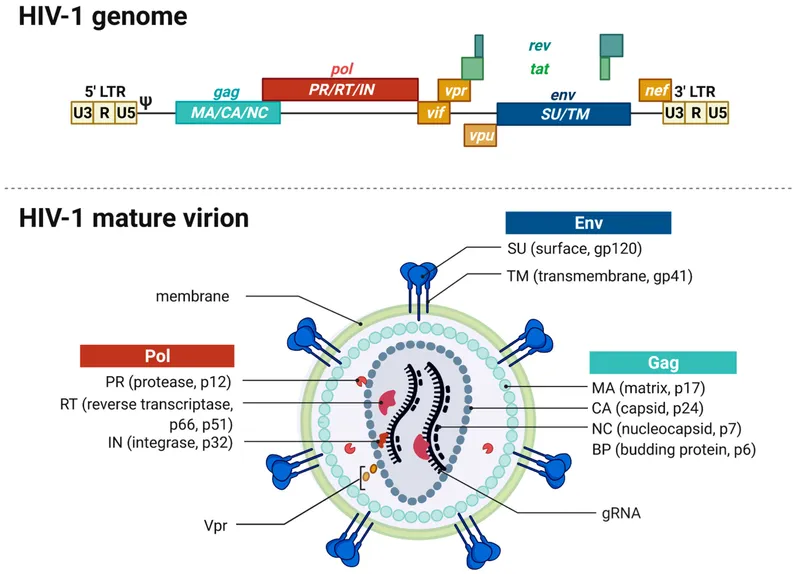

HIV-1 Genome and Mature Virion Structure

  • Family: Retroviridae (a lentivirus).
  • Core Components:
    • Envelope: Host-derived lipid membrane with viral glycoproteins.
      • gp120: Binds to the CD4 receptor on host cells.
      • gp41: Facilitates viral fusion and entry.
    • Capsid: Conical-shaped protein shell, p24.
    • Genome: Diploid; two identical single-stranded, positive-sense RNA strands.
    • Enzymes: 📌 Reverse Transcriptase, Integrase, Protease (RIP).

⭐ The p24 capsid protein is the first viral antigen to become detectable in the blood, making it a key marker for early HIV diagnosis.

HIV Tropism & Entry - Picking the Lock

  • Initial Contact: HIV's envelope glycoprotein gp120 binds to the primary CD4 receptor on host cells (T-helper cells, macrophages).
  • Coreceptor Binding (Tropism): This initial binding triggers a conformational change in gp120, allowing it to bind to a second coreceptor.
    • R5-Tropic (M-tropic): Uses CCR5 coreceptor, found on macrophages & memory T-cells. Dominant in early infection.
    • X4-Tropic (T-tropic): Uses CXCR4 coreceptor, on naive T-cells. Emerges in late-stage disease, linked to faster progression.
  • Fusion & Entry: Coreceptor binding exposes gp41, which mediates fusion of the viral envelope with the host cell membrane, releasing the viral capsid inside.

⭐ Individuals homozygous for the CCR5-Δ32 mutation are highly resistant to R5-tropic HIV infection, as the virus cannot engage its coreceptor for entry.

📌 Mnemonic: gp120 knocks on the door (CD4), gp41 fuses the floor.

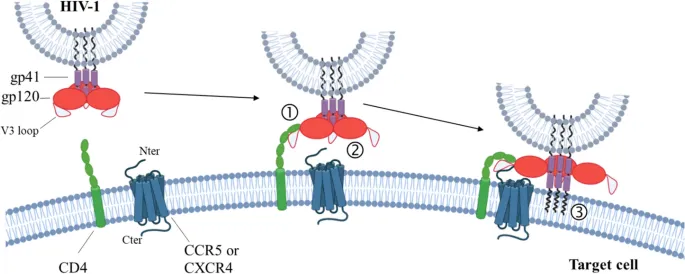

HIV-1 Entry Mechanism

HIV Replication Cycle - Viral Hijacking

  • Attachment, Penetration & Uncoating: Viral gp120 binds to the host T-cell CD4 receptor. A conformational change allows binding to a coreceptor, either CXCR4 (T-tropic) or CCR5 (M-tropic). Viral gp41 then mediates fusion and entry.

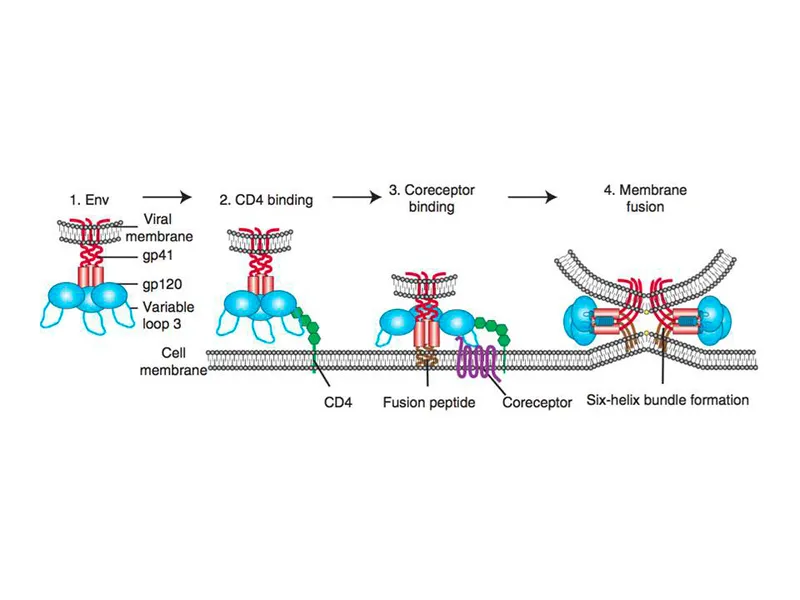

HIV binding and membrane fusion with host cell

  • Replication & Integration:

    • Reverse Transcription: Viral RNA is converted into dsDNA by reverse transcriptase (RNA-dependent DNA polymerase).
    • Integration: The new viral DNA is integrated into the host cell's genome by the enzyme integrase, forming a provirus.
  • Synthesis, Assembly & Budding:

    • Host cell machinery transcribes the proviral DNA into mRNA.
    • Viral proteins and RNA assemble at the cell membrane.
    • The new virion buds off, and protease cleaves polyproteins into their functional forms, leading to maturation.

Exam Favorite: Individuals with a homozygous deletion of the CCR5 gene (CCR5-delta32 mutation) have resistance to HIV infection, as the virus cannot bind to and enter macrophages.

  • HIV is a diploid, positive-sense, single-stranded RNA retrovirus.
  • Key structural genes are env (gp120, gp41), gag (p24 capsid), and pol (reverse transcriptase, integrase, protease).
  • Viral entry requires gp120 binding to CD4 and a co-receptor (CCR5 or CXCR4), followed by gp41-mediated fusion.
  • Reverse transcriptase converts viral RNA into dsDNA, which is integrated into the host genome by integrase.
  • Protease cleaves polyproteins during maturation, a key drug target.

Practice Questions: HIV structure and replication cycle

Test your understanding with these related questions

A 49-year-old homeless man comes to the emergency department because of fatigue, cough, and worsening shortness of breath for 2 weeks. He was diagnosed with HIV-infection 25 years ago but has never had any symptoms. He has always refused to take antiretroviral medication. Pulmonary examination shows diffuse crackles over bilateral lower lung fields. An x-ray of the chest shows diffuse, symmetrical interstitial infiltrates. His serum level of beta-d-glucan is elevated. Further testing shows a heterozygous mutation that prevents entry of HIV into macrophages. Which of the following proteins is most likely affected by the mutation in this patient?

1 of 5

Flashcards: HIV structure and replication cycle

1/10

Which gene is mutated in HIV protease inhibitor resistance?_____

TAP TO REVEAL ANSWER

Which gene is mutated in HIV protease inhibitor resistance?_____

pol gene
