HBV Structure - The Dane Particle

  • Dane Particle: The complete, infectious virion of HBV; 42 nm in diameter.
  • Envelope:
    • Outer lipid layer containing Hepatitis B surface antigen (HBsAg).
    • HBsAg is the basis for the HBV vaccine and is detectable in serum during infection.
  • Core (Nucleocapsid):
    • Icosahedral core composed of Hepatitis B core antigen (HBcAg).
    • Contains Hepatitis B e-antigen (HBeAg), a marker of active replication and high infectivity.
  • Genome & Polymerase:
    • Circular, partially double-stranded DNA genome.
    • Carries its own DNA polymerase with reverse transcriptase activity.

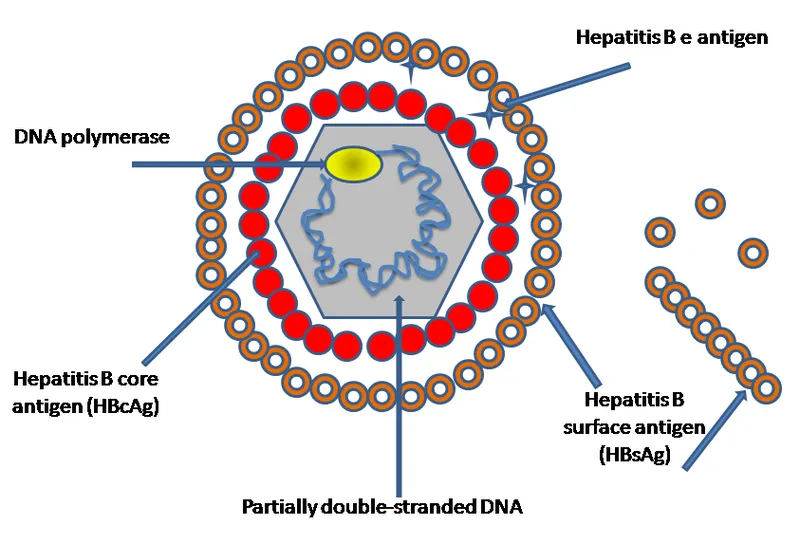

HBV Dane particle structure with antigens and DNA

⭐ Non-infectious HBsAg spheres and filaments are present in patient serum at concentrations much higher than infectious Dane particles.

HBV Replication - Reverse Transcriptase Twist

  • Entry & Nuclear Translocation: Virion enters hepatocyte, uncoats, and the partially double-stranded DNA (pdsDNA) genome travels to the nucleus.
  • cccDNA Formation: Inside the nucleus, host DNA polymerase repairs the pdsDNA into a stable covalently closed circular DNA (cccDNA). This cccDNA serves as a persistent template for all viral transcripts.
  • Transcription: Host RNA polymerase transcribes cccDNA into viral mRNAs and a +ssRNA pre-genome.
  • Core Assembly & Reverse Transcription: In the cytoplasm, the +ssRNA pre-genome is packaged into a new core particle along with the viral polymerase, which has reverse transcriptase (RT) activity.
    • The RT synthesizes a -ssDNA strand from the RNA template.
    • The original RNA template is degraded.
    • A new +ssDNA strand is synthesized, but incompletely, creating the final partially dsDNA genome.
  • Release: New virions are assembled and released from the hepatocyte.

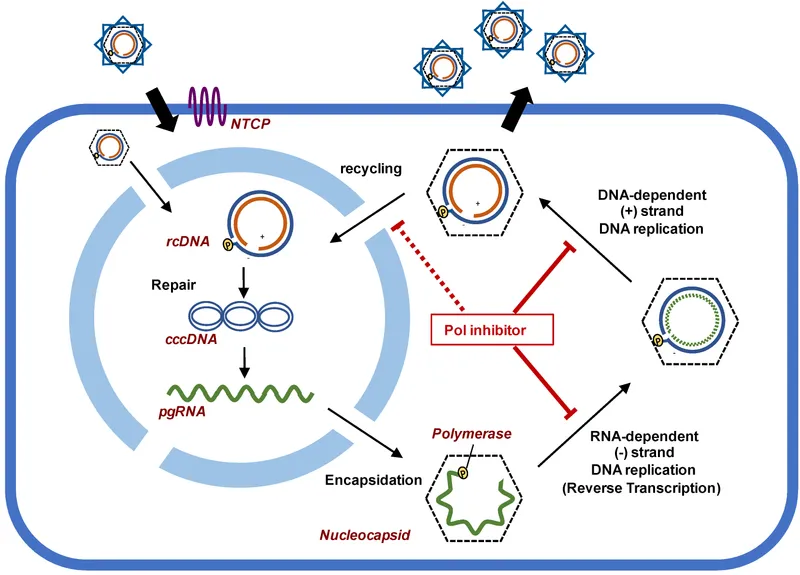

HBV Replication Cycle with cccDNA and Reverse Transcription

⭐ HBV is a DNA virus that uniquely replicates via an RNA intermediate using reverse transcriptase. This RT is the primary target for antiviral nucleoside/nucleotide analogs (NRTIs) like Tenofovir and Entecavir.

HBV Serology - Decoding the Blood

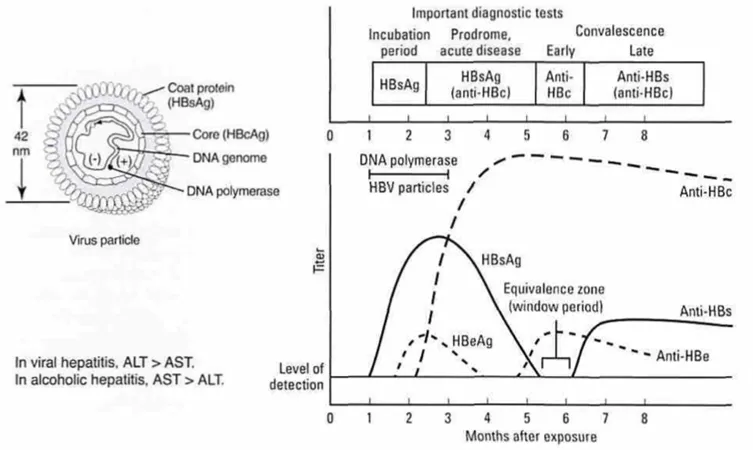

HBV structure and serological markers

  • HBsAg (Surface Antigen): First marker to appear. Indicates active infection (acute or chronic).
  • HBsAb / anti-HBs (Surface Antibody): Indicates immunity from vaccination or recovery from prior infection.
  • HBcAb / anti-HBc (Core Antibody):
    • IgM: Marker of acute infection; positive during the "window period".
    • IgG: Marker of past or chronic infection.
  • HBeAg (Envelope Antigen): Indicates high infectivity and active viral replication.
  • HBeAb / anti-HBe (Envelope Antibody): Indicates low infectivity and ↓ replication.

Window Period: Time when both HBsAg and HBsAb are negative. Diagnosis is made by detecting IgM anti-HBc.

  • HBV is an enveloped, partially double-stranded circular DNA virus, unique for replicating via an RNA intermediate using its own reverse transcriptase.
  • The infectious virion is known as the Dane particle.
  • Replication occurs in the nucleus and cytoplasm; host RNA polymerase creates an RNA template, which is then converted back to DNA by viral reverse transcriptase.
  • HBsAg on the surface indicates infection, while HBeAg correlates with high infectivity and active viral replication.

Practice Questions: HBV structure and replication

Test your understanding with these related questions

A 35-year-old male anesthesiologist presents to the occupational health clinic after a needlestick exposure while obtaining an arterial line in a patient with cirrhosis. In addition to a standard bloodborne pathogen laboratory panel sent for all needlestick exposures at his hospital, additional hepatitis panels are ordered upon the patient's request. The patient's results are shown below: HIV 4th generation Ag/Ab: Negative/Negative Hepatitis B surface antigen (HBsAg): Negative Hepatitis C antibody: Negative Anti-hepatitis B surface antibody (HBsAb): Positive Anti-hepatitis B core IgM antibody (HBc IgM): Negative Anti-hepatitis B core IgG antibody (HBc IgG): Positive What is the most likely explanation of the results above?

1 of 5

Flashcards: HBV structure and replication

1/10

What type of virus is Hepatitis B? (DNA, RNA (sense), etc.)_____

TAP TO REVEAL ANSWER

What type of virus is Hepatitis B? (DNA, RNA (sense), etc.)_____

DNA
