NSTEMI Diagnosis - Spotting the Clues

  • Pathophysiology: Partial coronary artery occlusion → myocardial ischemia.
  • Clinical Presentation: Anginal chest pain lasting >20 minutes, potentially radiating to the jaw, neck, or left arm.
  • ECG Findings:
    • ST-segment depression
    • T-wave inversion
    • Can be normal
  • Cardiac Biomarkers: ↑ Troponin I or T is the hallmark. Levels rise within 2-4 hours.

⭐ Serial troponin measurements are crucial; a single negative troponin at presentation does not rule out NSTEMI.

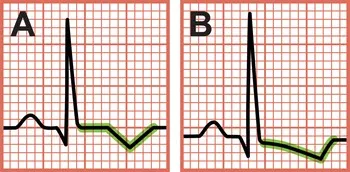

ECG: ST depression and T-wave inversion

Risk Stratification - Sorting the Players

  • Goal: To identify patients who benefit most from an early invasive strategy. This is guided by risk scores and key clinical features.

  • Risk Scores:

    • TIMI Score: Assesses 7 factors; a score of ≥ 3 indicates high risk.
    • GRACE Score: More predictive for mortality; a score > 140 signifies high risk.
  • High-Risk Features (Mandating an Invasive Strategy):

    • Refractory angina despite medical therapy.
    • Dynamic ST changes (e.g., new ST depression).
    • Hemodynamic instability (hypotension, heart failure).
    • Ventricular arrhythmias (VT/VF).

⭐ The GRACE score is a better predictor of in-hospital and long-term mortality than the TIMI score.

Initial Medical Therapy - The Drug Cocktail

Immediate treatment for NSTEMI involves a combination of drugs, often remembered by the mnemonic 📌 MONA-BASH. Note: Oxygen is only given if SpO2 < 90%, and Morphine is used cautiously for persistent pain.

  • Dual Antiplatelet Therapy (DAPT):
    • Aspirin: 325 mg loading dose, then 81 mg daily.
    • P2Y12 Inhibitor: Clopidogrel, Ticagrelor (180 mg loading), or Prasugrel.
  • Anticoagulation:
    • Unfractionated Heparin (UFH) or Low Molecular Weight Heparin (LMWH).
  • Adjunctive Therapy:
    • Beta-blockers: Start within 24 hours if no signs of heart failure.
    • Nitrates: For ongoing chest pain.
    • High-Intensity Statin: e.g., Atorvastatin 80 mg.

⭐ Prasugrel is contraindicated in patients with a history of stroke or TIA.

Invasive vs. Conservative - The Big Decision

Central choice after risk stratification (e.g., TIMI, GRACE score). High-risk patients benefit most from an invasive approach.

  • Immediate Invasive (<2h): For unstable patients.

    • Refractory angina
    • Hemodynamic instability / cardiogenic shock
    • Acute HF
    • Sustained VT/VF
  • Ischemia-Guided (Conservative): Medical management, with angiography reserved for recurrent symptoms or positive stress test.

⭐ An early invasive strategy is preferred for high-risk patients (e.g., GRACE score >140) to reduce future ischemic events.

High-Yield Points - ⚡ Biggest Takeaways

  • Initial management includes MONA-B (Morphine, Oxygen, Nitrates, Aspirin, Beta-blocker) and anticoagulation (e.g., Heparin).
  • All patients receive Dual Antiplatelet Therapy (DAPT), typically aspirin plus a P2Y12 inhibitor.
  • Risk stratify using TIMI or GRACE scores to determine invasive vs. conservative strategy.
  • High-risk features warrant an early invasive strategy (angiography within 24 hours).
  • Low-risk patients can be managed conservatively, often with a stress test to guide further care.
