Pacemakers and ICDs

On this page

Indications & Basics - Why We Need Wires

  • Core Problem: Failure of the heart's intrinsic conduction system, leading to symptomatic bradycardia or risk of sudden cardiac death (SCD) from tachyarrhythmias. Pacemakers provide a safety net; ICDs provide a shock.

  • Pacing for Bradycardia:

    • Symptomatic sinus node dysfunction ("sick sinus syndrome").
    • High-grade AV block: Mobitz II, Third-degree (complete) AV block.
    • Symptomatic bradycardia post-MI or drugs.
  • ICD for Tachycardia:

    • Primary Prevention: Cardiomyopathy with LVEF ≤ 35%.
    • Secondary Prevention: History of survived SCD due to VT/VF.

⭐ For primary prevention, an ICD is indicated in HF patients with LVEF ≤ 35% on optimal medical therapy for >3 months, at least 40 days post-MI.

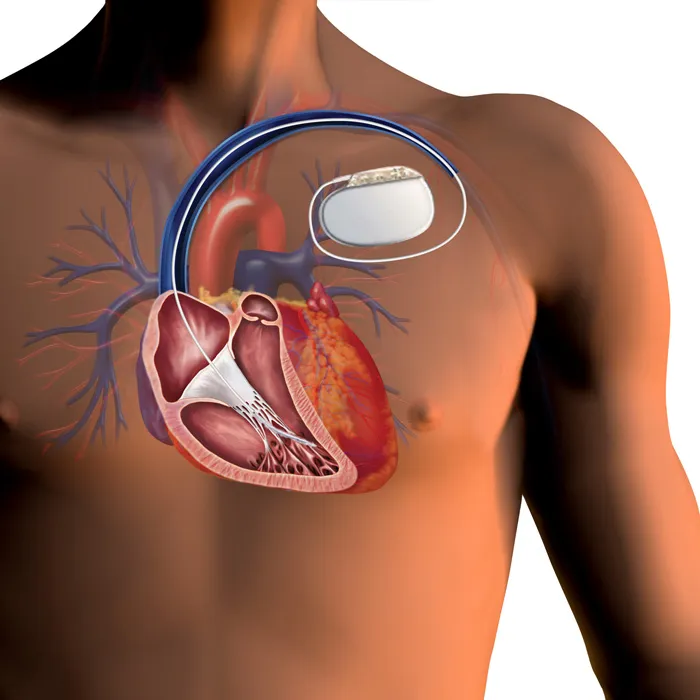

Pacemaker and ICD lead placement in heart chambers

Device Types & Pacing Codes - Alphabet Soup of Pacing

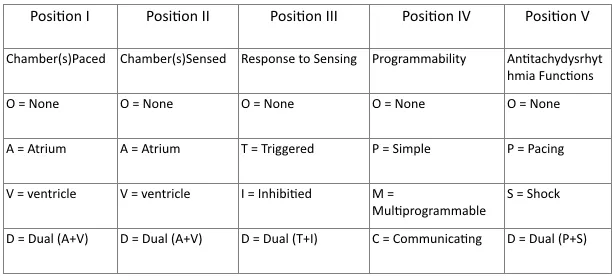

NBG Pacemaker and ICD Code

  • Device Types
DeviceCore FunctionKey Indication(s)
Pacemaker (PPM)Bradycardia treatmentSymptomatic bradycardia, high-degree AV block
ICDTerminates tachyarrhythmiasPrimary/secondary prevention of sudden cardiac death
CRTResynchronizes ventriclesHeart failure (EF ≤35%), LBBB with wide QRS
- 📌 **P**aced, **S**ensed, **R**esponse: Position I, II, III.

Magnet Application: Placing a magnet over an ICD disables its antitachycardia functions (shocking/ATP), but does not affect its pacemaker function. In a pacemaker, a magnet induces an asynchronous pacing mode (e.g., VOO/DOO).

ECG Findings - Reading the Pacer Spikes

  • Pacer Spike: A sharp, vertical line on the ECG indicating pacemaker discharge.
  • Spike Location & Morphology:
    • Atrial Pacing: Spike before the P wave.
    • Ventricular Pacing: Spike before a wide QRS complex (often LBBB-like).
    • Dual-Chamber (AV Sequential): Spikes appear before both the P wave and QRS complex.
  • Capture: Each pacer spike is followed by the expected electrical event (P wave or QRS). Failure to capture means the stimulus was insufficient.
  • Sensing: The pacemaker correctly inhibits firing when it detects an intrinsic beat.

⭐ Placing a magnet over a pacemaker usually forces it into a fixed-rate, asynchronous pacing mode, overriding its sensing function. This helps assess battery status and capture function without interference from the patient's intrinsic rhythm.

Complications & Management - When Good Wires Go Bad

  • Lead Complications:
    • Dislodgement/Fracture: Most common early issue. Leads to failure to sense or capture. Seen on CXR.
    • Perforation: Can cause chest pain, hiccups (phrenic nerve stimulation), or pericardial effusion.
  • Pocket Issues:
    • Infection/Erosion: Erythema, pain, drainage. Requires entire system explant & antibiotics.
    • Twiddler’s Syndrome: Patient manipulation of generator causes lead dislodgement.
  • ICD-Specific:
    • Inappropriate Shocks: Often due to SVT (like AFib) misidentified as VT. Manage underlying arrhythmia; reprogram device.

Device Infection Management: Superficial infection may be treated with antibiotics, but any evidence of deeper pocket or device infection necessitates removal of the entire pacemaker/ICD system (generator and leads).

  • Pacemakers are for symptomatic bradycardia (e.g., 3rd-degree AV block, sick sinus syndrome).
  • ICDs are for primary prevention (HFrEF with EF <35%) and secondary prevention (post-VT/VF arrest).
  • A magnet over a pacemaker causes asynchronous pacing (AOO/VOO/DOO).
  • A magnet over an ICD disables shock therapy but does not affect pacing.
  • Failure to capture shows pacer spikes not followed by a QRS or P-wave.
  • Failure to sense occurs when the pacemaker doesn't detect intrinsic cardiac activity.

Practice Questions: Pacemakers and ICDs

Test your understanding with these related questions

A 16-year-old male presents to the cardiologist after passing out during a basketball practice. An echocardiogram confirmed the diagnosis of hypertrophic cardiomyopathy. The cardiologist advises that a pacemaker must be implanted to prevent any further complications and states the player cannot play basketball anymore. Unfortunately, the coach objects to sidelining the player since a big game against their rivals is next week. The coach asks if the pacemaker can be implanted after the game, which of the following steps should the physician take?

1 of 5

Flashcards: Pacemakers and ICDs

1/10

Patients with Brugada syndrome are at increased risk of ventricular _____ and sudden cardiac death (SCD)

TAP TO REVEAL ANSWER

Patients with Brugada syndrome are at increased risk of ventricular _____ and sudden cardiac death (SCD)

tachyarrhythmias
