Survival Curves - Graphing the Odds

  • Survival Analysis: A core biostatistics method used to analyze time-to-event data, most commonly visualized with a Kaplan-Meier curve.
  • The Graph:
    • X-axis: Time (e.g., days, months, years).
    • Y-axis: Probability of survival. Always starts at 1.0 (100%) and can only decrease or stay level.
  • Interpretation:
    • Each sharp downward step signifies an event (e.g., death) occurring.
    • Horizontal lines indicate intervals where no events were observed.

⭐ Data from patients who are lost to follow-up or who finish the study without an event are censored. They are still included in the analysis up to their last point of contact and are often shown as tick marks on the curve.

Kaplan-Meier survival curve with number at risk table

Kaplan-Meier & Censoring - The Unfinished Story

  • Censoring: Occurs when a subject's outcome is unknown after a certain time. They are considered 'right-censored'.

    • Common Reasons: Patient is lost to follow-up, withdraws consent, or the study ends before the event occurs.
  • Kaplan-Meier Method: Creates a step-wise survival curve. The survival probability is recalculated at each event time.

    • Curve Steps Down: Only when an event (e.g., death) happens.
    • Censored Data: Marked on the curve (often with a tick mark or circle) but do not cause a downward step. They are removed from the at-risk pool for subsequent calculations.

⭐ Censored subjects are still counted in the number at risk until the time they are censored, making their partial follow-up data valuable for the overall analysis.

Curve Comparison - Reading the Lifelines

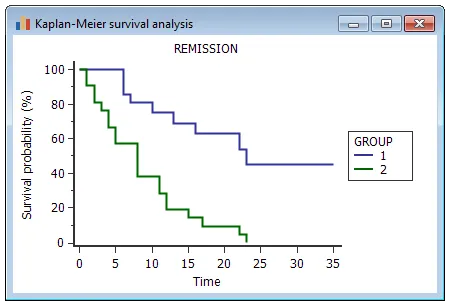

Kaplan-Meier survival curve for two groups

  • Median Survival Time: The time point at which 50% of the study cohort is still alive.

    • To find it, draw a horizontal line from 0.5 on the Y-axis to the survival curve, then drop a vertical line to the X-axis.
  • Interpreting the Curves:

    • A steeper curve indicates a higher rate of events (e.g., death), signifying a worse prognosis.
    • A curve positioned further to the right indicates a lower rate of events, suggesting a better prognosis.
  • Statistical Analysis:

    • Log-Rank Test: A statistical test used to compare two or more survival curves. The null hypothesis ($H_0$) is that there is no difference between the curves. A p-value < 0.05 indicates a statistically significant difference.
    • Hazard Ratio (HR): Compares the event rates between two groups. $HR = \frac{\text{Hazard in treatment group}}{\text{Hazard in control group}}$.

⭐ If the 95% Confidence Interval for the Hazard Ratio (HR) includes 1.0 (e.g., 95% CI: 0.8 - 1.2), the difference in survival between the two groups is not statistically significant.

  • Kaplan-Meier curves are the most common type of survival curve.
  • They display the probability of survival (y-axis) over time (x-axis).
  • Crucially, they account for censored data-patients lost to follow-up or who haven't had the event by the study's end.
  • A steeper curve indicates a worse prognosis and lower survival rate.
  • The median survival time is when the curve crosses 50% survival.
  • Use the log-rank test to compare survival between two or more groups.

Practice Questions: Survival curves

Test your understanding with these related questions

Group of 100 medical students took an end of the year exam. The mean score on the exam was 70%, with a standard deviation of 25%. The professor states that a student's score must be within the 95% confidence interval of the mean to pass the exam. Which of the following is the minimum score a student can have to pass the exam?

1 of 5

Flashcards: Survival curves

1/10

_____ studies are useful for calculating relative risk (RR)

TAP TO REVEAL ANSWER

_____ studies are useful for calculating relative risk (RR)

Cohort
