Cohort Studies - The Forward Pass

  • Cox Proportional Hazards Model: A multivariate survival analysis method used to investigate the effect of several variables on the time it takes for an event of interest to happen.
  • Primary Output: The Hazard Ratio (HR).
    • HR > 1: Increased hazard (risk) in the exposed group.
    • HR < 1: Decreased hazard (protective effect).
  • Core Assumption: The hazards are proportional; the HR between groups remains constant over time.

⭐ Unlike other models, the Cox model is semi-parametric. It makes no assumptions about the baseline hazard function.


Survival Analysis - Beating the Clock

  • Cox Proportional Hazards Model: Multivariate regression analyzing the effect of multiple, independent variables on time-to-event (survival).
  • Key Output: The Hazard Ratio (HR).
    • HR > 1: Predictor ↑ the hazard (bad for survival).
    • HR < 1: Predictor ↓ the hazard (good for survival).
  • Core Assumption: Proportional hazards. The ratio of hazards between groups remains constant over time. If survival curves cross, this assumption is violated.
  • Advantage over Kaplan-Meier: Adjusts for multiple covariates (confounders).

⭐ A Hazard Ratio of 2.0 implies that the exposed group has twice the rate of experiencing the event at any given point in time compared to the non-exposed group.

vs. non-proportional curves (crossing))

Cox Proportional Hazards - The Main Event

  • A multivariable survival model that analyzes time-to-event data, assessing the impact of various predictor variables.
  • Primary Output: Hazard Ratio (HR).
    • Compares the hazard rates between two groups (e.g., treated vs. placebo).
    • HR > 1: Increased event rate in the exposed group.
    • HR < 1: Decreased event rate (protective effect).
    • HR = 1: No difference in hazard.
  • Core Assumption: Proportional Hazards. The ratio of hazards between groups remains constant throughout the study period.
  • Model: $h(t) = h_0(t) \times \exp(\beta_1X_1 + ... + \beta_kX_k)$

⭐ Unlike Kaplan-Meier curves (which show survival for one variable), the Cox model quantifies the effect of multiple independent variables on survival.

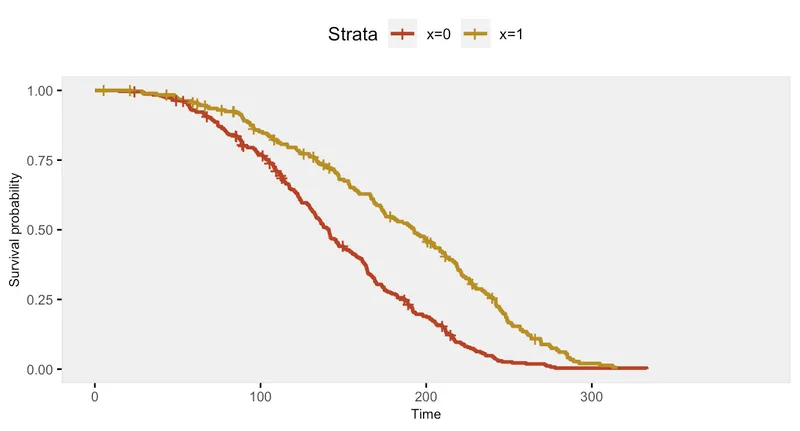

Survival curves illustrating proportional hazards assumption

Hazard Ratio - Reading the Results

  • The Hazard Ratio (HR) is the ratio of hazard rates. It represents the instantaneous risk of an event in the exposed group versus the unexposed group at any point in time.

  • Interpreting the HR Value:

    • HR = 1: Neutral effect.
    • HR > 1: Increased risk of the event.
    • HR < 1: Decreased risk (protective effect).
  • Statistical Significance (95% CI):

    • If the CI contains 1.0, the result is NOT statistically significant.
    • If the CI does NOT contain 1.0, the result IS statistically significant.

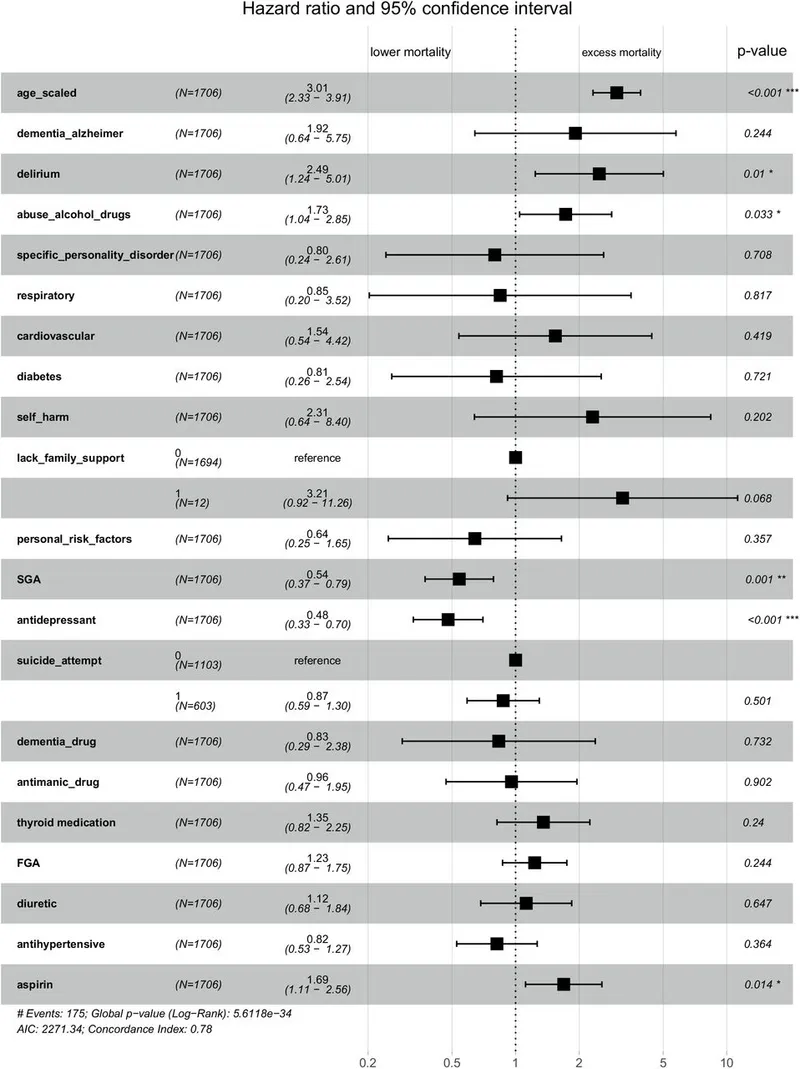

Forest plot of hazard ratios and 95% CIs from Cox model

⭐ The Cox model assumes proportional hazards, meaning the HR is constant over time. Visually, this means the Kaplan-Meier survival curves should not cross.

High‑Yield Points - ⚡ Biggest Takeaways

  • The Cox model is a key survival analysis method for cohort studies.
  • It estimates the Hazard Ratio (HR) to compare time-to-event outcomes.
  • HR > 1 implies increased hazard (risk); HR < 1 implies decreased hazard (protection).
  • Crucially assumes proportional hazards, meaning the HR is constant over the study period.
  • Effectively manages censored data (e.g., loss to follow-up).
  • It is a semiparametric model, making no assumptions about the baseline hazard shape.

Practice Questions: Cox proportional hazards model

Test your understanding with these related questions

Recently, clarithromycin was found to have an increased risk of cardiac death in a Danish study. This study analyzed patients who were previously treated with clarithromycin or another antibiotic, and then they were followed over time to ascertain if cardiac death resulted. What type of study design does this represent?

1 of 5

Flashcards: Cox proportional hazards model

1/10

_____ studies are useful for calculating relative risk (RR)

TAP TO REVEAL ANSWER

_____ studies are useful for calculating relative risk (RR)

Cohort
