Notch signaling pathway

On this page

Notch Signaling - The Touchy Pathway

  • Mechanism: A juxtacrine (cell-to-cell contact) pathway. Ligands (Delta, Jagged) on one cell bind to the Notch receptor on an adjacent cell.
  • Activation Cascade:
    • Ligand binding induces two sequential proteolytic cleavages of the Notch receptor.
    • The second cleavage is by γ-secretase, which releases the Notch Intracellular Domain (NICD).
    • NICD translocates to the nucleus to act as a transcriptional co-activator.
  • Function: Critical for cell fate determination, proliferation, and apoptosis, especially in embryogenesis.

Pathology Link: Mutations in the NOTCH3 gene cause CADASIL (Cerebral Autosomal Dominant Arteriopathy with Subcortical Infarcts and Leukoencephalopathy), a common inherited stroke disorder.

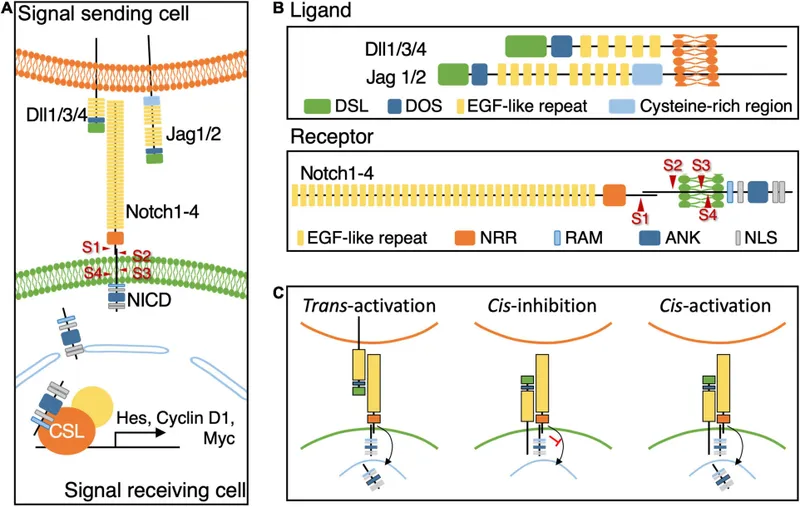

Notch signaling pathway: ligand-receptor interaction & NICD

Core Mechanism - Snip, Zip, and Trip

📌 Mnemonic: Snip, Zip, and Trip outlines the direct, juxtacrine signaling process.

  • Binding & 1st Snip (S2 Cleavage):

    • A transmembrane ligand (Delta, Jagged) on the signaling cell binds the Notch receptor on the receiving cell.
    • Binding triggers a conformational change, exposing an extracellular site for ADAM metalloprotease cleavage.
  • Final Snip (S3 Cleavage):

    • The remaining receptor fragment is cleaved within its transmembrane domain by the γ-secretase complex.
    • This crucial step releases the Notch Intracellular Domain (NICD).
  • Zip & Trip to Nucleus:

    • The soluble NICD ("Trip") rapidly translocates ("Zips") into the nucleus.
    • There, it acts as a co-activator, binding to the CSL transcription factor to initiate target gene expression (e.g., Hes, Hey).

High-Yield Fact: The γ-secretase complex contains Presenilin-1. Mutations in the PSEN1 gene are the most common cause of early-onset, familial Alzheimer's disease.

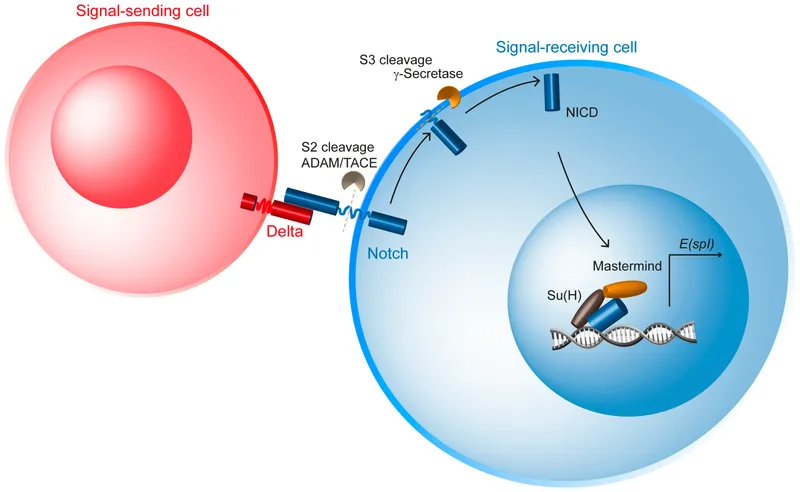

Notch signaling pathway with ligand binding and NICD release

Clinical Correlations - When Notch Goes Rogue

Dysregulation of Notch signaling is a two-edged sword, causing disease through both overactivation and insufficiency.

  • Oncogenic Activation (Gain-of-Function):

    • T-cell Acute Lymphoblastic Leukemia (T-ALL): Over 70% of cases involve activating mutations in the NOTCH1 gene, leading to uncontrolled T-cell proliferation.
    • Solid Tumors: Aberrant Notch signaling promotes cell growth and angiogenesis in breast, lung, and colon cancers. Therapeutic monoclonal antibodies targeting Notch receptors are in development.
  • Haploinsufficiency Syndromes (Loss-of-Function):

    • Alagille Syndrome (ALGS): Caused by mutations in JAG1 (ligand) or NOTCH2 (receptor).
      • Presents with multisystem findings. 📌 JAGGED: Jaundice (cholestasis), Arterial stenosis (pulmonary), Growth retardation, Gut (bile duct paucity), Eyes (posterior embryotoxon), Dysmorphic facies.
      • Characteristic "butterfly vertebrae" are a key radiographic finding. X-ray showing butterfly vertebrae in Alagille syndrome
    • CADASIL: Mutations in NOTCH3 lead to recurrent subcortical strokes and dementia in adults.

Exam Favorite: The most frequently tested association is the activating mutation of NOTCH1 as a primary driver in T-cell Acute Lymphoblastic Leukemia (T-ALL).

High‑Yield Points - ⚡ Biggest Takeaways

  • Juxtacrine signaling: Requires direct cell-to-cell contact; no diffusible signal.
  • Ligand binding (e.g., Delta, Jagged) triggers two proteolytic cleavages of the Notch receptor.
  • The final cleavage is by γ-secretase, releasing the Notch Intracellular Domain (NICD).
  • NICD translocates to the nucleus, acting as a transcriptional co-activator to alter gene expression.
  • Crucial for cell fate decisions in embryonic development, neurogenesis, and angiogenesis.
  • Mutations are linked to Alagille syndrome and cancers like T-ALL.

Practice Questions: Notch signaling pathway

Test your understanding with these related questions

A patient presents to his primary care physician with complaints of regular headaches and upper abdominal pain. On physical examination, his spleen and liver seem enlarged, and his face is plethoric. Gastroendoscopy reveals several gastric ulcers ranging from 3–5 mm in greatest dimension. A bone marrow aspirate shows hypercellularity with fibrosis and serum erythropoietin is low. The patient is informed about a new treatment with ruxolitinib for the main cause of his symptoms. Which of the conditions below can develop due to the same mutation that is causing this patient's symptoms?
