Vertebral Landmarks - The Spinal Skyline

Surface Anatomy of the Back with Key Landmarks

  • C7 (Vertebra Prominens): Most prominent spinous process, easily palpated at the base of the neck with flexion.
  • T3: Spinous process is level with the medial spine of the scapula.
  • T7: Spinous process aligns with the inferior angle of the scapula (with arm adducted).
  • L4: Tuffier's Line, connecting iliac crests, crosses the L4 spinous process or L4-L5 interspace.
  • S2: Corresponds to the Posterior Superior Iliac Spines (PSIS), often visible as skin dimples.

High-Yield: Tuffier's line is a critical landmark for lumbar puncture. Targeting the L4-L5 interspace minimizes risk of spinal cord injury, as the adult cord typically terminates at L1-L2.

Scapular & Pelvic Landmarks - Bony Backside Bits

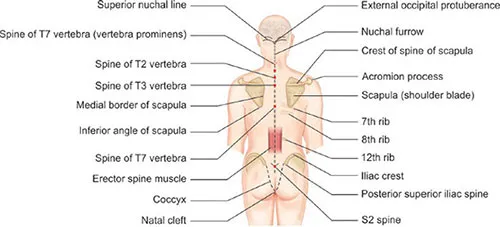

Surface Anatomy of the Back: Bony Landmarks

  • Scapular Landmarks:

    • Spine of Scapula: Palpable ridge running obliquely to the acromion.
    • Acromion: Bony "tip" of the shoulder.
    • Inferior Angle: Lowest point of the scapula, typically overlying the 7th rib or T7 vertebra.
    • Medial Border: Vertical edge parallel to the thoracic vertebral spines.
  • Pelvic Landmarks:

    • Iliac Crest: Superior rim of the pelvis. The highest point (supracristal plane) is at the L4 vertebral level.
    • Posterior Superior Iliac Spine (PSIS): Palpable as a small dimple just above the buttocks, at the S2 vertebral level.

⭐ The supracristal plane (Tuffier's line) is a critical landmark for performing a lumbar puncture, as it intersects the spine at the L4-L5 interspace.

📌 Mnemonic (Vertebral Levels): The iliac crest is at L4 (4 letters in "iliac"), and the PSIS is at S2 (2 dimples).

Muscles & Anatomic Triangles - Back Muscle Map

Back Muscles with Triangles of Auscultation and Lumbar

  • Superficial Muscles:
    • Trapezius: Elevates, retracts, and rotates scapula.
    • Latissimus Dorsi: Adducts, extends, and internally rotates the humerus. 📌 Thoracodorsal nerve (C6-C8).
  • Intermediate & Deep Muscles:
    • Serratus Posterior: Superior (inspiration) & Inferior (expiration).
    • Erector Spinae: Chief extensor of the vertebral column.
  • Key Anatomical Spaces:
    • Triangle of Auscultation: Ideal for hearing posterior lung sounds.
    • Lumbar Triangle (of Petit): Site of potential lumbar hernias.

⭐ The Triangle of Auscultation is bordered by the latissimus dorsi, trapezius, and the medial border of the scapula. Its floor is thin, allowing for clearer respiratory sounds.

Clinical Correlations - Procedure Pointers

  • Lumbar Puncture (LP) & Epidural Anesthesia

    • Landmark: Highest points of iliac crests intersect at the L4 vertebral body.
    • Insertion Site: L3-L4 or L4-L5 interspace to avoid spinal cord termination (~L1-L2).
  • Thoracentesis

    • Location: Mid-axillary line, 1-2 intercostal spaces below the fluid level.
    • Technique: Insert needle over the superior rib margin to avoid the subcostal neurovascular bundle.
  • Triangle of Auscultation

    • Borders: Trapezius, latissimus dorsi, medial border of scapula.
    • Significance: Clearer lung sounds due to thinner musculature.

LP Needle Path: Skin → Supraspinous lig. → Interspinous lig. → Ligamentum flavum → Epidural space → Dura mater → Arachnoid mater → Subarachnoid space (for CSF).

Ultrasound-guided lumbar puncture on a manikin

High‑Yield Points - ⚡ Biggest Takeaways

  • Vertebra prominens (C7) is the most superiorly palpable spinous process.
  • The spine of the scapula aligns with the T3 spinous process.
  • The inferior angle of the scapula corresponds to the T7 spinous process.
  • The supracristal plane (iliac crests) crosses the L4 vertebra, a key landmark for lumbar puncture.
  • PSIS (dimples) are at the S2 level, marking the sacroiliac joints.
  • The triangle of auscultation is a key site for listening to posterior lung sounds.

Practice Questions: Back surface landmarks

Test your understanding with these related questions

A patient presents with difficulty extending their wrist following trauma to the posterior forearm. Which of the following muscles would be most affected by injury to the posterior interosseous nerve?

1 of 5

Flashcards: Back surface landmarks

1/7

The _____ is the caudal end of the spinal cord; ends at L2 vertebra in adults

TAP TO REVEAL ANSWER

The _____ is the caudal end of the spinal cord; ends at L2 vertebra in adults

conus medullaris
