Cell Membrane - The Gatekeeper

  • Fluid Mosaic Model: A dynamic, fluid structure composed of a phospholipid bilayer with embedded proteins and cholesterol.
  • Key Components:
    • Phospholipid Bilayer: Amphipathic barrier; hydrophilic heads face outward, hydrophobic tails face inward.
    • Cholesterol: Modulates membrane fluidity. ↑Cholesterol → ↓fluidity.
    • Proteins: Integral (transmembrane) or peripheral; function as channels, pumps, receptors, and enzymes.
  • Primary Function: Governs passage of substances via selective permeability.

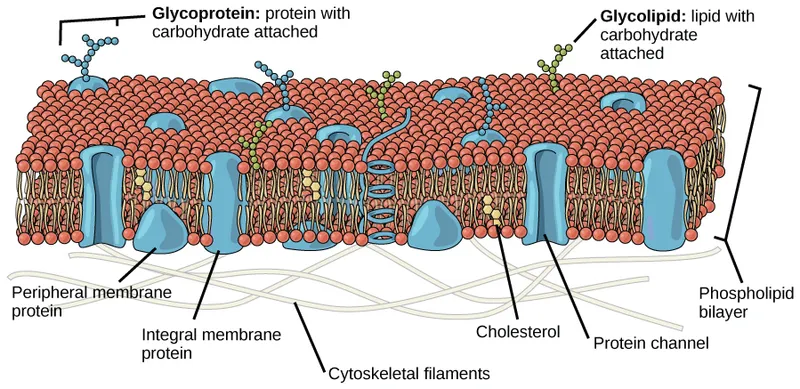

Fluid mosaic model of cell membrane

Exam Favorite: Cystic fibrosis is caused by a mutation in the CFTR gene, leading to a defective chloride ion channel (an integral membrane protein), highlighting the critical role of membrane transport in human disease.

Nucleus - The Command Center

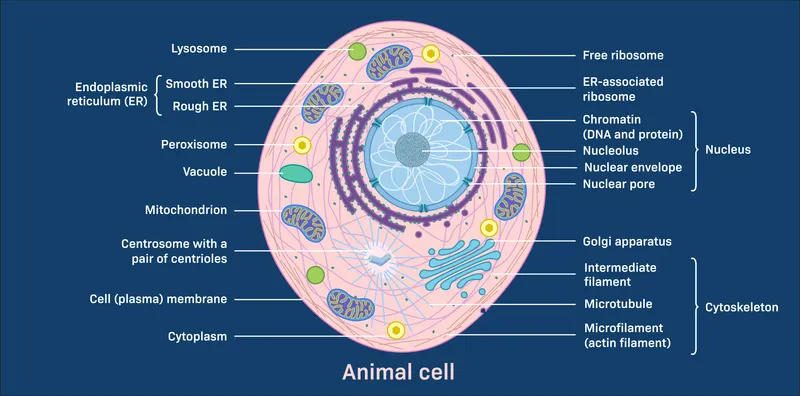

Animal Cell Diagram with Organelles Labeled

  • Function: Contains genetic material (DNA); directs protein synthesis and cell division.
  • Key Structures:
    • Nuclear Envelope: Double membrane with pores regulating molecular traffic.
    • Nucleolus: Dense, non-membranous body; primary site of ribosome (rRNA) synthesis.
    • Chromatin: DNA complexed with histone proteins.
      • Euchromatin: Less condensed, transcriptionally active.
      • Heterochromatin: Highly condensed, inactive.
      • 📌 Euchromatin is Expressed; Heterochromatin is Highly condensed.

⭐ The nucleus and its contents (DNA, RNA) are basophilic, staining dark blue/purple on H&E due to the negative charges of phosphate backbones.

Protein Production - The Assembly Line

  • Central Dogma: DNA → RNA → Protein
  • Site: Nucleus (transcription) → Cytoplasm/RER (translation) → Golgi (modification/sorting)
  • Rough ER (RER): Synthesizes proteins for secretion, membranes, or organelles. Abundant in secretory cells (e.g., plasma cells).
  • Golgi Apparatus: The cell's "post office." Modifies, sorts, and packages proteins and lipids.
    • cis-Golgi: Receiving side (from RER).
    • trans-Golgi: Shipping side.

⭐ In I-cell disease, the Golgi fails to add mannose-6-phosphate to lysosomal proteins. They are secreted extracellularly instead, leading to coarse facial features, skeletal abnormalities, and developmental delay.

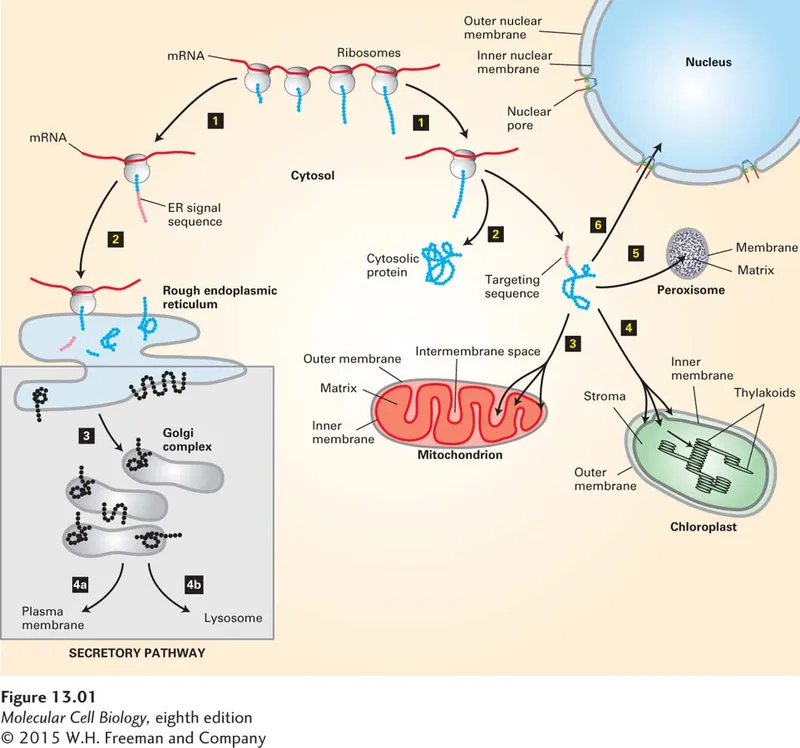

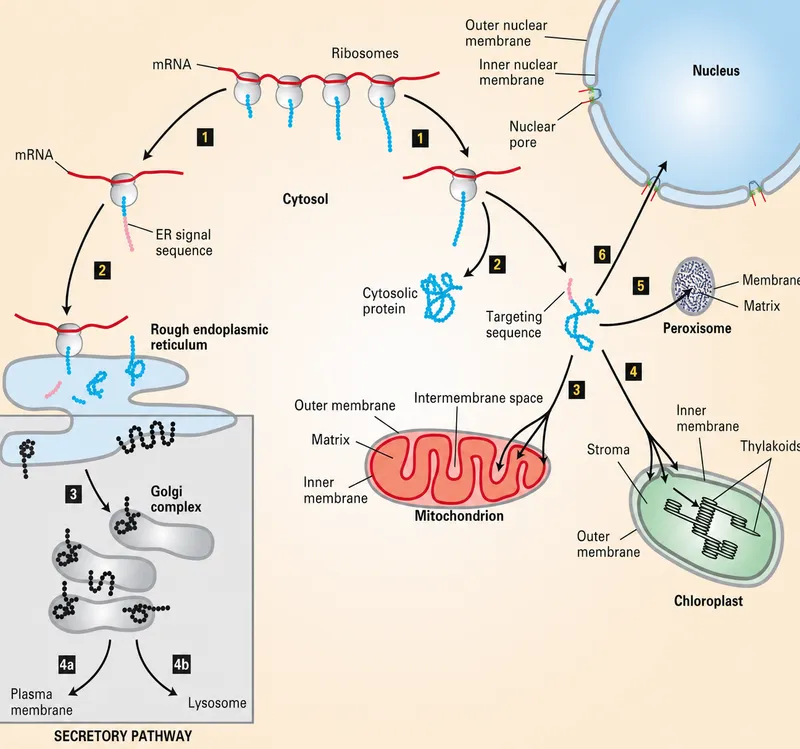

Protein synthesis and targeting to organelles

Metabolic Hubs - Clean-up & Detox

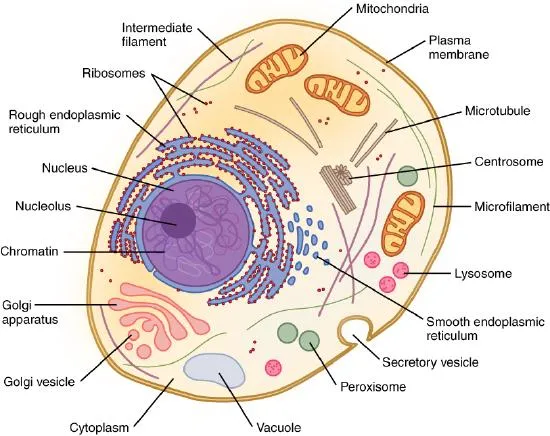

Animal Cell Anatomy Diagram

  • Peroxisome: Membrane-enclosed organelle.

    • Functions: β-oxidation of very-long-chain fatty acids (VLCFA), α-oxidation, and catabolism of amino acids & ethanol.
    • Enzymes: Contains catalase and other oxidases.
    • Pathology: Zellweger syndrome, Refsum disease.
  • Lysosome: "Recycling center".

    • Function: Digests macromolecules and old organelles using acid hydrolases.
    • Mechanism: Requires an acidic environment (pH ~5).

    ⭐ In I-cell disease, a defective phosphotransferase fails to add the mannose-6-phosphate (M6P) tag, so lysosomal proteins are secreted extracellularly instead.

  • Smooth Endoplasmic Reticulum (SER):

    • Function: Site of steroid synthesis and detoxification of drugs and poisons.
    • Key Player: Cytochrome P450 system in hepatocytes.

Energy & Structure - Power and Shape

  • Mitochondria: Powerhouse for ATP synthesis via oxidative phosphorylation. Contains own circular DNA, ribosomes, and self-replicates.
    • Inner membrane folded into cristae, housing the Electron Transport Chain.

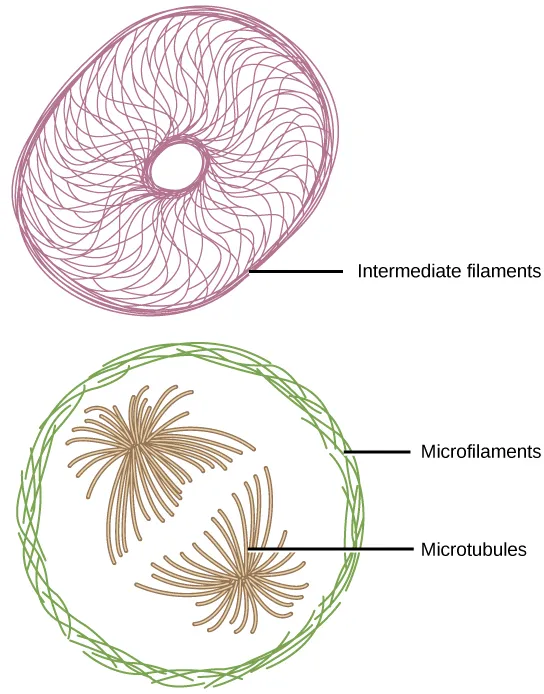

  • Cytoskeleton: Provides cell shape, internal organization, and motility.
    • Microfilaments (Actin): Muscle contraction, cytokinesis.
    • Intermediate Filaments: Maintain structural integrity. 📌 Vimentin, Desmin, Cytokeratin.
    • Microtubules (Tubulin): Cilia, flagella, axonal transport, mitotic spindle.


⭐ Kartagener syndrome (Primary Ciliary Dyskinesia) is caused by a dynein arm defect in microtubules, leading to situs inversus, chronic sinusitis, and bronchiectasis.

High‑Yield Points - ⚡ Biggest Takeaways

  • Mitochondria are the site of oxidative phosphorylation and have their own maternally inherited DNA.
  • Lysosomal storage diseases (e.g., Tay-Sachs) result from defects in hydrolytic enzymes.
  • Peroxisomes are crucial for β-oxidation of very-long-chain fatty acids; defects cause Zellweger syndrome.
  • Rough ER synthesizes secretory and membrane proteins and is prominent in plasma cells.
  • Smooth ER is vital for steroid synthesis and detoxification; abundant in liver and adrenal cells.
  • The Golgi apparatus modifies proteins, targeting them to lysosomes via mannose-6-phosphate; defects cause I-cell disease.

Practice Questions: Cell structure and organelles

Test your understanding with these related questions

An investigator is developing a drug that selectively inhibits the retrograde axonal transport of rabies virus towards the central nervous system. To achieve this effect, this drug must target which of the following?

1 of 5

Flashcards: Cell structure and organelles

1/10

The intermediate filament Desmin is found in _____ cells

TAP TO REVEAL ANSWER

The intermediate filament Desmin is found in _____ cells

muscle
