Motor testing of myotomes

On this page

Myotomes - Muscle Maps

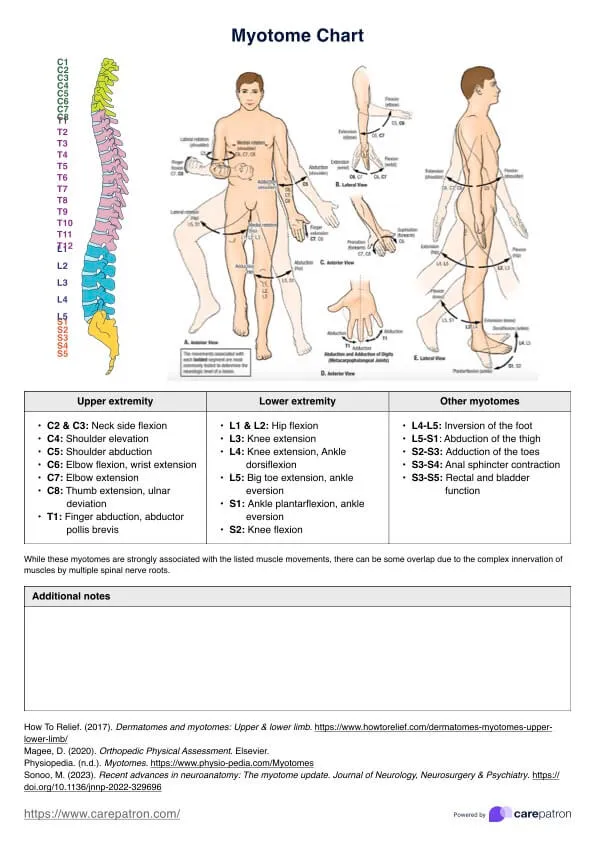

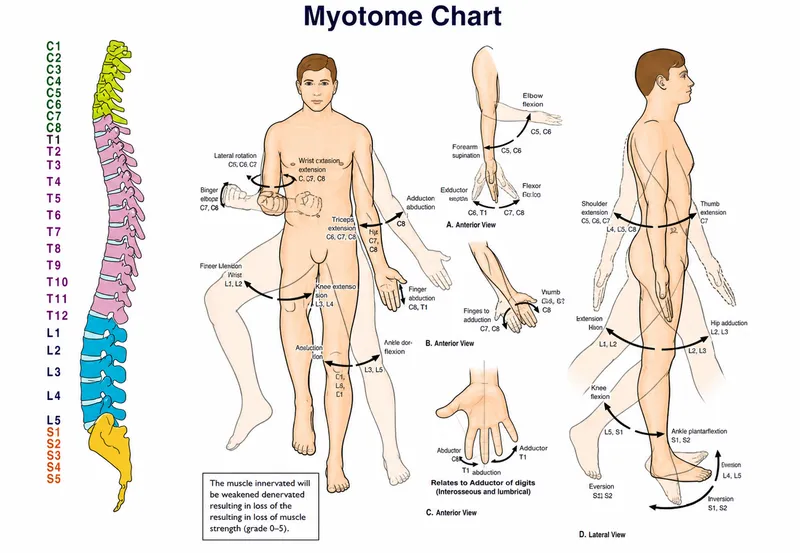

Myotome Chart with Motor Actions and Spinal Nerve Roots

  • Upper Limb

    • C5: Shoulder abduction (Deltoid)
    • C6: Elbow flexion & Wrist extension (Biceps)
    • C7: Elbow extension & Wrist flexion (Triceps)
    • C8: Finger flexion (FDP)
    • T1: Finger abduction (Interossei)
  • Lower Limb

    • L2: Hip flexion (Iliopsoas)
    • L3: Knee extension (Quadriceps)
    • L4: Ankle dorsiflexion (Tibialis anterior)
    • L5: Great toe extension (EHL)
    • S1: Ankle plantarflexion (Gastrocnemius)

⭐ Foot drop (weak dorsiflexion) classically points to an L4/L5 lesion, while difficulty walking on tiptoes suggests an S1 lesion.

Upper Limb Testing - Arm Actions

Motor tests for upper limb myotomes help localize nerve root lesions. Each level corresponds to a primary muscle action, crucial for clinical examination.

Nerve RootAction TestedKey Muscles Involved
C5Shoulder AbductionDeltoid, Supraspinatus
C6Elbow Flexion, Wrist ExtensionBiceps, Brachioradialis
C7Elbow Extension, Wrist FlexionTriceps, FCR/ECR
C8Finger Flexion (Grip)FDS, FDP
T1Finger Abduction/AdductionInterossei

⭐ A C5-C6 root injury (Erb's Palsy) causes a "waiter's tip" hand. In contrast, a C8-T1 root injury (Klumpke's Palsy) results in a "claw hand" from paralysis of intrinsic hand muscles.

📌 Mnemonic: Use your fingers to count down the nerve roots: 5 (arm up), 6 (flex bicep), 7 (push down), 8 (grip), T1 (spread fingers).

Lower Limb Testing - Leg Levers

Myotome Chart: Spinal Nerve Roots and Muscle Movements

This table outlines key muscle tests for lower limb myotomes, often conceptualized as levers of the leg.

Nerve RootPrimary Muscle(s)ActionTest Maneuver
L1, L2, L3IliopsoasHip FlexionPatient lifts thigh against resistance.
L3, L4Quadriceps FemorisKnee ExtensionPatient extends knee against resistance.
L4Tibialis AnteriorFoot Dorsiflexion & InversionPatient dorsiflexes and inverts foot.
L5Ext. Hallucis LongusGreat Toe ExtensionPatient extends big toe against resistance.
S1Gastrocnemius, SoleusFoot PlantarflexionPatient walks on toes or plantarflexes.

⭐ The L5 nerve root is the most commonly affected in lumbar disc herniations. Weakness in great toe extension (Extensor Hallucis Longus) is a key clinical sign for L5 radiculopathy, often presenting with foot drop.

High‑Yield Points - ⚡ Biggest Takeaways

  • C5 (deltoid) is key for shoulder abduction; test by resisting downward arm pressure.
  • C6 governs elbow flexion (biceps) and wrist extension.
  • C7 controls elbow extension (triceps) and wrist flexion.
  • L4 weakness causes foot drop (failed ankle dorsiflexion).
  • L5 is tested by great toe extension (extensor hallucis longus).
  • S1 is crucial for ankle plantarflexion; assess with toe-walking.

Practice Questions: Motor testing of myotomes

Test your understanding with these related questions

A 16-year-old boy is brought to the emergency department after being tackled at a football game. Per his mom, he is the quarterback of his team and was head-butted in the left shoulder region by the opposing team. Shortly after, the mother noticed that his left arm was hanging by his torso and his hand was “bent backwards and facing the sky.” The patient denies head trauma, loss of consciousness, sensory changes, or gross bleeding. A physical examination demonstrates weakness in abduction, lateral rotation, flexion, and supination of the left arm and tenderness of the left shoulder region with moderate bruising. Radiograph of the left shoulder and arm is unremarkable. Which of the following is most likely damaged in this patient?

1 of 5

Flashcards: Motor testing of myotomes

1/7

What kind of rotation do the following muscles allow the hip to do?_____Gluteus medius (F)Gluteus minimus (F)Tensor fascia lata (AB)

TAP TO REVEAL ANSWER

What kind of rotation do the following muscles allow the hip to do?_____Gluteus medius (F)Gluteus minimus (F)Tensor fascia lata (AB)

Internal rotation
