Dermatome Overlap - Nerves Sharing Turf

  • Adjacent dermatomes exhibit considerable overlap; sensory fibers from one spinal root extend into the territories of neighboring roots.
  • Clinical Significance:
    • To produce a region of complete anesthesia, at least 3 contiguous spinal nerves must be transected or blocked.
    • Loss of a single spinal nerve rarely causes complete anesthesia, but rather diminished sensation (hypoesthesia), due to this compensatory overlap.
    • This is distinct from peripheral nerve lesions, which result in sensory loss with sharper borders.

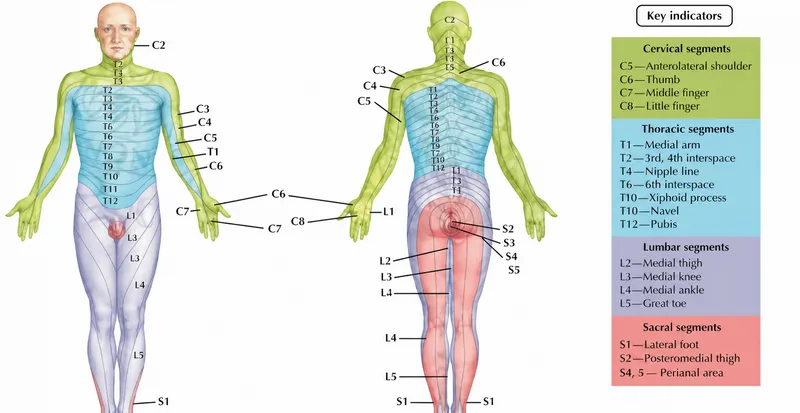

Dermatome Map with Overlap Indication

⭐ The C1 spinal nerve is purely motor and has no corresponding dermatome, a frequent exam point.

Clinical Testing - Pinpointing the Lesion

  • Principle of Overlap: Due to significant dermatome overlap, a single nerve root lesion (radiculopathy) rarely causes complete anesthesia. The goal is to find hypoesthesia (diminished sensation), not total absence.

  • Testing Modalities:

    • Light Touch: Assesses dorsal column-medial lemniscus pathway (large, myelinated Aβ fibers).
    • Pinprick (Pain): Assesses spinothalamic tract (small, unmyelinated C and Aδ fibers).
    • Always test and compare bilaterally.
  • Procedure:

    • Patient’s eyes should be closed to prevent visual cues.
    • Test the most autonomous (purest) region of a dermatome where overlap is minimal.
    • Compare the affected side to the contralateral, unaffected side.

Exam Pearl: When testing for radiculopathy, sensory deficits are often more subjective and less reliable than motor deficits (myotomal weakness). Always correlate sensory findings with motor examination and reflexes for an accurate diagnosis.

Dermatome Map with Key Sensory Testing Points

Pathological Correlates - Zoster & Referred Pain

  • Herpes Zoster (Shingles)

    • Reactivation of latent Varicella-Zoster Virus (VZV) in the dorsal root ganglion.
    • Erupts as a painful, unilateral vesicular rash restricted to a single dermatome.
    • Pain often precedes the rash; thoracic and trigeminal nerves are most common.
    • Complication: Postherpetic neuralgia (chronic pain).
  • Referred Pain

    • Visceral pain perceived at a somatic location.
    • Mechanism: Visceral and somatic afferent fibers converge on the same second-order neurons in the spinal cord, leading to misinterpretation by the brain.
    • Classic examples:
      • Cardiac pain (MI) → T1-T4 (left arm/chest).
      • Diaphragmatic irritation → C3-C5 (shoulder tip).

Kehr's Sign: A classic example of referred pain where diaphragmatic irritation (e.g., from splenic rupture) causes sharp pain in the left shoulder tip, corresponding to the C4 dermatome.

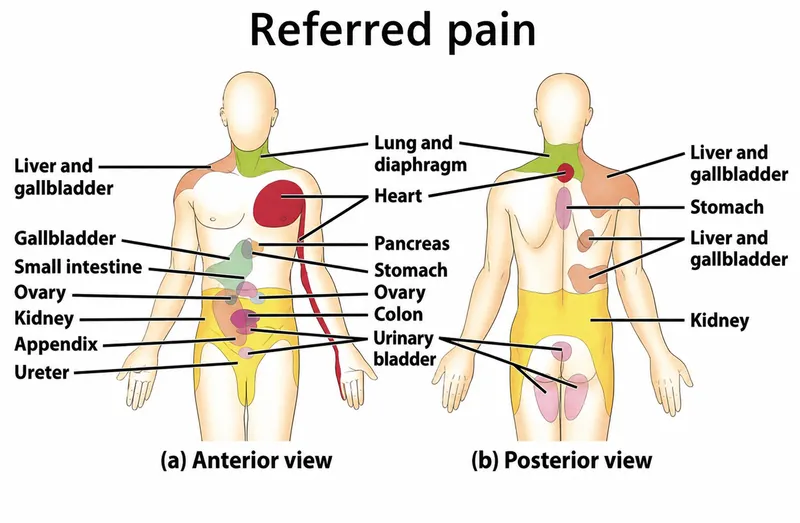

Referred pain: Anterior and posterior views

High‑Yield Points - ⚡ Biggest Takeaways

  • Significant dermatome overlap means that to produce a region of complete anesthesia, at least 3 consecutive spinal nerves must be lesioned.
  • Radiculopathy (nerve root lesion) causes sensory loss in a dermatomal pattern; this is distinct from peripheral nerve distributions.
  • Herpes zoster (shingles) reactivation causes a classic painful, vesicular rash strictly limited to a single dermatome.
  • Key dermatome landmarks are crucial for localizing spinal cord level: T4 at the nipple, T10 at the umbilicus, and L4 includes the kneecap.

Practice Questions: Dermatome overlap and clinical implications

Test your understanding with these related questions

A 50-year-old male is brought to the dermatologist's office with complaints of a pigmented lesion. The lesion is uniformly dark with clean borders and no asymmetry and has been increasing in size over the past two weeks. He works in construction and spends large portions of his day outside. The dermatologist believes that this mole should be biopsied. To prepare the patient for the biopsy, the dermatologist injects a small amount of lidocaine into the skin around the lesion. Which of the following nerve functions would be the last to be blocked by the lidocaine?

1 of 5

Flashcards: Dermatome overlap and clinical implications

1/5

What dermatomes are responsible for erections and sensation of the penile/anal zones? _____

TAP TO REVEAL ANSWER

What dermatomes are responsible for erections and sensation of the penile/anal zones? _____

S2, S3, S4
