A 58-year-old female presents to her primary care physician with complaints of chest pain and palpitations. A thorough past medical history reveals a diagnosis of rheumatic fever during childhood. Echocardiography is conducted and shows enlargement of the left atrium and narrowing of the mitral valve opening. Which of the following should the physician expect to hear on cardiac auscultation?

Continuous, machine-like murmur

Holosystolic murmur that radiates to the axilla

High-pitched, blowing decrescendo murmur in early diastole

A 67-year-old man with type 2 diabetes mellitus comes to the emergency department because of lightheadedness over the past 2 hours. He reports that he has had similar episodes of lightheadedness and palpitations over the past 3 days. His only medication is metformin. His pulse is 110/min and irregularly irregular. An ECG shows a variable R-R interval and absence of P waves. The patient undergoes transesophageal echocardiography. During the procedure, the tip of the ultrasound probe is angled posteriorly within the esophagus. This view is most helpful for evaluating which of the following conditions?

Aneurysm of the descending aorta

Thrombus in the left pulmonary artery

Thrombus in the left ventricular apex

Tumor in the right main bronchus

A young researcher is responsible for graphing laboratory data involving pulmonary blood flow and ventilation pattern obtained from a healthy volunteer who was standing in an upright position. After plotting the following graph, the researcher realizes he forgot to label the curves and the x-axis (which represents the position in the lung). Which of the following is the appropriate label for each point on the graph?

A: Ventilation B: Blood flow C: Base of the lung D: Apex of the lung

A: Ventilation B: Blood flow C: Mid-portion of the lung D: Apex of the lung

A: Dead Space B: Shunt C: Base of the lung D: Apex of the lung

A: Blood flow B: Ventilation C: Base of the lung D: Lung hilum

A: Blood flow B: Ventilation C: Apex of the lung D: Lung hilum

A 71-year-old man undergoes CT angiography for suspected mesenteric ischemia. Axial sections at the L1 level show a dissection flap in the superior mesenteric artery with the true lumen severely narrowed. The false lumen extends into a vessel that crosses anterior to the left renal vein. Coronal reconstructions show this vessel arising from the anterolateral aspect of the aorta at L2. The patient has left flank pain and hematuria in addition to abdominal pain. Synthesize the cross-sectional and vascular anatomy to determine the additional vessel involved.

Left gonadal artery arising from the aorta

Left middle colic artery from the SMA

Left renal artery from the aorta

A 29-year-old pregnant woman at 36 weeks gestation presents with severe right upper quadrant pain and elevated liver enzymes. CT (with abdominal shielding) shows a large subcapsular hematoma of the right hepatic lobe. An axial section at the level of T12 shows the hematoma is located between the liver capsule and parenchyma, with the collection tracking along the bare area of the liver. She develops hypotension. Evaluate the anatomical considerations for determining the optimal surgical approach.

The hematoma can be accessed extraperitoneally via the bare area without entering the peritoneal cavity

Access requires mobilization of the hepatic flexure of the colon first

Immediate laparotomy through the ligamentum teres is required for vascular control

The falciform ligament must be divided to access the hematoma

Supracolic omental bursa entry provides the safest approach

Cardiac cross-sections — USMLE Lesson

Cardiac Axes - Slicing the Pump

Cardiac planes are aligned with the heart's own axis, not the body's, providing standardized views for echocardiography and MRI.

Short-Axis (SAX / Transverse): Perpendicular to the long axis of the left ventricle (LV). Like slicing a loaf of bread, it provides circular cross-sectional views of the ventricles.
Vertical Long-Axis (VLA / Coronal): A "2-chamber view," showing anterior and inferior walls.
Horizontal Long-Axis (HLA / Sagittal): A "4-chamber view," displaying the septal and lateral walls.
Apical 4-Chamber (A4C): Angled view from the apex; not a true orthogonal plane. Visualizes all four chambers simultaneously.

⭐ The short-axis view is the workhorse for assessing left ventricular systolic function and regional wall motion abnormalities.

Short-Axis Views - The Donut Slices

Often called "donut slices," these views are crucial for assessing LV function. The transducer is swept from the base towards the apex.

Level	Key Structures Visible
1. Aortic Valve / Base	Aortic valve ("Mercedes-Benz" sign), LA, RA, RVOT, IAS, IVS
2. Mitral Valve	Mitral valve ("fish-mouth" view), LV, RV
3. Papillary Muscles	Anterolateral & posteromedial papillary muscles, LV, RV
4. Apex	Apical cap of the LV; cavity may obliterate in systole

Long-Axis & 4-Chamber - The Big Picture

Apical 4-Chamber (A4C) View: Best for assessing all four cardiac chambers simultaneously.
- Chambers: Right Atrium (RA), Left Atrium (LA), Right Ventricle (RV), Left Ventricle (LV).
- Valves: Tricuspid (between RA/RV), Mitral (between LA/LV).
- Septa: Interatrial and Interventricular septa.
- 📌 Mnemonic: 'Try before you Buy' (Tricuspid is on the right, before the Bicuspid/Mitral on the left).
Parasternal Long-Axis (PLAX) View: Provides a longitudinal view, cutting the heart from base to apex.
- Structures: Left Ventricle (LV), Left Atrium (LA), RV outflow tract (RVOT), Aorta, Aortic Valve, and Mitral Valve.

⭐ The A4C view is crucial for comparing right and left ventricle sizes. Normally, the RV should be no more than 2/3 the size of the LV. RV enlargement is a key sign of right heart strain.

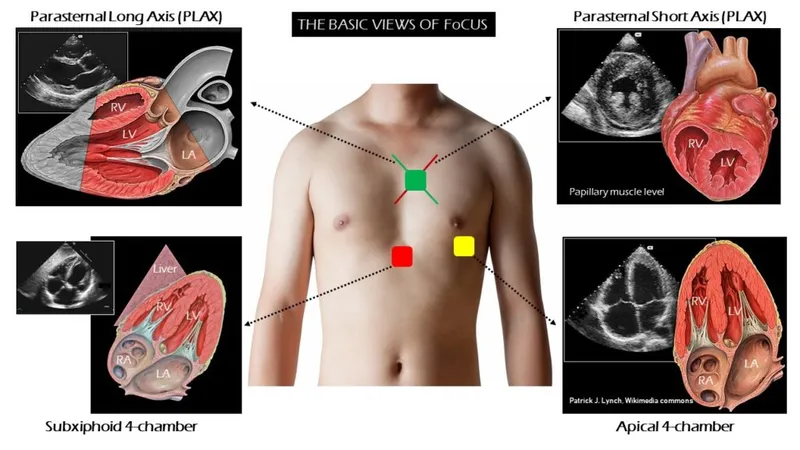

Cardiac Ultrasound Views and Corresponding Anatomy

Clinical Correlations - Pathological Peeks

View	Pathology	Key Finding
PLAX	Hypertrophic Cardiomyopathy (HOCM)	Asymmetric septal hypertrophy, systolic anterior motion (SAM) of mitral valve.
A4C	Atrial Septal Defect (ASD)	Defect in interatrial septum; left-to-right shunt on color Doppler.
A4C	Pericardial Effusion	Anechoic (black) space between pericardium and epicardium.
PSAX	Aortic Stenosis	Calcified leaflets, restricted opening, ↑ velocity across valve.
Subcostal	Cardiac Tamponade	Pericardial effusion with diastolic right ventricular (RV) collapse.

⭐ Beck's Triad for Cardiac Tamponade: Remember the 3 D's: Distant heart sounds, Distended jugular veins, and Decreased arterial pressure (hypotension).

High‑Yield Points - ⚡ Biggest Takeaways

The right ventricle (RV) is the most anterior chamber, most commonly injured in penetrating trauma to the chest.

The left atrium (LA) is the most posterior chamber; its enlargement can compress the esophagus, causing dysphagia.

The left ventricle (LV) forms the apex of the heart and the majority of the left heart border.

The right atrium (RA) forms the right heart border on chest X-ray.

In a transverse section, the esophagus lies directly posterior to the left atrium.
